TrueFlame 40" Built-In Gas Grill – 5 Burners, Infrared
70,000 BTUs and an Infrared Back Burner — The Centerpiece Grill for Outdoor Kitchens Built to Host
Five burners, full lighting, and rotisserie-ready power for outdoor kitchens that need to feed a crowd.

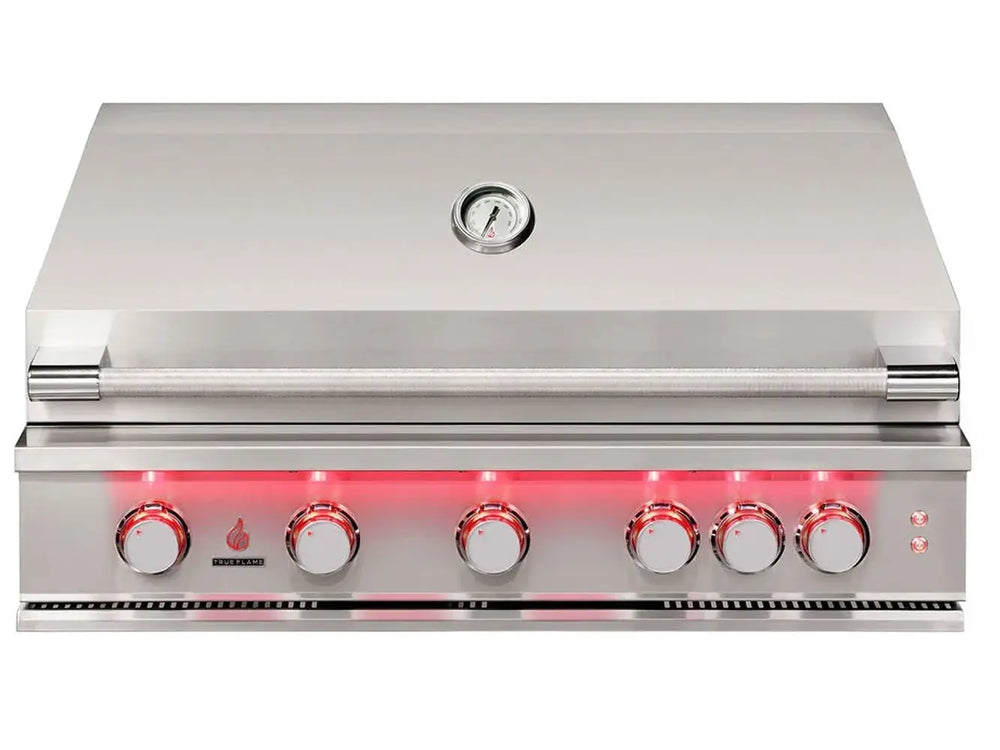

The TrueFlame 40" (TF40) is a built-in gas grill made for outdoor kitchens that entertain often. #304 stainless steel construction houses five 14,000 BTU cast stainless steel burners (70,000 BTUs total), heat zone separators for multi-zone control, and square stainless cooking grates across an 892 sq. in. surface. A 10,000 BTU infrared back burner adds rotisserie-ready performance, and a full lighting package — halogen interior lights, a full-length exterior LED bar, and backlit knob indicators — keeps the whole grilling surface visible after dark. It's backed by the manufacturer's Gold Standard Lifetime Warranty.
Prefer a slightly smaller footprint with the same rotisserie-ready concept? Compare against the TrueFlame 32" built-in gas grill with infrared back burner.
TF40 Features & Benefits
Built to be the centerpiece of an outdoor kitchen designed for entertaining.
Total BTUs Across Five Cast Burners
Five 14,000 BTU cast stainless burners deliver strong, consistent heat across a wide cooking surface for large gatherings.
BTU Infrared Back Burner
Purpose-built for rotisserie cooking, delivering consistent, even heat for poultry, roasts, and large cuts of meat.
Sq. In. Total Cooking Surface
663 sq. in. of primary grate plus a 229 sq. in. warming rack gives you room to cook and hold food for a full table.

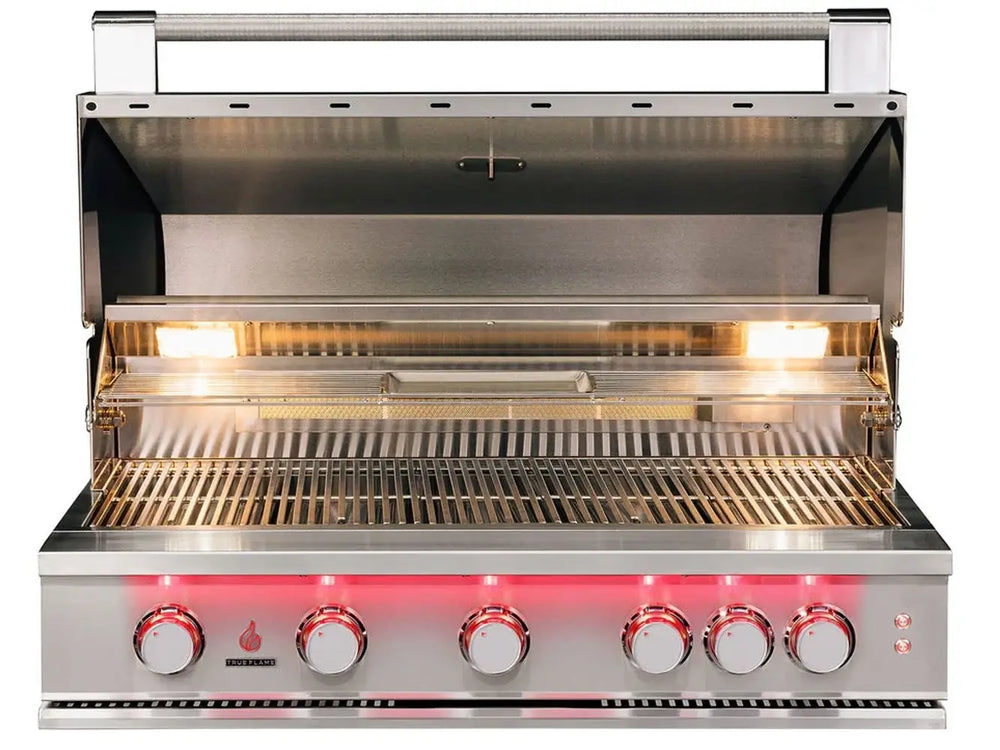

Full Lighting Package
A full-length LED bar, backlit knob indicators, and halogen interior lights keep the entire grilling surface visible after dark.
Separators for Multi-Zone Control
Run mains over high heat while sides finish gently on another zone, across a grill wide enough to do both at once.
Built for Confident, High-Volume Cooking
Square stainless cooking grates increase food contact for bold grill marks, and #304 stainless flame tamers help distribute heat evenly while cutting down on flare-ups. A balanced, multi-position, spring-assisted hood hinge makes lifting the hood smooth even at this size. Piezo and manual flash tube ignition gives you a dependable backup way to light the burners, and the inset, removable cooking tray in the warming rack adds a spot for finishing sauces or holding sides.
Who the TF40 Is For
- Households that frequently entertain and need real five-burner capacity, not just a wider grill head.
- Cooks who want rotisserie capability built in, not added on later as a separate purchase.
- Anyone who grills regularly after dark and wants visibility across the full cooking surface.
- Outdoor kitchens designed as a true entertaining hub, where the grill is the centerpiece.
- Anyone replacing an aging or underpowered 40" built-in grill.
What's Included
TF40 Built-In Grill
- TF40 grill head in your selected fuel type (natural gas or liquid propane)
- Fuel regulator and hose for your selected fuel type
- 10,000 BTU infrared back burner for rotisserie cooking
- Knurled heat-resistant handle
- Square stainless steel cooking grates
- #304 stainless steel flame tamers / burner covers
- Full lighting package: exterior LED bar, backlit knob indicators, halogen interior lighting
- Warming rack with inset, removable cooking tray
- Sold separately: TFRK-40 rotisserie kit (40 lb. motor), TF-IRB drop-in infrared sear burner, deluxe vinyl grill cover, griddle plate, smoker tray, grill liner, and gas timer
TF40 Specifications
Performance
| Main Burners | 5 × 14,000 BTU cast stainless steel burners |
|---|---|
| Total Main Burner BTUs | 70,000 BTUs |
| Infrared Back Burner | 10,000 BTU, included |
| Total Cooking Surface | 892 sq. in. (663 sq. in. primary + 229 sq. in. warming rack) |
| Ignition | Piezo & manual flash tube ignition |
| Heat Zone Separators | Yes |
Construction & Certification
| Material | #304 stainless steel throughout |
|---|---|
| Cooking Grates | Square stainless steel |
| Flame Tamers / Burner Covers | #304 stainless steel |
| Handle & Hood | Knurled, heat-resistant handle; balanced, multi-position, spring-assisted hood hinge |
| Lighting | Full-length exterior LED bar, backlit knob indicators, halogen interior lighting |
| Fuel | Natural gas or liquid propane (regulator and hose included) — select your fuel type above |
| Certification | ETL |
Dimensions & Weight
| Overall Width | 39.7 in (100.8 cm) |
|---|---|
| Overall Depth | 25.6 in (65.0 cm) |
| Overall Height | 21.6 in (54.9 cm) |
| Cutout Dimensions (W × D × H) | 38 1/4 in × 20 3/4 in × 8 1/4 in (97.2 × 52.7 × 21.0 cm) |
| Weight | 175 lbs (79.4 kg) |
Warranty & Buyer Assurance
- Manufacturer's Warranty — Covered by TrueFlame's Gold Standard Lifetime Warranty for consumer use, honored directly by the manufacturer. Manufacturer is not responsible for labor or labor-related costs.
- Free Shipping on orders over $100, contiguous 48 states.
- 45-Day Returns if this grill isn't the right fit for your island.
- Price Match available — found it for less elsewhere? Let us know.
Manuals & Documents
- TrueFlame Product Catalog (PDF) — full product line catalog for reference.
- TrueFlame Grill User Manual (PDF) — covers setup, operation, and safety information.
- TrueFlame Cutout Sheet (PDF) — cutout and clearance reference across the TrueFlame grill line.
- TF40 Line Drawing (PDF) — detailed dimensional drawing for planning your cutout and island layout.
- TF40 Specification Sheet (PDF) — full manufacturer spec sheet for this model.
- Care & Cleaning Guide (PDF) — manufacturer guidance for maintaining the grill's stainless finish.
TF40 — Frequently Asked Questions
Does the TF40 include an infrared back burner?
Yes, a 10,000 BTU infrared back burner is included, purpose-built for rotisserie cooking.
Does the TF40 have built-in lighting?
Yes. It includes halogen interior lights, a full-length exterior LED bar, and backlit knob indicators.
How much total cooking power does the TF40 have?
70,000 BTUs from the five main burners, plus a separate 10,000 BTU infrared back burner for rotisserie cooking.
What ignition system does the TF40 use?
Piezo and manual flash tube ignition, giving you a reliable backup way to light the burners.
What cutout size and weight should I plan for?
The cutout is 38 1/4" wide × 20 3/4" deep × 8 1/4" high, and the grill weighs about 175 lbs. Always confirm against the official line drawing before cutting your island or planning structural support.
What fuel types are available, and is the hose/regulator included?
Natural gas or liquid propane — select your fuel type above. The appropriate regulator and hose for your selected fuel type ship with the grill.
Can I add a sear burner or rotisserie kit later?
Yes. The TF-IRB drop-in infrared sear burner and the TFRK-40 rotisserie kit (40 lb. motor) are both compatible, sold separately.
Is the TF40 certified for safety?
Yes, it's ETL certified.
What's covered under warranty?
TrueFlame's Gold Standard Lifetime Warranty covers the grill for consumer use, honored directly by the manufacturer. Labor costs are not covered.
