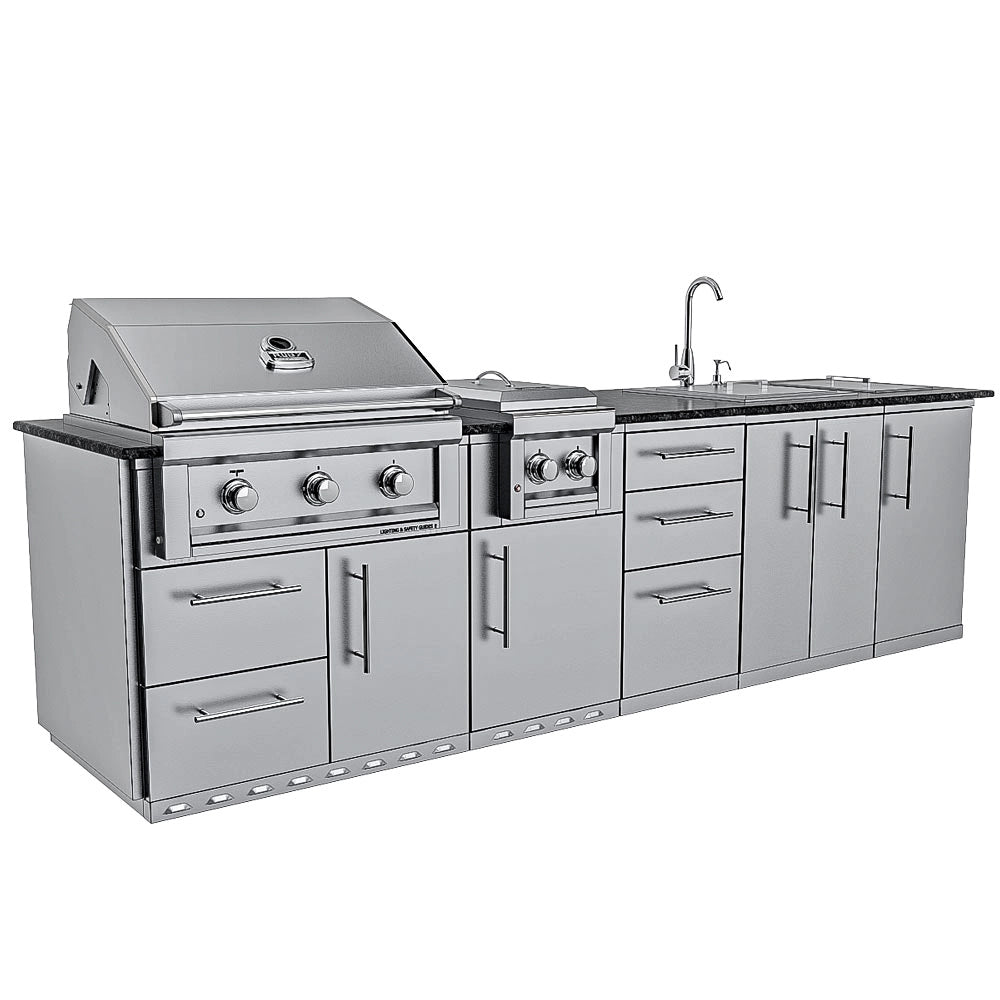

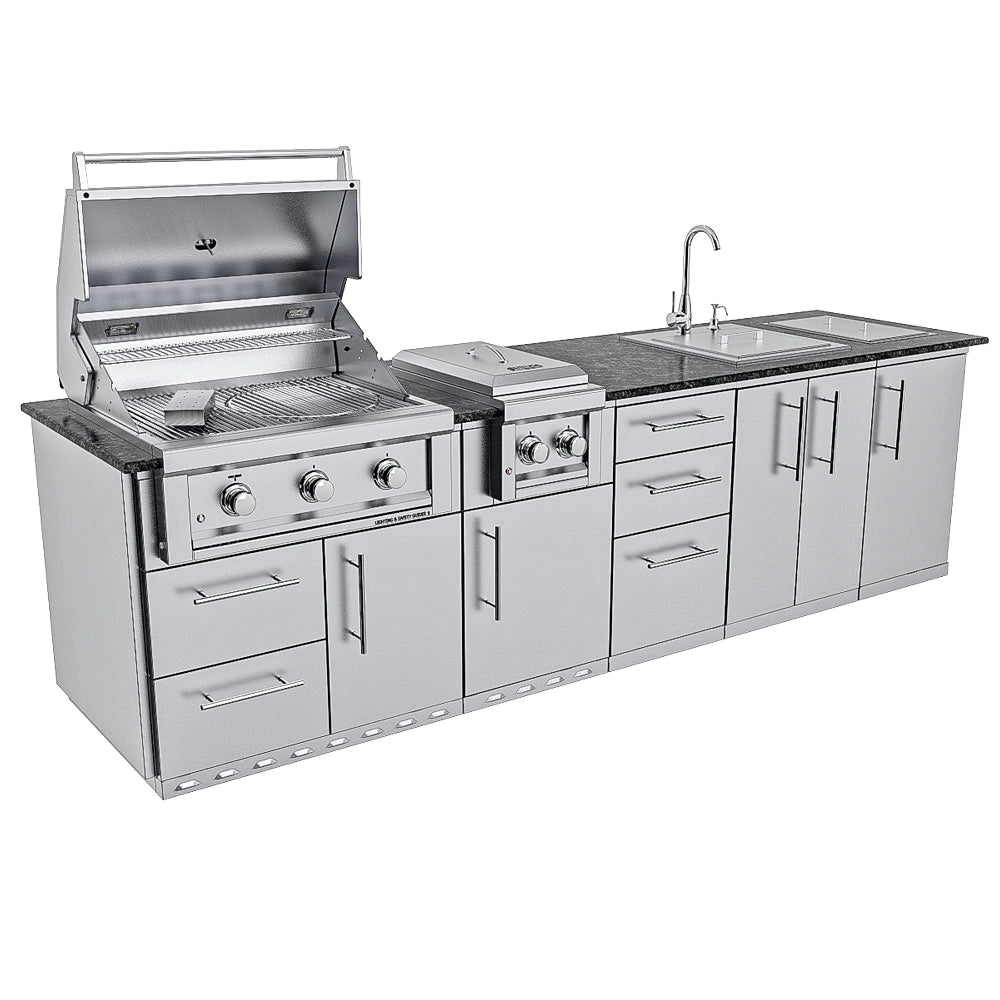

Sunstone SCPMAGNOLIA10 Size 10 ft ADA Kitchen Island

No. The SCPMAGNOLIA10 includes the cabinetry and all appliances listed above, but the countertop is not included. You will need to source and install a separate countertop. Common outdoor choices include granite, concrete, porcelain tile, and stainless steel. To install a full-bullnose or bevel edge counter, simply remove the counter rail from each cabinet and overlap the counter over the front edge.

The Magnolia uses 2-inch lowered ADA peg legs and flush kick plates to bring the overall counter height to approximately 33 inches with the counter installed — below the ADA maximum of 34 inches. The 20-inch ADASK20 sink's 4-inch shallow basin meets ADA reach requirements. The 2-inch ADA legs and kick plates are a special factory order and ship separately from the main package direct from Sunstone's facility, so plan accordingly if accessible height is required at delivery.

The SCPMAGNOLIA10 is available in Natural Gas (NG) and Liquid Propane (LP) — select your preferred fuel type above. A Gas Conversion Guide is included with the package (and downloadable above) with instructions for converting between fuel types. Contact Deck & Den before purchasing if you need guidance on the regulator or supply line for your setup.

Sunstone's pin-lock modular system is designed for DIY assembly — lift, drop, and snap each factory-built cabinet into position. Most 10-foot configurations are complete in under an hour. A licensed professional will be needed for the gas line connection and for water supply and drain plumbing to the sink, depending on your local building codes. The included cabinet and grill install guides cover all steps in detail.

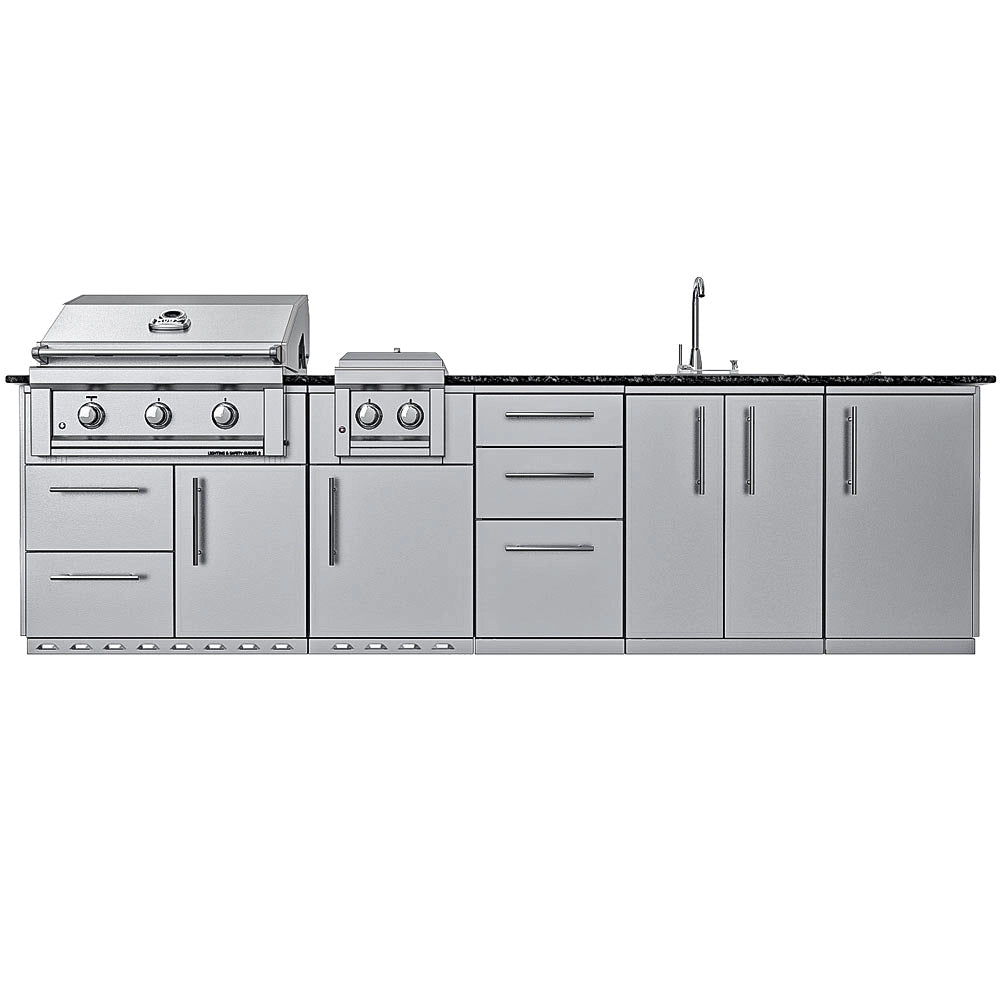

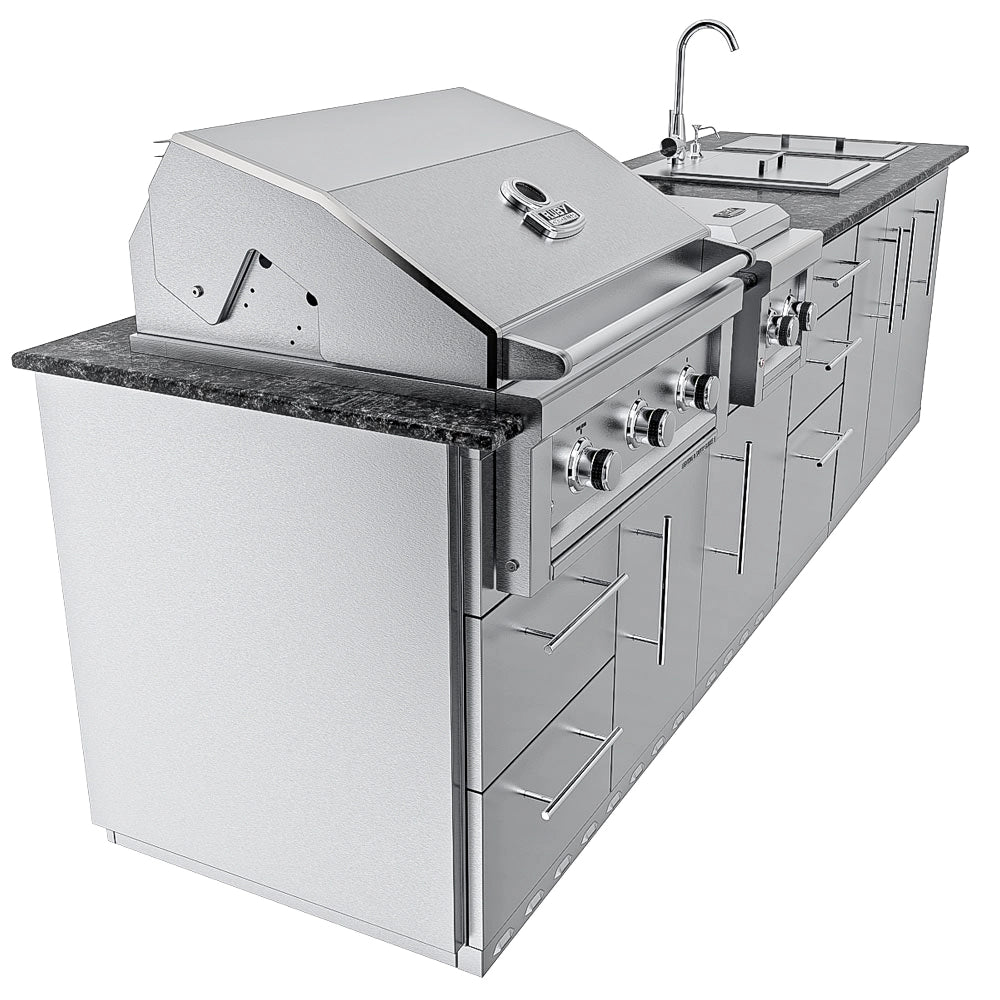

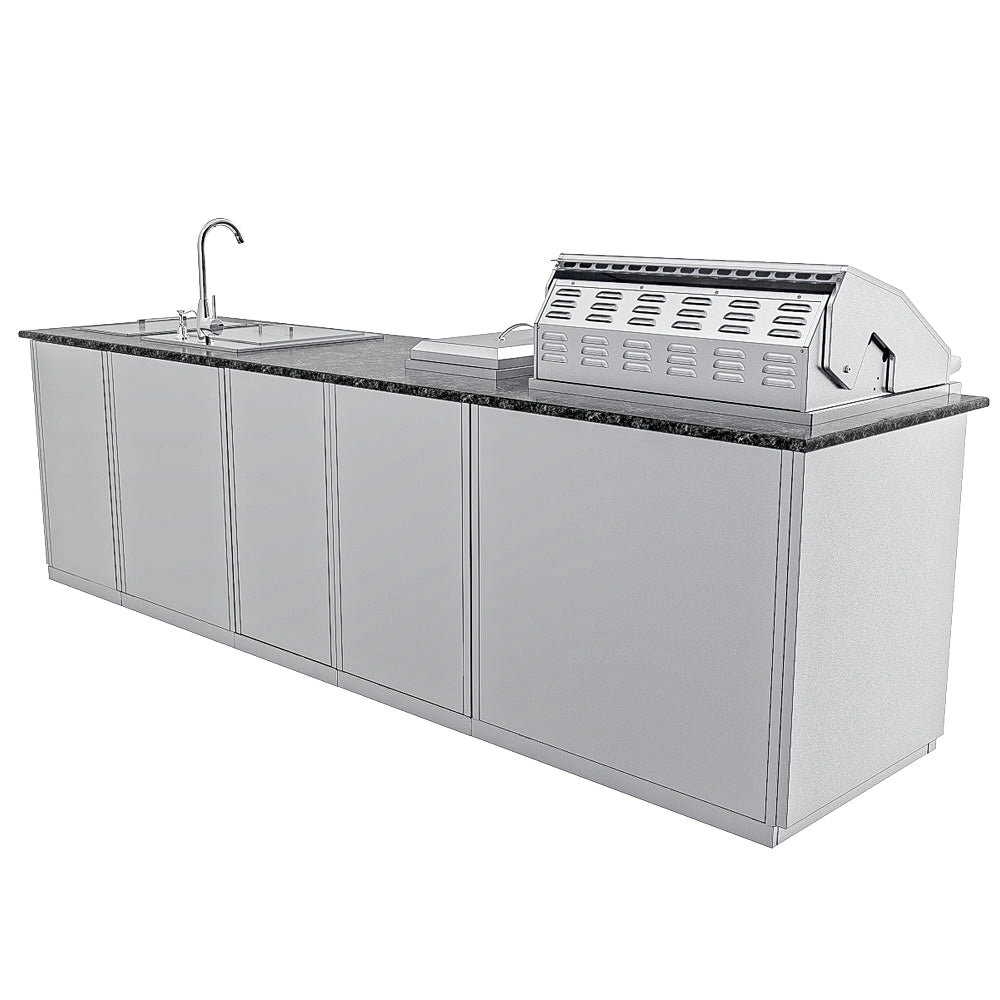

The assembled island is 120 inches (10 feet) wide, 28.25 inches deep, and 34.5 inches tall at the standard cabinet height (approximately 33 inches in the ADA configuration with counter installed). Plan for adequate clearance behind, to the sides, and overhead for gas connections, plumbing, and ventilation. Refer to the grill install guide (downloadable above) for the specific clearance requirements before siting the island.

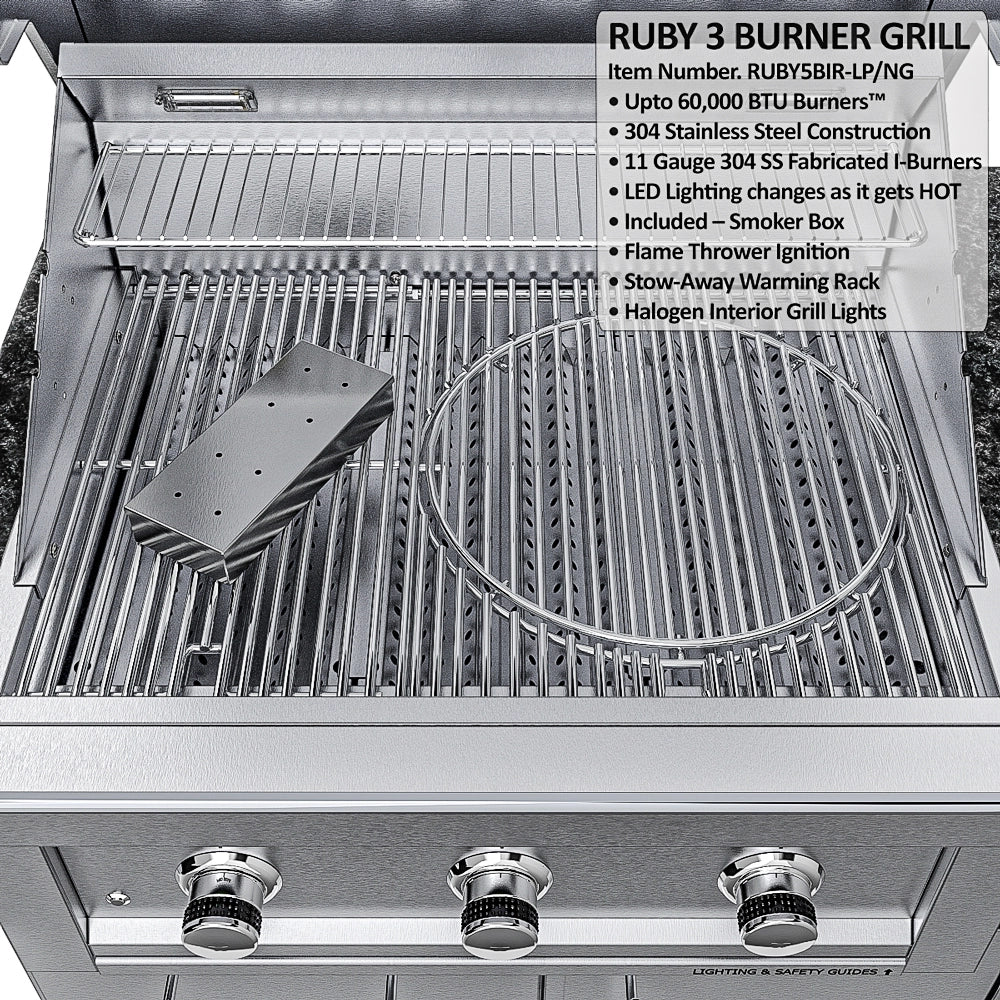

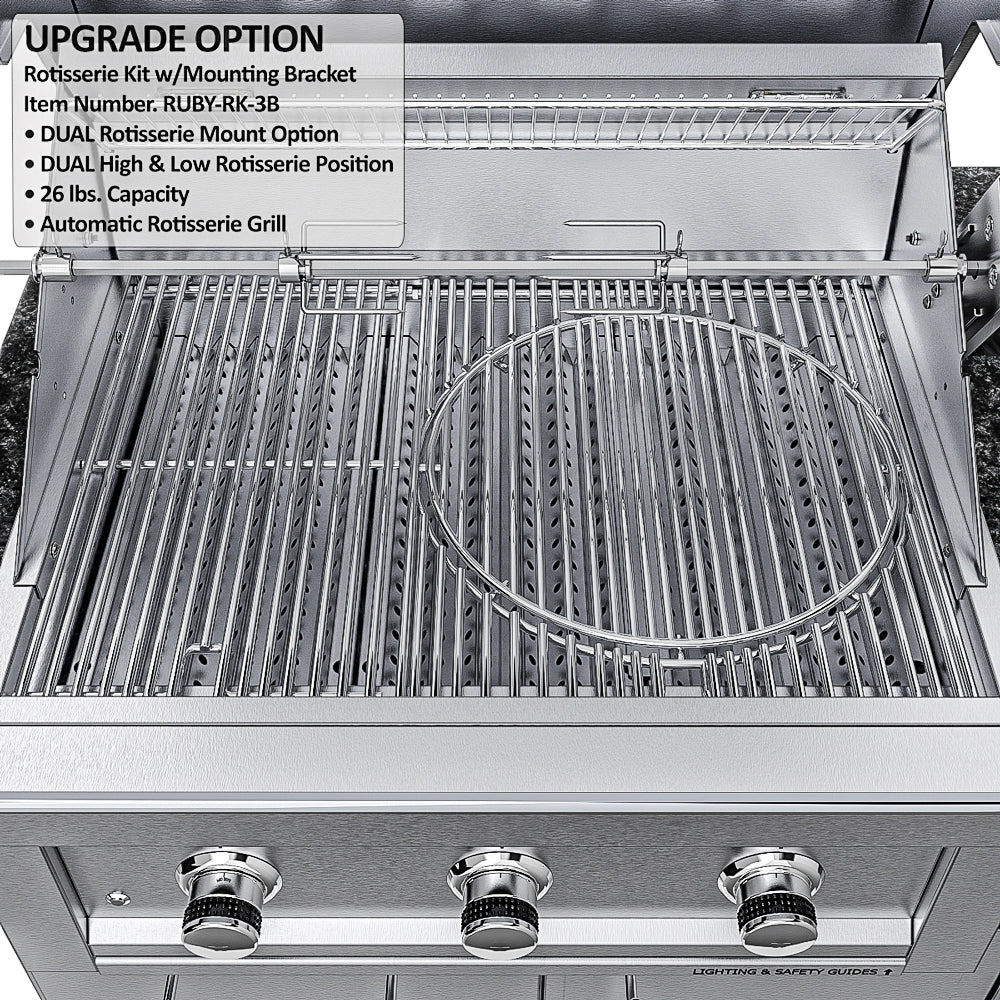

The RUBY3B Ruby 30-inch Pro-Sear 3-Burner Grill delivers 60,000 BTUs across three 304 SS I-Burners. The Pro-Sear 14-gauge Thermal-Heat Grid brings the cooking surface to 700°F with the hood up, and up to 800°F with the hood down, in as little as 2 to 3 minutes. Total cooking area is 687 square inches. Independent Flame-Thrower ignition at every burner position gives you full zone control.

The 18-inch Triple Drawer Cabinet (SBC18STD) uses progressive sizing — a 6-inch top drawer for cutlery and small tools, an 8-inch middle drawer for towels, spice rubs, and sauces, and a 14-inch bottom drawer deep enough for large pans, a rotisserie kit, or a full-size wok. Soft-close tracks on all three drawers make the operation feel finished rather than functional. Most outdoor kitchen island packages at this size give you a door cabinet in this position; the Magnolia gives you organized, purpose-sized storage instead.

The full-height SBC24FDD double-door cabinet offers two interior shelves and door pockets in a tall, fully enclosed stainless compartment. Common uses include storing a spare propane cylinder, a large dutch oven or cast iron skillet, bulk paper towels, or a full set of outdoor entertaining accessories you want kept dry and out of sight. The double-door design gives you wide, unobstructed access to everything inside.

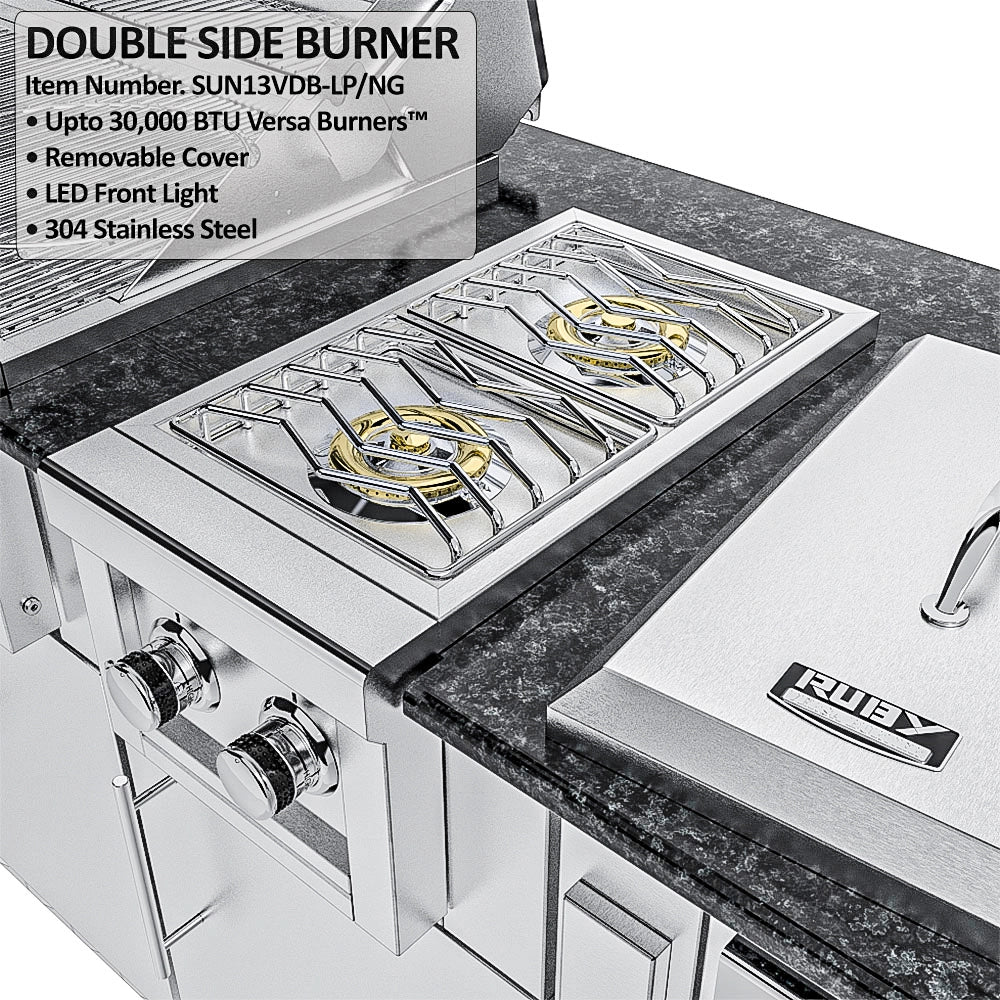

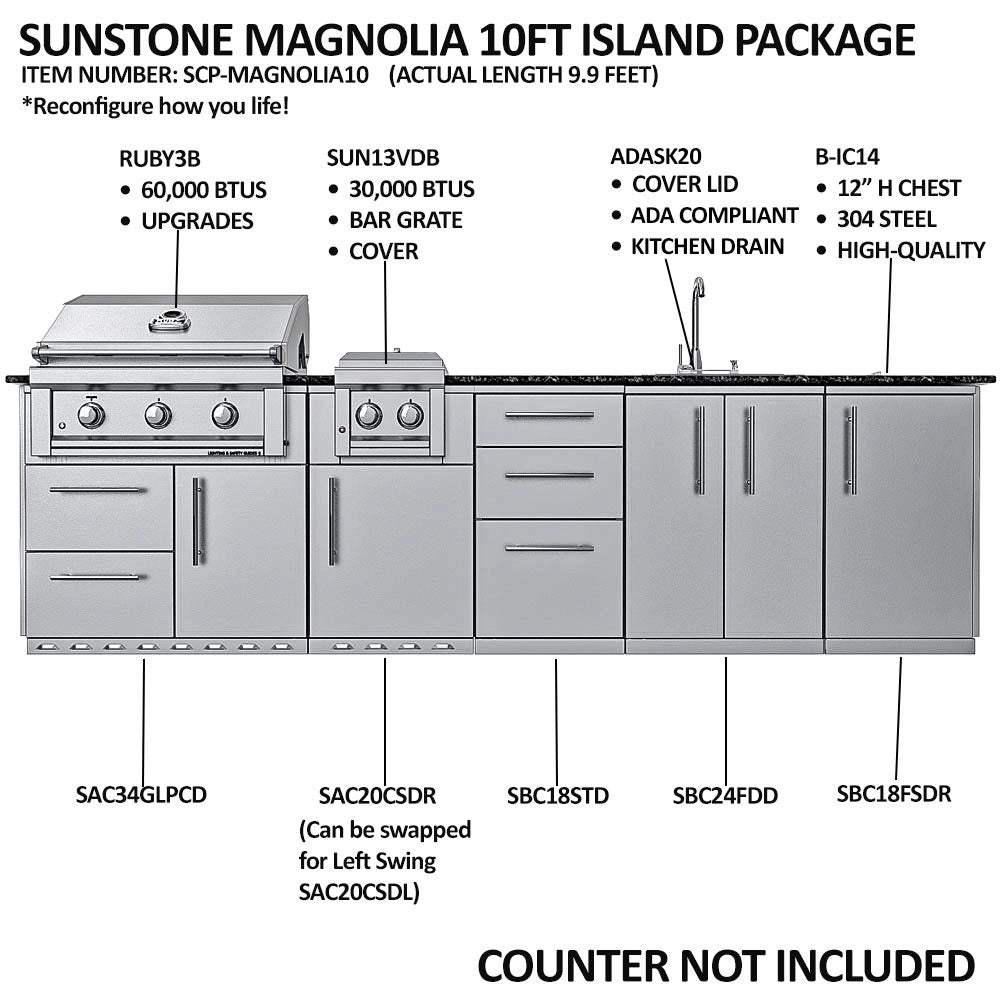

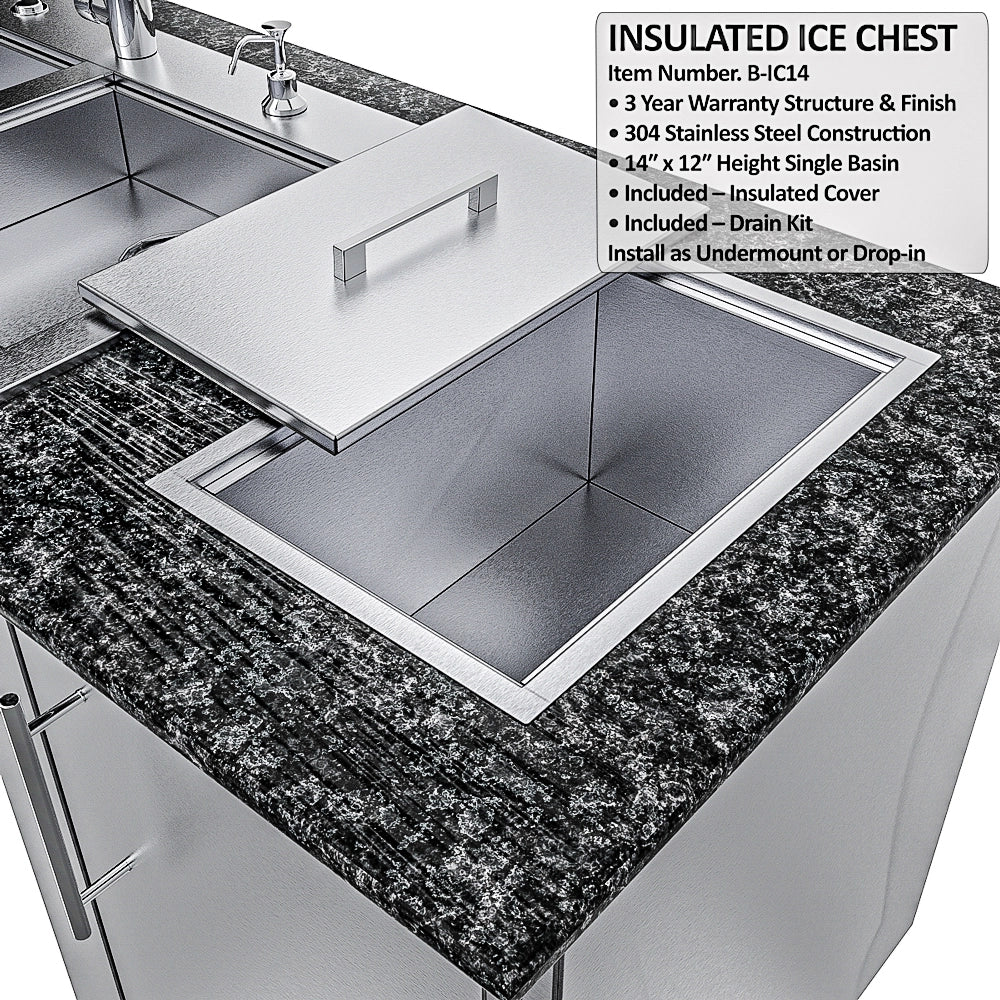

Both are 10-foot ADA-compliant 304 stainless steel outdoor kitchen islands sharing the same Ruby grill, Versa double burner, and B-IC14 ice chest. The key differences: the Summit includes a 37-inch double-basin ADA sink (ADASK37) and a dedicated 44-inch ADA Sink Base Cabinet (ADA44BC) for maximum wheelchair clearance at the sink station; it does not include the triple drawer or double-door storage cabinet. The Magnolia uses a more compact 20-inch single ADA sink (ADASK20) and adds the 18-inch triple drawer cabinet and 24-inch full-height double-door cabinet for significantly more organized storage. Choose the Summit if the sink station's ADA accessibility is the top priority; choose the Magnolia if you want broader storage and a slightly more compact sink footprint.

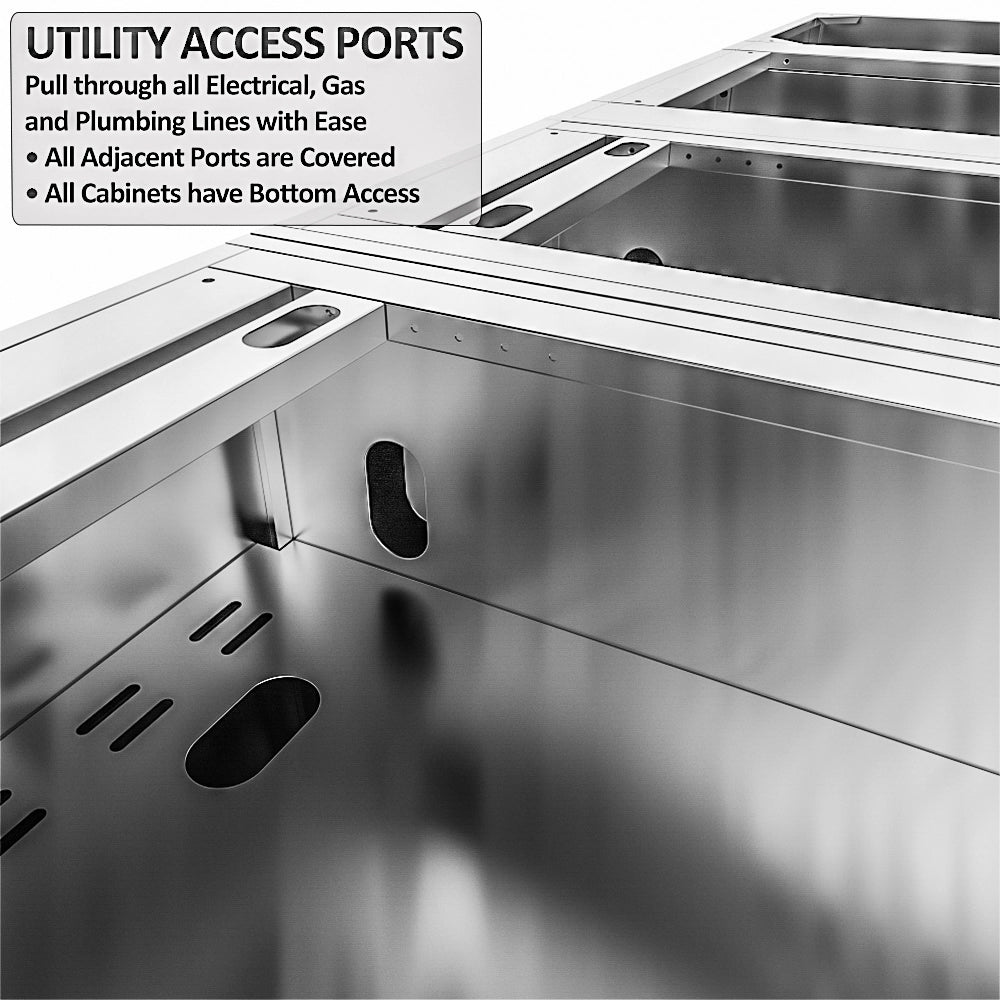

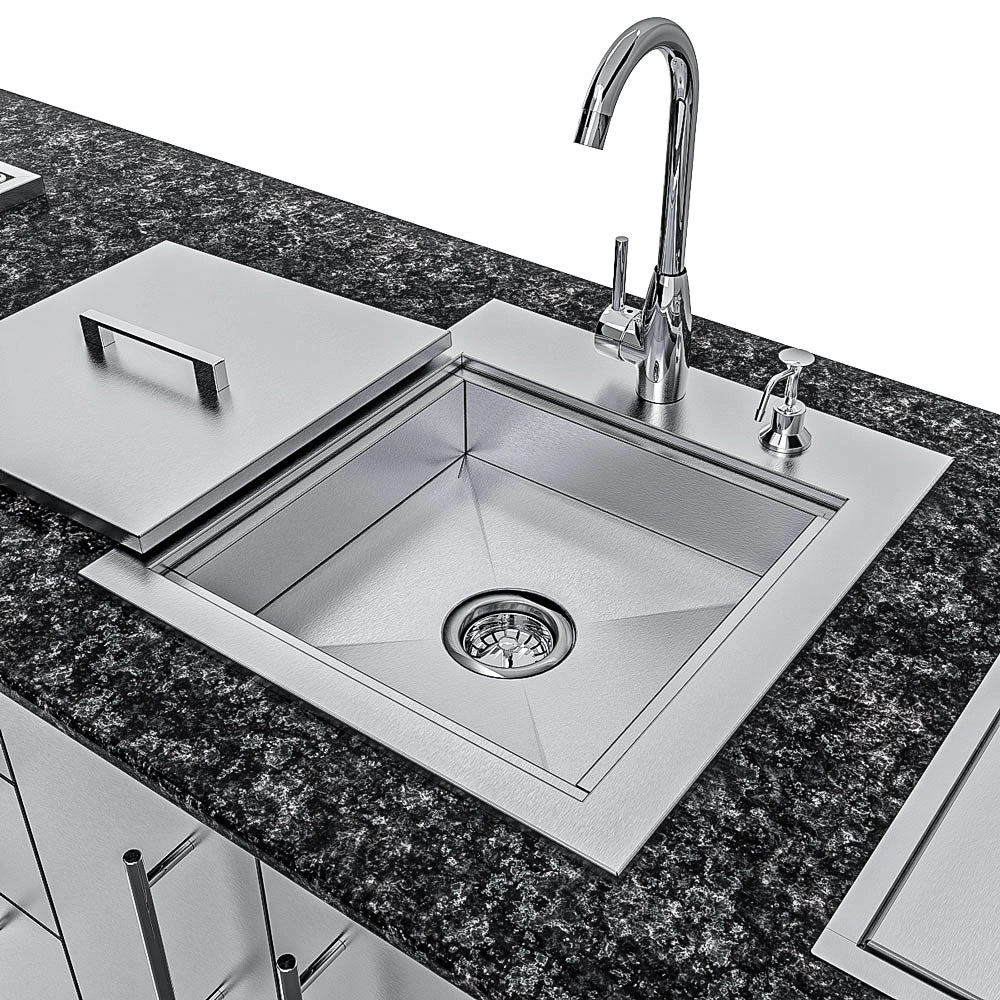

Yes. The ADASK20 sink includes the faucet, soap dispenser, and drain, but water supply lines and drain plumbing are not included and must be connected to your home's water supply and a suitable drain or gray water solution. The SAC20CSDR appliance cabinet next to the sink includes utility access ports on the side walls for routing plumbing. Depending on your local codes, this may require a licensed plumber.

Yes. Sunstone offers the SAC20CSDL (left-swing) as a no-charge swap for the included SAC20CSDR (right-swing). If you prefer the left-swing configuration for your layout, contact Deck & Den at the time of order to make this change.

Each component carries its own Sunstone warranty, all honored directly by Sunstone Metal Products. Cabinet stainless steel structure: limited lifetime. Cabinet components (handles, legs, kick plates, end panels): 5 years. Ruby Grill burners, grids, and housing: limited lifetime; ignitors, knobs, valves, tubing: 1 year. Versa Double Burner brass burners, grids, and housing: limited lifetime. ADA Sink structure: 3 years; faucet, dispenser, drain: 1 year. Ice Chest structure: limited lifetime; hardware: 1 year. Labor is not included in any coverage. Refer to the included documentation for full warranty terms.

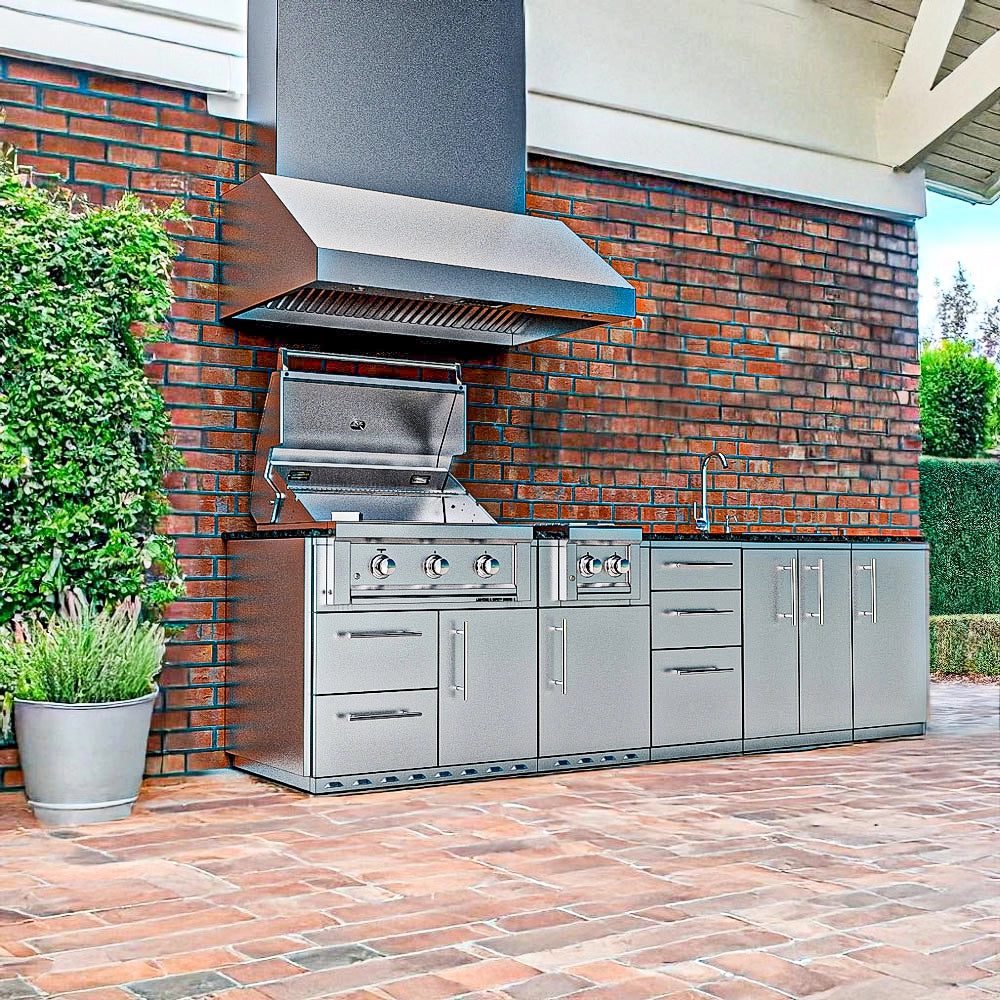

The Magnolia's appliances are designed for outdoor use. Under a covered structure, ensure adequate overhead ventilation and lateral clearance as specified in the grill and cabinet install guides downloadable above. Your local building and fire codes may have additional requirements for covered outdoor gas appliances. Always confirm required clearances before installation.

Yes. Sunstone's pin-lock modular system is designed for future expansion. Any Sunstone cabinet module connects to any other via the same system. You can extend the run, swap cabinet positions, add a refrigerator, or upgrade individual appliances independently. Contact Deck & Den if you want help planning an expansion or a custom configuration.

The Stainless Steel Cleaning Guide (downloadable above) covers Sunstone's full recommendations. In general, wipe the #4 horizontal brushed finish with mild soap and water in the direction of the grain. Avoid abrasive pads, steel wool, or chlorine-based cleaners that can damage the finish or promote surface rust. The grill grates and drip systems should be cleaned after each cook while still warm. The ice chest drain should be cleared after each use to prevent debris buildup.

The Magnolia package ships freight on a pallet. Deck & Den provides free shipping on orders over $100 to the contiguous 48 states. Freight deliveries are typically curbside; some carriers schedule a delivery window and require your signature, while others deliver without an appointment. The 2-inch ADA legs and kick plates ship separately direct from Sunstone's factory and will arrive in a separate shipment. You will receive shipping confirmation and delivery details by email. Do not refuse delivery if items show visible damage — note all damage on the delivery paperwork before signing, and contact Deck & Den with photos within 48 hours.

Yes. The ADASK20 features a 3.75-inch drain well that is compatible with most garbage disposals. Confirm your disposal's mounting requirements against the sink specs before purchasing a disposal unit.

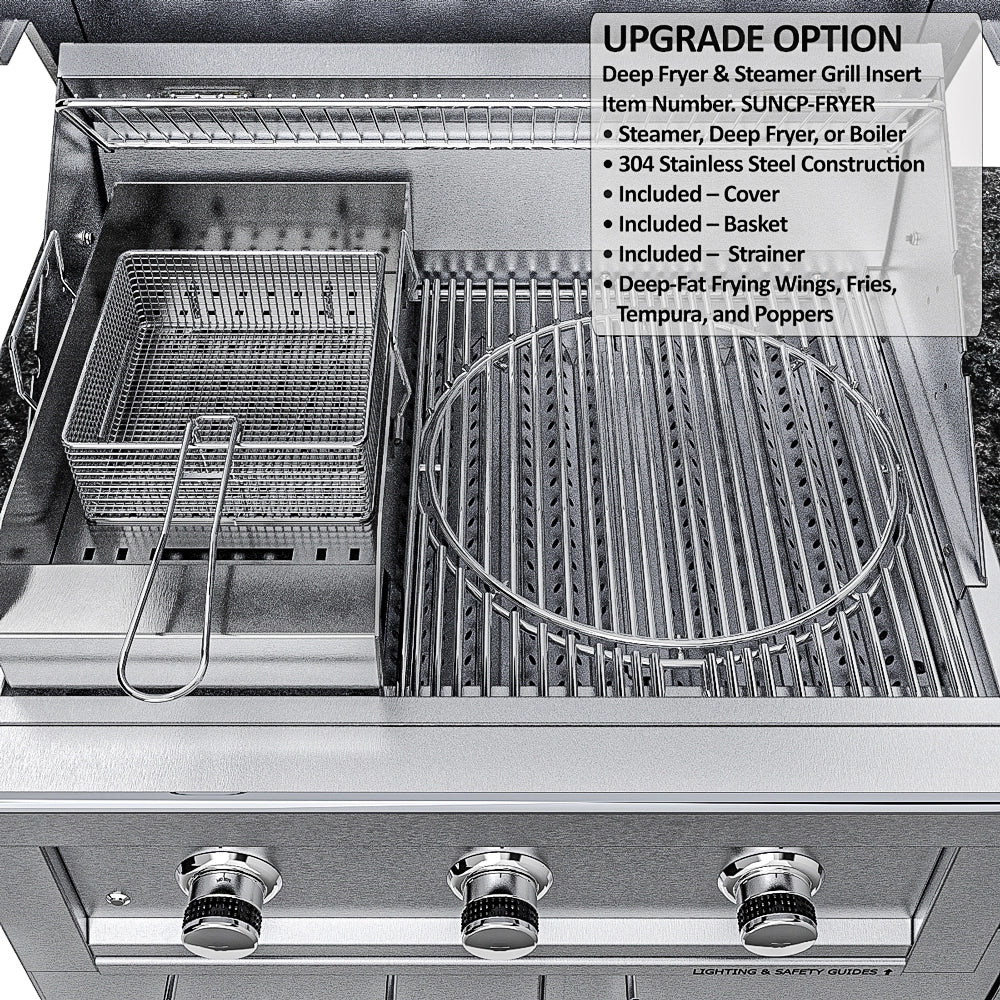

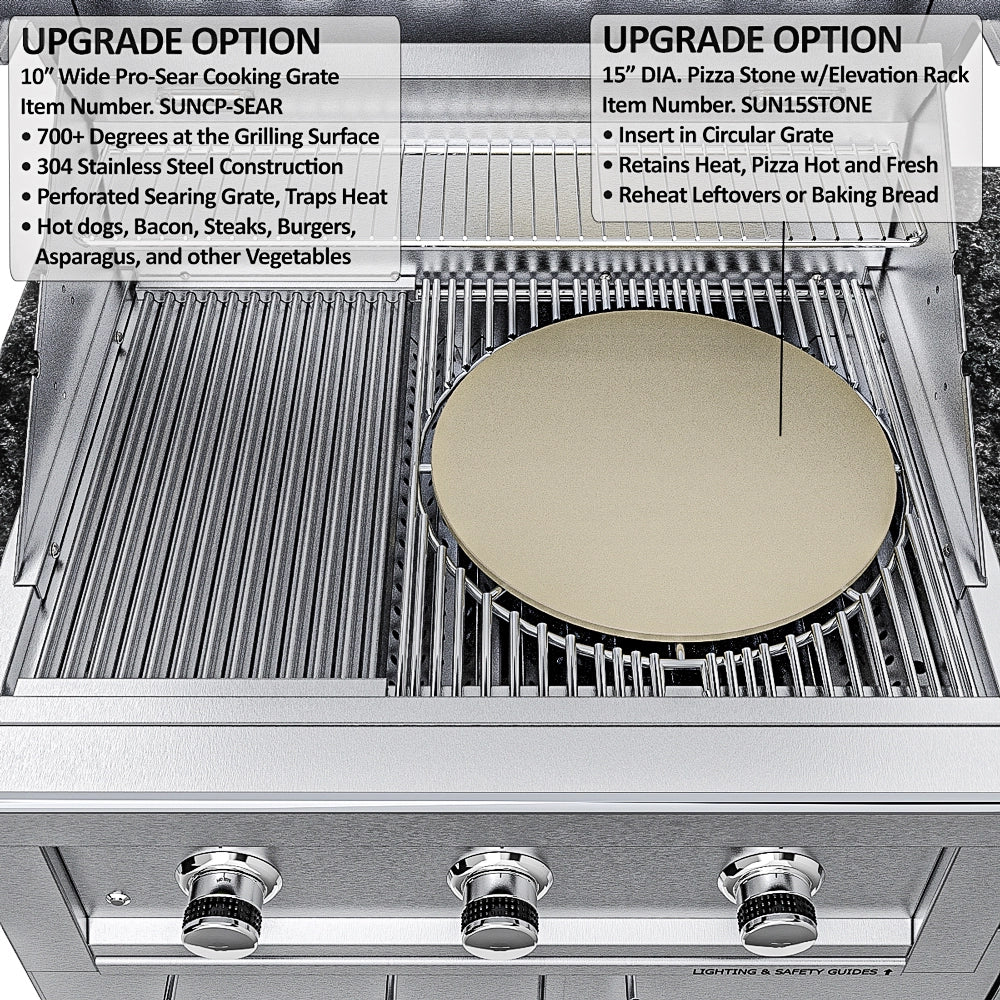

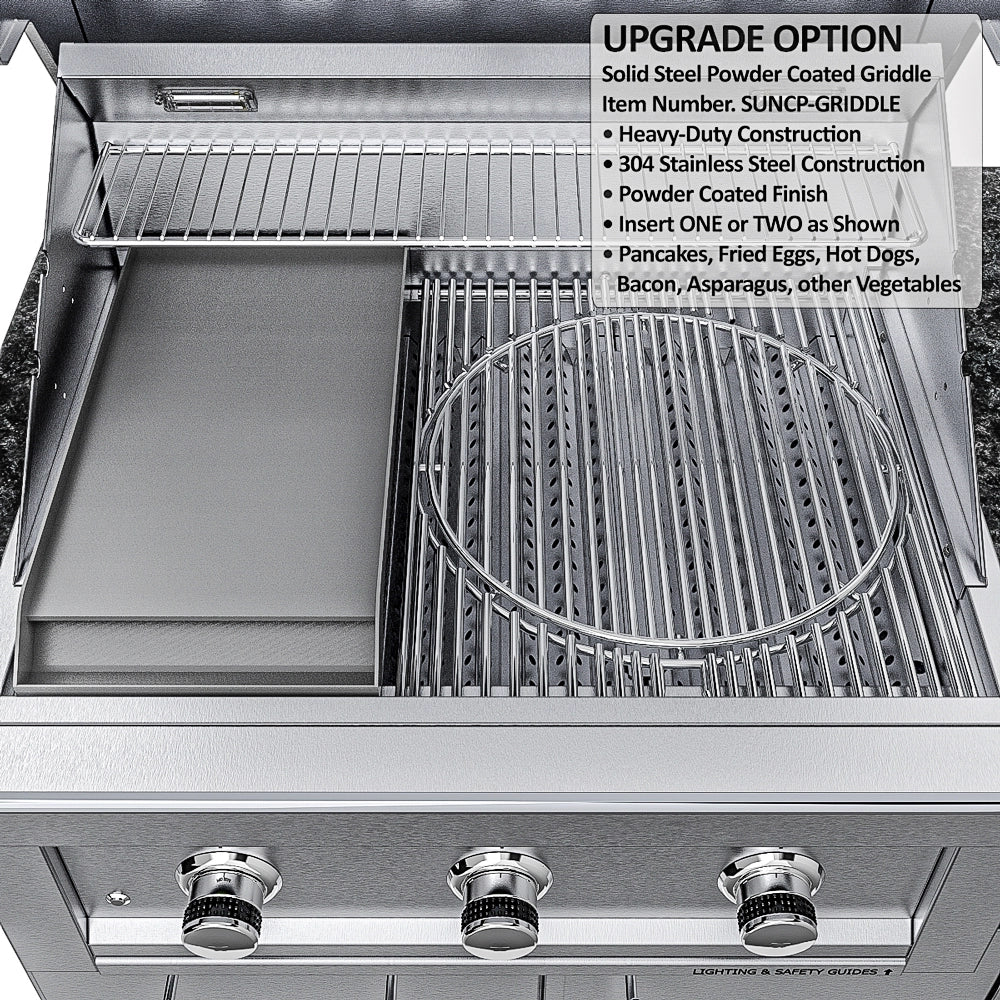

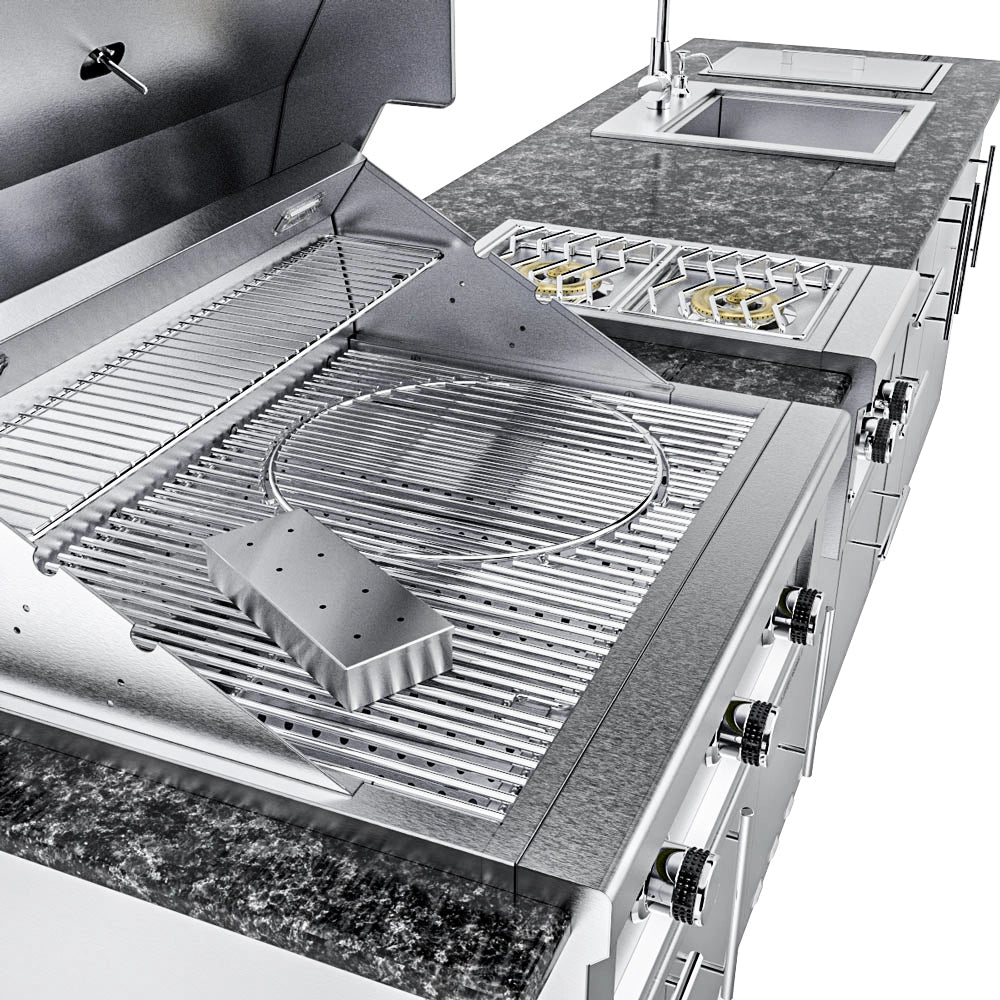

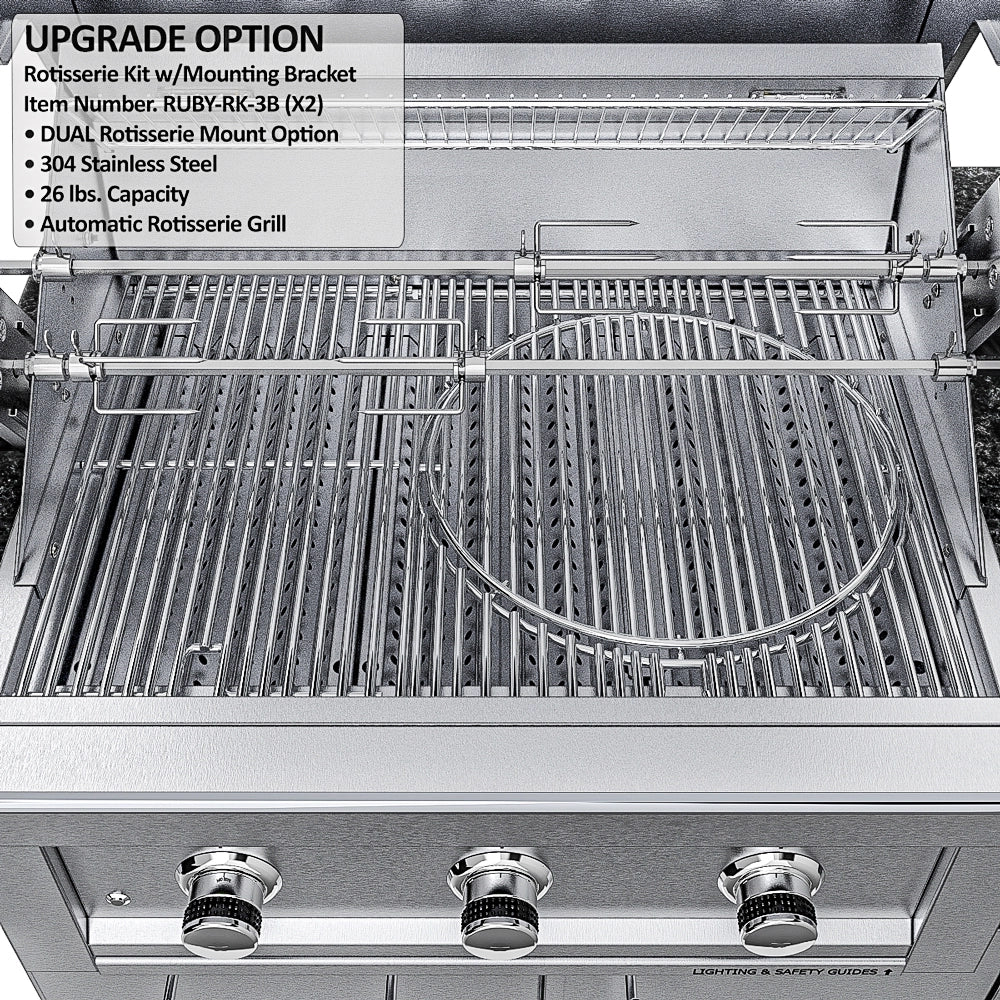

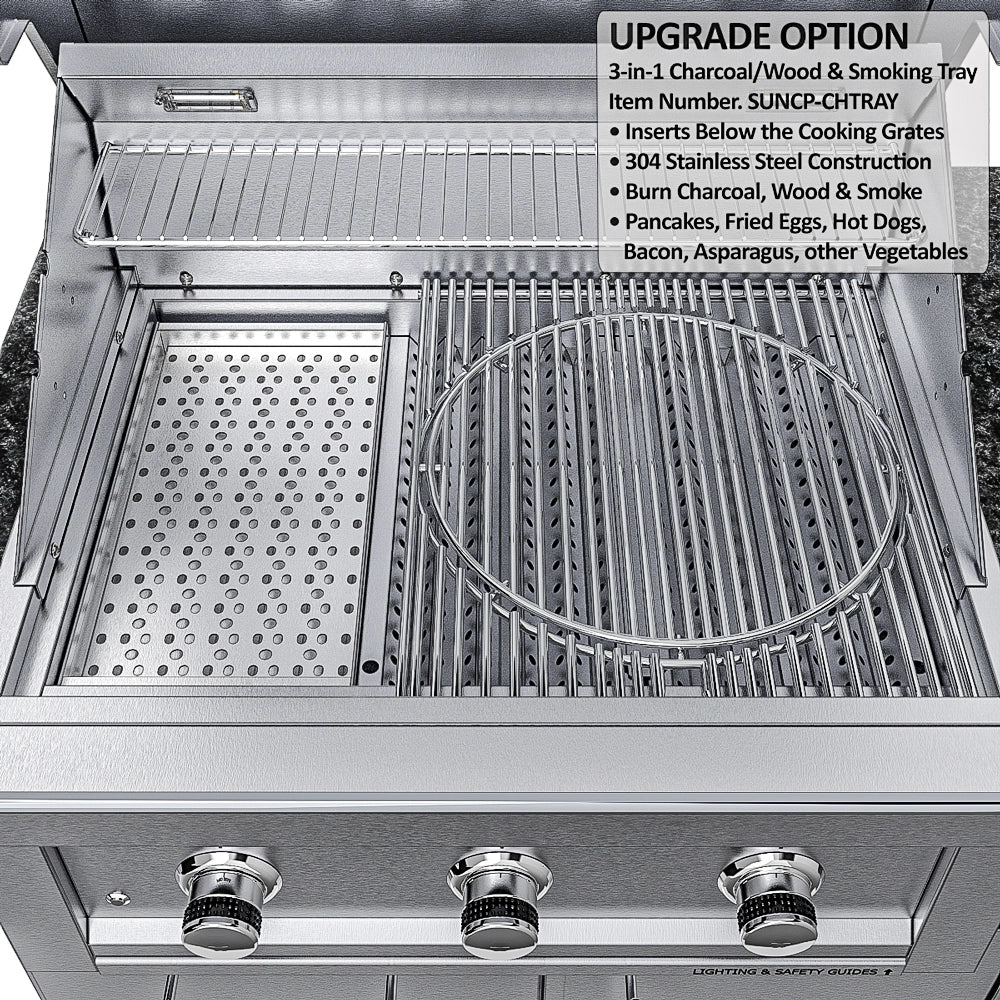

Yes. The RUBY3B includes a smoker box with wood chips, the Pro-Sear Thermal-Heat Searing Grid, and a removable stow-away warming rack. The cooking grate system also supports optional upgrades sold separately — including a Pizza Stone, Deep Fryer, Griddle, and Charcoal Tray — through Sunstone's pull-out insert grate design.

Yes — contact Deck & Den directly and our team can assist with layout planning, countertop recommendations, and pairing additional Sunstone modules or accessories with the Magnolia base package. Sunstone also includes free design service with their packages, providing complete blueprints and diagrams for your kitchen run.

Deck & Den offers a 45-day return policy on eligible items returned in original, unassembled, resalable condition. Because this is a large freight item, please review the returns page for details on return shipping procedures before initiating a return. Warranty claims for product defects are handled directly by Sunstone Metal Products.
