Gas, Charcoal, and Wood Fire in One 10-Foot Island — Your Backyard Finally Has a Professional Kitchen
Up to 800°F across gas, charcoal, and wood — with a second infrared cooking zone, a full sink, a built-in ice chest, and enough cabinet storage for everything your patio has been missing.

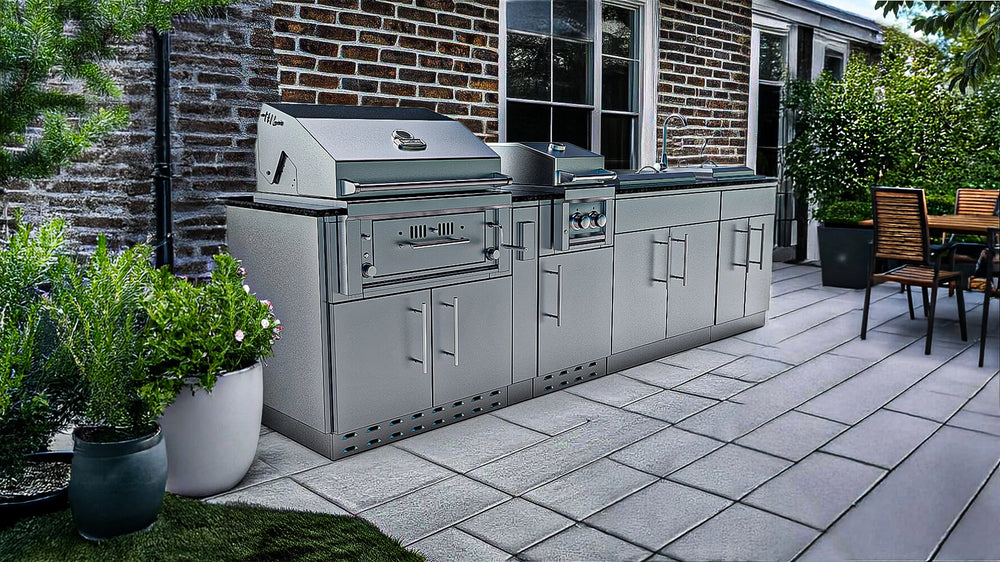

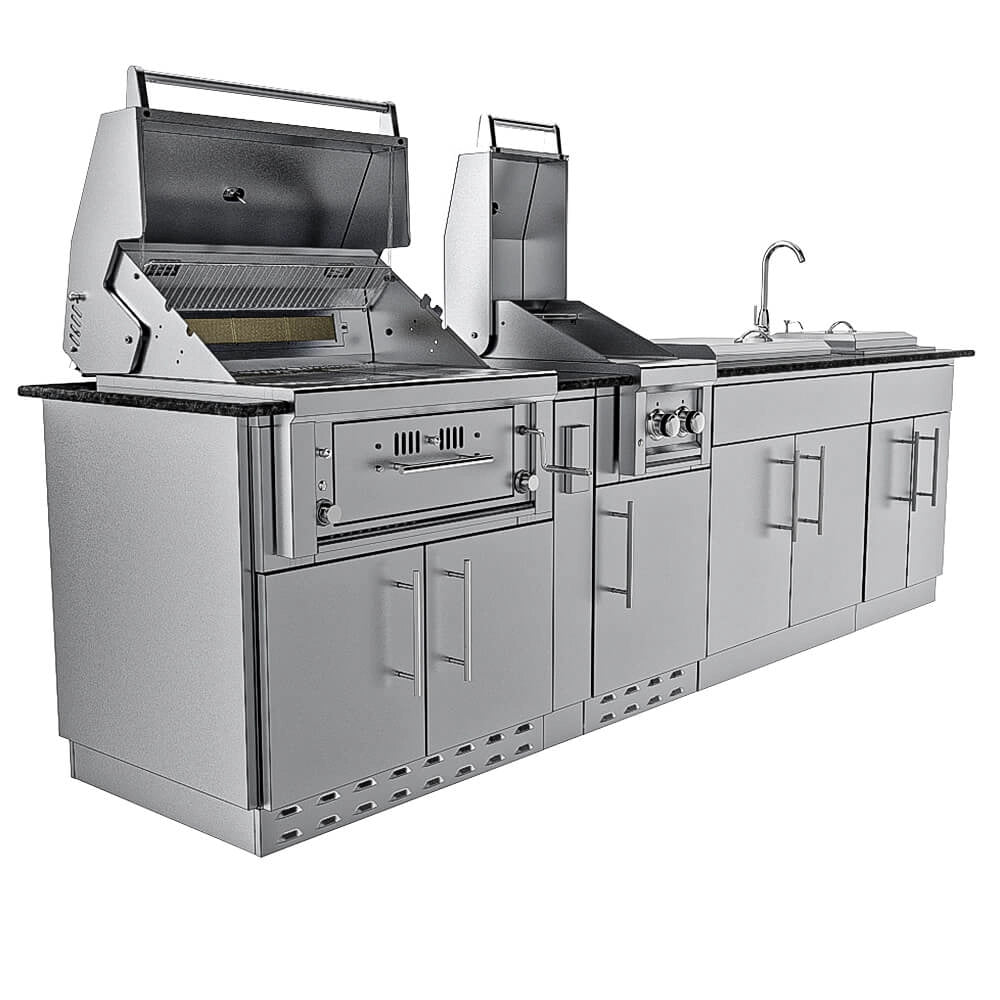

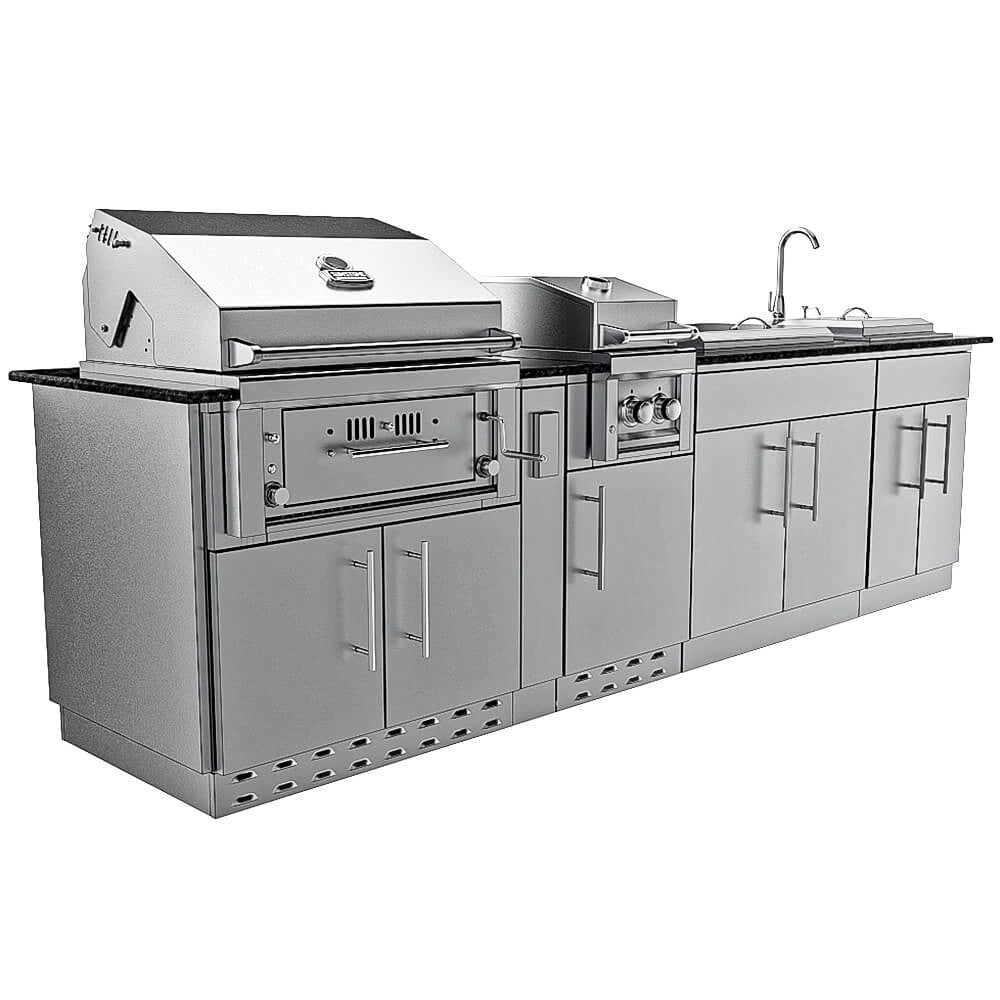

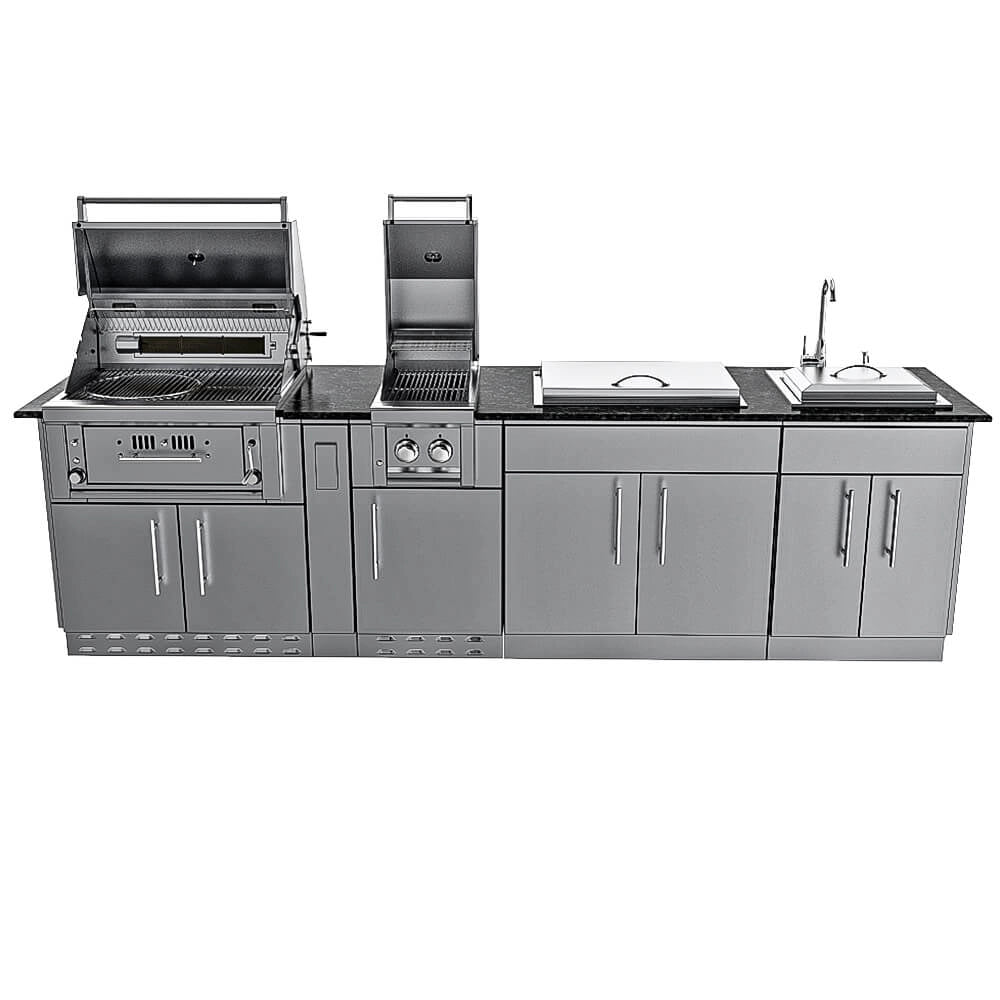

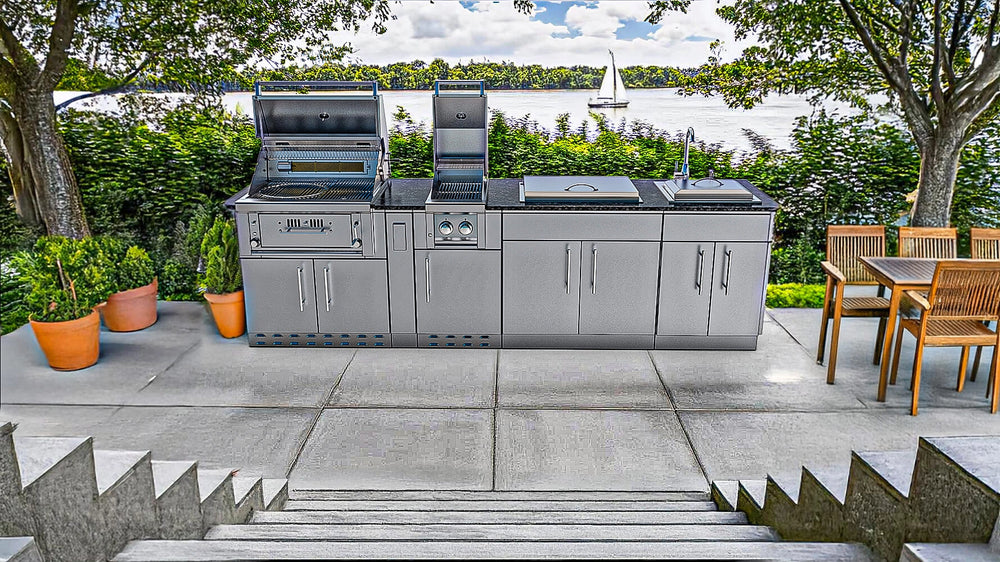

The Sunstone Alamo is a complete outdoor kitchen built around a 30" Gas/Charcoal/Wood Hybrid Grill that switches fuel types without swapping equipment. Gas ignites instantly, a charcoal and wood drawer adds real smoke flavor, and an infrared rear burner hits 800°F for pizza, searing, and griddle work. A Ruby Series 13" Companion Pro Griller adds a second infrared cooking station. A 21" drop-in sink handles prep and cleanup; a 28" insulated ice chest keeps everything cold through the whole cook. This island is made up of modular components, so the exact arrangement of the components and layout of the island can be decided by the buyer. Select Natural Gas or Liquid Propane above; countertop is sold separately.
What the Alamo Gives You That a Single Grill Never Can
This is not a grill with some cabinets around it. It is a fully realized outdoor cooking station — with every station a serious cook needs, already chosen and already configured to work together out of the box.
Swipe to see all specs →
45,000 BTU
Hybrid Grill Heat That Means Business
The 30" SUNCHSZ30 delivers up to 45,000 BTUs across dual gas burners and an infrared rear burner — enough to sear a ribeye in seconds. Then pull out the charcoal drawer and slow-smoke a brisket. Gas speed and wood-fire flavor from one grill head.
800°F
Steakhouse Temperatures at Home
The hybrid grill reaches up to 800°F and supports optional insert accessories — pizza stone, griddle, deep fryer, searing grate (sold separately) — so every cooking style you have ever wanted to try is available right here on the island.
22,000 BTU

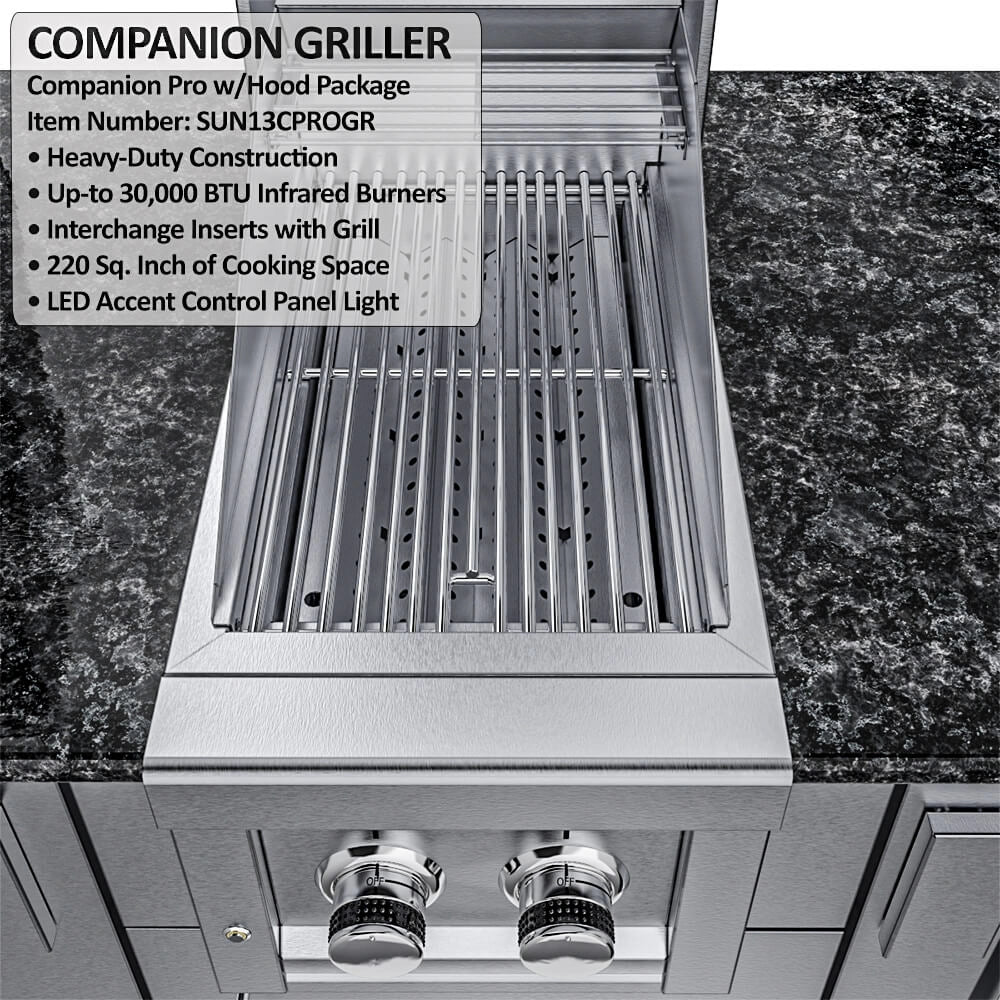

Companion Pro Griller — A Second Station
The Ruby Series 13" Companion Pro (SUN13CPRO) adds a second independent infrared cooking zone. Use it for searing, stir-frying, smoking, or steaming while the main grill runs at full tilt — no more choosing between courses.
304 SS
Marine-Grade Steel, Brushed to Last
Every cabinet panel, door, handle, and shelf is 304 stainless steel with a No. 4 light brushed finish — the same alloy used in commercial restaurant kitchens. It shrugs off rain, humidity, and UV without rusting or fading.
DIY
Snap-Together Modular Assembly
Sunstone's pin-lock modular system means cabinets click together without special tools or professional installation. Adjustable legs level on uneven patios. Clip-on kick plates finish the look. From delivery to first cook is far closer than you think.
10.3 ft
Full-Length Prep and Entertaining Space
A 21" drop-in sink with hot/cold faucet, soap dispenser, cutting board, and sink cover. A 28" insulated ice chest for drinks and ingredients. Twin double-door base cabinets for everything else. This is the island you stop adding to because you already have everything.

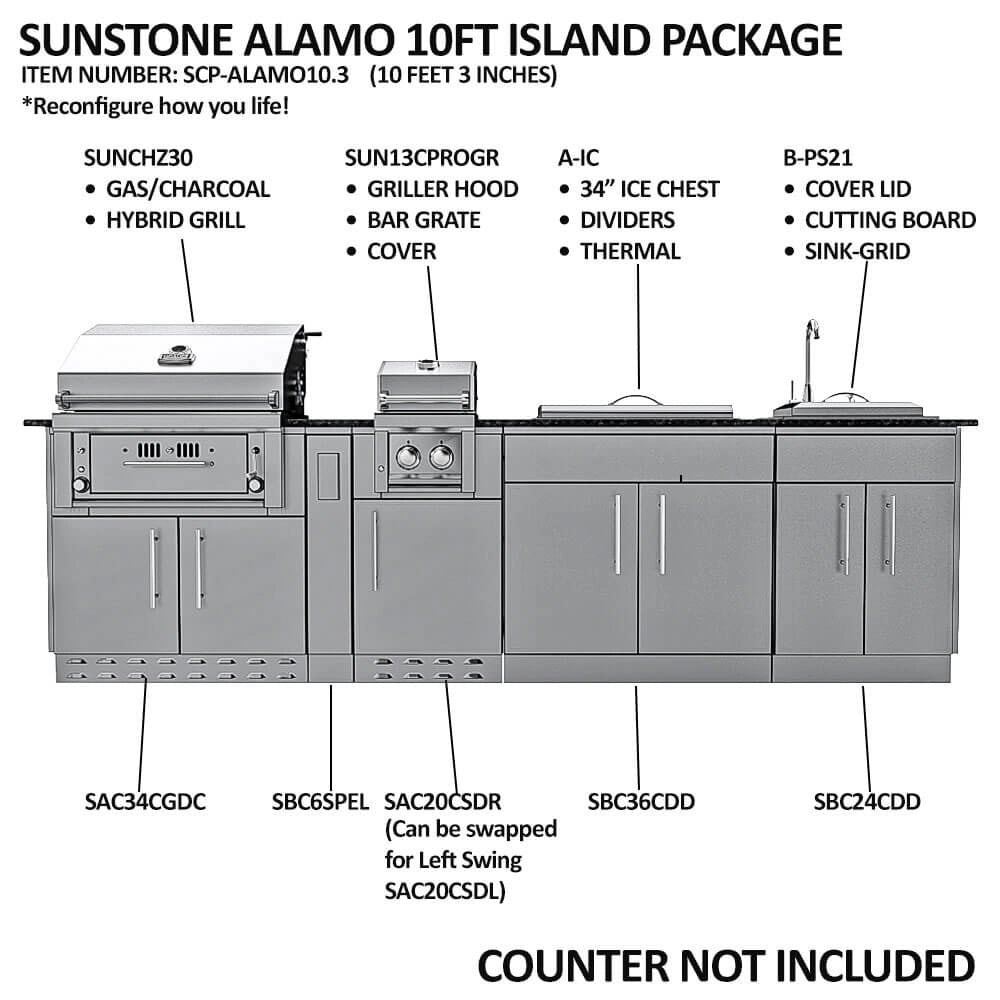

What's Included in the Box▸
Grills & Cooking Appliances
- Sunstone 30" Gas/Charcoal/Wood Hybrid Grill — Item No. SUNCHSZ30 (ships LP; NG conversion kit included with NG variant)
- Ruby Series 13" Companion Pro Griller — Item No. SUN13CPRO (2 infrared burners, cooking grid, flavorizer racks)
- Companion Pro Hood — Item No. SUN13CPRO-HOOD (mini lid with analog temperature gauge and warming rack)
Sink & Ice Chest
- Premium 21" x 21" Drop-In Sink — Item No. B-PS21 (hot/cold faucet, soap dispenser, sink grid, cutting board, and sink cover included)
- 28" Insulated Large Drop-In Ice Chest — Item No. A-IC
Modular Cabinet System

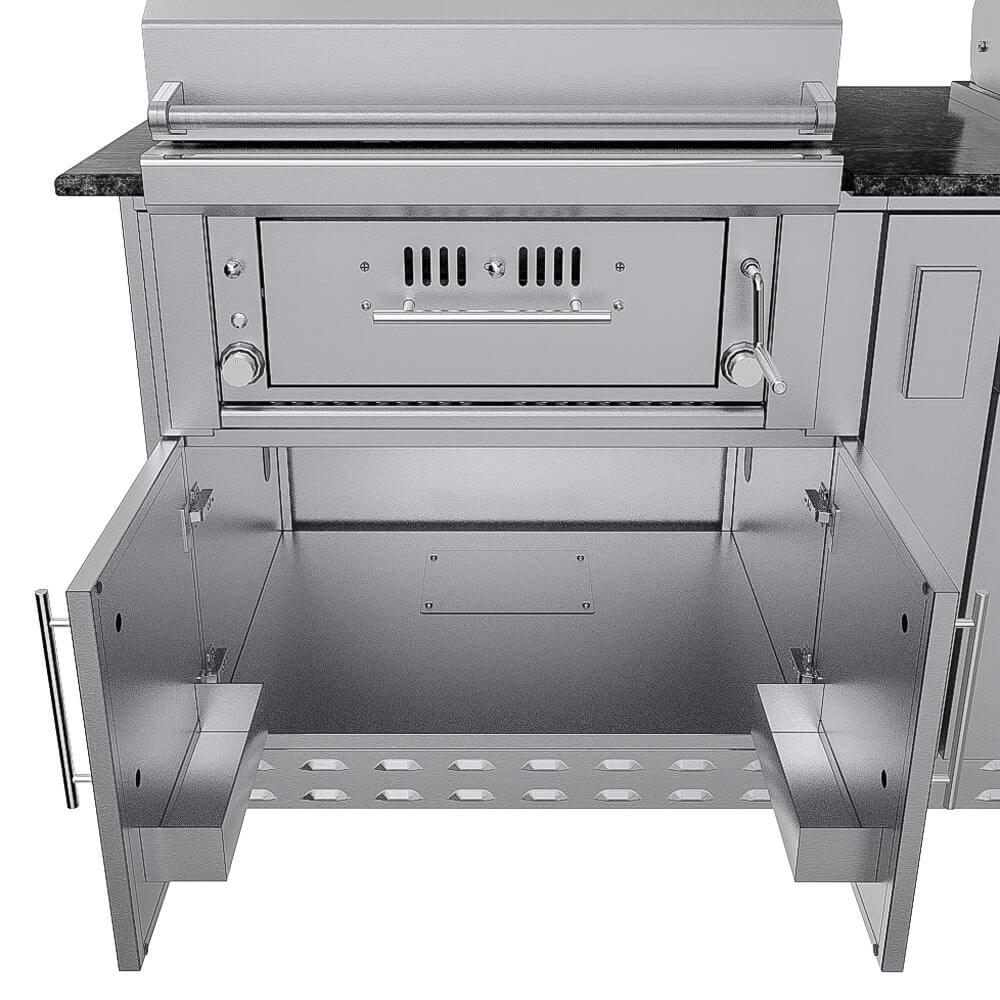

- 34" Hybrid Grill Base Cabinet — Item No. SAC34CGDC
- 34" Cabinet Trim Kit — Item No. SCC34CTK3.75 (for SUNCHSZ30 cut-out)
- 20" Appliance Cabinet — Item No. SAC20CSDR (right-swing; left-swing SAC20CSDL available at no charge)
- 20" Cabinet Trim Kit — Item No. SCC20CTK3.75
- 36" Double Door Base Cabinet — Item No. SBC36CDD
- 24" Double Door Base Cabinet — Item No. SBC24CDD
- 6" Spacer Base Cabinet — Item No. SBC6SPEL
- (2) End Panels — Item No. SCC27EP
- (2) End Kick-Plates — Item No. SCC25KP

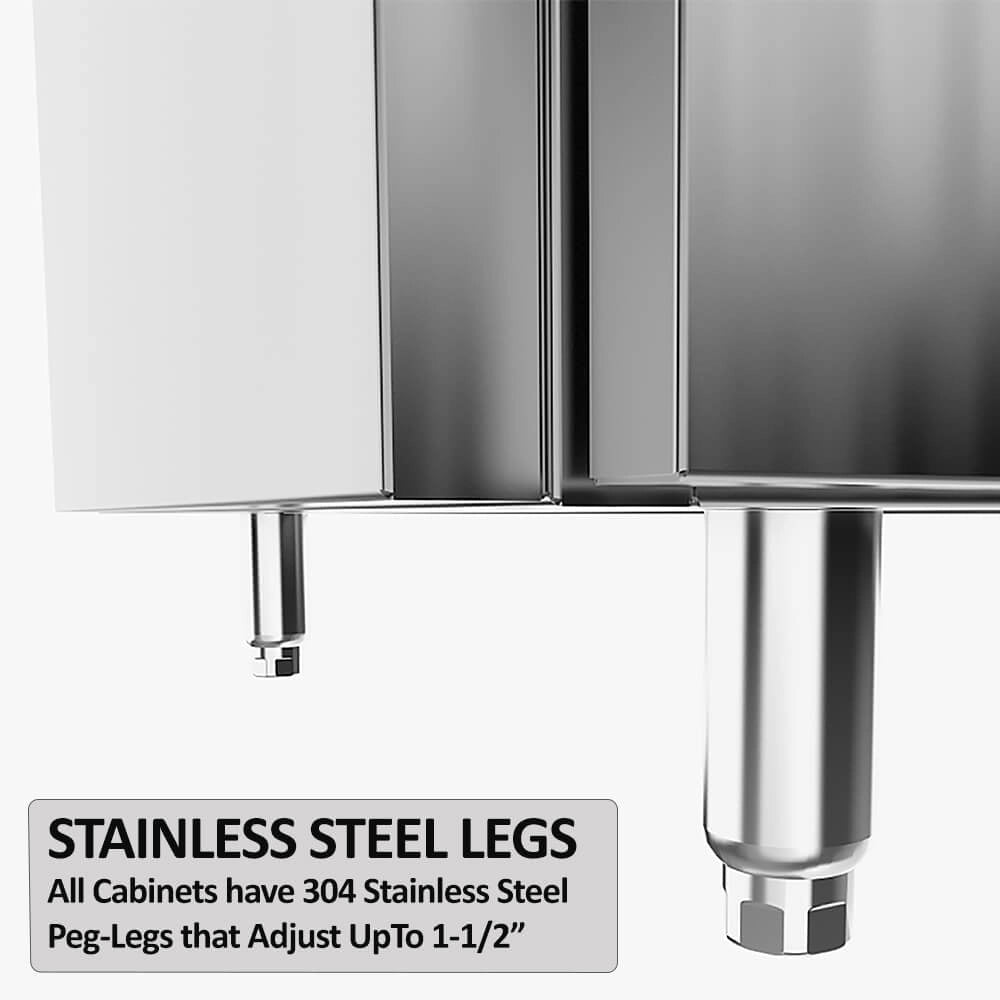

- Adjustable peg legs and clip-on kick plates for each cabinet
Sold Separately
- Countertop (choose your own — granite, concrete, tile, or butcher block)

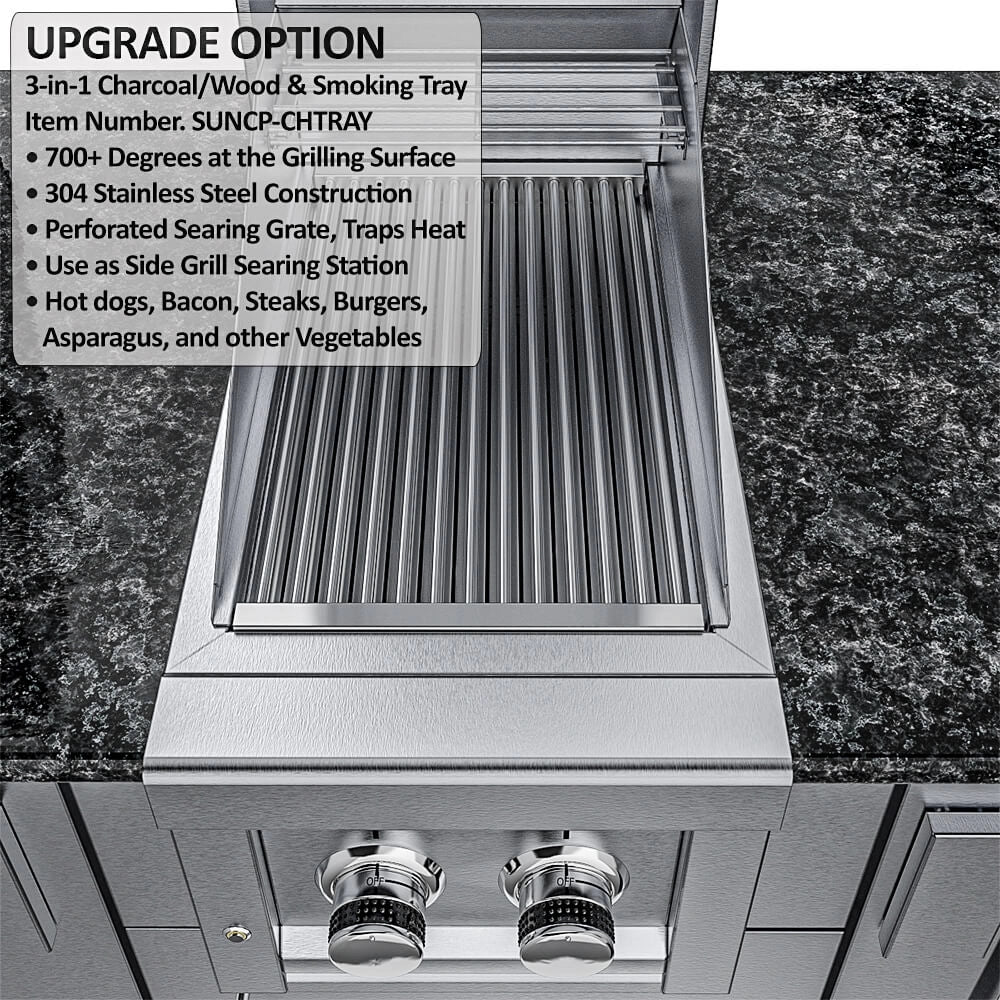

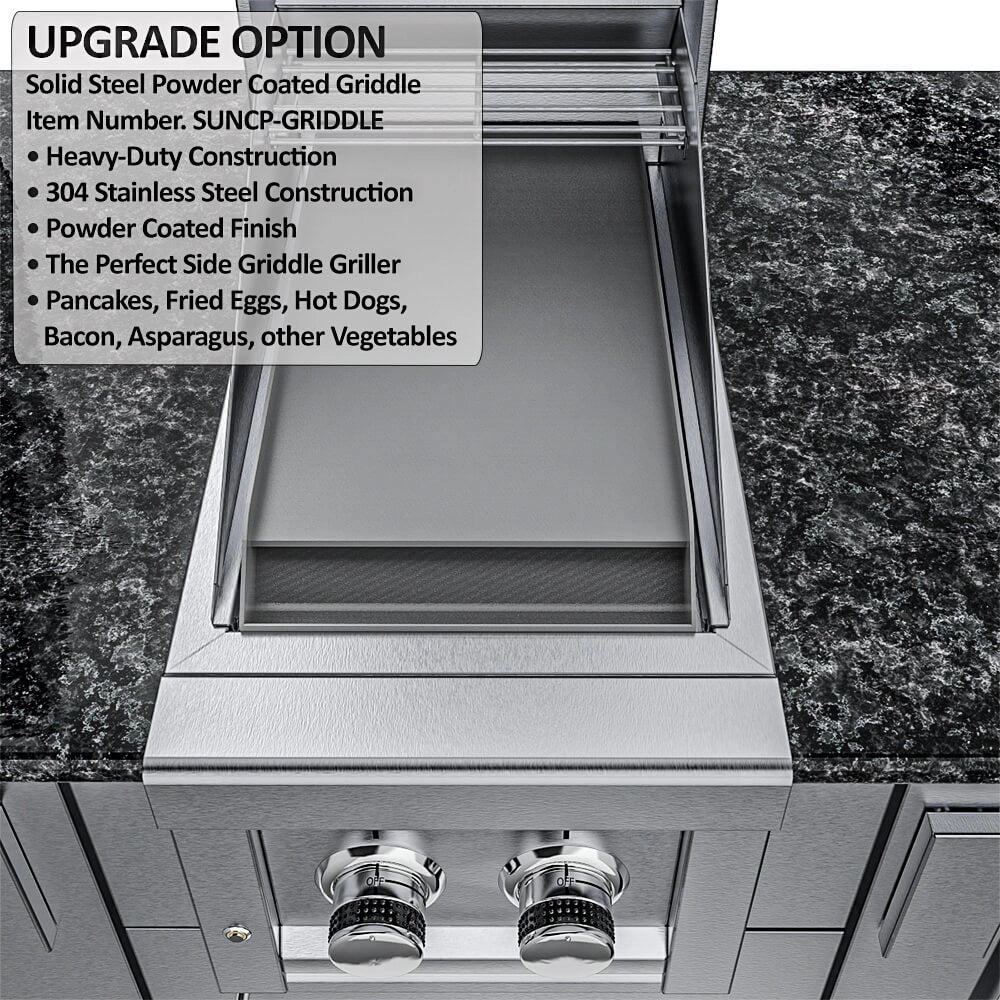

- Grill insert accessories — pizza stone, griddle, deep fryer, searing grate (all sold separately)
- Gas supply line and regulator (LP tank or NG stub-out by installer)
- Plumbing rough-in for sink (by installer)
- GFCI electrical outlet for LED transformer (by installer)

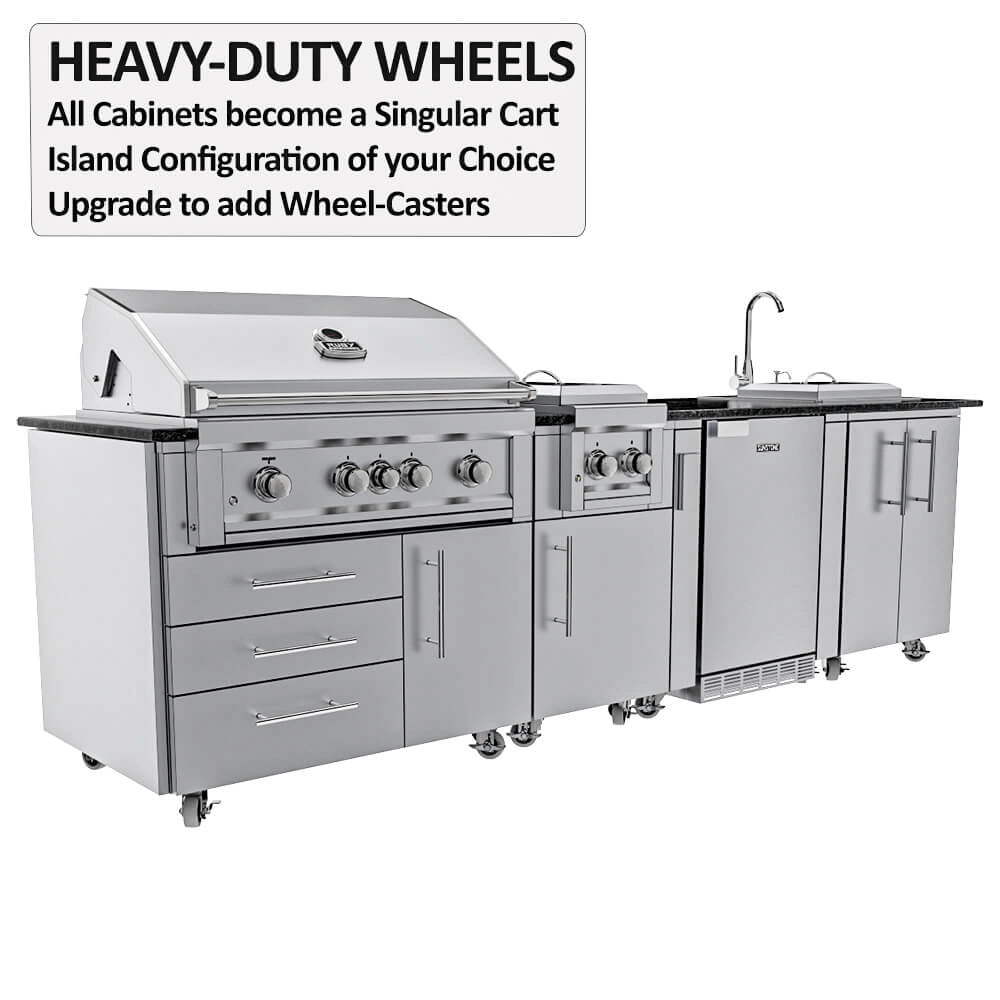

- Optional wheel casters (available separately from Sunstone)
Deep Dive — Hybrid Grill, Companion Pro & Island Details▸

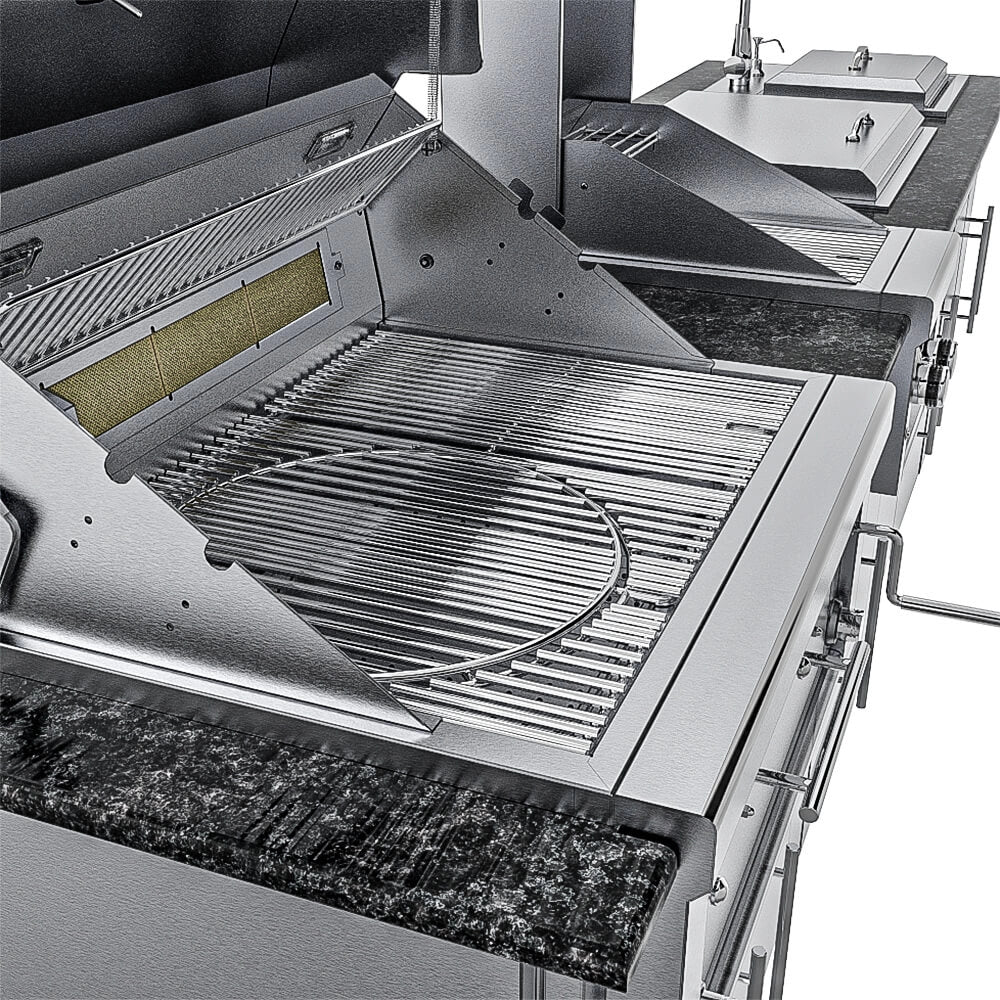

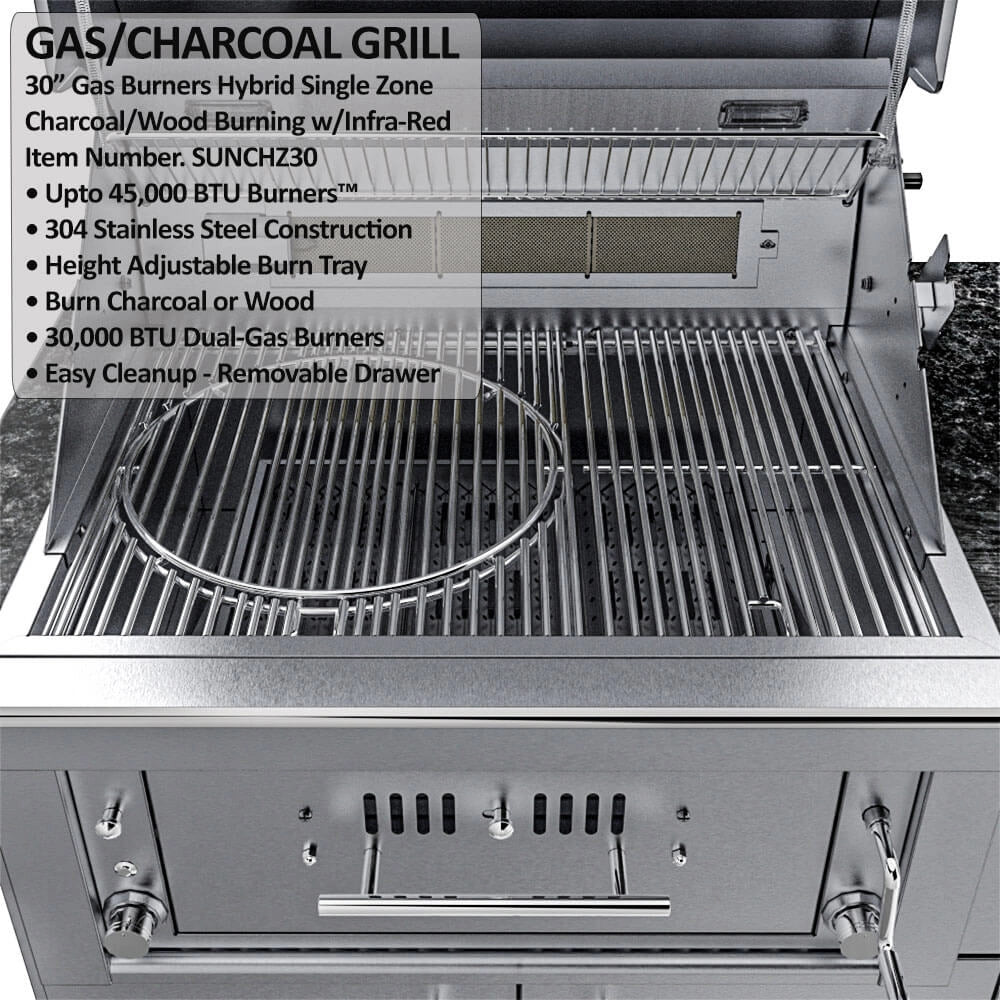

The 30" Hybrid Grill: Gas Convenience, Real Smoke, One Firebox
The heart of the Alamo is the SUNCHSZ30 — a 30-inch built-in grill that refuses to pick a lane. Two gas burners ignite electronically and heat up immediately when you need dinner on the table. A slide-out charcoal and wood burning drawer sits below the cooking grates, so you can layer in authentic smoke flavor without lighting a separate smoker. An infrared rear burner cranks temperatures to 800°F for insert-based cooking — pizza on a stone, proteins on a searing grate, crispy fries in the deep fryer basket. The grill ships as Liquid Propane; a Natural Gas conversion kit is included with the NG variant. Select your fuel type above before adding to cart.
Sink, Ice Chest, and Storage — Everything Stays on the Island

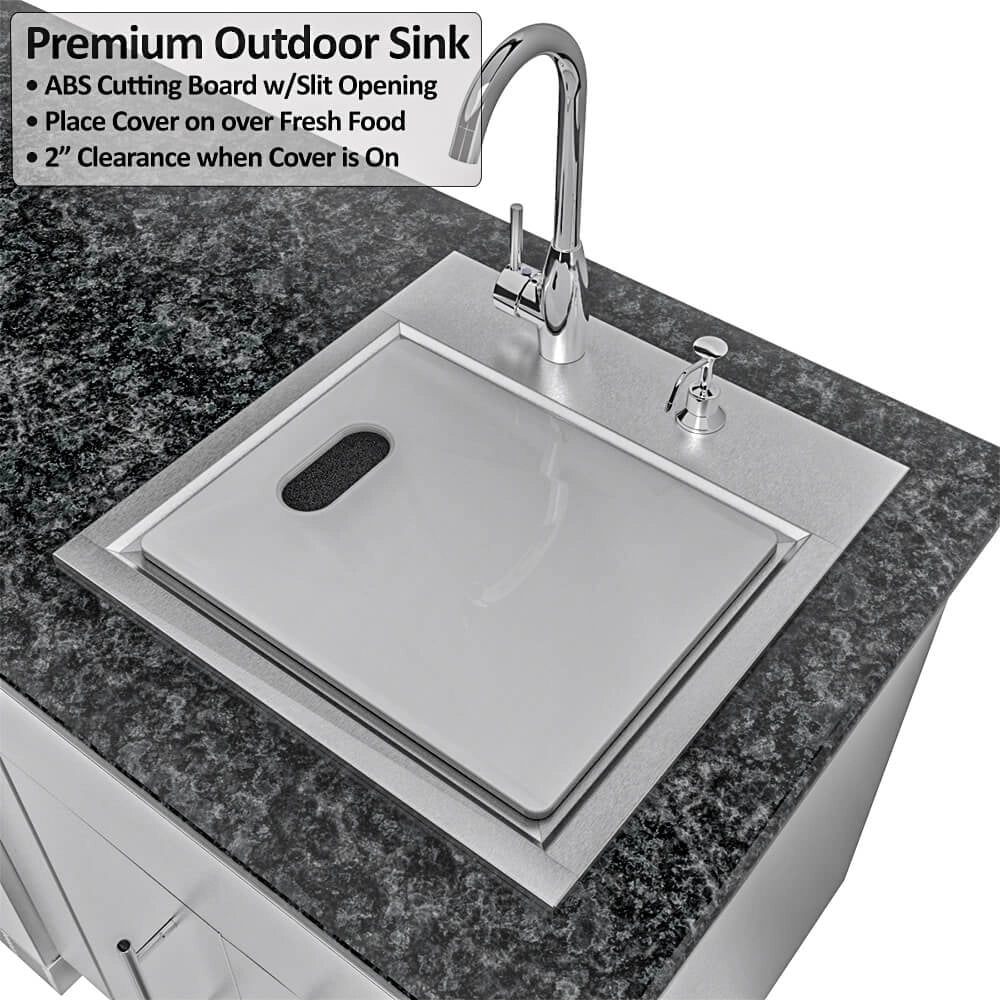

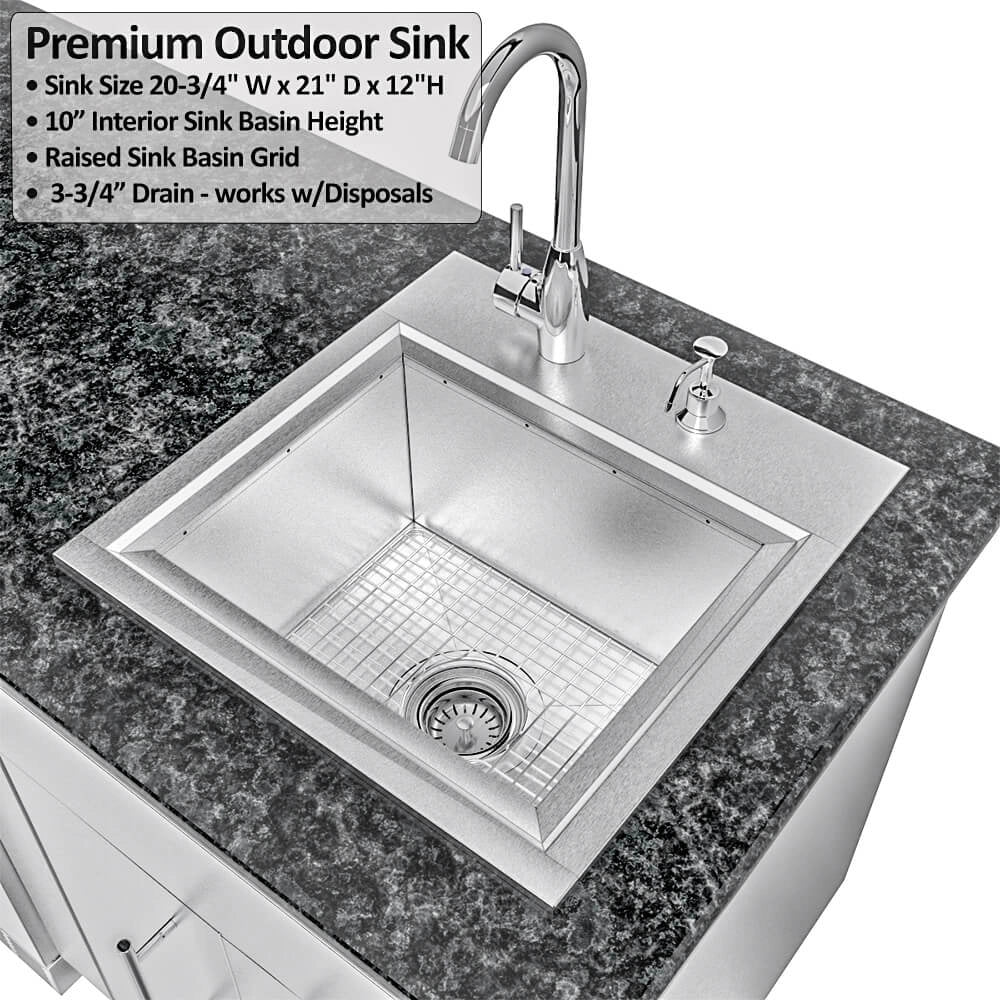

The 21" x 21" zero-radius drop-in sink (B-PS21) comes with a hot/cold faucet, soap dispenser, protective sink grid, cutting board, and a cover that converts the basin to counter space when you do not need water. Adjacent to it, the 28" insulated drop-in ice chest (A-IC) keeps drinks, proteins, and prepped ingredients cold through the whole cook — no running back and forth to a cooler. Two double-door base cabinets (36" and 24") provide ample below-counter storage for tools, propane tanks, accessories, and anything else you want within arm's reach.
Built to Drop Into an Outdoor Kitchen Island — or Stand Alone

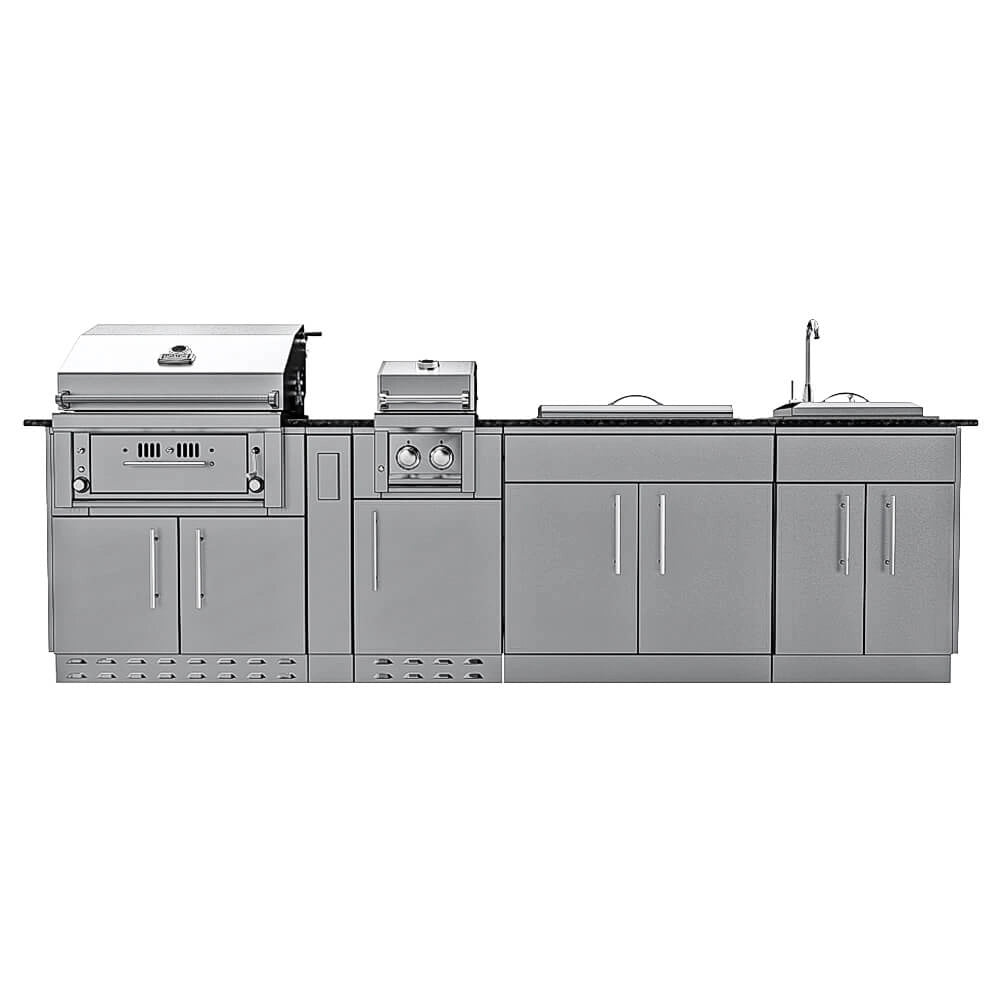

The Alamo package ships as a complete modular cabinet island — the SUNCHSZ30 hybrid grill drops into the 34" grill base cabinet (SAC34CGDC), and the Companion Pro Griller (SUN13CPRO) drops into the 20" appliance cabinet (SAC20CSDR). If you already have an outdoor kitchen island or masonry structure, both grill heads are designed as standard built-in/drop-in appliances and can be installed directly into a compatible cut-out opening. The SUNCHSZ30 requires a 27-1/2"W x 12-3/4"H x 22"D cut-out; the SUN13CPRO requires an 11"W x 10-1/2"H x 22"D cut-out. Always refer to the included installation guides for full clearance requirements before beginning any built-in installation.
Who It's For — The Deck & Den Take▸
The Deck & Den Take — The Alamo earns its footprint. If you have ever cooked on a gas grill wishing you could add smoke, or used a kettle charcoal grill wishing you had the speed of gas, this hybrid setup is the answer — and it brings a proper sink, an ice chest, and a second cooking station along for the ride. The countertop is not included, which actually works in your favor: choose a granite remnant, a butcher block, or a poured concrete top to match your patio aesthetic exactly. One practical note: plan your utility rough-ins before assembly. You will want a GFCI outlet in the cabinet for the LED lighting transformers, a gas stub-out at the right rear of each grill cabinet, and a plumbing rough-in for the sink. Have those in place and the snap-together assembly goes quickly.
-
Backyard entertainers who cook for a crowd — two independent cooking zones, a full sink, and a built-in ice chest mean you can run multiple dishes and keep guests fueled without leaving the patio.
-
Serious grillers who want gas speed and smoke flavor — the hybrid grill switches between gas, charcoal, and wood without changing equipment, so you are not locked into one style on any given night.
-
Homeowners building a permanent outdoor kitchen — the 304 stainless modular cabinet system is built for year-round outdoor installation, and the countertop-not-included design lets you finish the surface to match your architecture.
-
DIY installers who want a professional result — the snap-together pin-lock assembly and adjustable legs are specifically engineered for homeowner installation without a contractor.
-
High-heat cooks and pizza enthusiasts — the 800°F capable grill with optional insert accessories (pizza stone, searing grate, deep fryer, griddle — sold separately) handles cooking techniques most outdoor setups cannot reach.
-
Buyers replacing a tired built-in setup — each grill head is a standard drop-in dimension that works in new modular cabinets or in an existing masonry or concrete island with the correct cut-out.
Full Specifications & Dimensions▸

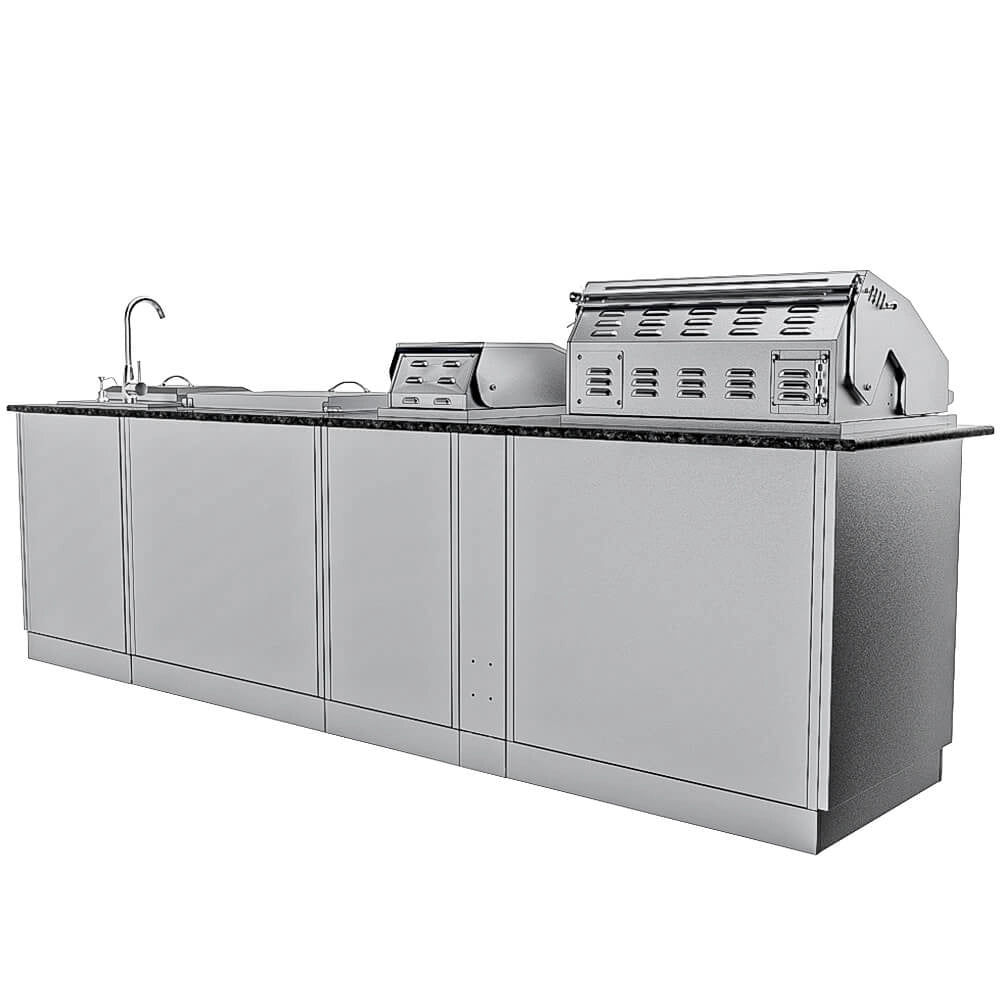

Island Package Overview
| Overall Island Width |
120 in (approximately 10.3 ft / 304.8 cm) |
| Overall Island Height (with legs) |
34.5 in (87.6 cm) |
| Overall Island Depth |
28.25 in (71.8 cm) |
| Total Package Weight (approx.) |
650 lbs (295 kg) |
| Cabinet Construction |
304 stainless steel, 18 gauge panels, doors, and shelving |
| Surface Finish |
No. 4 light brushed stainless steel |
| Cabinet Assembly |
DIY snap-together pin-lock modular system; adjustable peg legs |
| Countertop |
Not included — customer supplies own countertop material |
| Fuel Type Options |
Natural Gas (NG) or Liquid Propane (LP) — select above |
| SKU |
SCPALAMO10 |
30" Hybrid Grill — SUNCHSZ30
| Total BTUs |
Up to 45,000 BTU |
| Burners |
Dual gas main burners + rear infrared (IR) burner |
| Fuel Sources |
Gas (LP or NG), charcoal, and/or wood (via slide-out drawer) |
| Maximum Temperature |
Up to 800°F |
| Grill Dimensions |
30"W x 25-3/4"H x 25-3/4"D |
| Cut-Out Required |
27-1/2"W x 12-3/4"H x 22"D |
| Grill Head Weight |
170 lbs (77 kg) |
| Ignition |
Electronic ignition (AA battery); manual lighting backup |
| Lighting |
LED interior lighting (electrical transformer included; requires GFCI outlet) |
| Gas Connection Location |
Back right underside; recommend 18" flexible hose |
| Supported Insert Accessories |
Pizza stone, griddle, deep fryer, searing grate (all sold separately) |
| Minimum Rear Clearance |
6 in behind grill for ventilation and hood clearance |
| Combustible Material Clearance |
24 in minimum to any combustible material; counter to overhead 5 ft minimum |
| Island Structure Requirement |
Island frame must be non-combustible (Sunstone 304 SS cabinets meet this requirement) |
| Ventilation Required |
Minimum 2 vents: high position for NG; low position for LP |
13" Companion Pro Griller — SUN13CPRO
| Total BTUs |
22,000 BTU |
| Burners |
2 infrared (IR) burners |
| Grill Dimensions |
13"W x 12-3/4"H x 26"D |
| Cut-Out Required |
11"W x 10-1/2"H x 22"D |
| Griller Weight |
44 lbs (20 kg) |
| Hood |
SUN13CPRO-HOOD included; 75° opening; analog temperature gauge; warming rack; 7"H x 13"W x 26-5/8"D |
| Cooking Modes |
Grilling, searing, smoking, frying, steaming; compatible insert accessories sold separately |
| Included Accessories |
304 SS cooking grid, flavorizer racks, removable cover, hood (SUN13CPRO-HOOD) |
34" Hybrid Grill Base Cabinet — SAC34CGDC
| Cabinet Width |
34 in |
| Cabinet Depth (with doors) |
28-1/4 in |
| Cabinet Height (with legs) |
34-1/2 in; adjustable up to 36 in max; 30-1/2 in without legs |
| Material |
304 stainless steel; 18 gauge box, door panels, and shelf; solid 304 SS rod handles |
| Trim Kit Included |
SCC34CTK3.75 (sleeve cut-out 26-3/8"W x 12-3/4"H x 24-1/2" max depth — fits SUNCHSZ30) |
| Cabinet Features |
Front and back kick-plates; easy pin-lock installation; soft-close drawer tracks; covered access ports; (4) side utility access ports; (2) speed rail shelf; adjustable peg legs |
| Optional Add-On |
Wheel casters available separately |

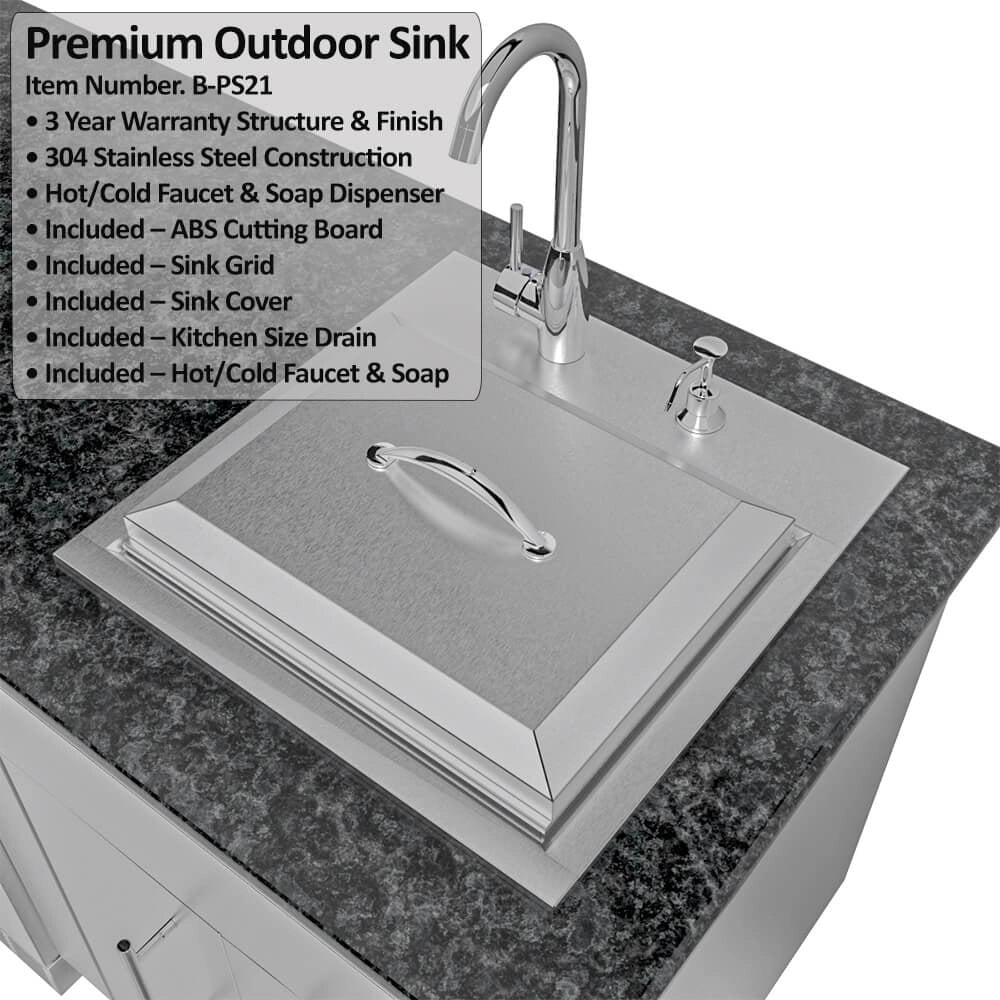

Drop-In Sink — B-PS21
| Sink Basin Size |
21 in x 21 in, zero-radius |
| Material |
304 stainless steel |
| Included |
Hot/cold faucet, soap dispenser, sink grid, cutting board, and sink cover |
Overall Island Dimensions & Weight
| Width |
120 in / 10 ft (304.8 cm) |
| Height |
34.5 in (87.6 cm) — without countertop; cabinets adjustable up to 36 in |
| Depth |
28.25 in (71.8 cm) |
| Total Package Weight |
Approximately 650 lbs (295 kg) |
Warranty, Shipping & Returns▸
-
Manufacturer's Warranty — The Sunstone SCPALAMO10 cabinetry is covered by Sunstone Metal Products' limited lifetime warranty on the structure (labor not included), honored directly by Sunstone. Individual appliances — SUNCHSZ30 hybrid grill, SUN13CPRO Companion Pro Griller, B-PS21 sink, and A-IC ice chest — are each covered under their respective Sunstone manufacturer warranties. Refer to the manuals and the included warranty documentation for complete terms and exclusions.
-
Free Shipping on orders over $100 to the contiguous 48 states. This is a large freight item — a scheduled delivery appointment will be arranged with you.
-
45-Day Returns — Deck & Den's standard return policy applies. Contact us before returning any freight item.
-
Price Match Available — found a lower authorized price? We will match it.
Manuals & Documents▸
Frequently Asked Questions▸
How many BTUs does the main hybrid grill produce?▸
The SUNCHSZ30 hybrid grill produces up to 45,000 BTUs total from its dual main gas burners and infrared rear burner. Note that some third-party listings show 30,000 BTU — the verified figure from Sunstone's own spec sheet is 45,000 BTU.
How many BTUs does the Companion Pro Griller produce?▸
The SUN13CPRO Companion Pro Griller delivers 22,000 BTUs across its two infrared burners — confirmed from Sunstone's spec sheet.
Can I use charcoal and gas at the same time?▸
Yes. The SUNCHSZ30's charcoal/wood drawer sits below the main cooking grates and can be loaded while the gas burners are active — allowing you to combine gas heat with live-fire smoke flavor in a single cook.
What are the grill cut-out dimensions for the SUNCHSZ30?▸
The SUNCHSZ30 requires a cut-out of 27-1/2" wide x 12-3/4" high x 22" deep. A minimum 6" clearance behind the grill is also required for ventilation. Refer to the Install Guide and Spec Sheet (both linked in the Manuals section above) for corner notch requirements and complete clearance rules.
Can the grills be installed in an existing masonry or concrete island?▸
Yes. Both the SUNCHSZ30 hybrid grill and the SUN13CPRO Companion Pro are standard drop-in built-in appliances. They will install into any non-combustible island structure with the correct cut-out dimensions. The island structure must be non-combustible — if not, Sunstone's grill jacket inserts are required. Review the install guide and clearance specifications before cutting any openings.
What is included with the countertop — and why isn't it in the package?▸
The countertop is intentionally excluded so you can choose a material that matches your patio, home, and budget — granite, concrete, porcelain tile, quartzite, or butcher block are all popular choices. The cabinet height is adjustable up to 36" to accommodate different countertop thicknesses. You will need to supply and install your own countertop after the cabinets are assembled.
Do I need a plumber or electrician to install this island?▸

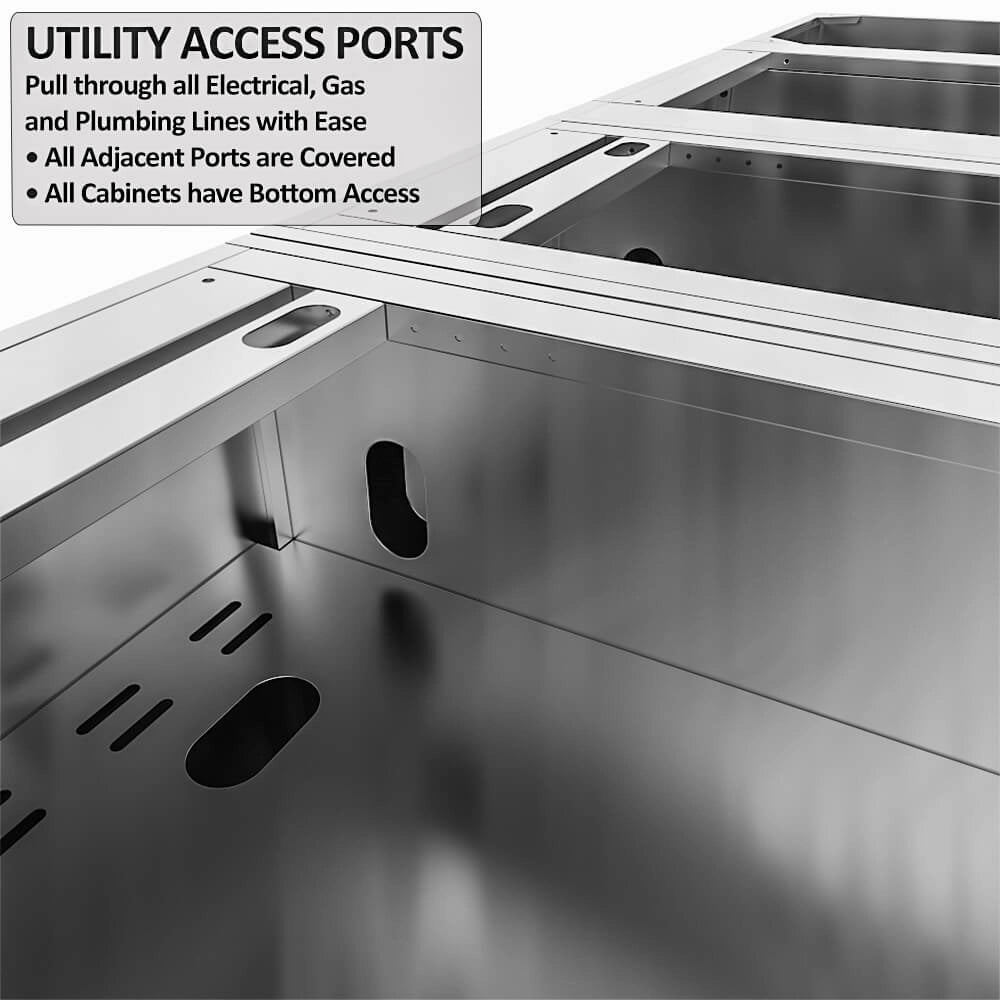

The cabinet assembly itself is a DIY snap-together system. However, three utility connections require professional trades for most homeowners: a licensed plumber to run the sink supply and drain lines, a licensed electrician to install a GFCI outlet inside the cabinet for the grill LED transformers, and — depending on local codes — a licensed gas fitter to run and connect the gas supply line. Always check local building and permit requirements before beginning installation.
Which fuel type should I choose — Natural Gas or Liquid Propane?▸
If your home has a natural gas line, NG is the most convenient option — no tank refills, unlimited supply. If you do not have a gas line stub-out on your patio, LP is the practical choice: connect a standard propane tank to the regulator provided. A gas conversion kit is available from Sunstone (888-934-9449) if you ever need to switch fuel types in the future. Select your preferred fuel type above before adding to cart.
How many ventilation openings does the island cabinet need?▸
Sunstone requires a minimum of two air-flow vents per grill appliance. For Natural Gas installations, vents must be placed in the high position (near the top of the cabinet). For Liquid Propane installations, vents must be placed in the low position (near the bottom of the cabinet). Failure to provide adequate ventilation may void the warranty — refer to the install guide for exact placement guidance.
What overhead clearance is required above the grill?▸
Sunstone specifies a minimum of 5 feet from the top of the counter to the bottom edge of any overhead combustible structure, and a minimum of 8 feet from the floor to any overhead combustible material. Enclosed or covered patio structures require an appropriate vent hood above the grill. Maintain at least 24 inches of clearance from all combustible side materials.
What optional insert accessories work with the hybrid grill?▸

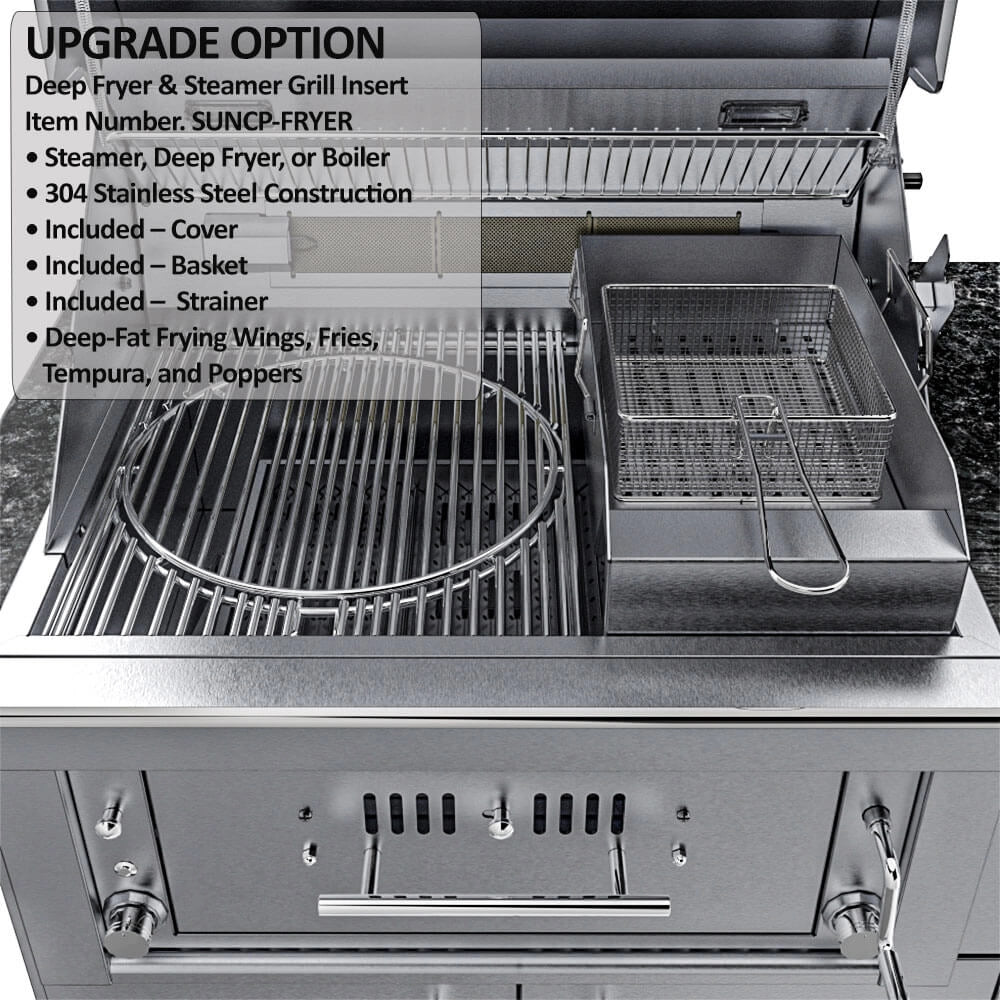

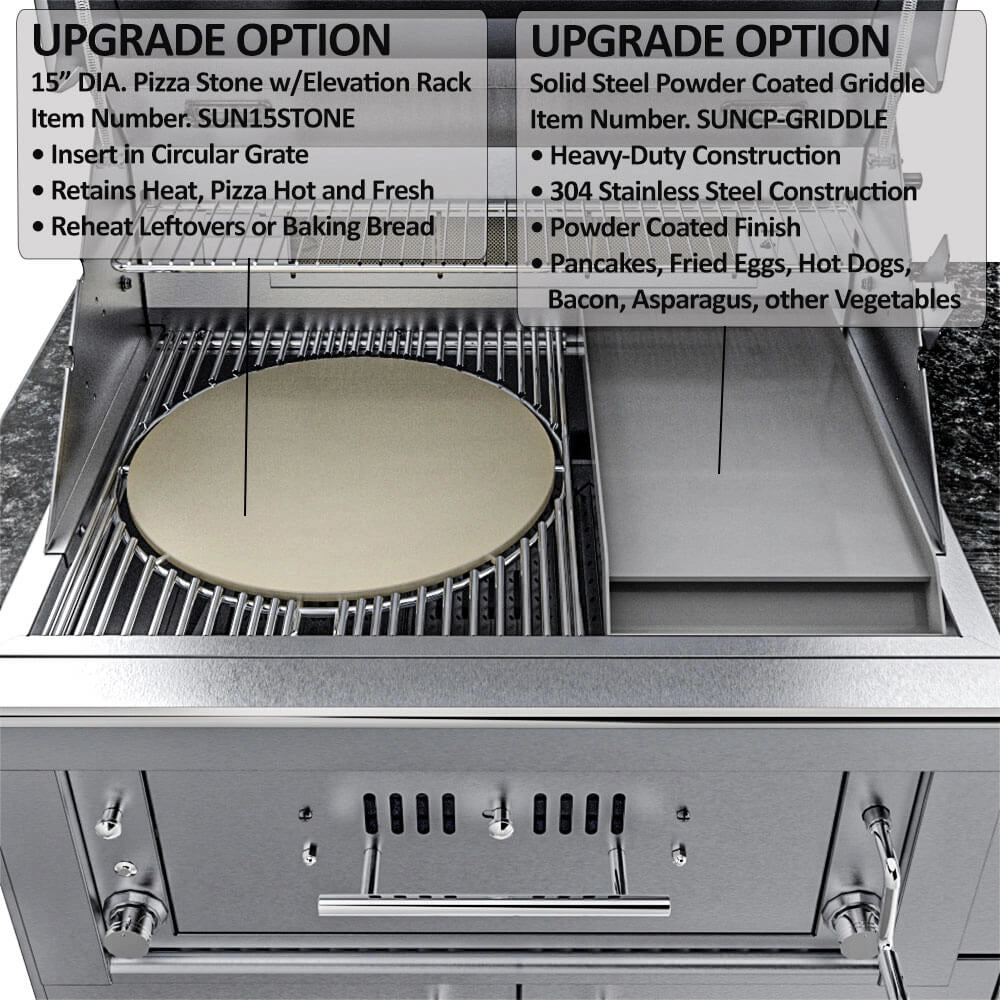

The SUNCHSZ30 supports a pizza stone, solid steel griddle, commercial-size deep fryer basket, and a pro sear grilling rack. All inserts are sold separately by Sunstone. The SUN13CPRO Companion Pro Griller is also compatible with the same insert accessories and accepts the same items interchangeably.
Can the 20" appliance cabinet door swing be changed to left-opening?▸
Yes. The package includes the SAC20CSDR (right-swing) by default. If you prefer a left-swing configuration, Sunstone will substitute the SAC20CSDL at no additional charge — contact Deck & Den before placing your order to arrange the swap.
How is the grill ignited — and what if the electronic ignition fails?▸
The SUNCHSZ30 uses an electronic ignition powered by a single AA battery, located in the vented box on the back-left side of the grill. If the electronic igniter fails to light the burner within 5 seconds, turn the knob to OFF, wait five minutes for gas to clear, and retry. Manual lighting is also possible — refer to the Use & Care Guide for the manual lighting procedure. Always light the grill with the hood fully open.
How heavy is the complete island package?▸
The complete Alamo package weighs approximately 650 lbs (295 kg). It ships via freight on a pallet with curbside liftgate delivery. Ensure you have adequate manpower or equipment to move and position the cabinets during assembly — the SUNCHSZ30 grill head alone weighs 170 lbs.
What is the warranty on this island package?▸
Sunstone Metal Products provides a limited lifetime warranty on the structural stainless steel cabinetry. Labor is not included. Individual appliances (grills, sink, ice chest) are covered under their respective manufacturer warranties from Sunstone. Contact Sunstone directly at 888-934-9449 or service@sunstonemetalproducts.com for warranty claims and service. Deck & Den passes through Sunstone's manufacturer warranty and does not independently warrant the product.
How do I keep the stainless steel looking its best?▸
304 stainless steel is highly corrosion-resistant, but the brushed finish benefits from regular maintenance. Always clean in the direction of the grain using a mild soap and warm water, or a dedicated stainless steel cleaner. Avoid abrasive pads and cleaners containing chlorine bleach. Rinse thoroughly and dry with a soft cloth. Refer to the Stainless Steel Cleaning Guide (PDF linked above) for detailed care instructions. A grill cover when not in use will further protect the finish from environmental exposure.
Does the island include a refrigerator?▸
The Alamo 10-foot package does not include a refrigerator — it includes a 28" insulated drop-in ice chest (A-IC) for cold storage instead. If you want a powered outdoor refrigerator, you could substitute one into the modular cabinet layout using Sunstone's compatible appliance cabinets — contact Deck & Den to discuss options.
What is the overall island footprint, and how much patio space do I need?▸
The assembled island is 120 inches (10 feet) wide x 28.25 inches deep x 34.5 inches tall (without countertop). Plan for a working space of at least 4–5 feet in front of the island for comfortable access, plus any additional clearance required from nearby structures. The island runs in a straight-line configuration.
How is the island delivered?▸
The Alamo package ships via freight on a pallet. Deck & Den provides free shipping on orders over $100 to the contiguous 48 states. A freight carrier will contact you to schedule a delivery appointment. Delivery is curbside with liftgate service — the carrier will lower the pallet to the curb or driveway; moving it to your installation site is your responsibility. Inspect the pallet carefully upon delivery and note any visible damage on the delivery receipt before signing.
Can I get help designing the layout or choosing between Sunstone island packages?▸
Yes. Contact the Deck & Den team and we will help you compare Sunstone island packages, talk through fuel-type options, and confirm that the Alamo fits your patio dimensions. Sunstone also offers a complimentary design service for custom outdoor kitchen configurations if you are considering a different layout than the Alamo's standard run.
