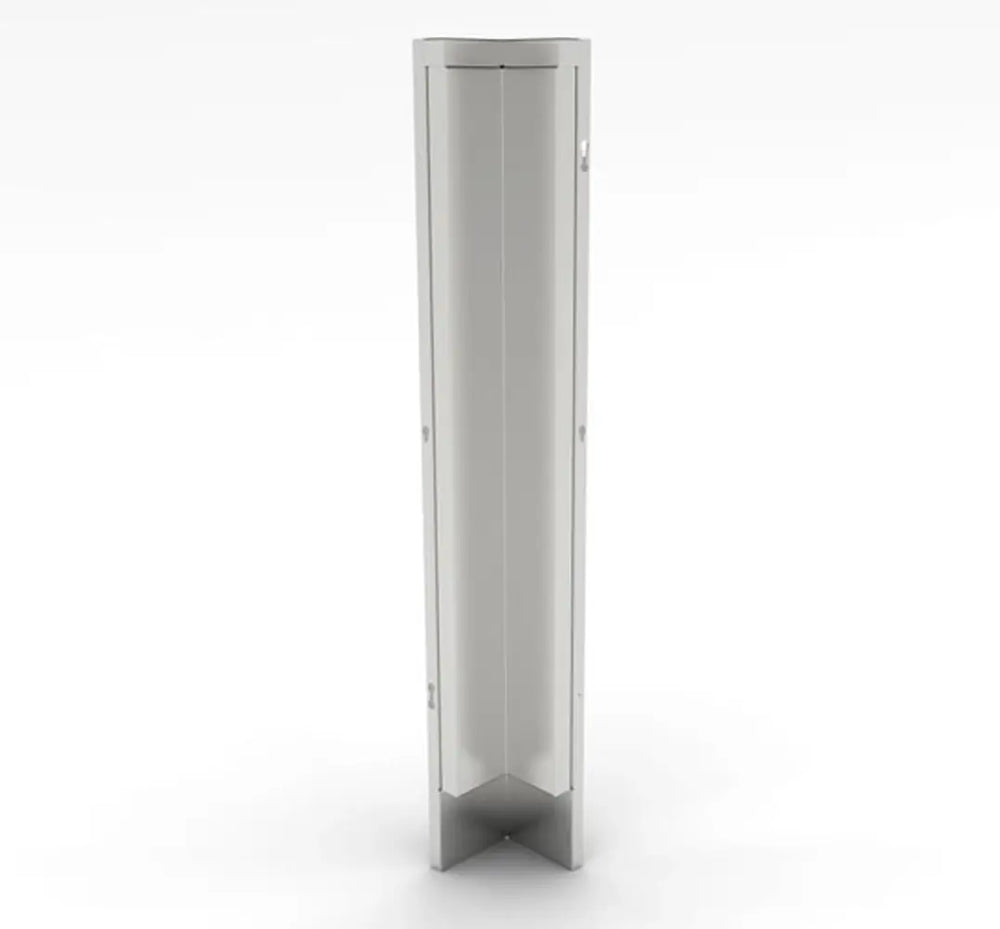

Sunstone SCC3SP90 3"×3" 90° Spacer Panel for Corners
Sunstone SCC3SP90 – 3" × 3" 90° Spacer Panel

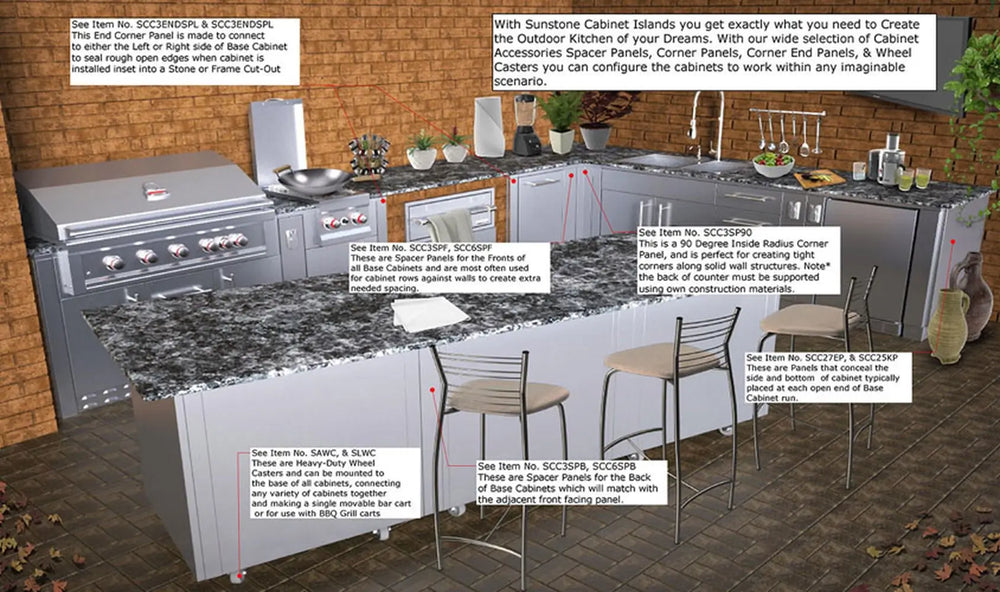

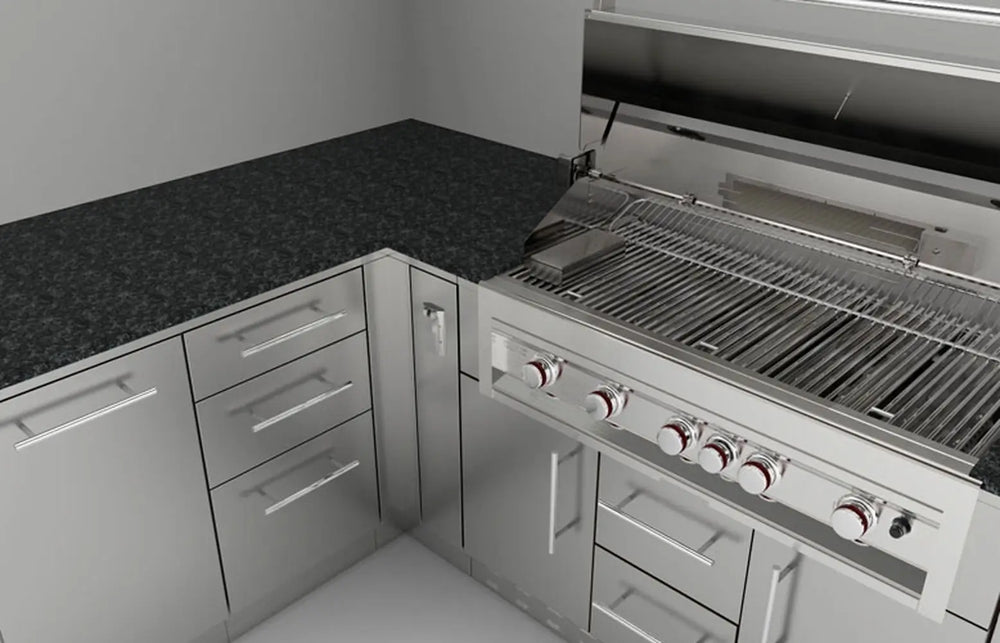

The Sunstone SCC3SP90 is a 3" × 3" 90° spacer panel designed to form a tight inside 90° corner between two opposing Sunstone base cabinets in an outdoor kitchen island configuration. Built for installers creating corner layouts, it provides a finished front-facing corner transition while matching the #4 brushed 304 stainless steel look of the cabinet system. This panel is typically used during the island assembly phase: align two cabinets at 90° and pin-lock the spacer panel between them to close the gap and create a cleaner corner profile, with included kick plate and counter rail to maintain consistent base and countertop alignment. Compared with leaving a corner joint open, the Sunstone SCC3SP90 creates a tighter, more polished inside corner at the front of the island; for corner installs against a wall, additional rear counter support may still be required as noted in the product guidance.
Sunstone SCC3SP90 Features
- Forms a Tight 90° Inside Corner: Designed to bridge two opposing cabinets set at 90° for a cleaner, tighter inside corner profile.
- Compact 3" × 3" Spacer Panel: Small corner spacer helps close the inside corner gap without requiring a full cabinet module.
- Includes Kick Plate & Counter Rail: Comes standard with bottom kick plate and top matching counter rail for consistent base finish and countertop alignment.
- 304 Stainless Steel Match: All 304 stainless steel construction with #4 brushed finish to blend with Sunstone cabinets and components.
- Easy Pin-Lock Installation: Lift-and-drop pin-lock install between two cabinets; no tools required for the panel install.
- Removable Counter Rail: Counter rail can be removed to accommodate bull-nose counter edge installations.
- Front-Facing Corner Use: Intended for the front-facing corner; additional rear counter support may be needed for corner installs against a wall (as noted in product guidance).
- Warranty: Lifetime Structure Warranty.
Sunstone SCC3SP90 Specifications
| Model Number | SCC3SP90 |
| Product Type | 3" × 3" 90° Spacer Panel |
| Material | 304 Stainless Steel Construction |
| Included Components | Includes Kick Plate & Counter Rail |
| Installation | Easy Pin-Lock Installation (no tools required) |
| Dimensions | 3" W × 3" W; 90° inside radius; 30-1/2" H |
| Warranty | Lifetime Structure Warranty |
