Sunstone SBC5C30 – 30° Corner Cabinet with Utility Access

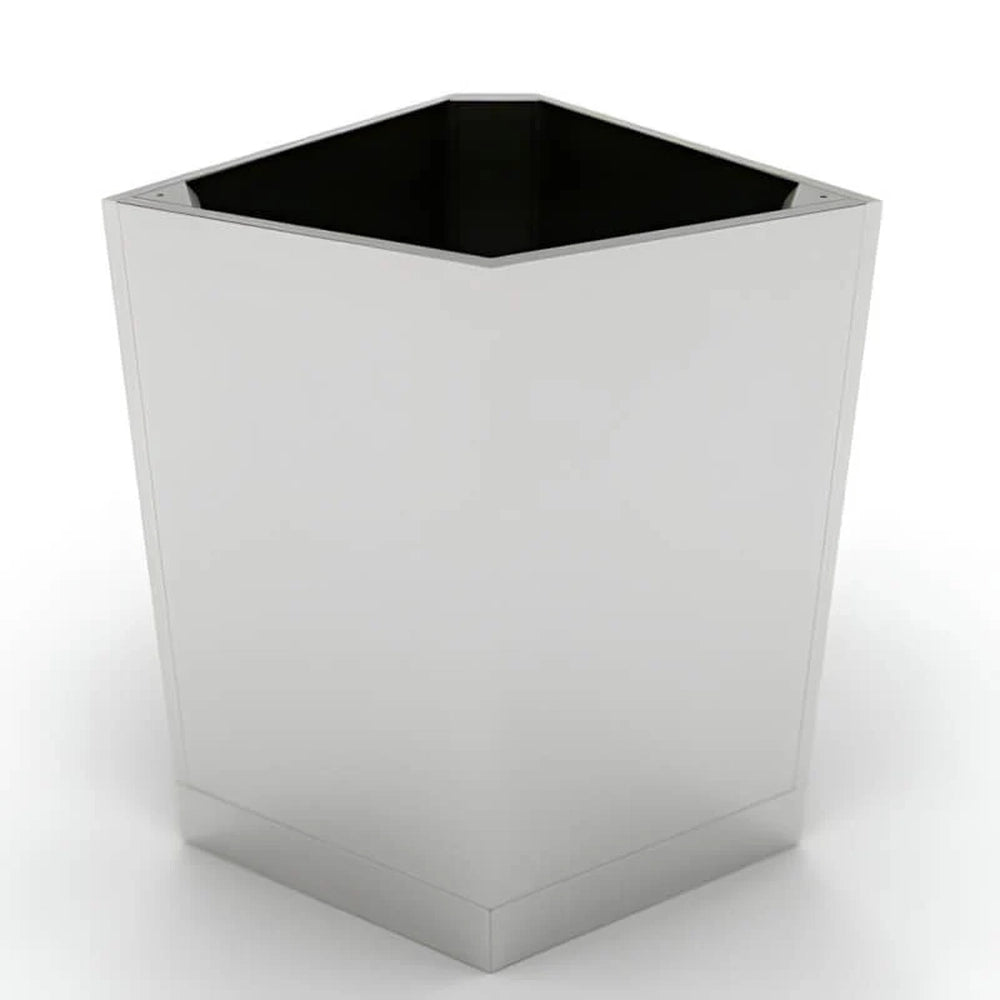

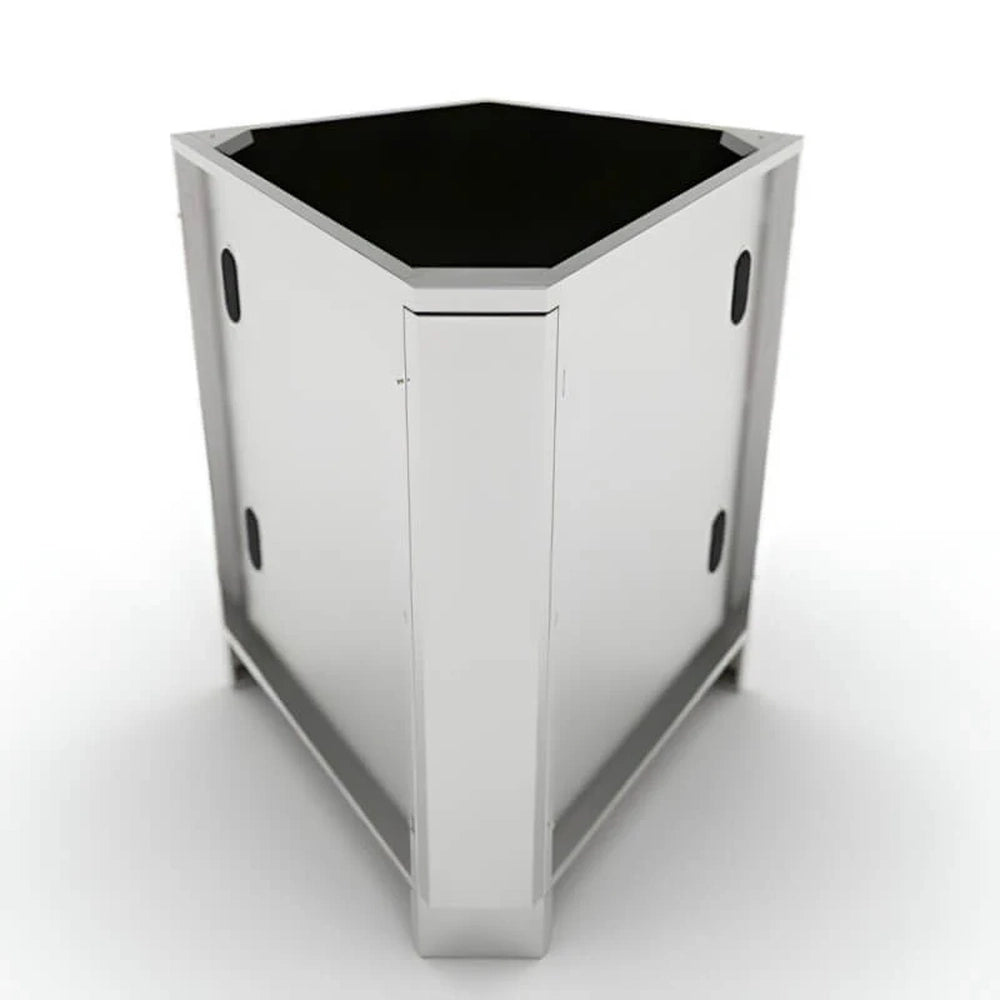

The Sunstone SBC5C30 is a 30° corner cabinet front panel designed to create an angled outdoor kitchen island layout while preserving full-depth space behind the corner for top-counter inserts. Built for outdoor kitchen builders who want a cleaner angled run-in open patio area, it extends into an open back angle with room for compatible counter-top appliance inserts such as a corner bar sink (A-SS17) or a single drop-in side burner (SUN13VSB-LP/NG). This cabinet is typically used during island planning and installation to form a 30° angle transition, and it includes a single built-in covered floor utility access point for routing lines. Compared with square corner modules, the Sunstone SBC5C30 enables a smoother angled layout while keeping a dedicated floor utility access path for sink or burner installations.
Sunstone SBC5C30 Features
- 30° Angled Island Corner: Front panel corner cabinet designed to create angled outdoor kitchen island layouts in open spaces.

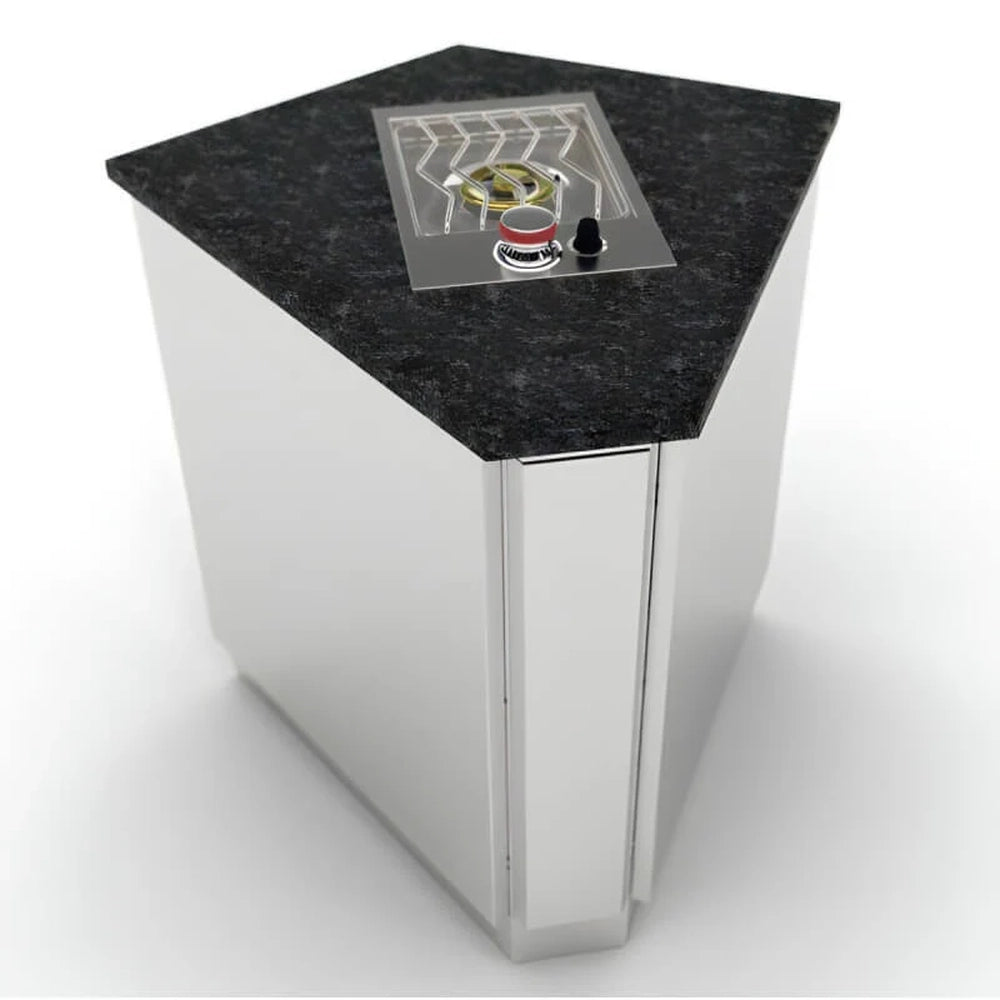

- Full-Depth Open Back Angle: Extends into an open back angle with room for top-counter appliance inserts such as a corner bar sink (A-SS17) or a single drop-in side burner (SUN13VSB-LP/NG).

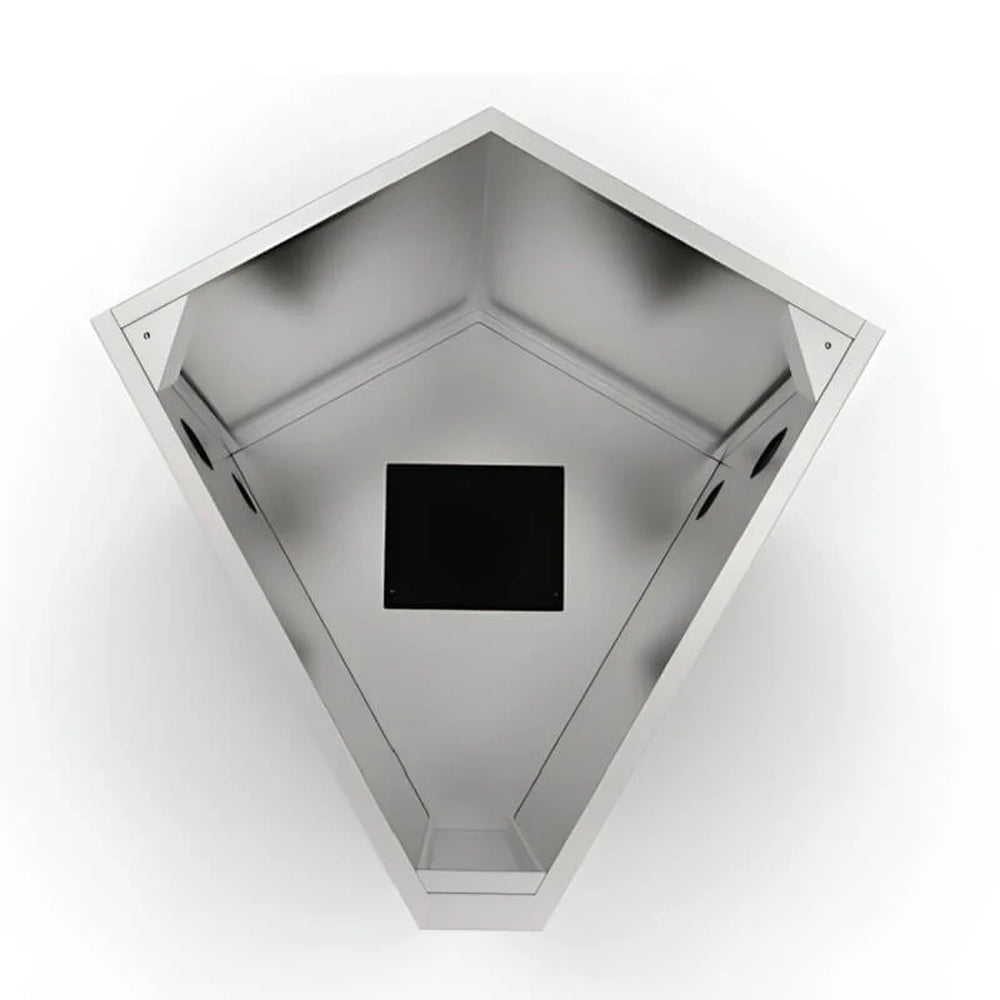

- Covered Floor Utility Access: Includes one built-in covered floor access point for routing utilities during sink or side burner installs.
- Utility Routing Consideration: Noted as having no other access points, so flexible hoses may be needed for gas/drain routing in certain installs.
- 304 Stainless Steel Construction: Built with 304 stainless steel structure and an even-toned #4 horizontal light brushed finish for outdoor durability.
- 304 Stainless Rod Handles: Large 304 stainless rod handles match Sunstone cabinet runs for consistent appearance.
- Front & Back Kick-Plates: Includes kick-plates for a finished base appearance and cleaner island integration.
- Countertop Integration Options: Removable counter rail supports countertop styles that require front overlap, such as full-bullnose counters.
- Easy Pin-Lock Installation: Lift-and-drop pin-lock assembly supports faster island builds with minimal tools required.
- Leveling + Mobility Options: Includes (2) adjustable peg-legs for leveling; optional wheel casters can convert the cabinet into a movable cart module.
- Warranty: Lifetime Structure Warranty.
Sunstone SBC5C30 Specifications
| Model Number | SBC5C30 |
| Product Type | 30° Corner Cabinet Front Panel with Utility Access |
| Material | 304 Stainless Steel Structure |
| Utility Access | Covered floor utility access (single access point) |
| Kick Plate | Front & Back Kick-Plates |
| Counter Rail | Removable Counter Rail |
| Access Ports | Covered access (floor); no additional access points noted |
| Cabinet Features | Replaceable Face Panel |
| Leveling Feet | (2) Adjustable Peg-Leg |
| Installation | Easy Pin-Lock Installation |
| Options | Optional Wheel Casters |
| Dimensions | 3" W × 3" W; 30° inside radius; 28-1/4" D; 34-1/2" H (with legs) |
| Warranty | Lifetime Structure Warranty |
