Sunstone SBC3C45 – 45° Corner Cabinet with Utility Access
The Sunstone SBC3C45 is a 45° corner cabinet designed to create angled outdoor kitchen island layouts while preserving full-depth space behind the corner for top-counter inserts and utility routing. Built for Sunstone island configurations where you want an L-shape or a smooth angled transition, it extends into an open back angle that can accommodate compatible counter-top inserts such as a single drop-in side burner (1SSB-LP/NG). This cabinet is typically used during the layout and install phase: use one cabinet to form a 45° angle, or use two cabinets together to create a full 90° corner. Compared with square corner modules, the Sunstone SBC3C45 improves traffic flow and layout flexibility while keeping gas, water, or electrical management cleaner through covered utility access ports.
Sunstone SBC3C45 Features
- 45° Corner for Angled Layouts: Designed to build angled island runs for L-shaped or specialty outdoor kitchen layouts.

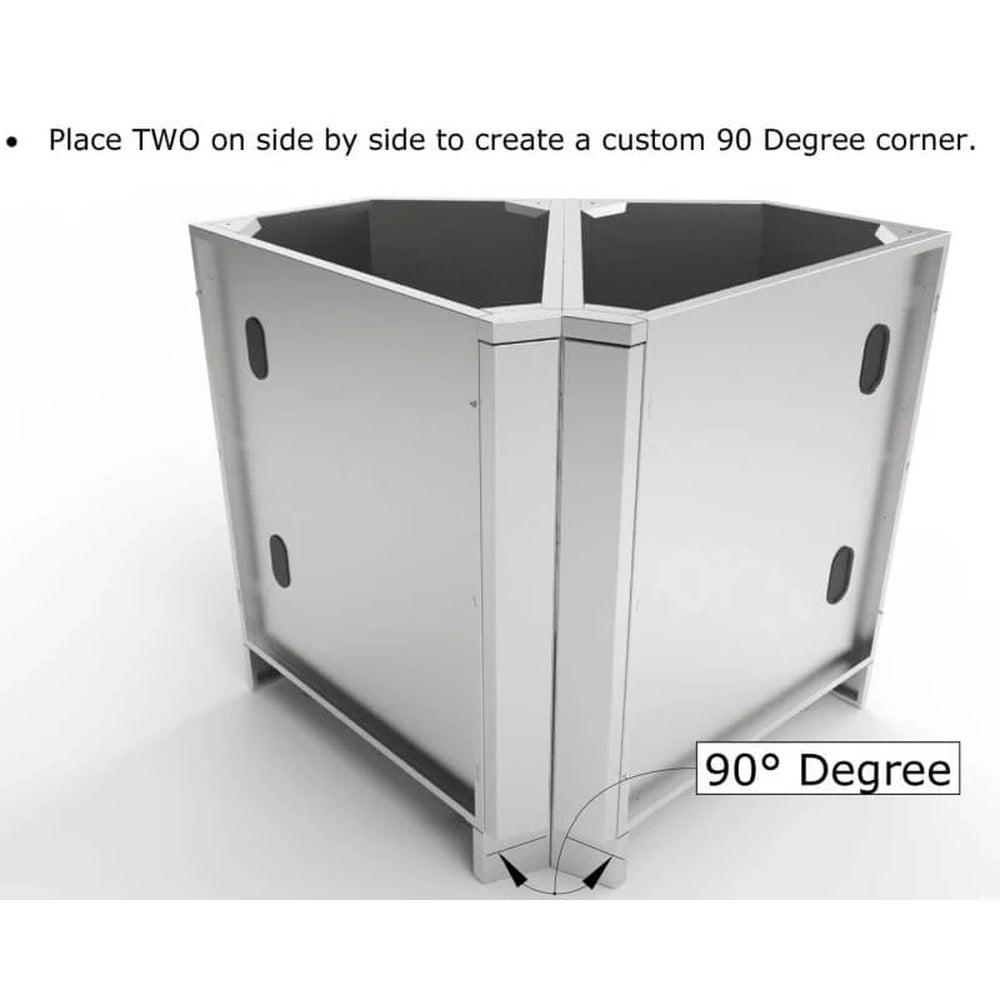

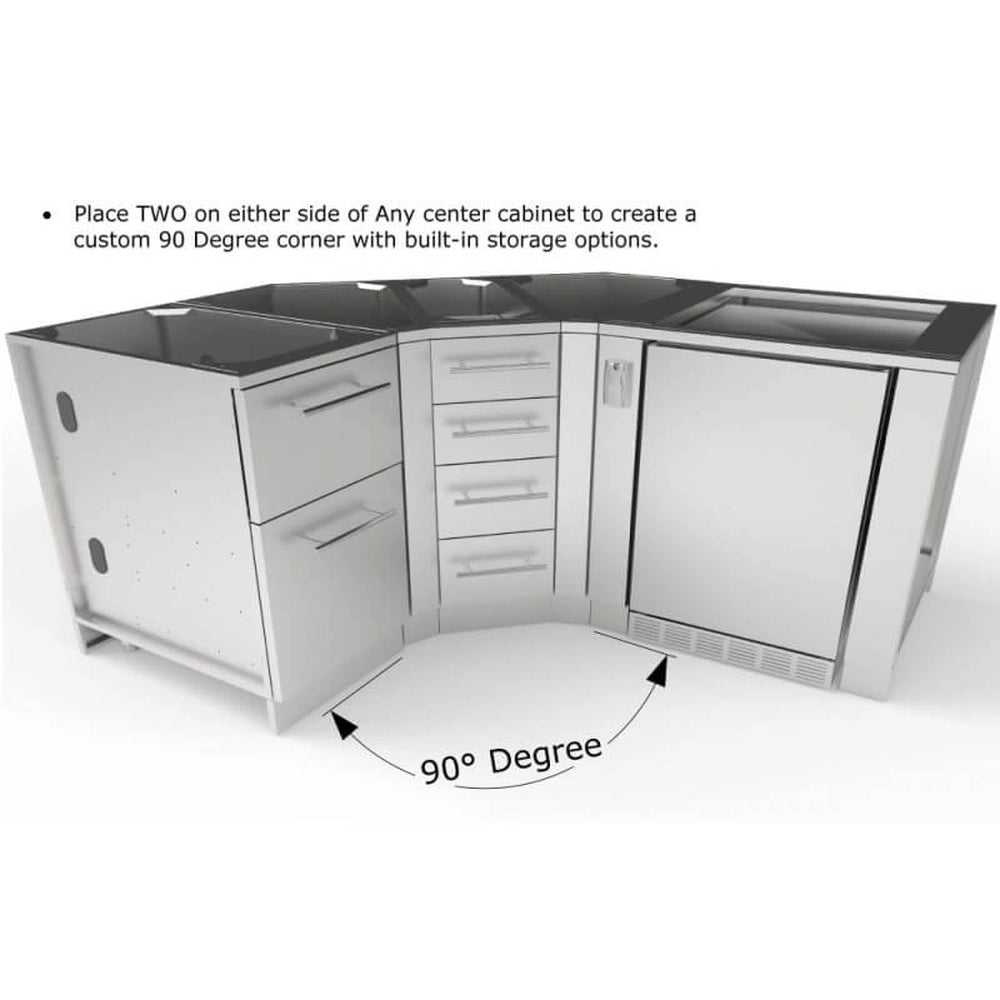

- Configurable Corner Geometry: Use one cabinet for a 45° corner, or two cabinets together for a full 90° corner configuration.
- Full-Depth Open Back Angle: Extends into an open back angle that can support top-counter appliance inserts such as a single drop-in side burner (1SSB-LP/NG).
- Covered Utility Access Ports: Utility access ports support routing gas, water, or electrical lines while maintaining a cleaner cabinet appearance.
- Removable Counter Rail: Counter rail can be removed to accommodate full-bullnose or bevel edge countertop styles.
- 304 Stainless Steel Construction: Built from 304 stainless steel for outdoor durability and corrosion resistance.
- Easy Pin-Lock Installation: Pin-lock cabinet integration supports quicker setup with minimal tools required for most configurations.
- Adjustable Peg Legs: Height-adjustable peg legs help level the cabinet on uneven surfaces.
- Optional Wheel Casters: Optional casters can add mobility for repositioning in certain layouts.
- Warranty: Lifetime Structure Warranty.
- Countertop: Sold separately.
Sunstone SBC3C45 Specifications
| Model Number | SBC3C45 |
| Product Type | 45° Corner Cabinet with Utility Access |
| Width | 13-1/2" (Front Panel) |
| Depth | 28-1/4" (with panel) |
| Height | 34-1/2" (with legs) / 30-1/2" (without legs) |
| Material | 304 Stainless Steel |
| Construction Gauge | 18 Gauge (Doors, Cabinet Box, Shelf) |
| Handles | Solid 304 Stainless Steel Rod Handles |
| Kick Plate | Front & Back Kick-Plates (4" Height) |
| Included Components | Peg Legs, Kick Plates, Utility Access Ports |
| Countertop | Sold Separately |
| Warranty | Lifetime Structure Warranty |
