Sunstone SAC66HGDC Pellet Grill Base Cabinet 66"
Sunstone SAC66HGDC – 66" Pellet Grill Storage Base Cabinet

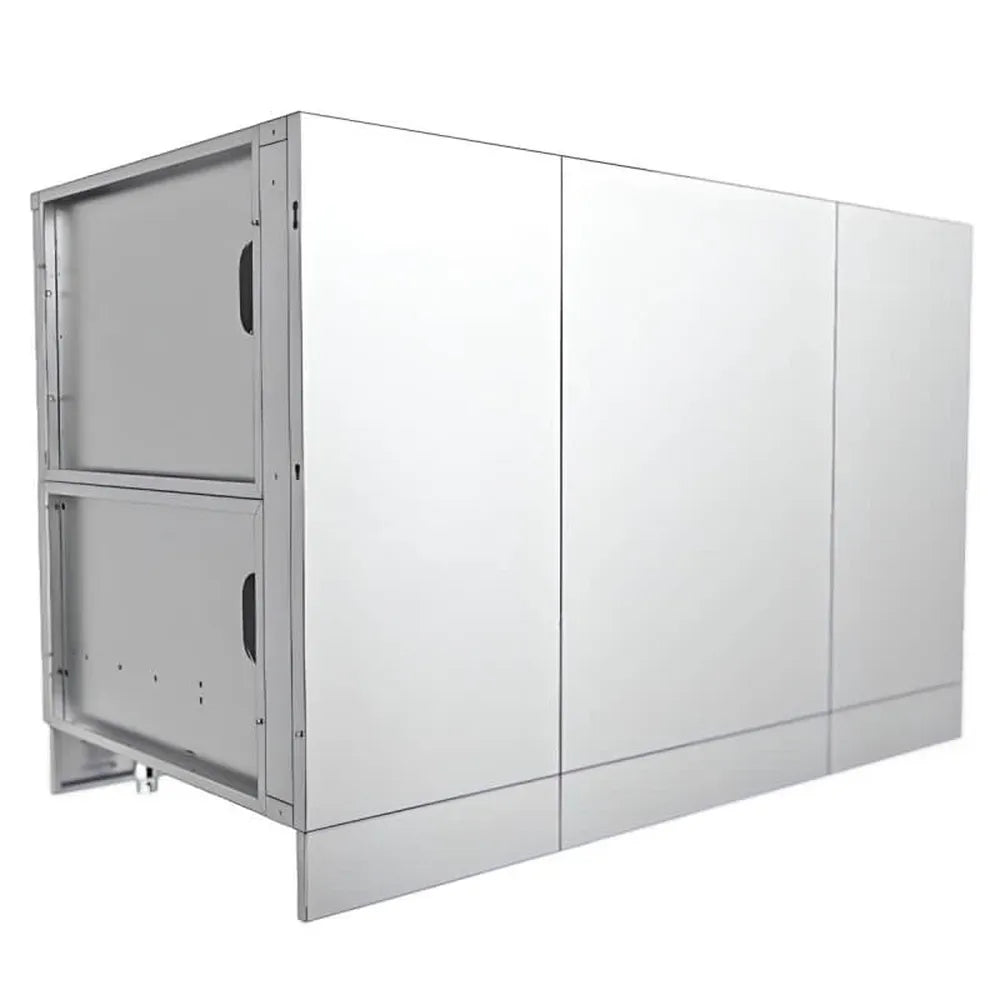

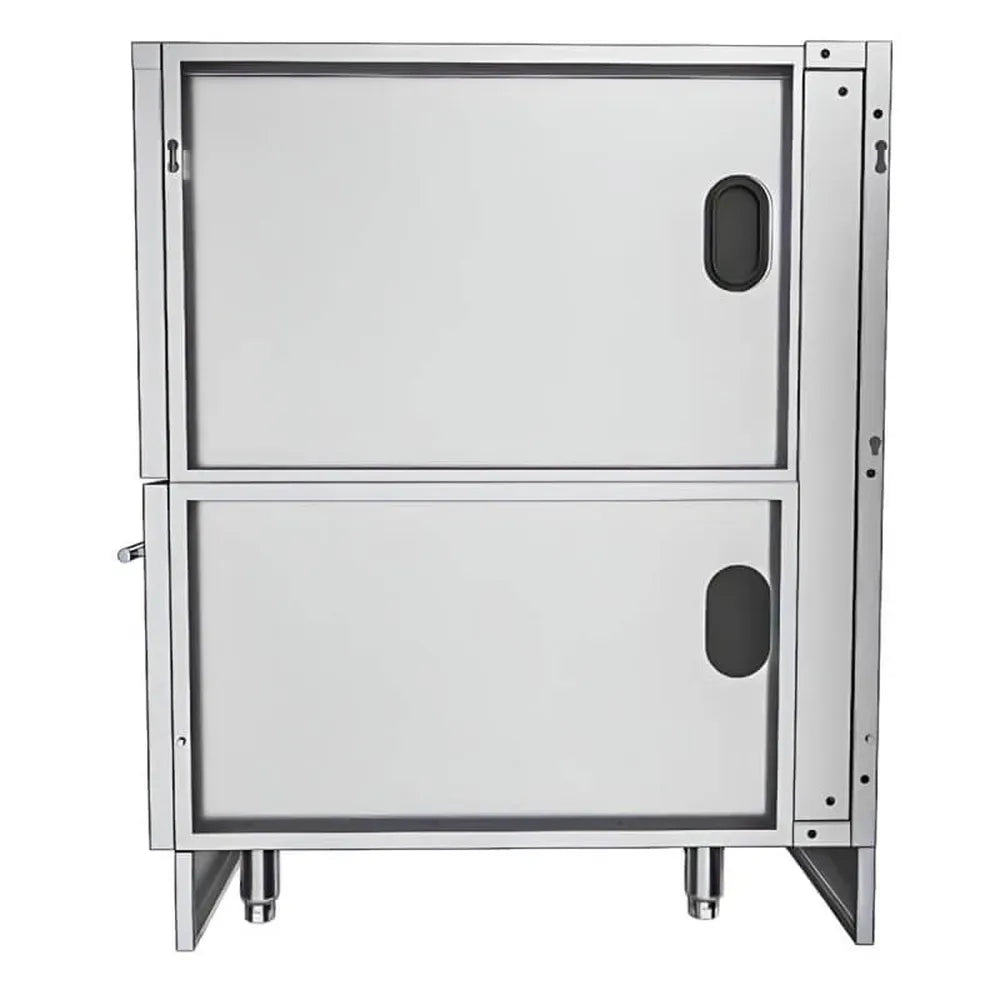

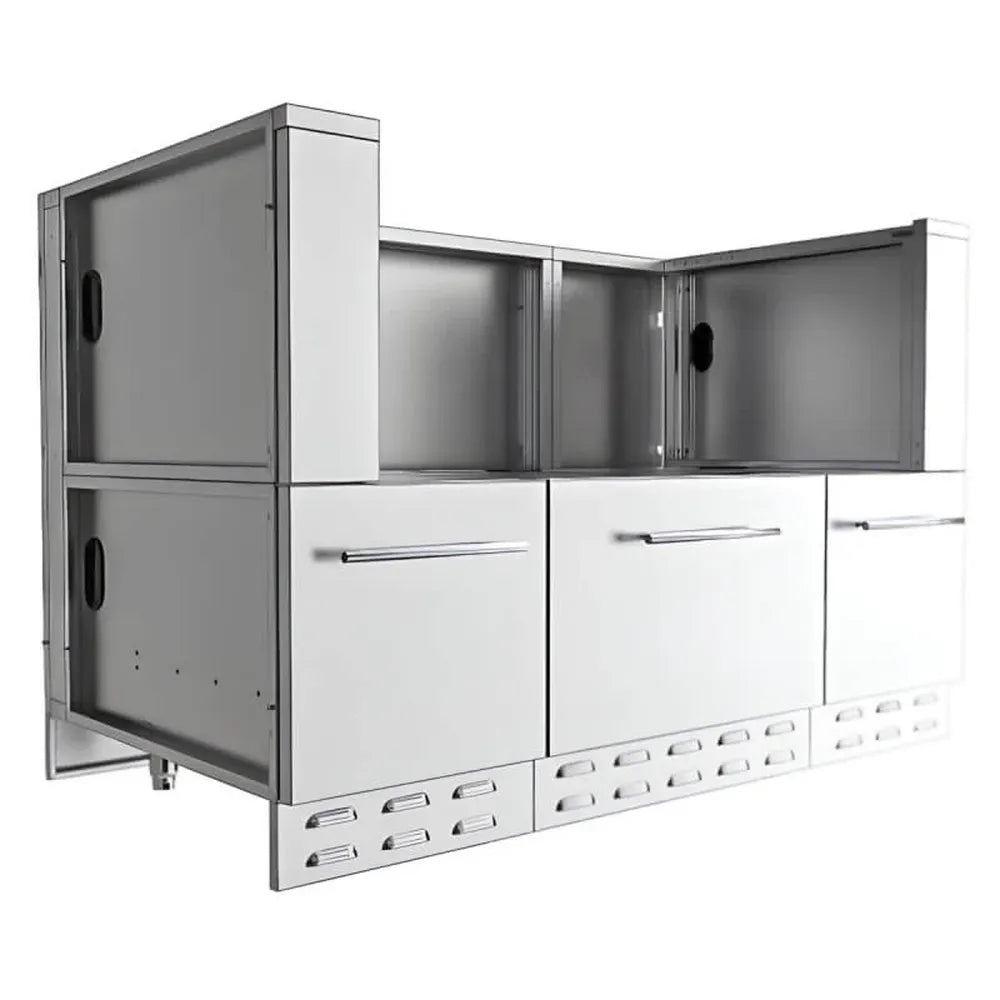

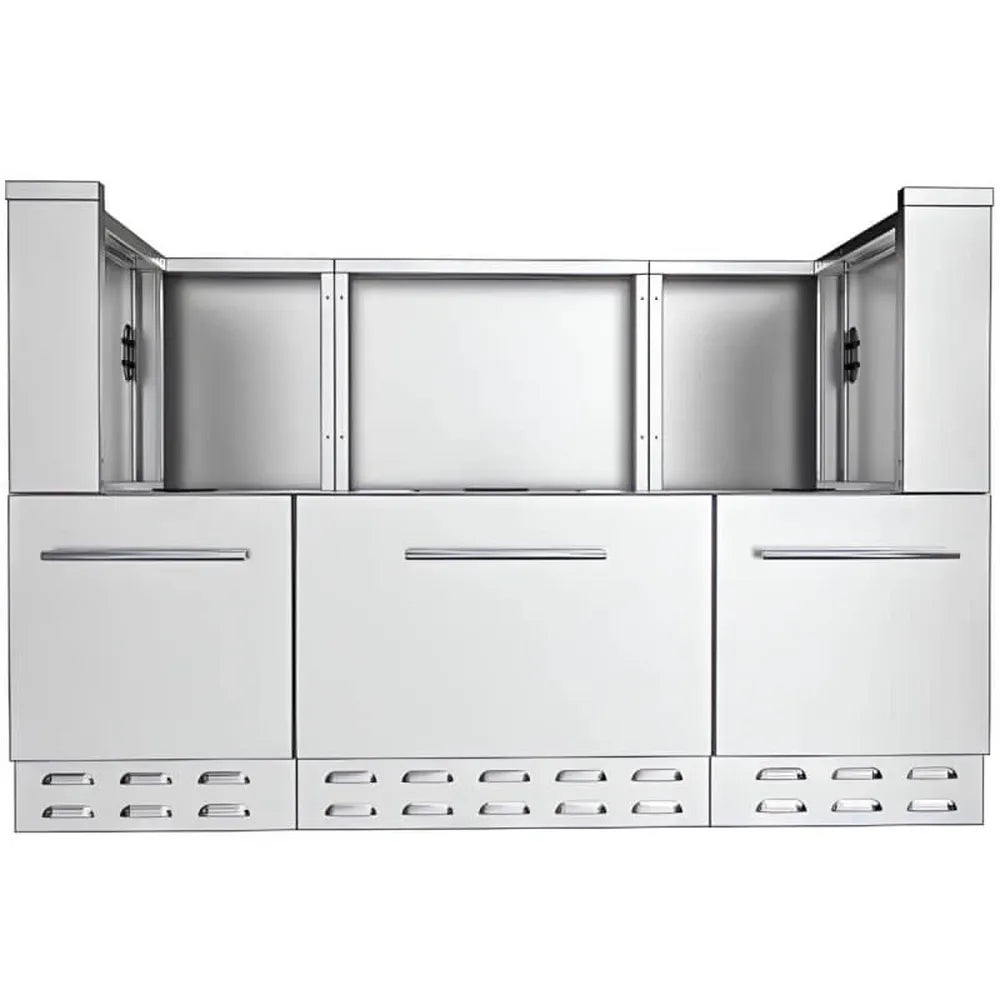

The Sunstone SAC66HGDC is a 66" pellet grill base cabinet designed for outdoor kitchens that need secure, weather-ready storage beneath a pellet grill installation. Built for grill owners using pellet grills up to 54-1/2" wide, it stores large pellet bags, grilling tools, sauces, and rubs in soft-close drawers while supporting customizable trim-kits for proper alignment with different grill cutouts, including compatibility for an AMG 54" Hybrid Grill. During installation, this cabinet uses an easy pin-lock assembly with adjustable peg legs to level on uneven patios, and front vented kick-plates promote airflow to help manage heat around the grill base. Compared with open shelving or non-vented cabinets, the Sunstone SAC66HGDC pellet grill base cabinet adds enclosed storage, smoother access, and purpose-built ventilation for a cleaner, more functional outdoor cooking workflow.
Sunstone SAC66HGDC Features
- Ultimate Storage Solution: Provides organized drawer storage for large pellet bags, grilling tools, sauces, and rubs so essentials stay protected and easy to access during cooks.
- High Compatibility: Designed to fit multiple grill brands, including AMG 54" Hybrid Grill, with customizable trim-kits for alignment with grills up to 54-1/2" wide.
- 304 Stainless Steel Construction: Built with high-grade 304 stainless steel and 18 gauge door panel, cabinet box, and shelf construction for rust resistance and long-term durability outdoors.

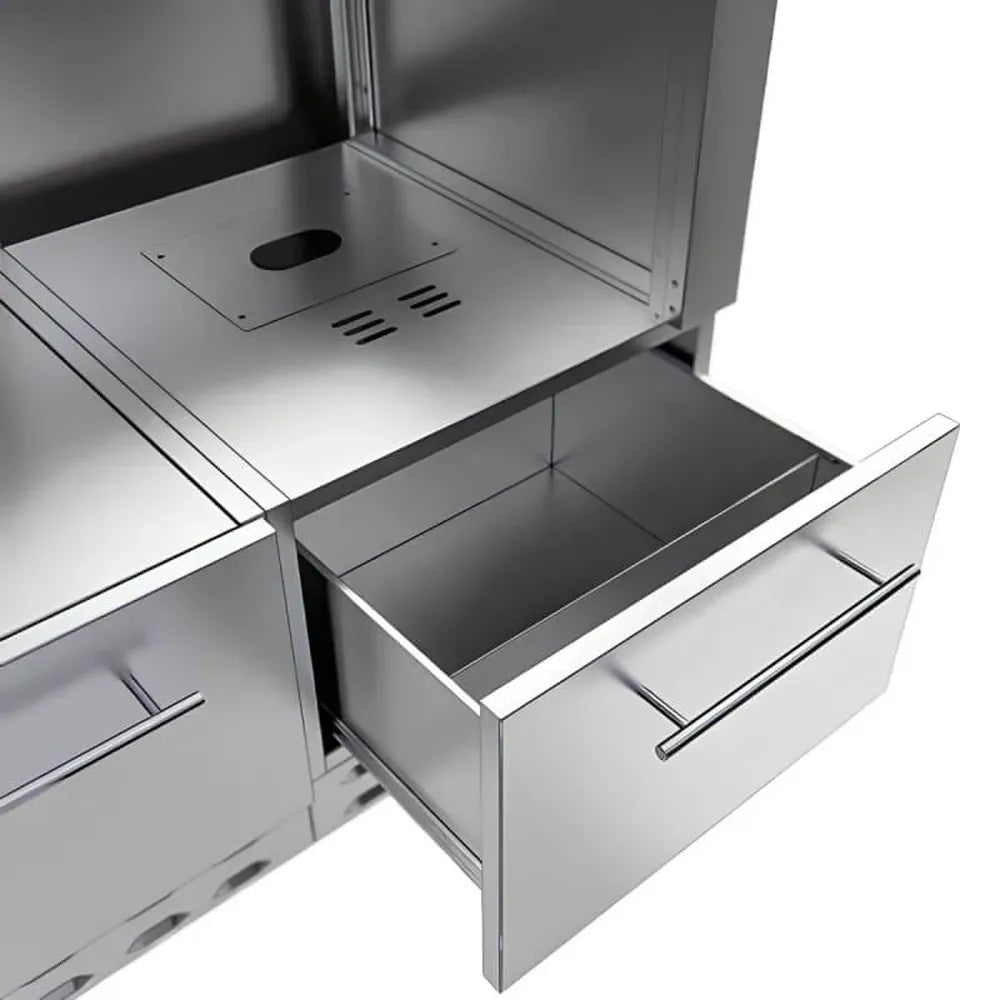

- Soft-Close Drawer Tracks: Soft-close tracks deliver quiet, smooth drawer operation while securely storing heavier grilling accessories.
- Ventilated Kick-Plate Design: Front vented kick-plates support airflow at the base to help keep the cabinet area cooler and more functional around a pellet grill install.
- Fast Pin-Lock Installation: Pin-lock assembly with adjustable peg legs for leveling; optional wheel casters can add mobility (sold separately).
- Warranty: Lifetime Structure Warranty.
Sunstone SAC66HGDC Specifications
| Model Number | SAC66HGDC |
| Configuration | Drop-In |
| Material | 304 Stainless Steel |
| Construction Gauge | 18 Gauge (Door Panel, Cabinet Box, Shelf) |
| Handles | Solid 304 Stainless Steel Rod Handles |
| Kick Plate | Front & Back Kick-Plates (4" Height) |
| Drawer Tracks | Soft-Close |
| Trim-Kit Options | Compatible with grills up to 54-1/2" Width |
| Assembly Required | Yes (Easy Pin-Lock Installation) |
| Included Components | (1) SCC22PTD, (1) SCC22BPE, (2) SCC15PTD, (2) SCC15BPE, (1) SCC16RARM, (1) SCC16LARM, (3) Front Vented Kick Plate, (3) Back Solid Kick Plate, (12) Adjustable Peg Legs, (3) Rod Handles |
| Dimensions (W × H × D) | 66" × 34-1/2" × 28-1/4" (with legs); 66" × 30-1/2" × 28-1/4" (no legs); 66" × 36" × 28-1/4" (max adjustable height) |
