Sunstone SAC46CGDC 46" Charcoal Grill Base Cabinet
Sunstone SAC46CGDC – 46" Charcoal Grill Base Cabinet
The Sunstone SAC46CGDC is a 46" charcoal grill base cabinet designed for outdoor kitchens that need a built-in cabinet platform for either gas grills or charcoal grill models using an adaptable trim-kit system. Built for grill owners installing a hybrid grill setup into an island, it includes right and left side door enclosures for a trash bin or storage (not compatible with larger propane tanks) plus two large center drawers for BBQ utensils, rubs, and sauces to keep your cooking workflow organized. During installation, the cabinet arrives fully assembled and uses a front trim-kit face panel to match grill cut-outs between 35-3/4" and 41" wide and 10-3/8" to 12-3/4" max height (with a 3/4" counter height), with additional height adjustment available by removing the bottom filler rail or using a thicker counter/backer board. Compared with a fixed-cutout charcoal cabinet or a standalone cart, the Sunstone SAC46CGDC adds trim-kit fit flexibility, enclosed side storage, and dedicated drawer organization for a cleaner, more integrated outdoor kitchen build.
Sunstone SAC46CGDC Features
- Hybrid Gas or Charcoal Grill Platform: Designed to receive multiple types of either gas grills or charcoal grill models for flexible outdoor kitchen installations.
- Trim-Kit Adaptable Face Panel: Uses a replaceable face panel trim-kit system to adapt the cabinet opening to your preferred grill cut-out dimensions.
- Grill Cut-Out Fit Range: Compatible with grill cut-outs from 35-3/4" to 41" W × 10-3/8" to 12-3/4" max H (with 3/4" counter height; filler rail installed or removed).
- Dual Side Door Storage: Right and left side door enclosures support a trash bin or storage space and are not compatible with larger propane tanks.
- Two Large Center Drawers: Center drawer storage keeps utensils, rubs, and sauces organized and within reach during prep and cooking.
- Soft-Close Drawer Tracks: Soft-close tracks deliver smooth, quiet operation for frequent access to grilling tools and accessories.
- 304 Stainless Steel Structure: Built with 304 stainless steel structure and 304 stainless rod handles for outdoor durability and a consistent built-in look.
- Vented & Solid Kick-Plate System: Front vented kick-plate supports airflow while the rear solid kick-plate adds stability at the cabinet base.
- Easy Pin-Lock Installation: Ships fully assembled and installs by fastening the four (4) included peg-legs, installing rod handles, and mounting the kick-plates.

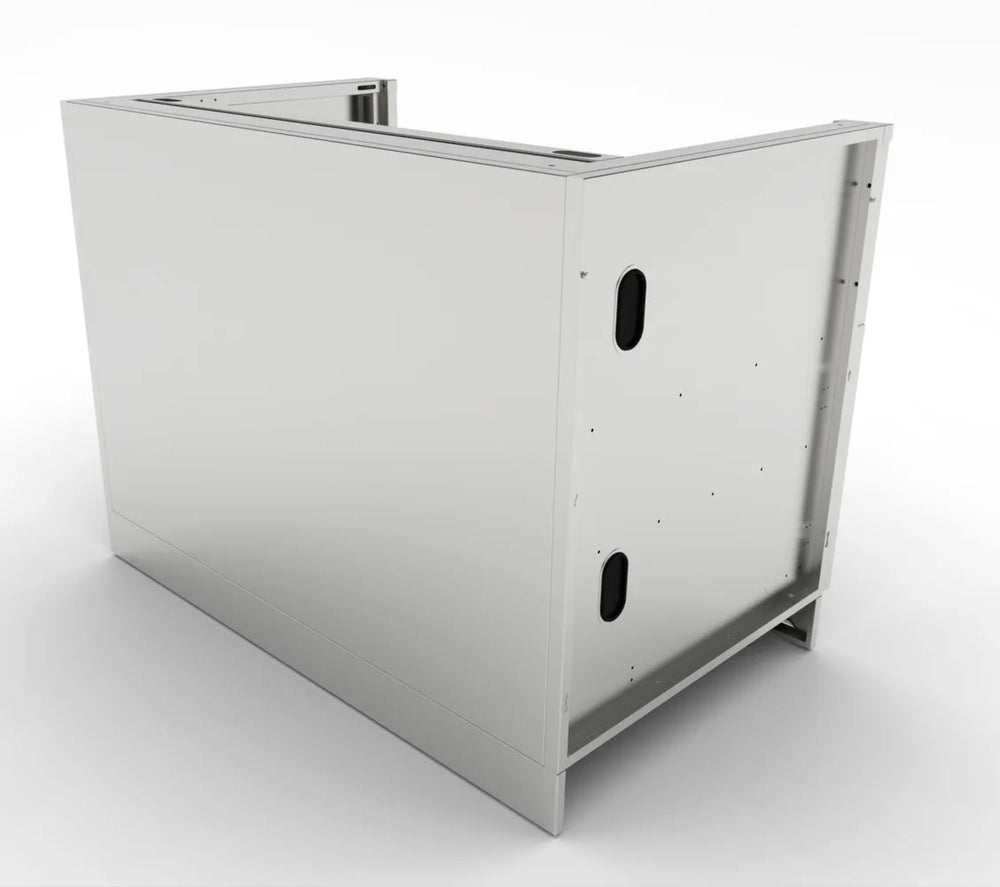

- Utility & Customization Features: Includes removable counter rail and covered side wall access ports; optional wheel casters are available.
- Warranty: Lifetime Structure Warranty.
Sunstone SAC46CGDC Specifications
| Model Number | SAC46CGDC |
| Product Type | Charcoal Grill Base Cabinet (Hybrid Gas/Charcoal Compatible) |
| Material | 304 Stainless Steel Structure |
| Handles | 304 Stainless Steel Rod Handles |
| Kick Plate | Front Vented Kick-Plate; Rear Solid Kick-Plate |
| Drawer Tracks | Soft-Close |
| Storage Layout | Right & Left Side Door Enclosures (Trash Bin or Storage; not compatible with larger propane tanks); Two Center Large Drawers |
| Installation | Easy Pin-Lock Installation; Fully Assembled (attach peg-legs, handles, and kick-plates) |
| Cabinet Features | Replaceable Face Panel; Removable Counter Rail; Covered Side Wall Access Ports; 4 Adjustable Peg-Legs |
| Grill Cut-Out Fit Range | 35-3/4" to 41" W × 10-3/8" to 12-3/4" Max H (with 3/4" counter height) |
| Height Adjustment | Additional height can be adjusted by removing bottom filler rail or using thicker counter/backer board |
| Dimensions (W × H × D) | 46" × 34-1/2" × 28-1/4" (with legs); 46" × 30-1/2" × 28-1/4" (without legs) |
| Options | Optional Wheel Casters |
| Warranty | Lifetime Structure Warranty |
Sunstone SAC46CGDC Info & Guides
Sunstone Full Product Catalog
Care and Maintenance
Specifications Sheet
Installation Manual
