Sunstone SAC40GLPCD 40" Gas Grill Base Cabinet

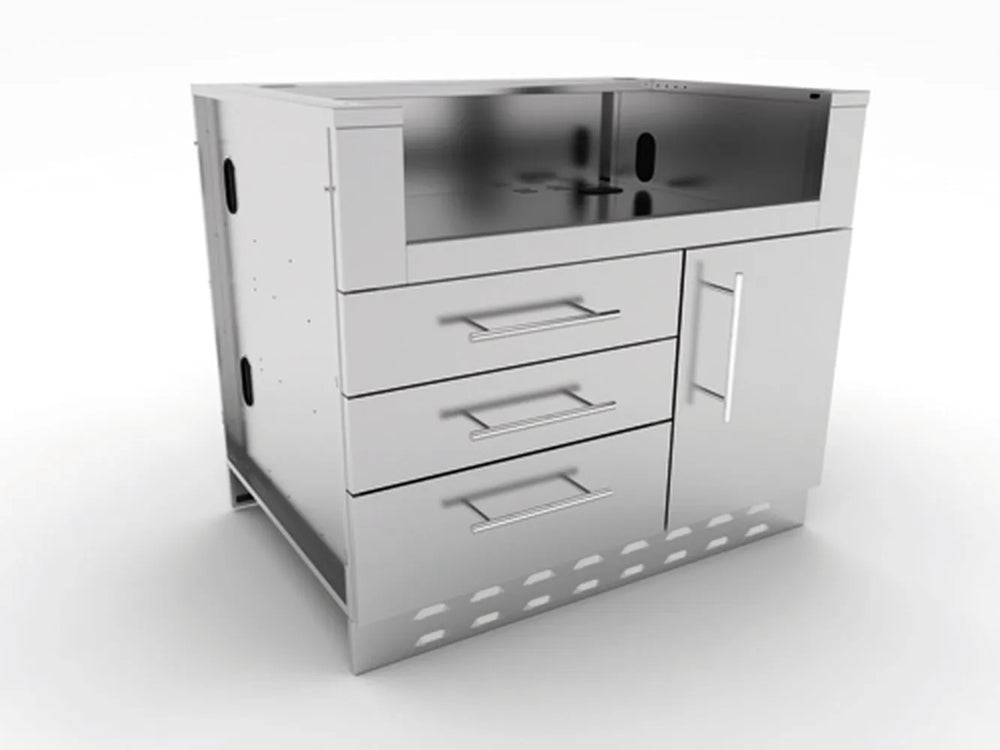

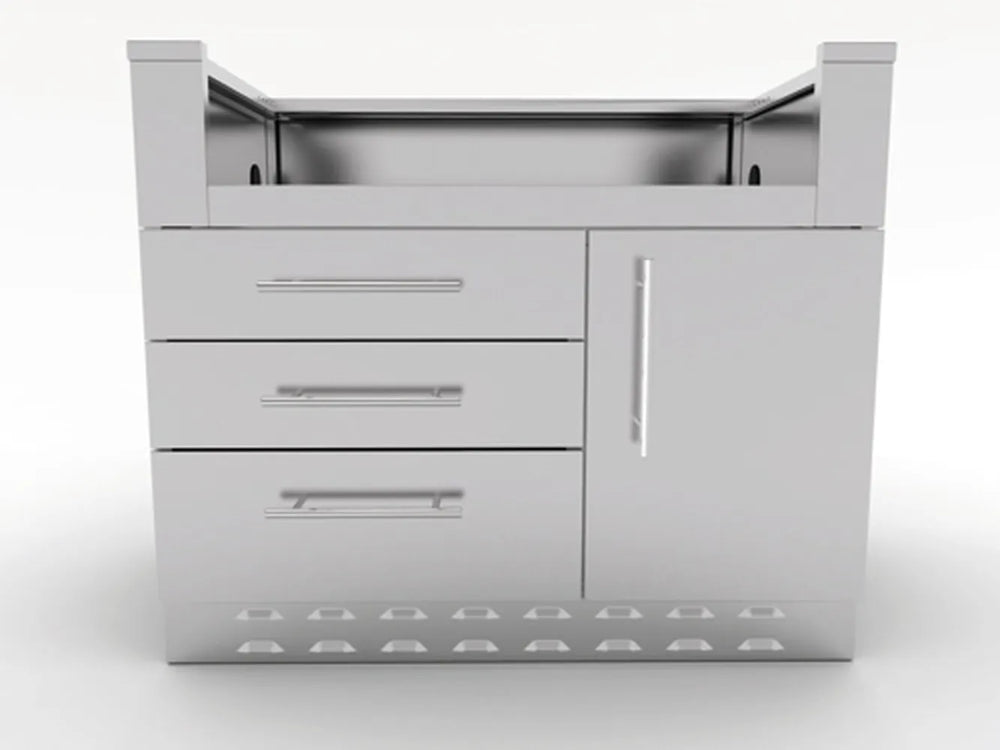

Sunstone SAC40GLPCD – 40" Gas Grill Base Cabinet

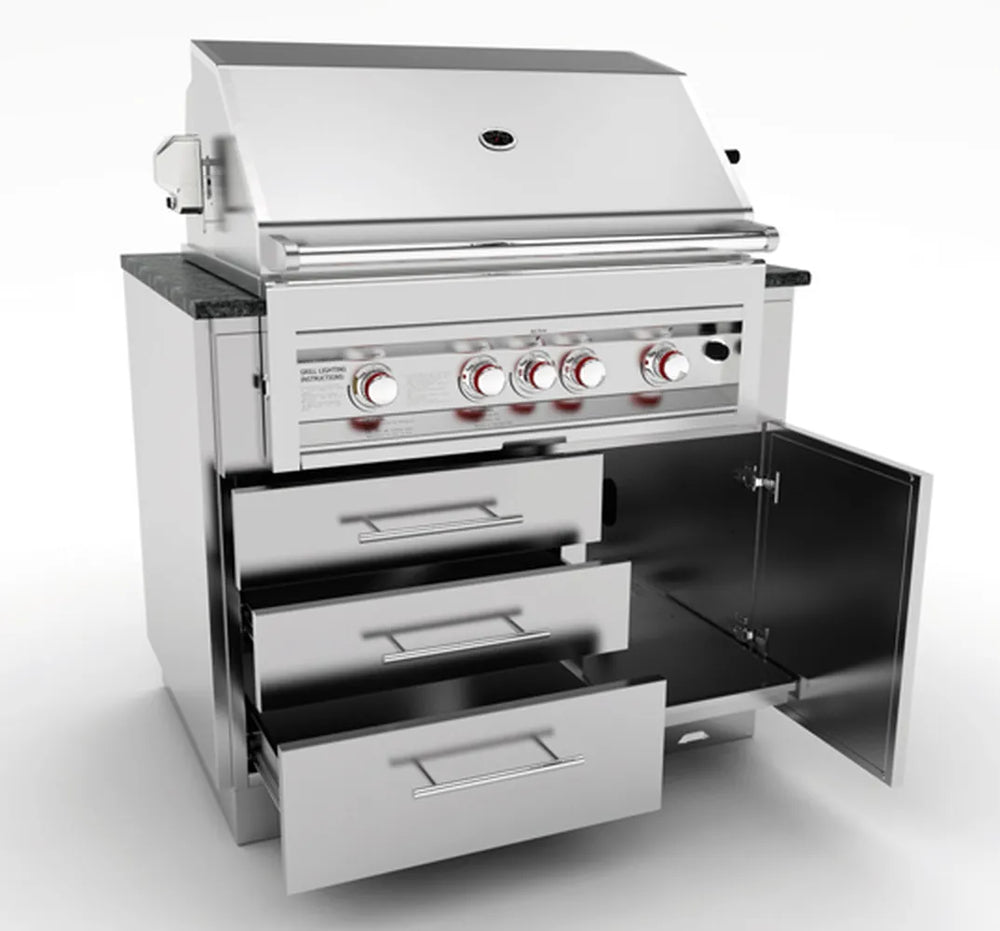

The Sunstone SAC40GLPCD is a 40" gas grill base cabinet designed for outdoor kitchens that need a built-in cabinet platform that can accept multiple gas grill brand models using an adaptable trim-kit system. Built for grill owners installing a grill into an island, it includes a right-side door enclosure sized for a propane tank or a trash bin, plus three large left-side drawers for BBQ utensils, rubs, and sauces to keep the cooking workflow organized. During installation, the cabinet arrives fully assembled and uses a front trim-kit face panel to match grill cut-outs between 29-3/4" and 34-1/2" wide and 8" to 10-1/4" max height (with a 3/4" counter height), with additional height adjustment available by removing the bottom filler rail or using a thicker counter/backer board. Compared with a fixed-opening grill cabinet or a standalone cart, the Sunstone SAC40GLPCD adds trim-kit fit flexibility, enclosed propane storage, and dedicated drawer organization for a cleaner, more integrated outdoor kitchen build.
Sunstone SAC40GLPCD Features
- Multi-Brand Grill Fit with Trim-Kit: Uses a replaceable face panel trim-kit system to adapt the cabinet opening to multiple gas grill brand models.
- Grill Cut-Out Fit Range: Compatible with grill cut-outs from 29-3/4" to 34-1/2" W × 8" to 10-1/4" max H (with 3/4" counter height; filler rail installed or removed).
- Propane Tank or Trash Enclosure: Right-side door enclosure supports a propane tank storage area or a dedicated trash bin space for cleaner island utility.
- Three Large Storage Drawers: Left side includes three large drawers to keep utensils, rubs, and sauces organized and easy to reach during cooks.
- 304 Stainless Steel Structure: Built with 304 stainless steel structure and 304 stainless rod handles for outdoor durability and a consistent built-in look.
- Vented & Solid Kick-Plate System: Front vented kick-plate supports airflow while the rear solid kick-plate adds stability at the cabinet base.
- Easy Pin-Lock Installation: Ships fully assembled and installs by fastening the four (4) included peg-legs, installing rod handles, and mounting the kick-plates.

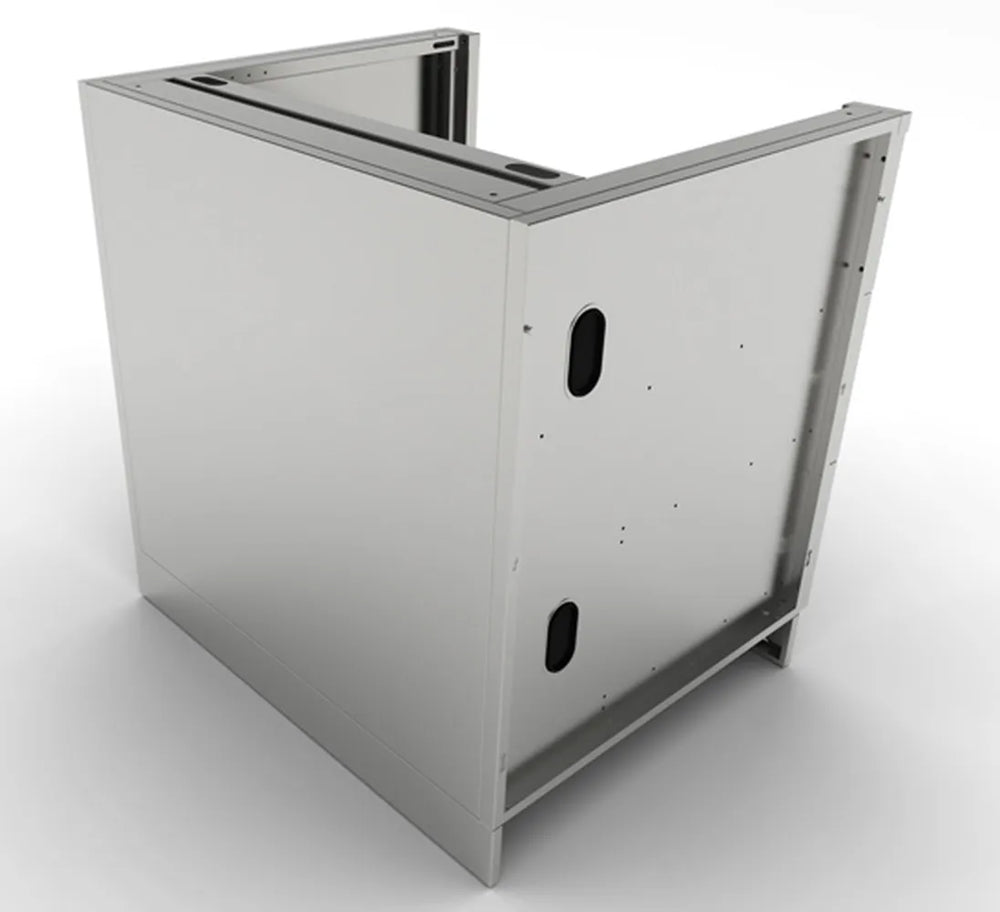

- Utility & Customization Features: Includes removable counter rail and covered side wall access ports; optional wheel casters are available.
- Warranty: Lifetime Structure Warranty.
Sunstone SAC40GLPCD Specifications
| Model Number | SAC40GLPCD |
| Product Type | Gas Grill Base Cabinet |
| Material | 304 Stainless Steel Structure |
| Handles | 304 Stainless Steel Rod Handles |
| Kick Plate | Front Vented Kick-Plate; Rear Solid Kick-Plate |
| Storage Layout | Right-Side Door Enclosure (Propane Tank or Trash Bin); Left Side Three Large Drawers |
| Installation | Easy Pin-Lock Installation; Fully Assembled (attach peg-legs, handles, and kick-plates) |
| Cabinet Features | Replaceable Face Panel; Removable Counter Rail; Covered Side Wall Access Ports; 4 Adjustable Peg-Legs |
| Grill Cut-Out Fit Range | 29-3/4" to 34-1/2" W × 8" to 10-1/4" Max H (with 3/4" counter height) |
| Height Adjustment | Additional height can be adjusted by removing bottom filler rail or using thicker counter/backer board |
| Dimensions (W × H × D) | 40" × 34-1/2" × 28-1/4" (with legs); 40" × 30-1/2" × 28-1/4" (without legs) |
| Options | Optional Wheel Casters |
| Warranty | Lifetime Structure Warranty |
