Sunstone SAC34CGDC Hybrid Grill Base Cabinet 34"

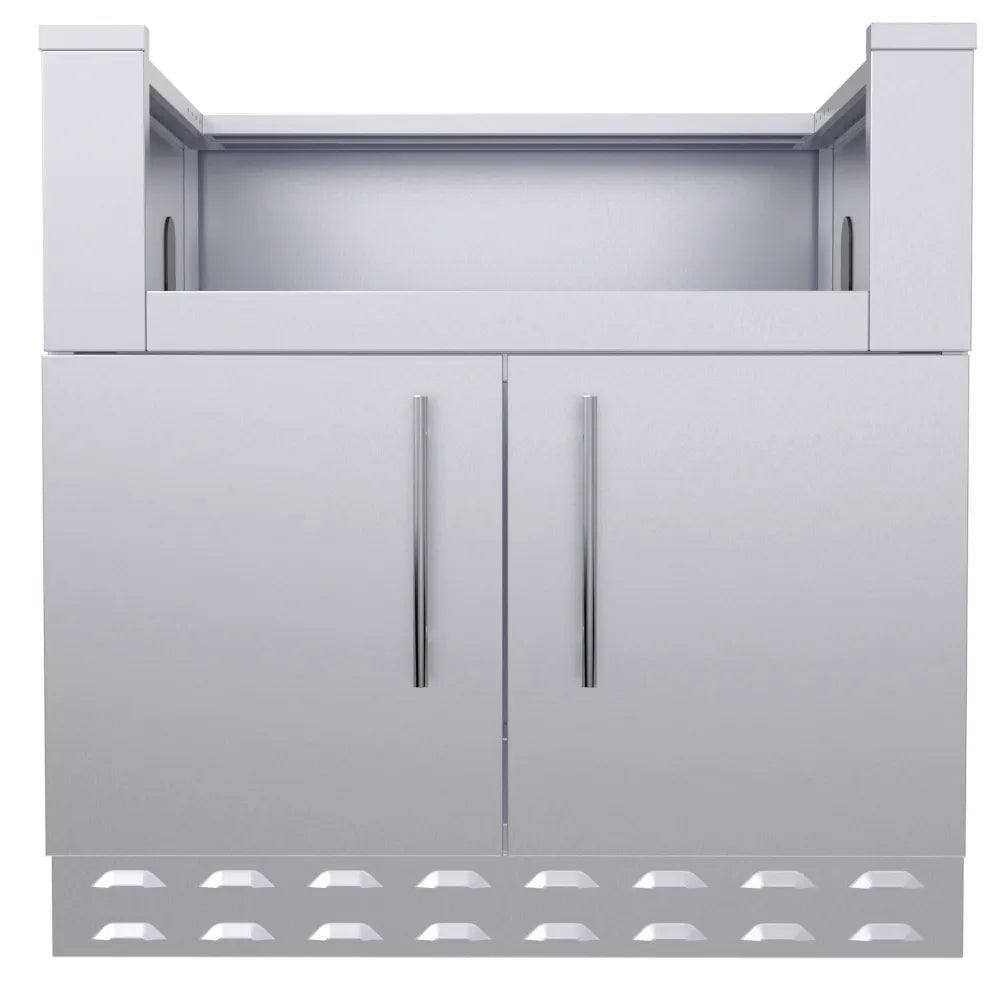

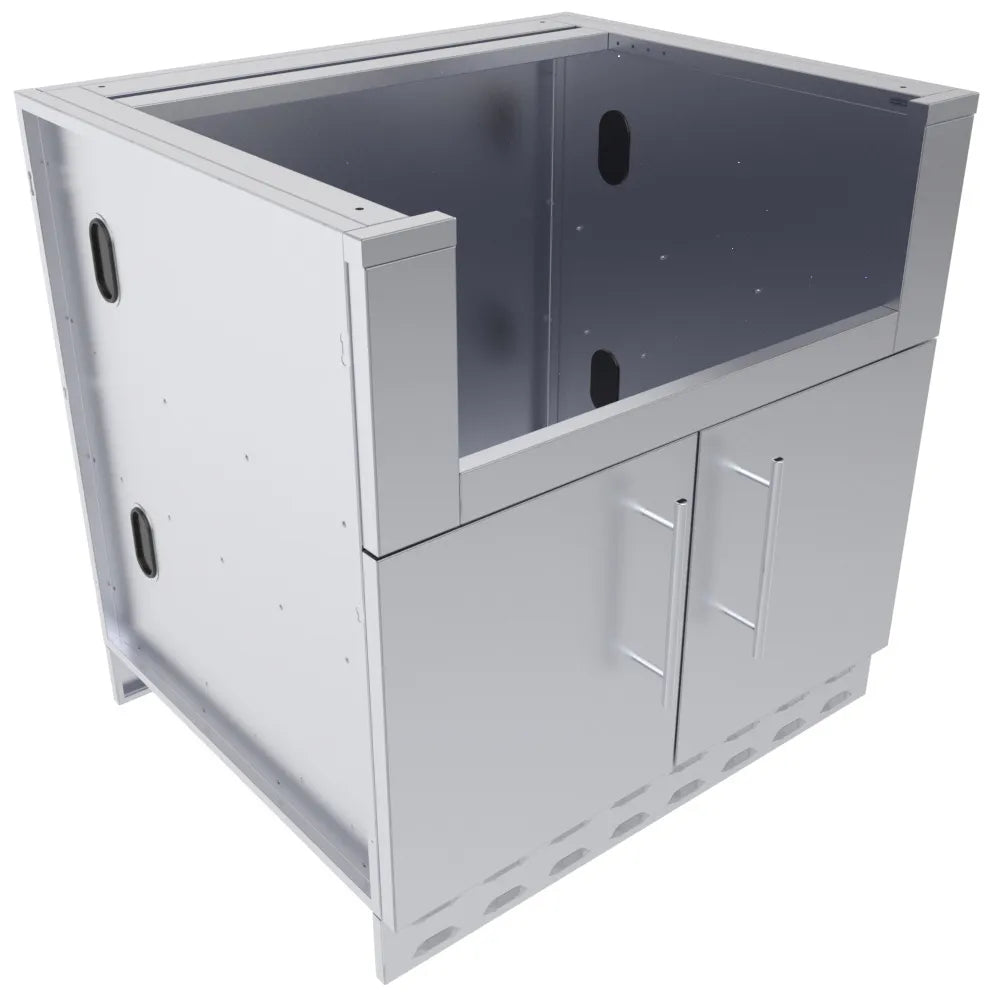

Sunstone SAC34CGDC – 34" Hybrid Grill & Bar Center Cabinet
The Sunstone SAC34CGDC is a 34" hybrid grill base cabinet designed for outdoor kitchens that need a built-in cabinet platform for either gas grills or charcoal grill models, with a trim-kit system that adapts the front opening to your grill cut-out. Built for grill owners installing a center appliance cabinet into an island, it includes double access doors with interior storage plus multiple utility access ports at the base for drainage and side ports for routing water, gas, and electrical lines. During installation, the cabinet arrives fully assembled and fastens together with easy pin-lock setup steps like attaching the four (4) included peg-legs, installing 304 stainless rod handles, and mounting the front and back kick-plates. Compared with a single-fuel grill cabinet or a fixed-cutout enclosure, the Sunstone SAC34CGDC supports more grill types and adds utility pass-throughs and trim-kit fit flexibility for a cleaner, more functional outdoor kitchen build.
Sunstone SAC34CGDC Features

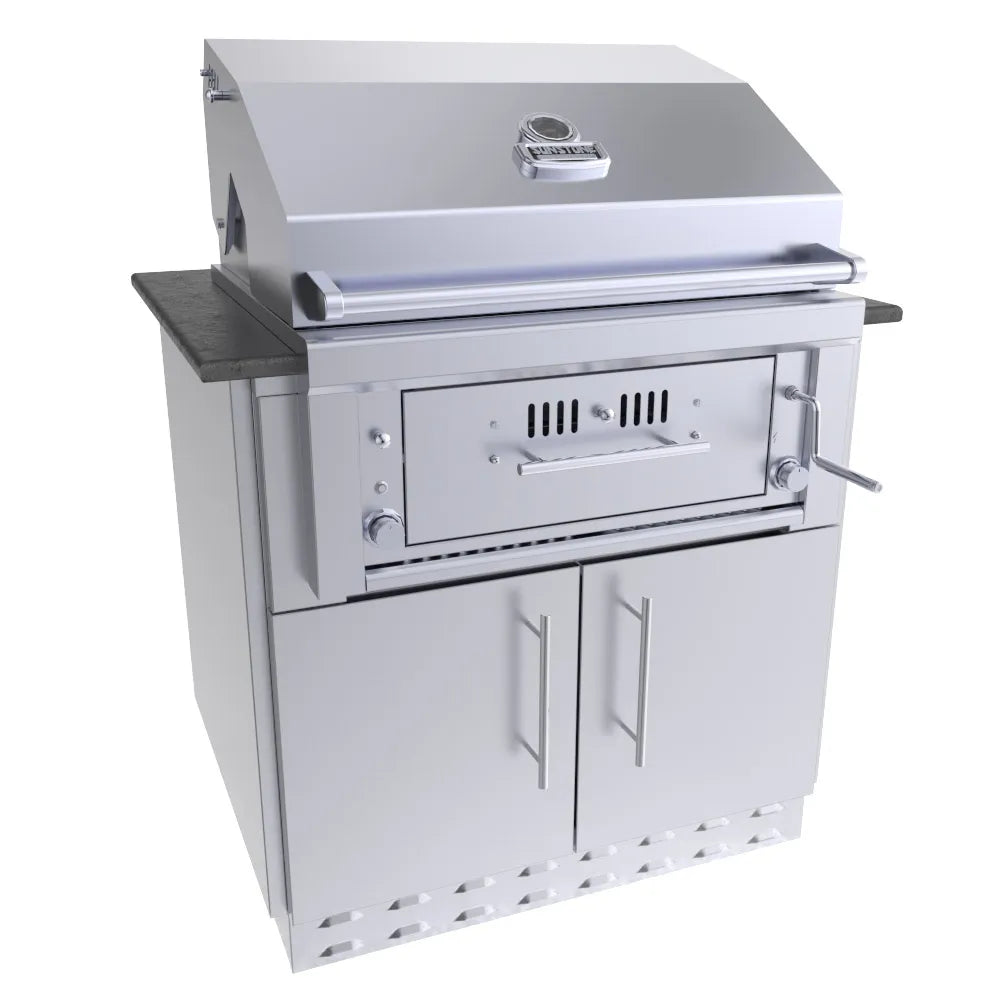

- Hybrid Grill Cabinet Platform: Designed to receive multiple types of either gas grills or charcoal grill models for flexible outdoor kitchen planning.
- Works with SUNCHSZ30: Built to integrate with SUNCHSZ30 for compatible hybrid grill installations.
- Trim-Kit Adaptable Face Panel: Uses a trim-kit on the cabinet front face to match different grill cut-outs for a more precise built-in fit.
- Grill Cut-Out Fit Range: Compatible with grill cut-outs from 23-7/8" to 28-1/2" W × 10-3/8" to 12-3/4" max H (with 3/4" counter height; filler rail installed or removed).

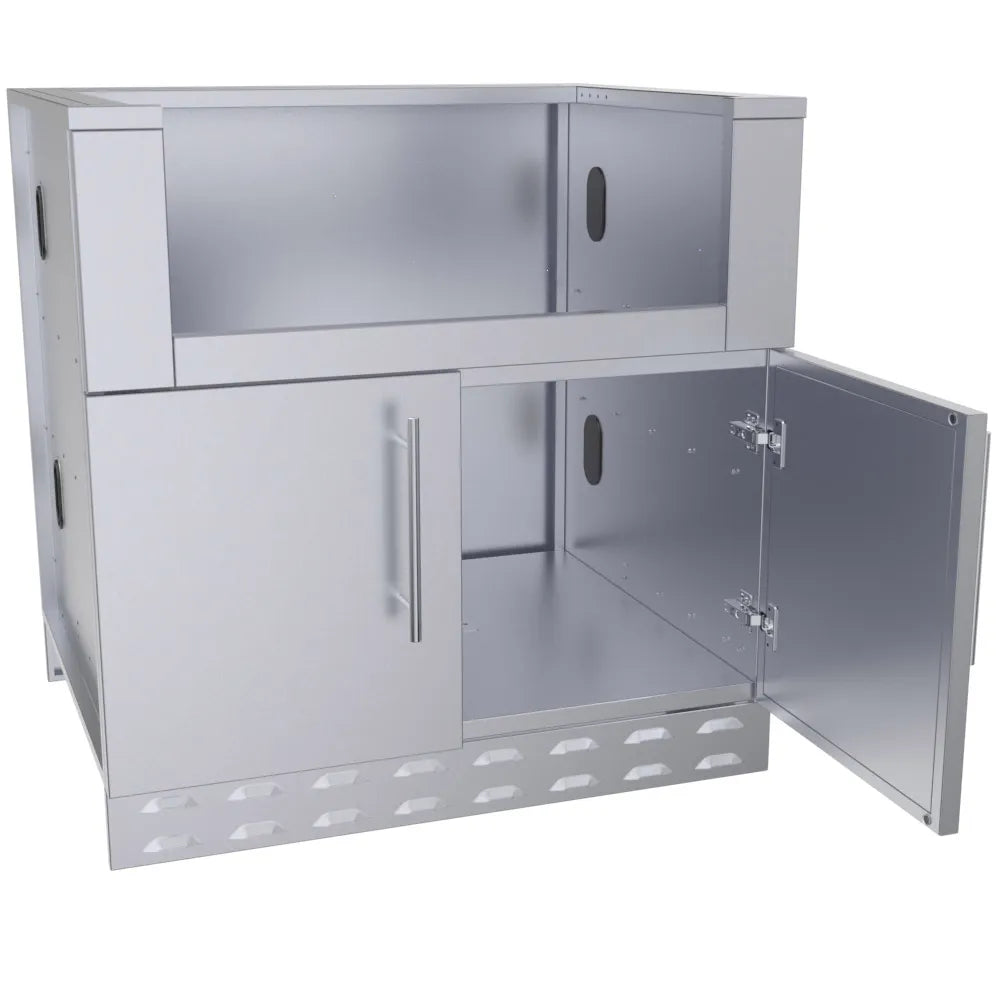

- Double Access Doors: Double doors provide enclosed storage space inside the appliance cabinet for a cleaner island setup.

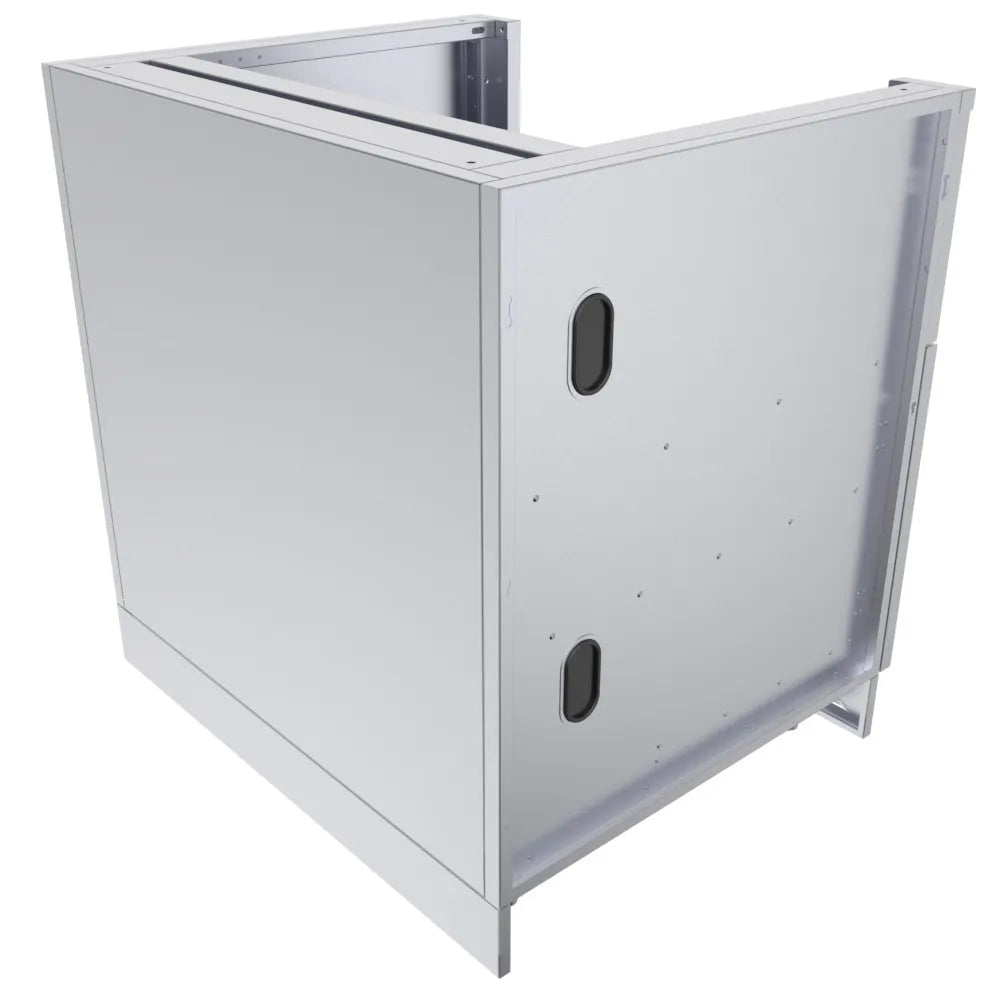

- Utility Access Ports: Includes multiple base drainage ports and side access ports to route water, gas, and electrical lines through the cabinet.
- 304 Stainless Steel Structure: Built with 304 stainless steel structure and 304 stainless rod handles for outdoor durability and a consistent built-in look.
- Vented & Solid Kick-Plate System: Front vented kick-plate supports airflow while the rear solid kick-plate adds stability at the cabinet base.
- Easy Pin-Lock Installation: Ships fully assembled and installs by fastening the four (4) included peg-legs, installing rod handles, and mounting the kick-plates.
- Customization Options: Includes a replaceable face panel, removable counter rail, covered side wall access ports, and optional wheel casters.
- Warranty: Lifetime Structure Warranty.
Sunstone SAC34CGDC Specifications
| Model Number | SAC34CGDC |
| Product Type | Hybrid Grill & Bar Center Cabinet |
| Compatibility | Works with SUNCHSZ30 |
| Material | 304 Stainless Steel Structure |
| Handles | 304 Stainless Steel Rod Handles |
| Kick Plate | Front Vented Kick-Plate; Rear Solid Kick-Plate |
| Installation | Easy Pin-Lock Installation; Fully Assembled (attach peg-legs, handles, and kick-plates) |
| Cabinet Features | Replaceable Face Panel; Removable Counter Rail; Covered Side Wall Access Ports; Multiple Utility Access Ports (base drainage and side routing) |
| Grill Cut-Out Fit Range | 23-7/8" to 28-1/2" W × 10-3/8" to 12-3/4" Max H (with 3/4" counter height) |
| Height Adjustment | Additional height can be adjusted by removing bottom filler rail or using thicker counter/backer board |
| Dimensions (W × H × D) | 34" × 34-1/2" × 28-1/4" (with legs); 34" × 30-1/2" × 28-1/4" (without legs) |
| Options | Optional Wheel Casters |
| Warranty | Lifetime Structure Warranty |
