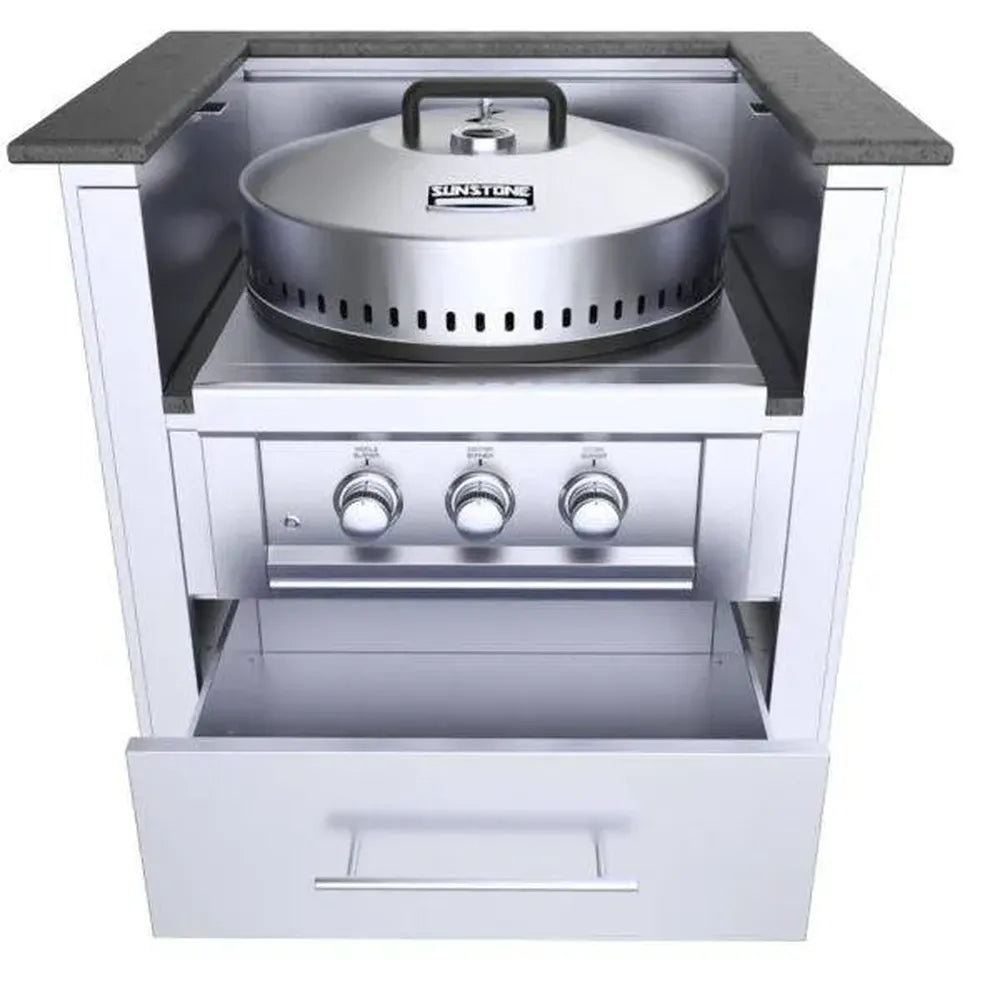

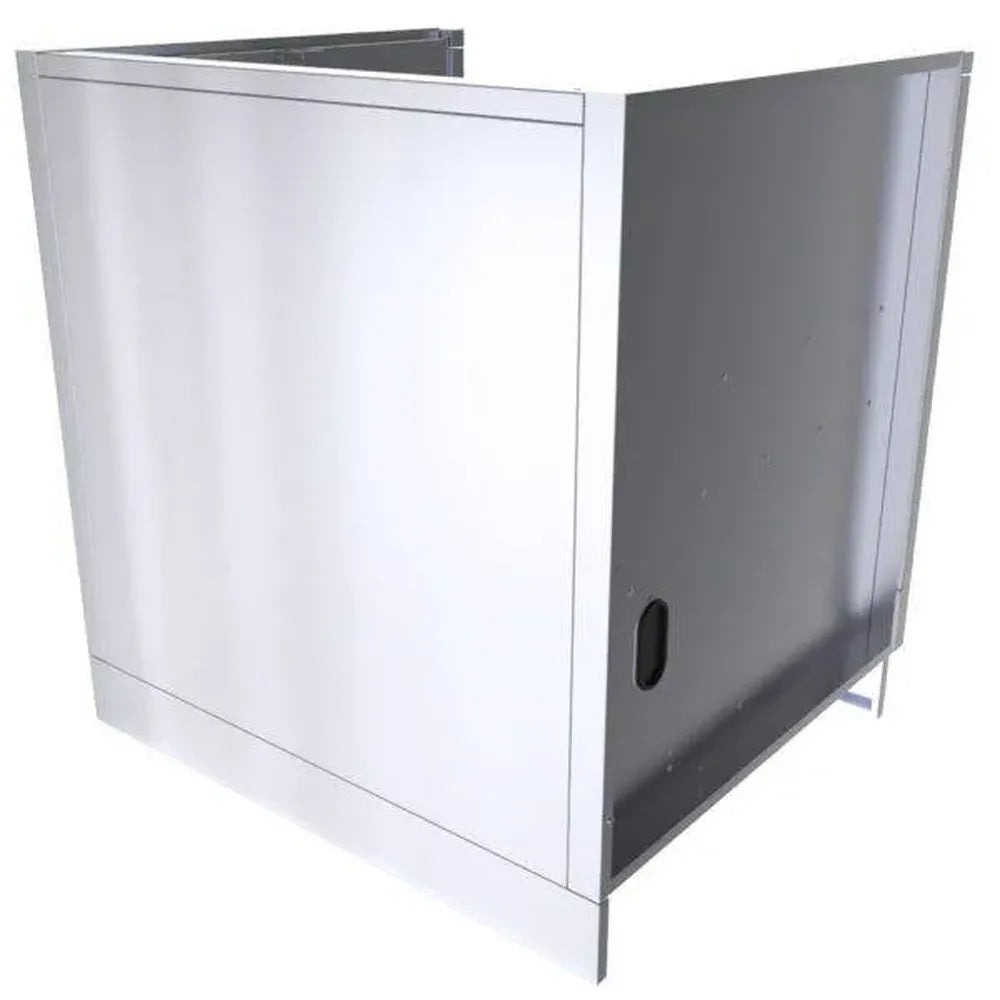

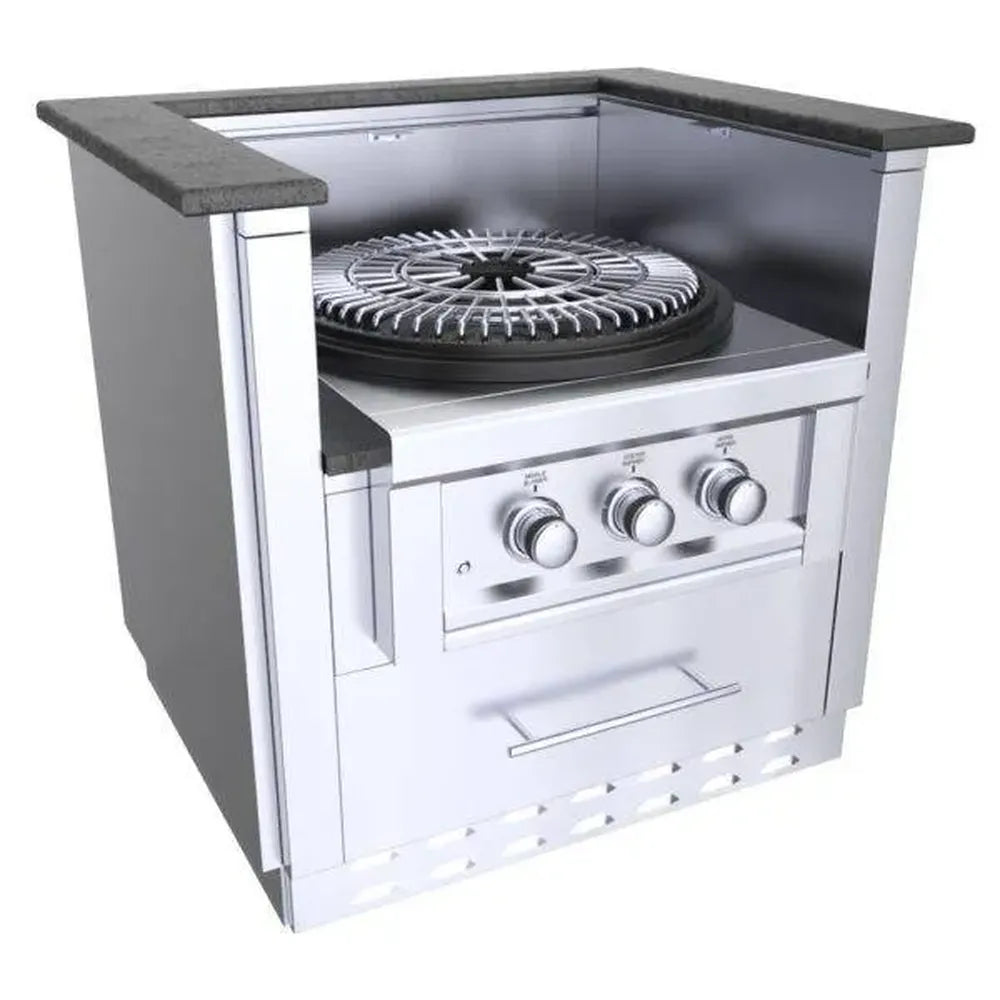

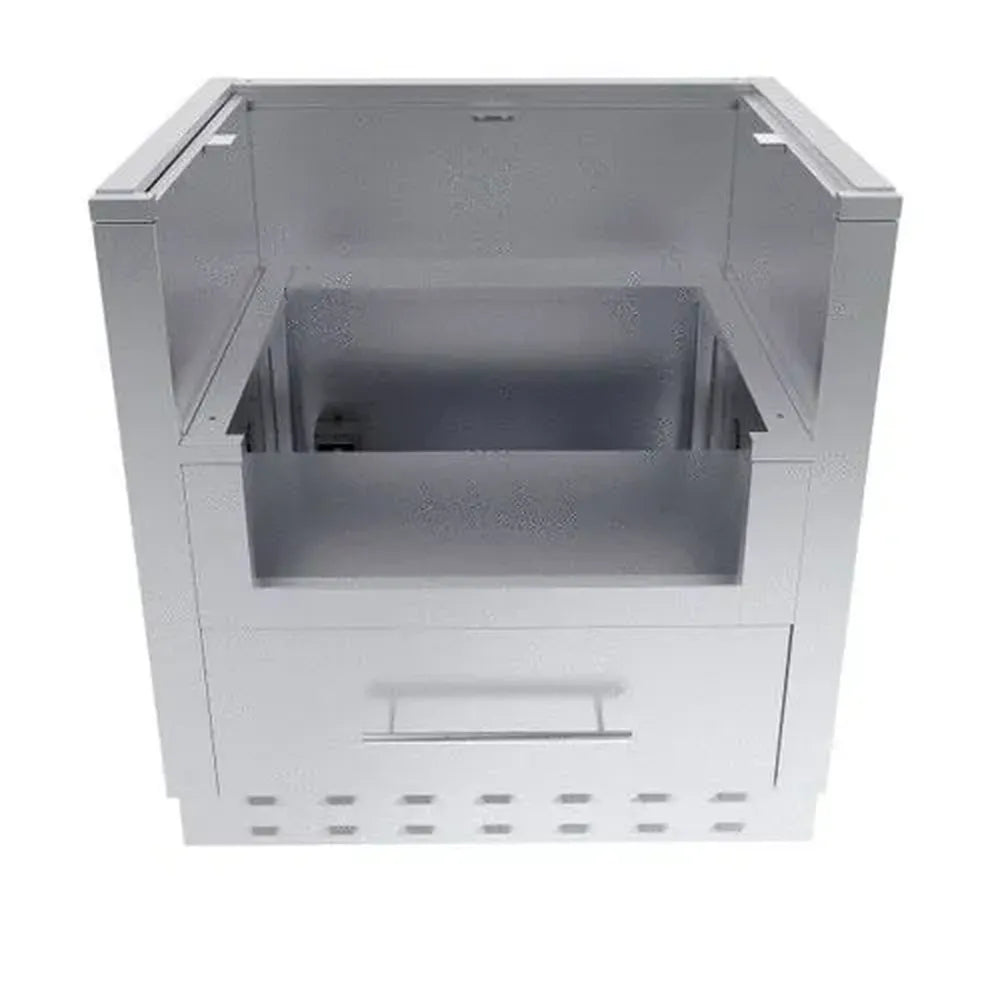

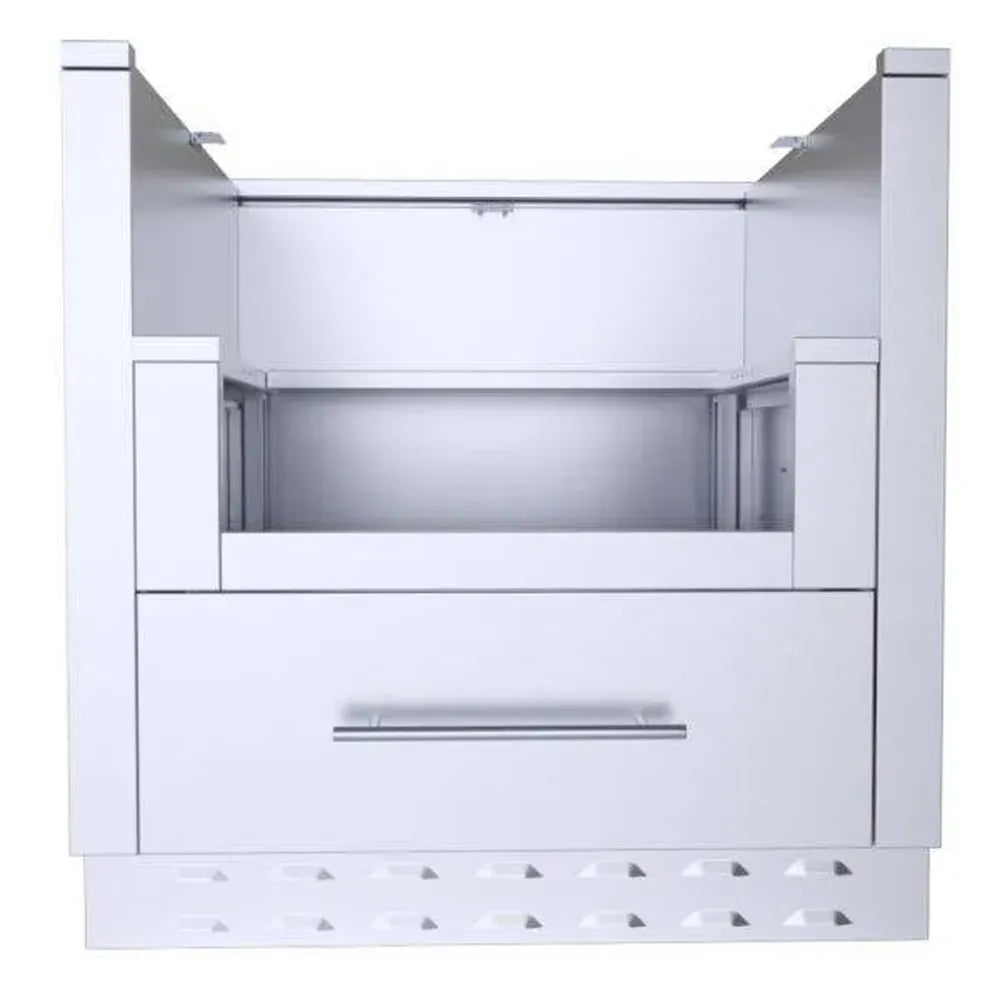

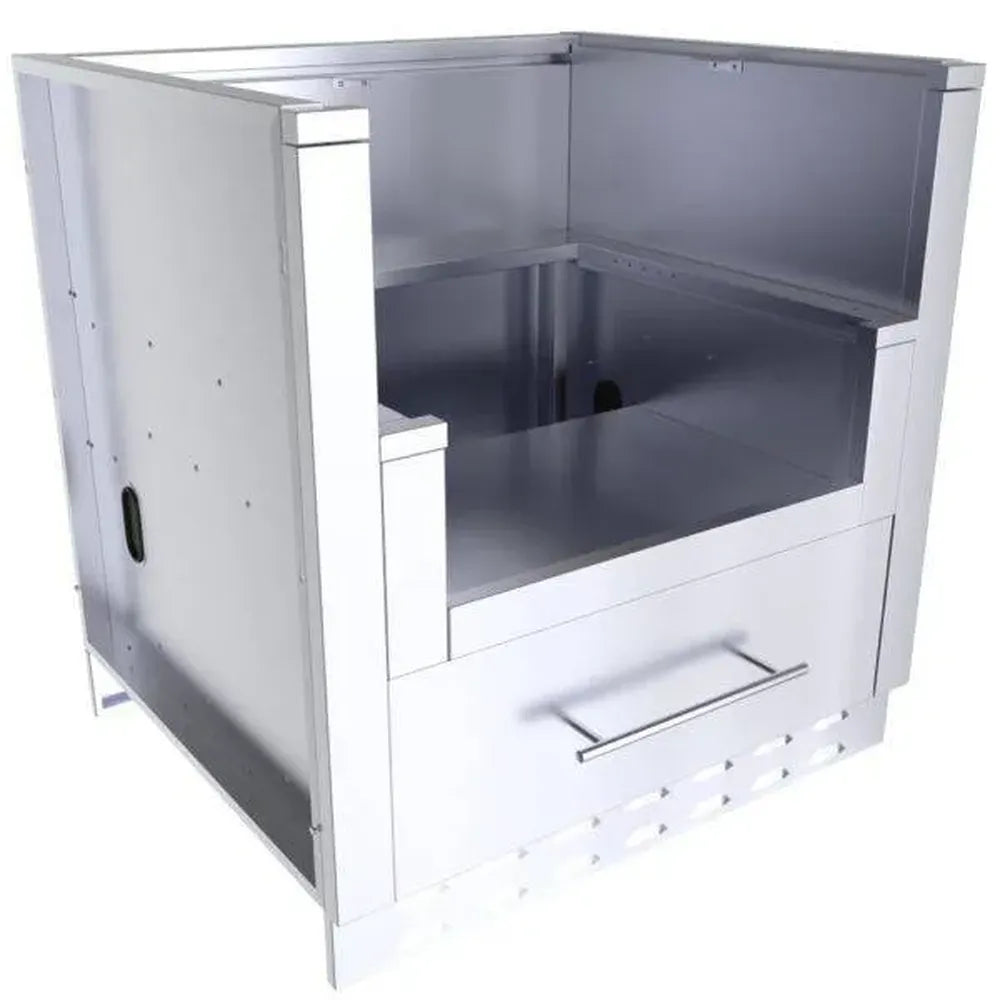

Sunstone SAC33PBDC 33" Power Burner Base Cabinet
Sunstone SAC33PBDC – 33" Power Burner Base Cabinet
The Sunstone SAC33PBDC is a 33" power burner base cabinet designed for outdoor kitchens that need a built-in cabinet platform for a wide range of power burners, including the Sunstone 24" Power Cirque Burner. Built for grill owners setting a burner into an island, it uses a front trim-kit face panel to adapt to burner cut-outs between 19" and 22-3/4" wide and 10-3/8" to 12-3/4" max height (with a 3/4" counter height), helping you match the cabinet opening to your burner. During installation, the burner sits at a lower elevation about 11" below the counter surface (counter thickness can reduce this), and the cabinet arrives fully assembled with easy pin-lock setup steps such as attaching the included peg-legs, rod handles, and kick-plates. Compared with a simple cart or an open-frame stand, the Sunstone SAC33PBDC adds enclosed storage drawers, vented airflow at the base, utility access ports, and removable interior wall panels for easier cleanup and a more finished, professional outdoor kitchen build.
Sunstone SAC33PBDC Features
- Wide Power Burner Compatibility: Accommodates many market power burners, including the Sunstone 24" Power Cirque Burner, for flexible outdoor kitchen planning.
- Trim-Kit Adaptable Face Panel: Uses a replaceable face panel trim-kit system to fit burner cut-outs from 19" to 22-3/4" width and 10-3/8" to 12-3/4" max height (with 3/4" counter height).
- Lower-Elevation Burner Mount: Inserts the burner about 11" below the counter surface to support a built-in look; counter thickness can reduce the exposed depth.
- Integrated Storage Drawers: Provides storage below the burner with (2) soft-close drawers for grilling tools and burner wok storage.
- Internal GFCI Box: Includes an internal GFCI box to support utility needs within the cabinet layout.
- Removable Interior Wall Panels: Inside panel walls are removable for easier cleanup after splatter, or for replacing with accent materials such as veneer stone.
- Vented & Solid Kick-Plate System: Front vented kick-plate supports airflow while the rear solid kick-plate adds stability at the cabinet base.
- Easy Pin-Lock Installation: Ships fully assembled and installs by fastening the four (4) included peg-legs, installing rod handles, and mounting the kick-plates.
- Customization Options: Includes removable counter rail, covered side wall access ports, optional wheel casters, and optional front accessories like a floating shelf or speed rail.
- Warranty: Lifetime Structure Warranty.
Sunstone SAC33PBDC Specifications
| Model Number | SAC33PBDC |
| Product Type | Power Burner Base Cabinet |
| Material | 304 Stainless Steel Structure |
| Handles | 304 Stainless Steel Rod Handles |
| Kick Plate | Front Vented Kick-Plate; Rear Solid Kick-Plate |
| Drawers | (2) Soft-Close Drawers |
| Installation | Easy Pin-Lock Installation; Fully Assembled (attach peg-legs, handles, and kick-plates) |
| Cabinet Features | Replaceable Face Panel; Removable Counter Rail; Covered Side Wall Access Ports; Internal GFCI Box; Removable Interior Wall Panels |
| Burner Cut-Out Fit Range | 19" to 22-3/4" W × 10-3/8" to 12-3/4" Max H (with 3/4" counter height) |
| Burner Elevation | Burner inserted to lower elevation of 11" below counter surface (counter thickness can reduce this) |
| Dimensions (W × H × D) | 33" × 34-1/2" × 28-1/4" (with legs); 33" × 30-1/2" × 28-1/4" (without legs) |
| Options | Optional Wheel Casters; Optional Floating Shelf; Optional Speed Rail |
| Warranty | Lifetime Structure Warranty |
