Sunstone SAC20CSDL 20" Appliance Cabinet Left Door

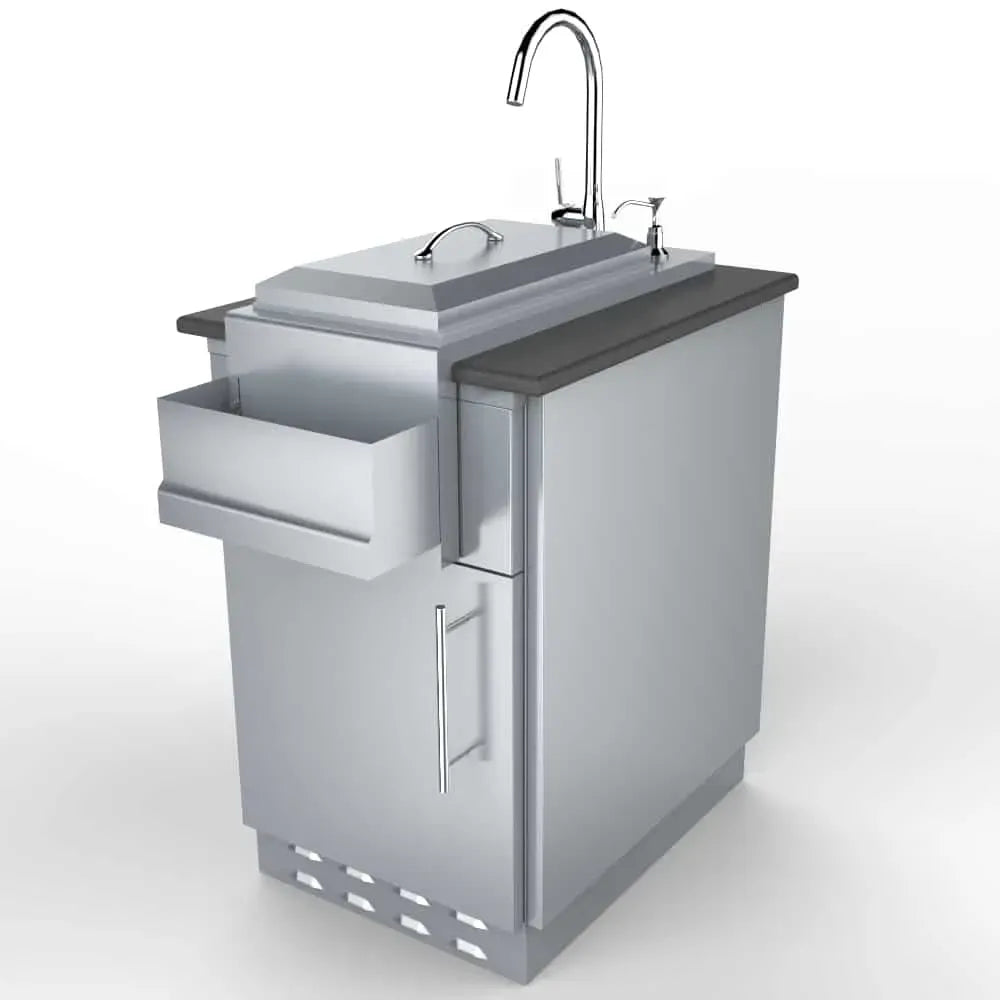

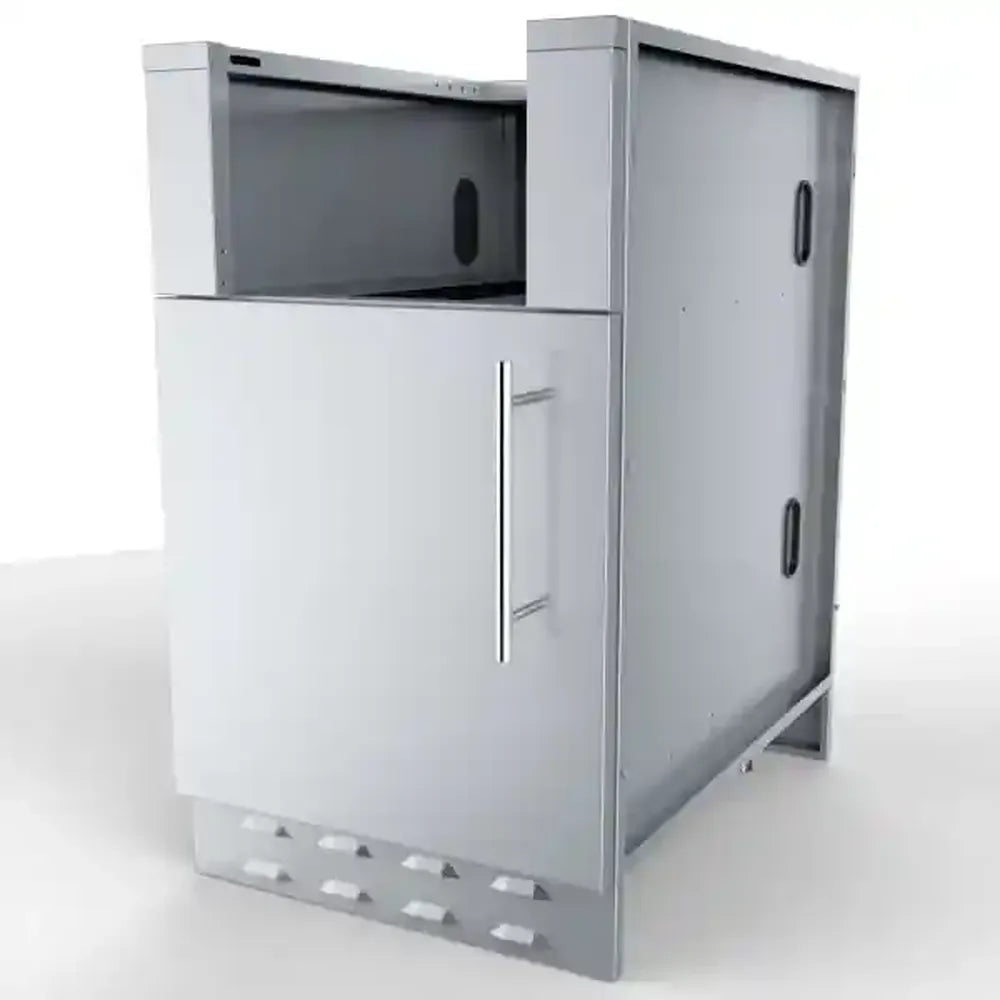

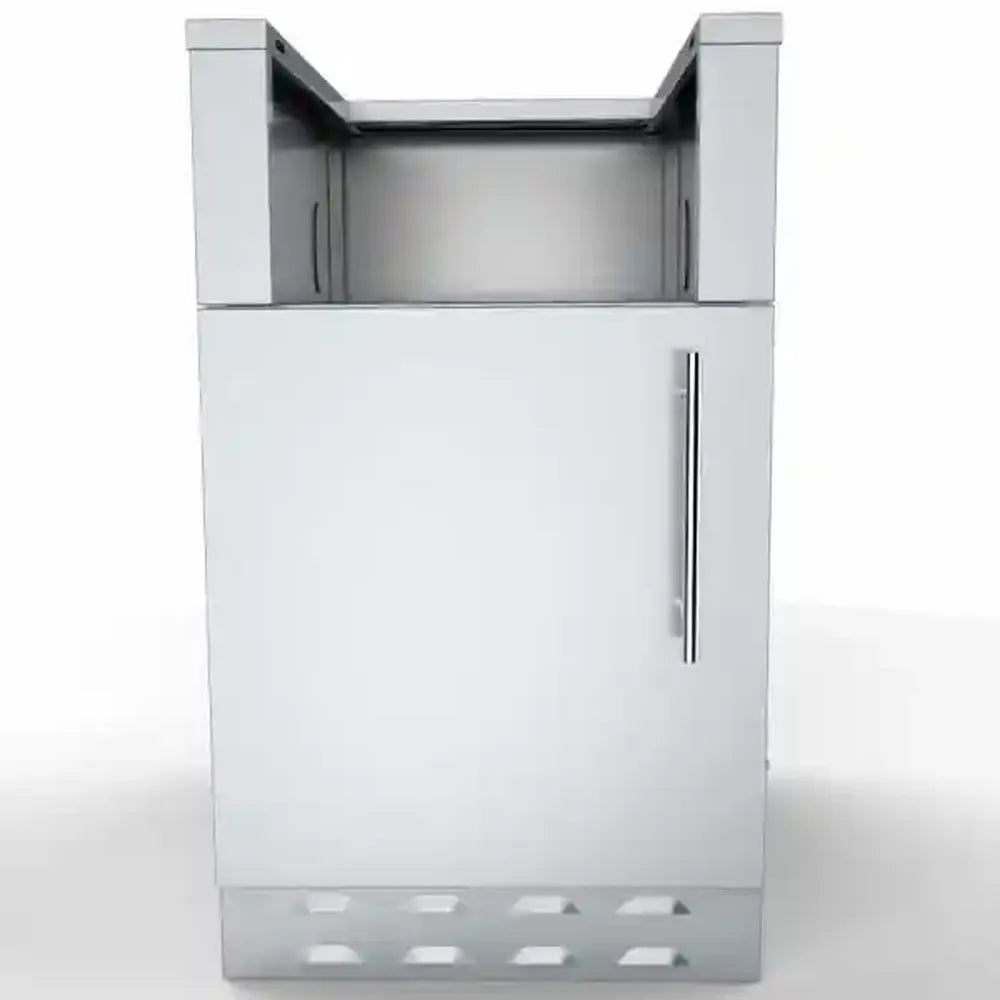

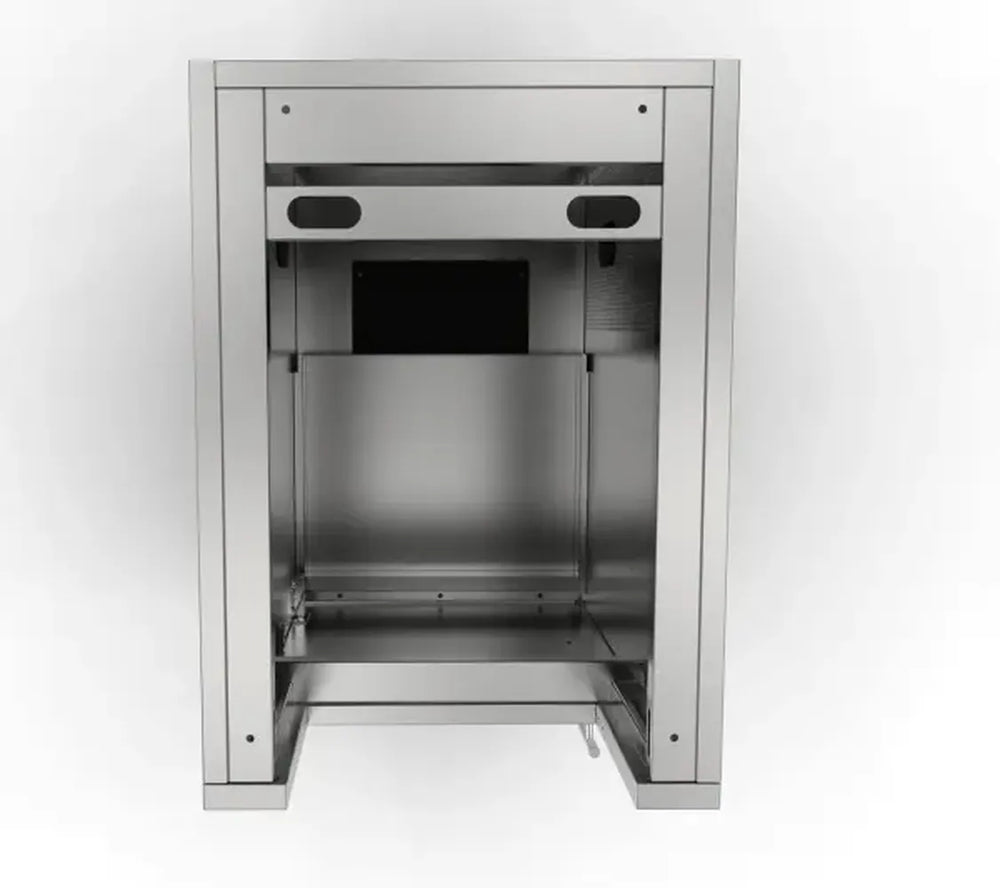

Sunstone SAC20CSDL – 20" Appliance Cabinet with Left Swing Door
The Sunstone SAC20CSDL is a 20" appliance cabinet designed for outdoor kitchens that need a compact built-in cabinet platform for a bar station or double slide-in side burner with a trim-kit adaptable opening. Built for outdoor cooks and entertainers installing a smaller appliance into an island, it uses a front trim-kit system to fit cut-outs between 9-3/4" and 14-1/2" wide and 8" to 10-1/4" max height (with a 3/4" counter height), helping match the cabinet sleeve to many industry brand models. During installation, the cabinet arrives fully assembled and includes a slide-out tray area with a bottom utility access port behind it for routing lines and drainage at the cabinet base. Compared with a fixed-cutout appliance cabinet or an open shelf bay, the Sunstone SAC20CSDL adds trim-kit fit flexibility, enclosed door storage for a trash bin or propane tank space, and purpose-built access routing for a cleaner, more functional outdoor kitchen layout.
Sunstone SAC20CSDL Features

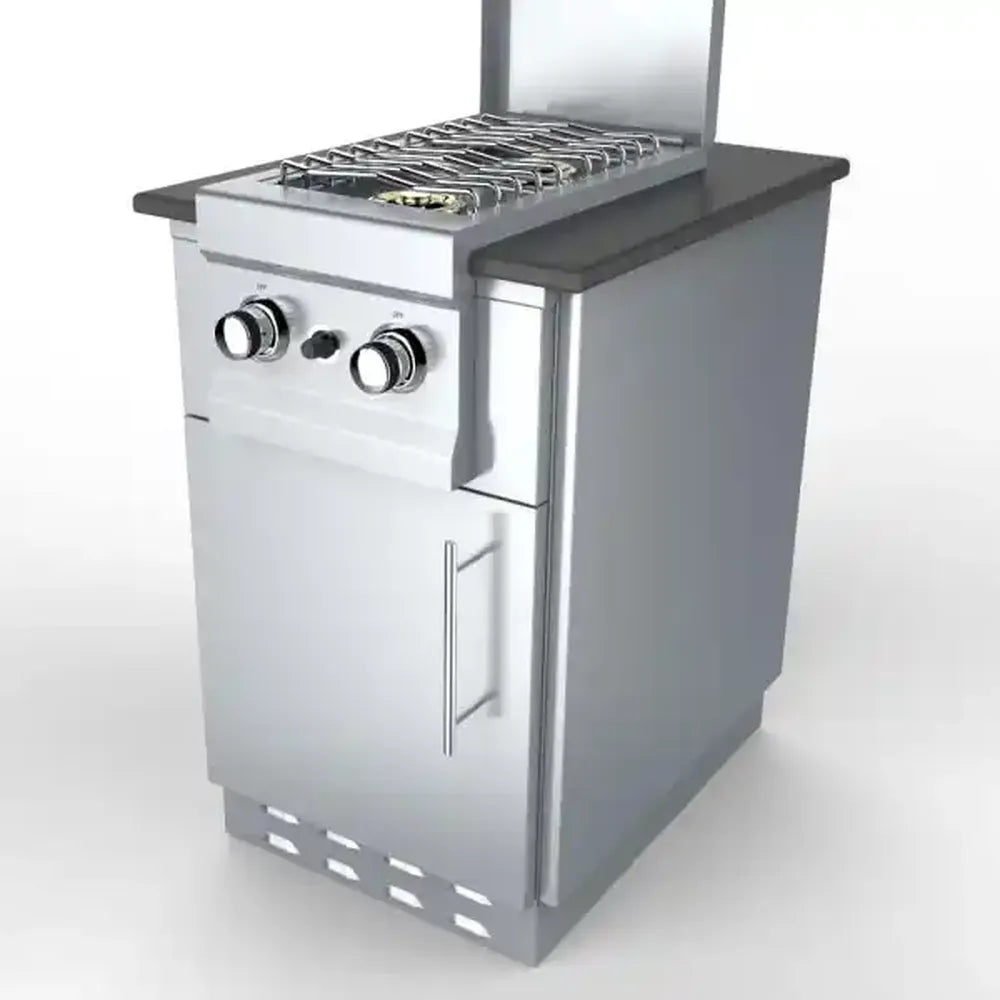

- Compact Appliance Cabinet Platform: Designed to receive many double slide-in side burners or bar stations for space-efficient outdoor kitchen installs.
- Trim-Kit Adaptable Face Panel: Uses a replaceable face panel trim-kit system to fit different appliance cut-out dimensions for a more precise built-in fit.
- Appliance Cut-Out Fit Range: Compatible with cut-outs from 9-3/4" to 14-1/2" W × 8" to 10-1/4" max H (with 3/4" counter height; filler rail installed or removed).
- Left Swing Door Enclosure: Door enclosure supports trash bin or propane tank storage to keep island utilities contained and accessible.

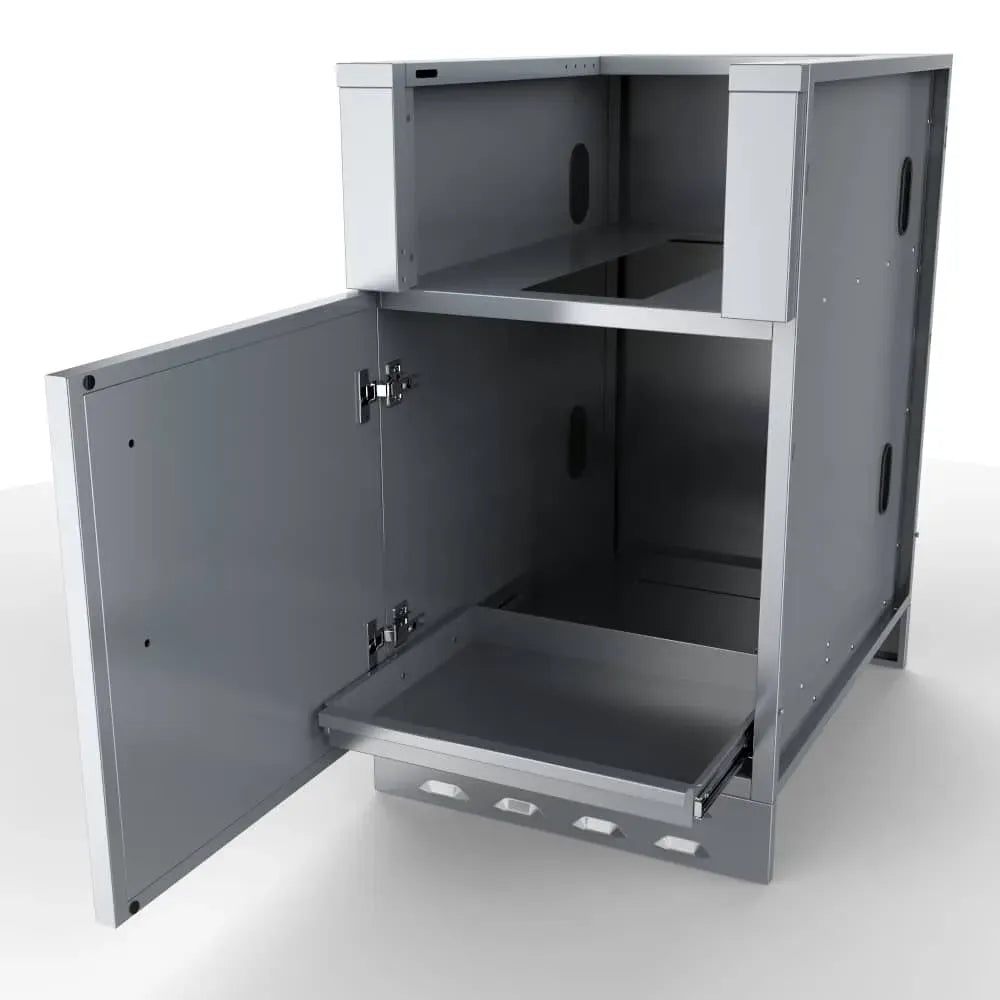

- Bottom Utility Access Port: Includes a bottom utility access port located behind the bottom slide-out tray to support routing and service access at the cabinet base.
- 304 Stainless Steel Structure: Built with 304 stainless steel structure and 304 stainless rod handles for outdoor durability and a consistent built-in look.
- Vented & Solid Kick-Plate System: Front vented kick-plate supports airflow while the rear solid kick-plate adds stability at the cabinet base.
- Easy Pin-Lock Installation: Ships fully assembled and installs by fastening the four (4) included peg-legs, installing rod handles, and mounting the kick-plates.
- Utility & Customization Features: Includes removable counter rail, covered side wall access ports, optional wheel casters, and a replaceable face panel.
- Warranty: Lifetime Structure Warranty.
Sunstone SAC20CSDL Specifications
| Model Number | SAC20CSDL |
| Product Type | Appliance Cabinet / Bar Station Cabinet |
| Material | 304 Stainless Steel Structure |
| Handles | 304 Stainless Steel Rod Handles |
| Kick Plate | Front Vented Kick-Plate; Rear Solid Kick-Plate |
| Drawer Tracks | Soft-Close |
| Door Swing | Left Swing Door |
| Cabinet Features | Replaceable Face Panel; Removable Counter Rail; Covered Side Wall Access Ports; Bottom Utility Access Port (behind bottom slide-out tray) |
| Appliance Cut-Out Fit Range | 9-3/4" to 14-1/2" W × 8" to 10-1/4" Max H (with 3/4" counter height) |
| Height Adjustment | Additional height can be adjusted by removing bottom filler rail or using thicker counter/backer board |
| Installation | Easy Pin-Lock Installation; Fully Assembled (attach peg-legs, handles, and kick-plates) |
| Dimensions (W × H × D) | 20" × 34-1/2" × 28-1/4" (with legs); 20" × 30-1/2" × 28-1/4" (without legs) |
| Options | Optional Wheel Casters |
| Warranty | Lifetime Structure Warranty |
