Sunstone Ruby Elite Pro Trio Post Mount Package
Three Dedicated Cooking Stations, Zero Masonry Required — A Complete Outdoor Kitchen on Free-Standing Posts

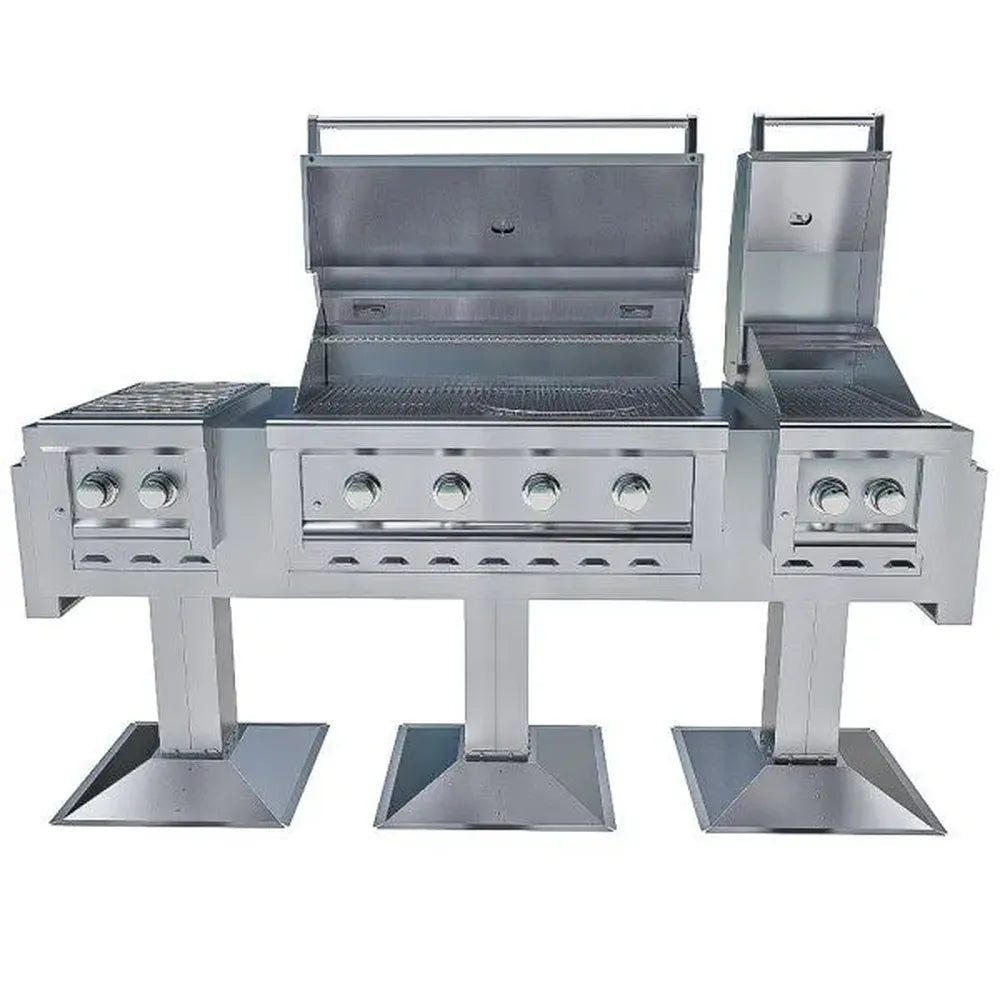

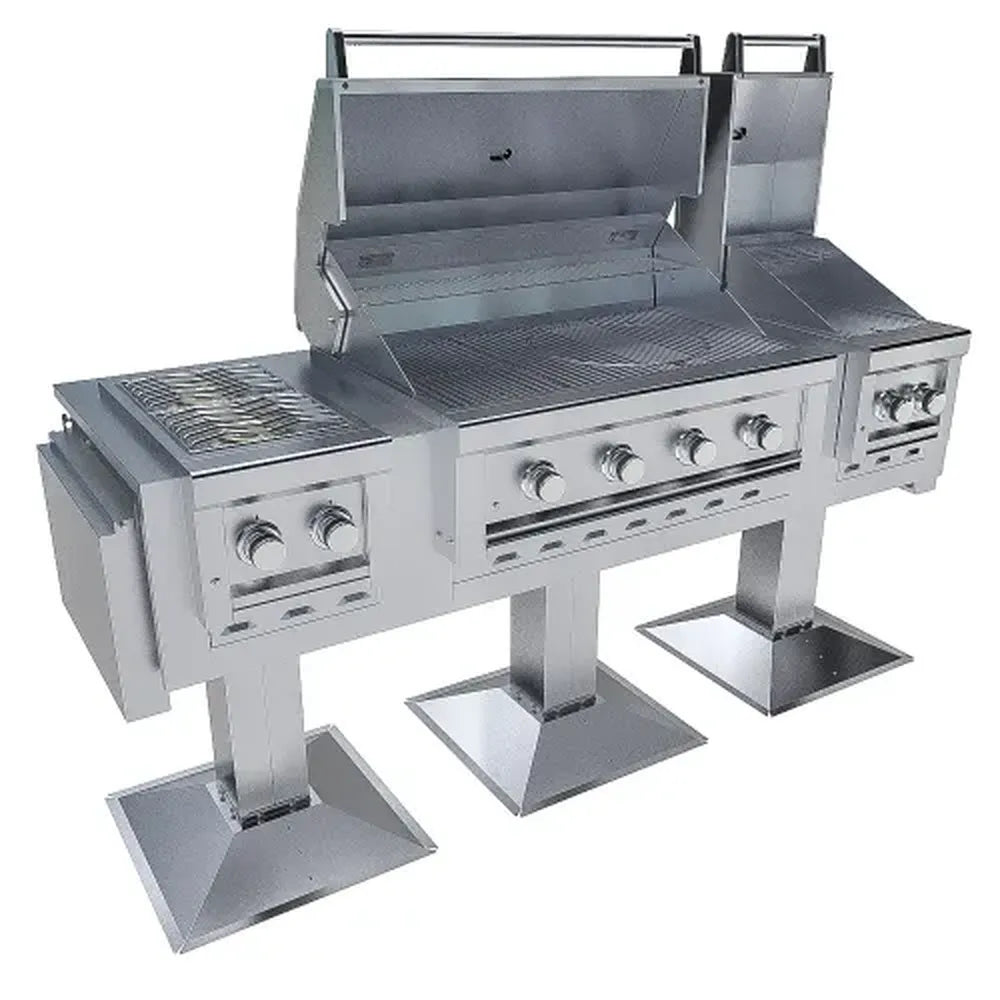

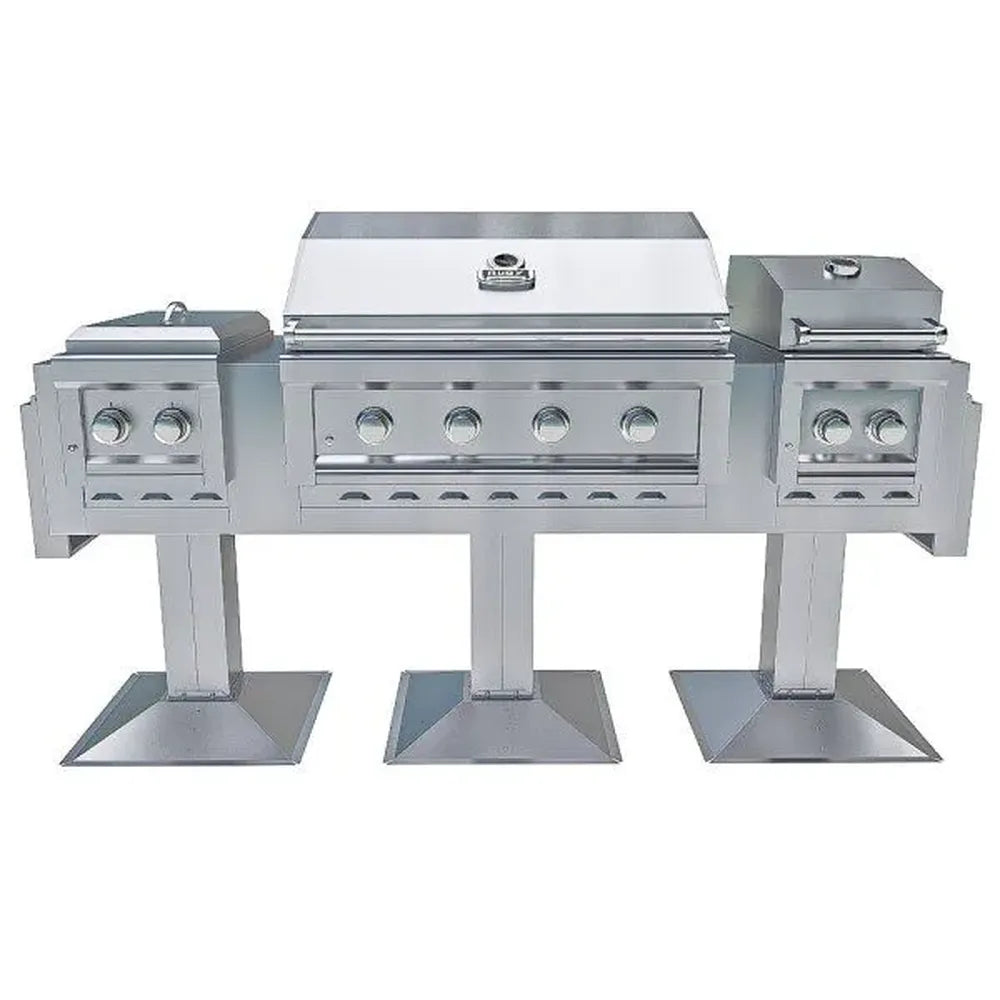

The Sunstone Ruby Elite Pro Trio Post Mount combines a 4-burner grill, a double side burner, and a compact all-in-one griller into one stainless workstation.

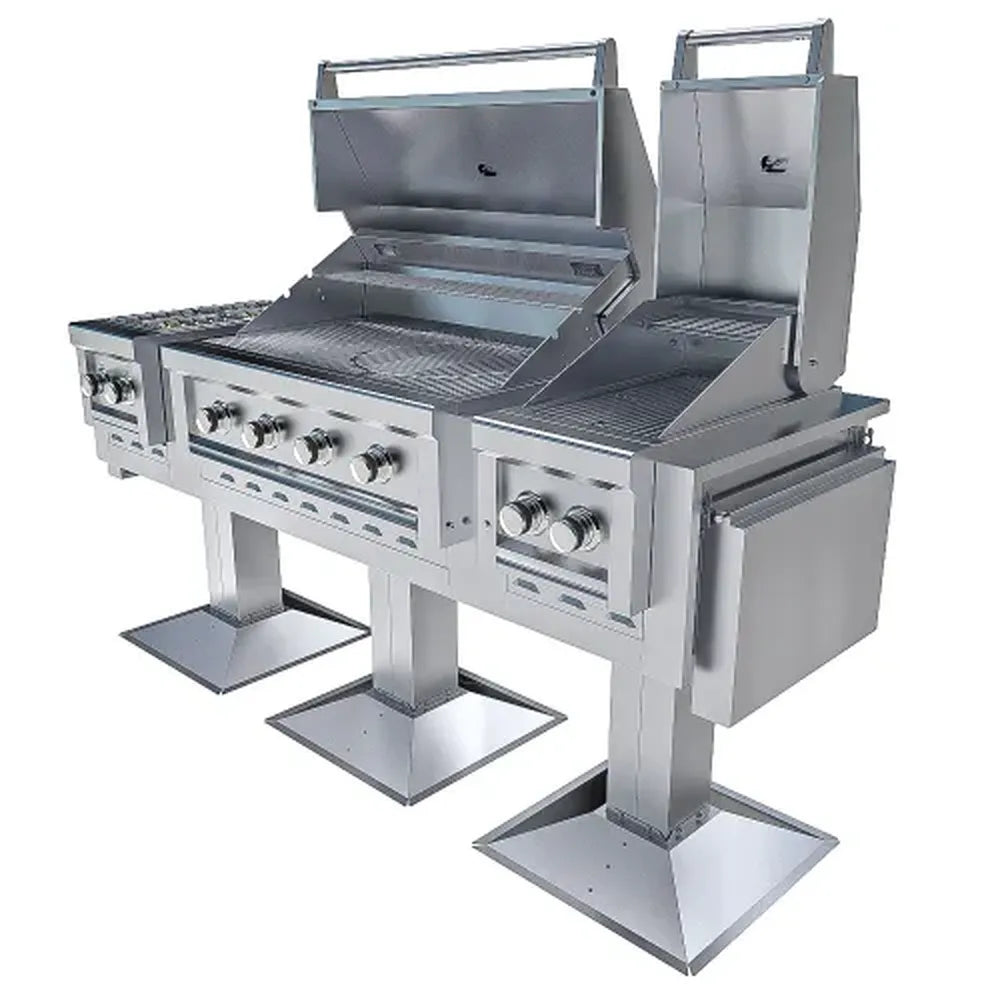

The Sunstone Ruby Elite Pro Trio Post Mount is a complete, free-standing outdoor cooking system built for patios, decks, and rooftops where a full masonry island isn't practical. It bundles the Ruby Series 36" 4-burner Pro-Sear grill (RUBY4B), the 13" Versa double side burner (SUN13VDB), and the 13" Companion Pro Griller (SUN13CPROGR) — all secured on heavy-duty post mount fixtures inside double-walled 304 stainless safety jackets, with fold-down wings for extra prep and serving space.
Ruby Elite Pro Trio Features & Benefits
Three dedicated stations means three jobs handled at once, not three tasks fighting for one surface.
Grill, Side Burner, and Griller in One System
The 36" RUBY4B grill, 13" SUN13VDB double burner, and 13" SUN13CPROGR compact griller run as dedicated, simultaneous stations — sear proteins on the main grill while running a wok dish on the Versa burner and finishing sides on the Companion Pro.
No Masonry Island Required

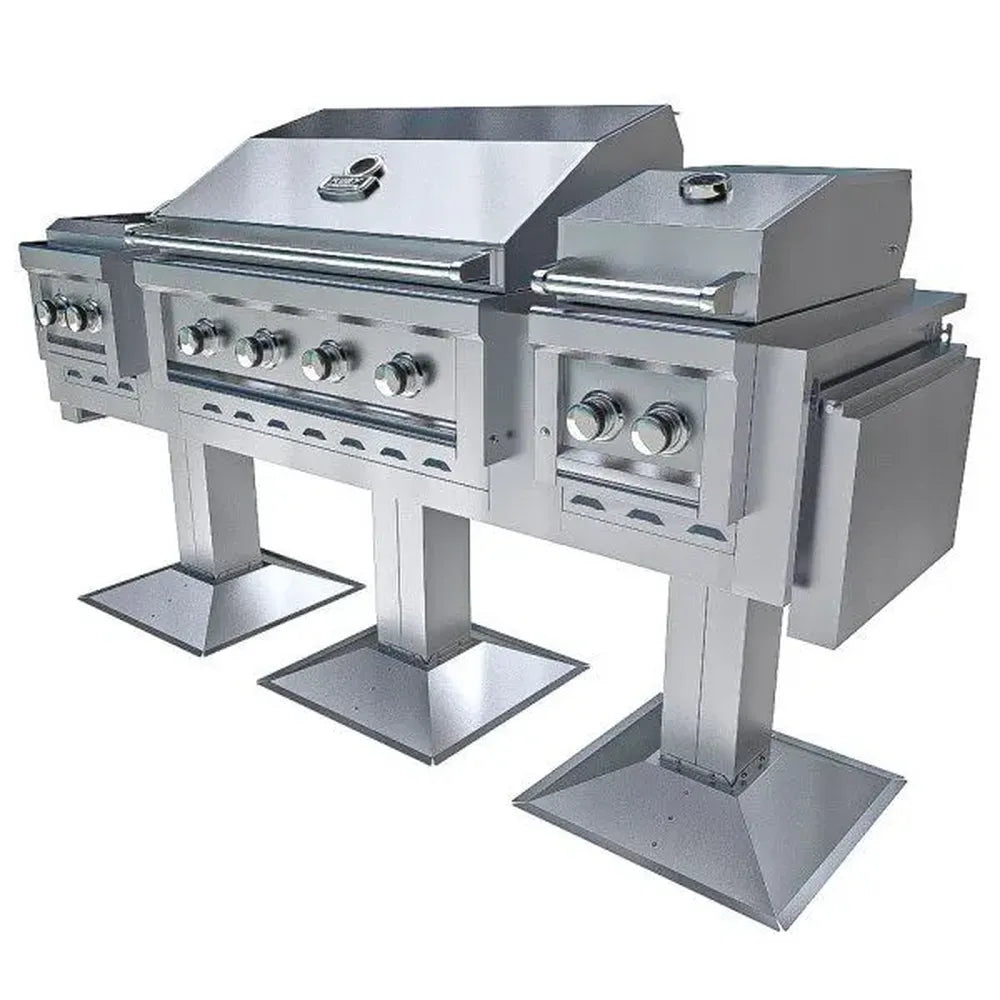

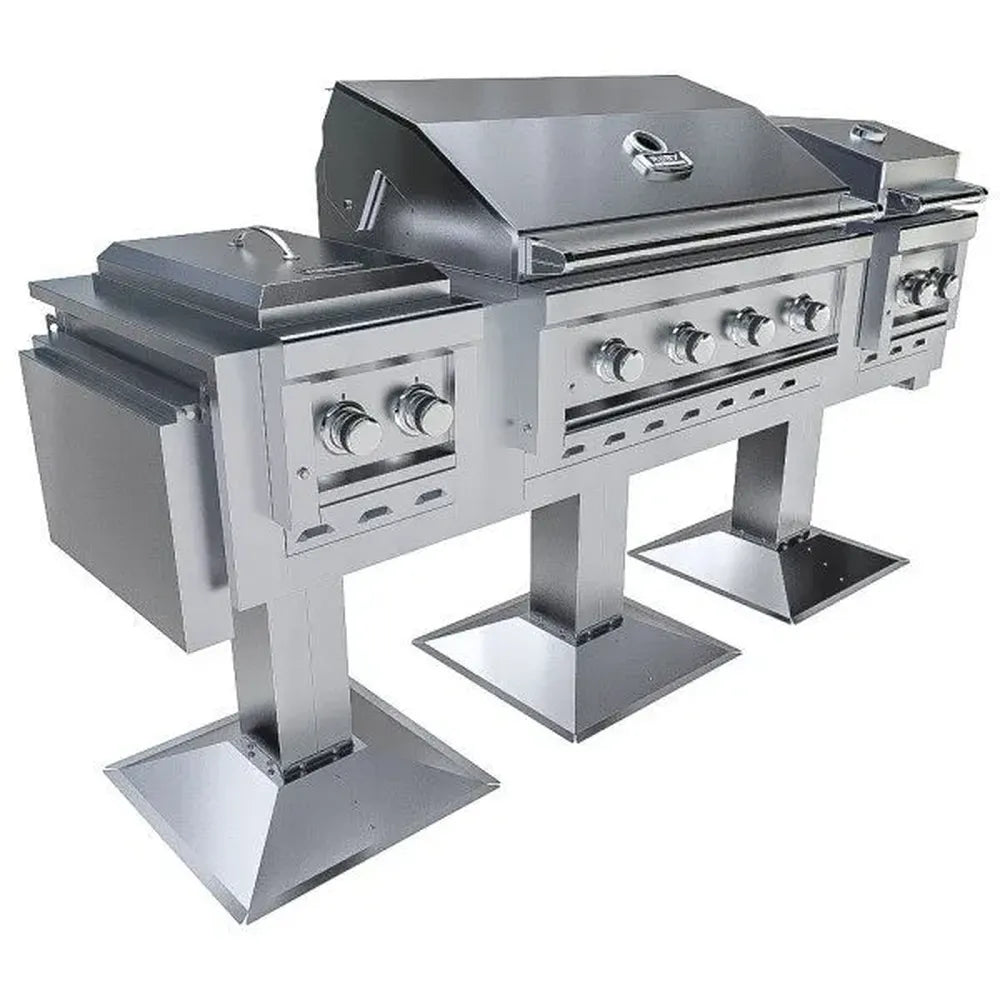

Three heavy-duty 22 1/2" stainless post fixtures with 6" x 6" base plates create a stable, free-standing structure — full outdoor kitchen function without a permanent built-in island.
Universal Jacket Safety System

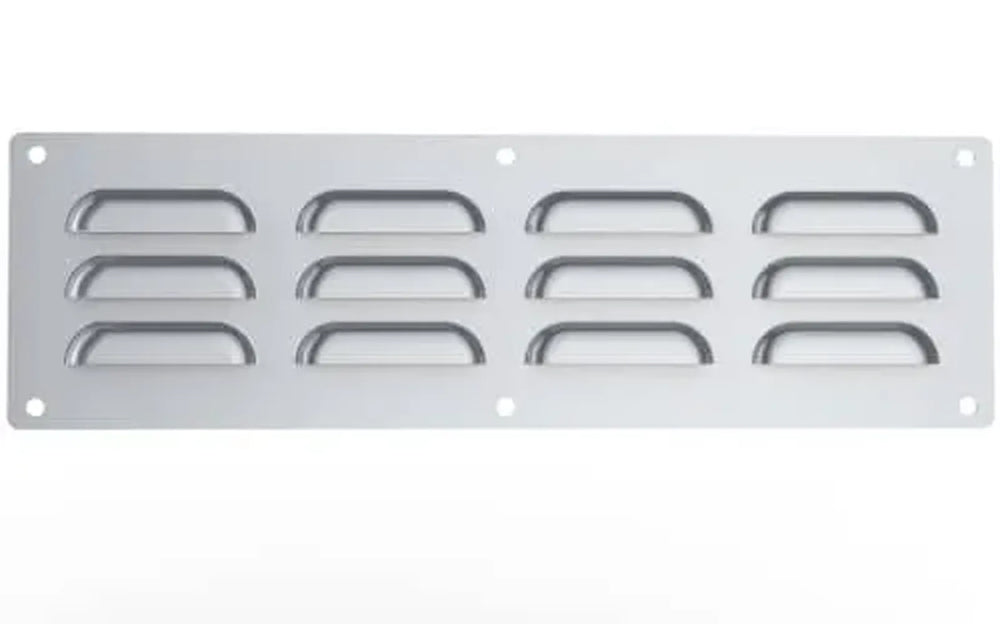

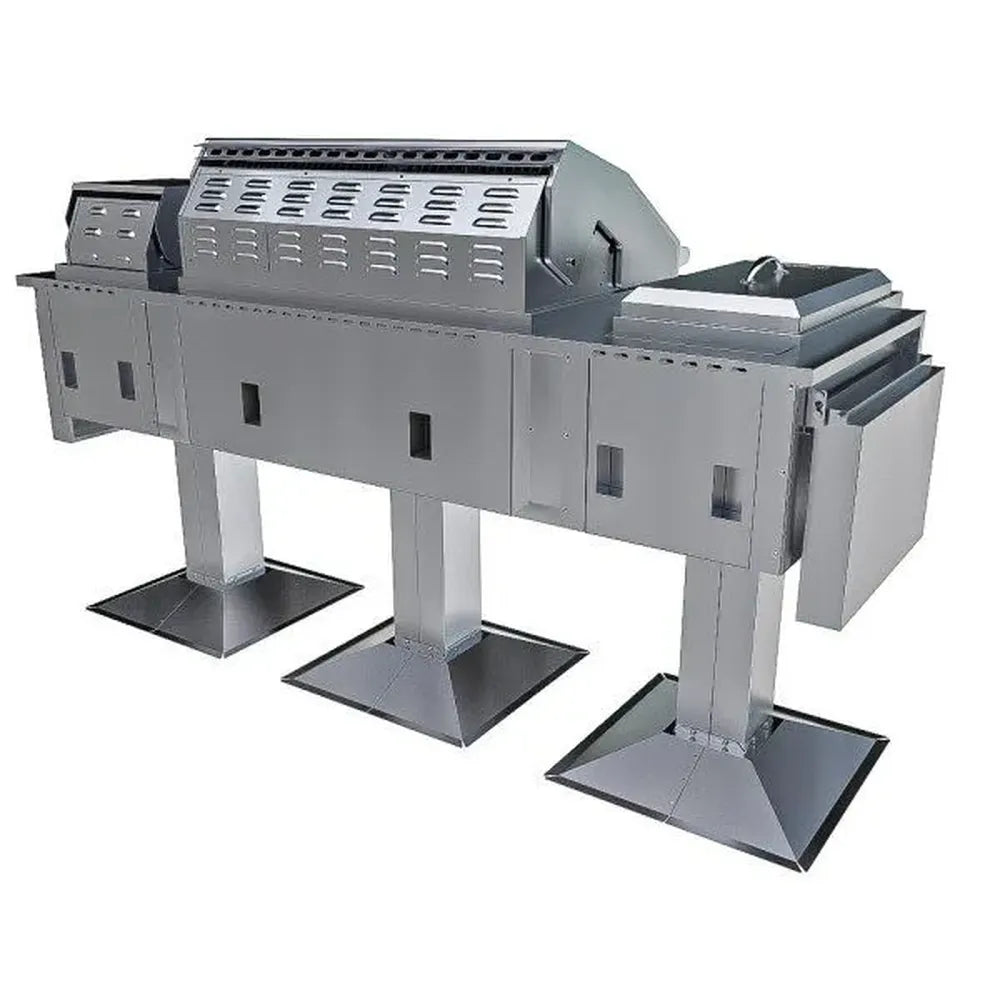

Double-walled 304 stainless jackets with pass-through ventilation and covered utility ports support zero-clearance-style installation around each appliance.

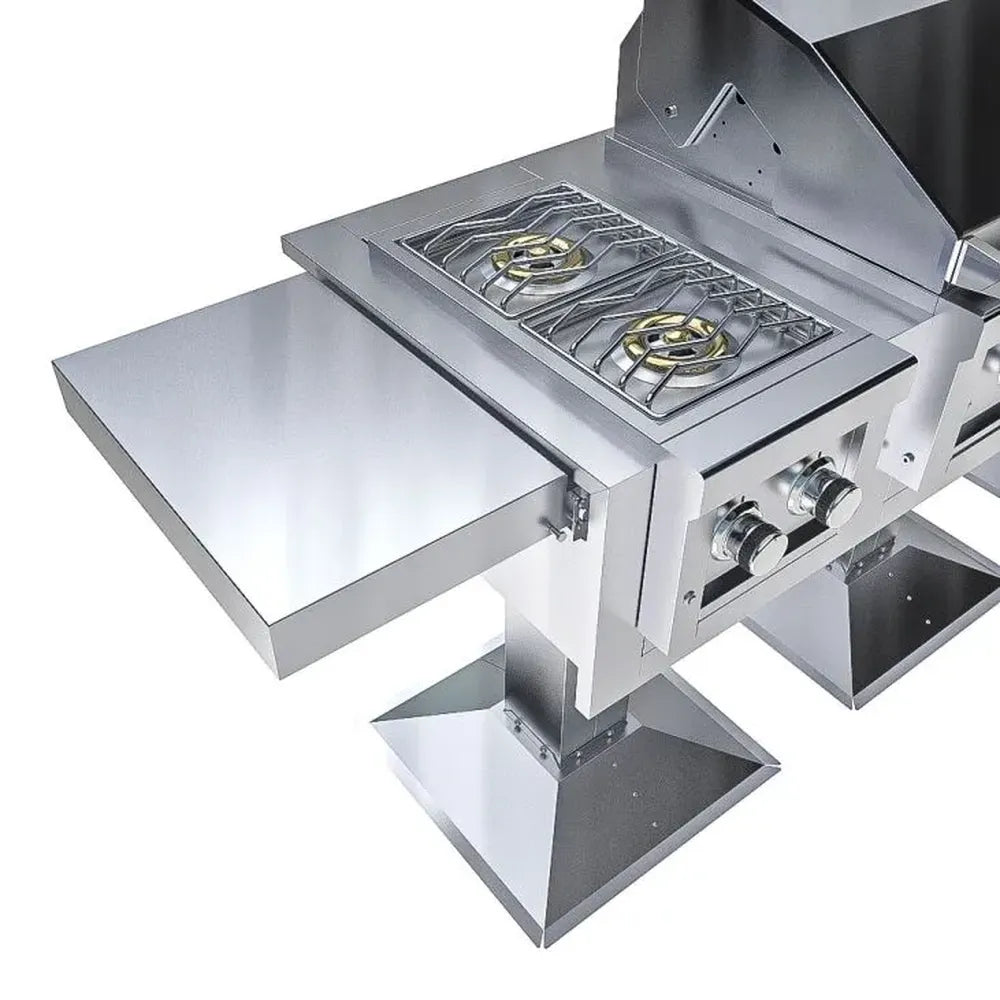

Expandable Prep & Serving Wings
14" x 20 1/2" fold-down jacket wings give you extra workspace when you need it, then fold flat to keep the footprint compact when you don't.
Continuous Workspace, No Gaps
A 6" universal jacket divider joins the 40" and 18" jackets into one continuous cut-out, so the three appliances read as a single cohesive station rather than three separate boxes.
Fully Stainless, Top to Bottom
Every appliance, jacket, and post fixture is built from 304 stainless steel, so the whole system holds its finish through repeated outdoor exposure.
What Each Appliance Brings to the Station

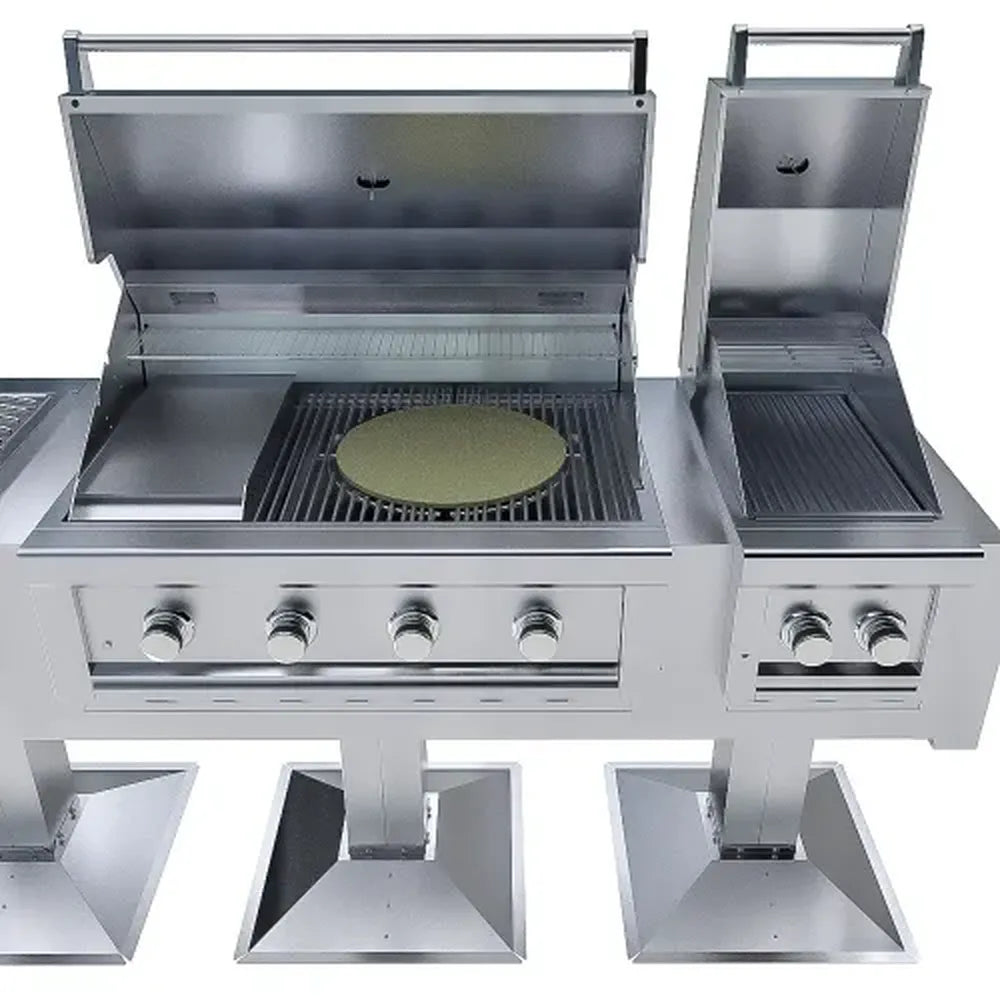

The RUBY4B handles primary grilling with variable-spacing 304 stainless cooking grids, heat-changing LED control lighting, halogen interior lights, and an included smoker box and rotisserie rod with motor. The SUN13VDB adds dual brass Versa burners for sauces, sides, and boiling, with adjustable flame control and piezo ignition. The SUN13CPROGR is a compact all-in-one unit with its own hood and warming rack, built to grill, sear, griddle, smoke, fry, and steam on its own.
Who the Ruby Elite Pro Trio Post Mount Is For
- Rooftop, deck, or patio installations where a full masonry island isn't structurally or practically possible.
- Cooks who want three dedicated stations — main grill, side burner, and compact all-in-one griller — running at the same time.
- Anyone planning a multi-zone outdoor kitchen without committing to permanent construction.
- Buyers who want a single, continuous-looking cooking station rather than three appliances purchased and installed separately.
- Hosts who need fold-out prep or serving space on demand without a fixed counter footprint.
What's Included
Cooking Appliances
- 36" Ruby Series 4-Burner Pro-Sear Grill (RUBY4B) — with smoker box and rotisserie rod, motor, and spikes
- 13" Ruby Series Versa Double Slide-In Burner (SUN13VDB)
- 13" Ruby Series Companion Pro Griller (SUN13CPROGR) — with hood and warming rack
Mounting & Safety Hardware
- 40" universal appliance jacket (SUNJK40), compatible with RUBY4B/RUBY4BIR
- Two 18" universal appliance jackets (SUNJK18), for the SUN13VDB and SUN13CPROGR
- 6" universal jacket divider (SUNJKDIV6)
- Three 22 1/2" post mount fixtures (SUNJKPOST)
- Adjustable fold-down jacket wings (SUNJKWING)
Sold separately: gas lines, regulators, and connection fittings for each appliance, and any electrical hookups required.
Ruby Elite Pro Trio Specifications
RUBY4B Grill
| Burners | 4 fabricated 11-gauge 304 stainless steel I-burners |
|---|---|
| BTU Output | Up to 120,000 total BTUs |
| Cooking Grids | Solid 304 stainless steel, variable rod spacing |
| Lighting | Heat-changing LED control lighting + halogen interior lights |
| Overall Size | 36" W x 27" D x 22" H |
| Cutout (Jacket-Mounted) | 33-1/2" W x 22" D x 10" H |
SUN13VDB Double Burner
| Burners | 2 brass Versa burners, 15,000 BTU each / 30,000 BTU total |
|---|---|
| Cooking Grates | Solid 3/8" 304 stainless steel |
| Ignition | Piezo valve, adjustable flame control |
| Overall Size (Jacket-Mounted) | 13" W x 23-1/2" D x 12-1/2" H |
| Cutout | 12" W x 20" D x 10" H |
SUN13CPROGR Companion Pro Griller
| Burners | 2 infrared burners, up to 30,000 BTU combined |
|---|---|
| Cooking Modes | Grill, sear, griddle, smoke, fry, steam — all-in-one unit |
| Included | Hood and warming rack |
| Lighting | LED accent lighting |
| Overall & Cutout Dimensions | 13" W x 26" D x 12-3/4" H Cutout: 11" W x 22" D x 10-1/2" H |
Mounting Hardware
| 40" Jacket (SUNJK40) |
304 stainless, double-walled, 40" W x 25 3/4" D x 14 1/2" H; cutout 38 1/2" W x 24 1/4" D x 13" H; compatible with RUBY4B/RUBY4BIR |
|---|---|
| 18" Jackets (SUNJK18), qty 2 |
304 stainless, double-walled, 18" W x 25 3/4" D x 14 1/2" H each; cutout 16 1/2" W x 24 1/4" D x 13" H each; for SUN13VDB and SUN13CPROGR |
| 6" Jacket Divider (SUNJKDIV6) | 304 stainless, double-walled, 6" W x 25 3/4" D x 14 1/4" H |
| Post Mount Fixtures (SUNJKPOST), qty 3 | 22 1/2" tall, 6" x 6" base plate, 6-gauge thickness, 304 stainless steel |
| Fold-Down Wings (SUNJKWING) | 14" W x 20 1/2" D, folding stainless panels with brackets |
| Country of Origin | United States |
Warranty & Buyer Assurance
- Manufacturer's Warranty — Each appliance is covered by Sunstone's lifetime warranty (original purchaser) on stainless steel burners, cooking grids, and housings, with a one-year warranty on other components such as ignitors, knobs, valves, and tubing.
- Free Shipping on orders over $100 to the contiguous 48 states.
- 45-Day Returns if the system isn't the right fit for your space.
- Price Match available — found it cheaper elsewhere? Let us know.
Manuals & Documents
- RUBY4B Owner's Manual (PDF) — grill installation and operation.
- SUN13VDB Owner's Manual (PDF) — double burner installation and operation.
- SUN13CPROGR Owner's Manual (PDF) — Companion Pro Griller installation and operation.
- Universal Jacket & Post Mount Installation Guide (PDF) — jacket, divider, post, and wing assembly instructions.
Ruby Elite Pro Trio Post Mount — Frequently Asked Questions
Do I need a masonry island for this system?
No — this is specifically designed as a free-standing, post-mounted system for patios, decks, or rooftops where a permanent masonry island isn't practical or possible.
What's the SUN13CPROGR, and how is it different from the SUN13CPRO?
The SUN13CPROGR ("Companion Pro Griller") is a self-contained mini grill with its own hood and warming rack, built to grill, sear, griddle, smoke, fry, and steam on its own. It's a different product from the SUN13CPRO, which is a built-in infrared companion burner without an integrated hood.
Can I run all three appliances at the same time?
Yes — each appliance is a dedicated, independent station with its own gas connection, so you can run the grill, double burner, and Companion Pro Griller simultaneously.
What do the fold-down wings do?
They're 14 in. by 20 1/2 in. stainless panels that fold out from the jacket system to add temporary prep or serving space, then fold flat when you don't need the extra surface.
Is gas plumbing included?
No — gas lines, regulators, and connection fittings for each appliance are sold separately. Plan your gas routing to all three stations before installation.
What's covered under warranty?
Each appliance carries Sunstone's lifetime warranty on stainless steel burners, cooking grids, and housings, with a one-year warranty on other components. Full terms are in each appliance's owner's manual.
Can I install this myself?
The post and jacket hardware is designed for assembly without masonry work, but given the number of components and required gas connections, we recommend a qualified installer for the final setup.
What if this isn't the right fit for my space?
If the system doesn't fit your space or isn't right for your setup, it's covered by Deck & Den's 45-day return policy — contact us before sending anything back.
