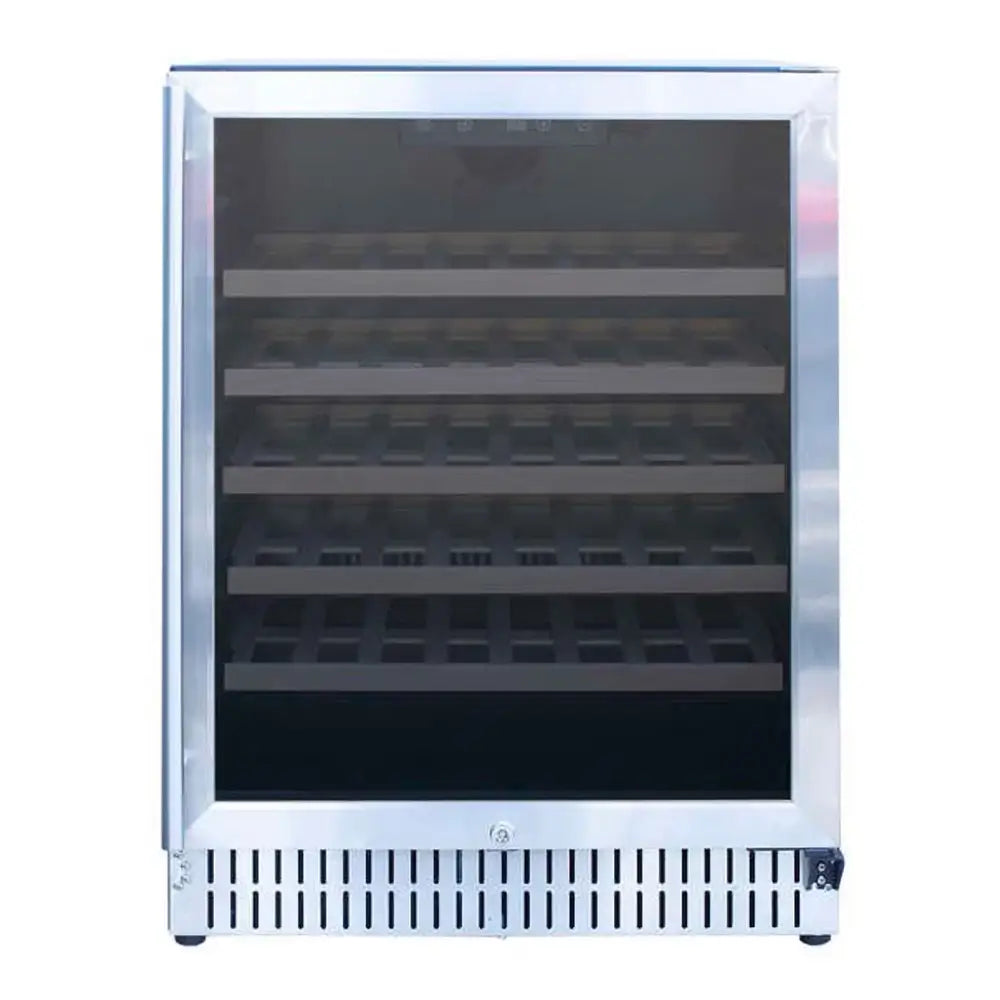

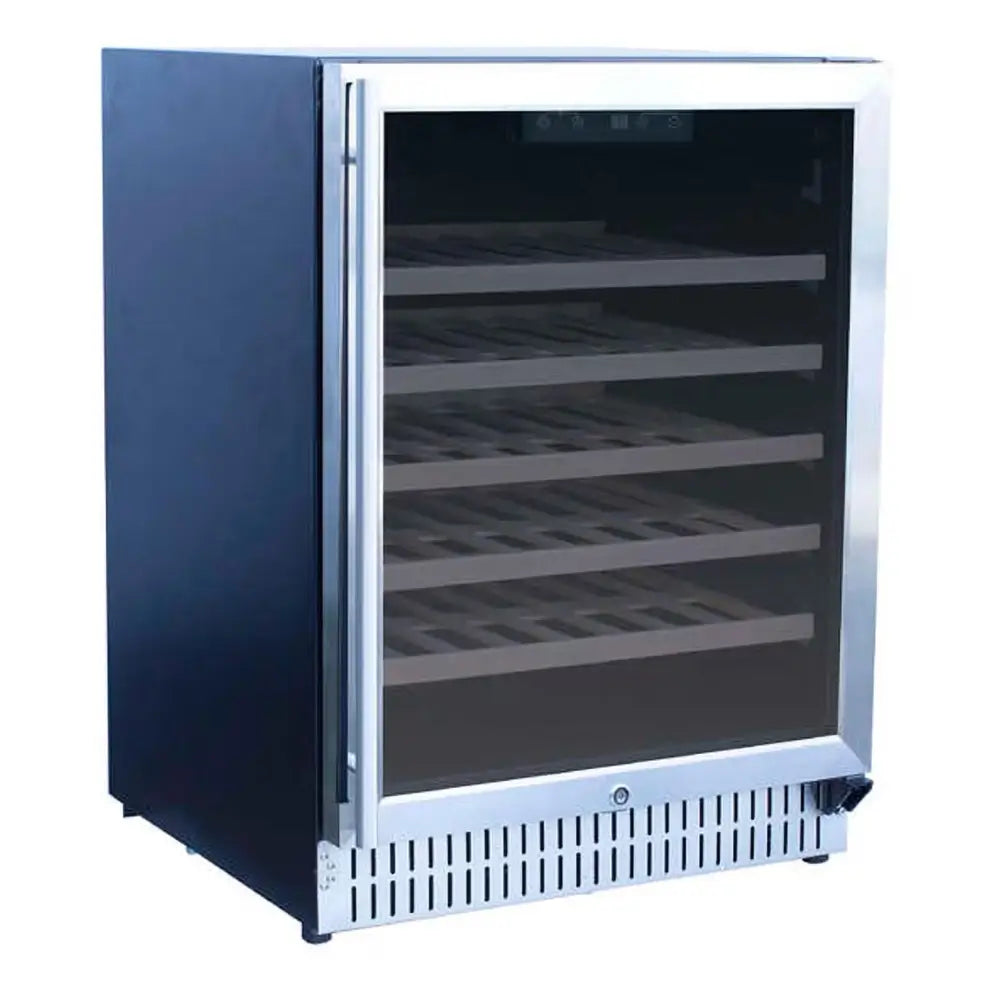

Summerset RFR-24W 24" Outdoor Wine Cooler – Stainless Steel
CONTACT US FOR PRICE MATCH OR PRICE BEAT!
46 Bottles, 5.3 Cubic Feet, Soft-Close Door — The RFR-24W Is the Full-Size Outdoor Wine Cooler Your Island Deserves
The Summerset RFR-24W steps up from the 15-inch models to a 24-inch footprint with nearly double the capacity — UL-certified for outdoor use, built-in ready, backed by a lifetime warranty on stainless steel construction.
The Summerset RFR-24W 24-Inch Outdoor Rated Wine Cooler is the largest single-zone wine cooler in Summerset's outdoor refrigeration lineup — a 5.3 cubic foot, 46-bottle capacity unit built for outdoor kitchen islands that need a full-size wine station rather than a supplemental 15-inch slot. The anti-vibration forced-air compressor with R-134a refrigerant cools the full 41–64°F single-zone range precisely, the soft-close door adds a premium detail that the 15-inch models don't include, and the front-venting design enables true built-in installation in a standard 24-inch appliance opening without rear or side clearance requirements. 304 stainless exterior, UL-certified outdoor use, five wooden bottle cradle shelves, tinted locking glass door, digital front-panel controls with LED display, automatic defrost, and adjustable leveling legs. The step up from the 15-inch models when you need twice the storage in the same quality outdoor-rated package.
What the RFR-24W Delivers That the 15-Inch Models Can't
Moving from the 15-inch to the 24-inch footprint nearly doubles the capacity, adds a soft-close door, and fits a standard 24-inch outdoor kitchen appliance opening — without giving up any of the outdoor certification, anti-vibration cooling, or build quality that make the 15-inch models worth having.
5.3 Cu. Ft. — Nearly Double the 15-Inch Capacity
Five wooden bottle cradle shelves across 5.3 cubic feet hold up to 46 standard 750 ml bottles — enough to stock a full entertaining selection rather than a curated rotation. If your outdoor kitchen is a primary entertaining destination rather than a supplement to indoor space, this is the capacity that makes sense.
Soft-Close Door — Premium Detail the 15-Inch Models Don't Have
The soft-close door mechanism dampens the door's closing motion, preventing the slam that can disturb settled sediment in stored bottles and that wears door seals over time in high-use settings. It's a premium detail that separates the 24-inch model from the 15-inch units and signals the quality of what's inside.
Standard Appliance Width — Fits a Dedicated Outdoor Kitchen Wine Station
A 24-inch opening is a standard outdoor kitchen appliance slot — the same width as an outdoor refrigerator, kegerator, or beverage center. The RFR-24W fills it with a purpose-built wine cooler that matches the Summerset grill and appliance aesthetic while delivering the storage depth that makes a 24-inch slot genuinely worth the island real estate.
Anti-Vibration Compressor with R-134a Refrigerant
The forced-air compressor runs on R-134a refrigerant — a proven, stable refrigerant for wine storage applications — with vibration dampening throughout to protect sediment in stored bottles. Consistent, quiet performance across the full 41–64°F range without temperature spikes or compressor noise that disturbs outdoor gatherings.
UL-Certified for Outdoor Use — Built for the Conditions
UL outdoor certification means independent safety testing has approved this unit for permanent outdoor installation in the temperature extremes, humidity, and UV exposure of an outdoor environment — not a rating applied to an indoor unit and repackaged. The 304 stainless exterior handles the conditions that would degrade a lesser appliance within a season.
Front-Venting — True Built-In Without Rear or Side Clearance
Heat exhausts from the front of the unit, enabling full enclosure in an island opening without clearance gaps on the sides or rear. The tinted locking glass door protects the collection from UV exposure and secures it — the factory-installed lock is a practical addition for outdoor entertaining environments where the cooler operates unattended.
15-Inch vs. 24-Inch — When to Choose the RFR-24W
The 15-inch models (RFR-15W and RFR-15WD) are ideal when a 15-inch slot is what the island has available, or when the wine station is supplemental — a holding cooler alongside a larger beverage setup. The RFR-24W is the choice when wine is a central feature of the outdoor kitchen and you want a dedicated full-size wine station: 46 bottles versus 28, a soft-close door, and a 24-inch footprint that commands the same island presence as any other major appliance. If you're choosing between the RFR-24W and the RFR-24WD (dual-zone 24-inch), the calculus is the same as with the 15-inch pair — the RFR-24W gives you more bottles (46 vs 38) at a single set temperature; the RFR-24WD splits the cabinet into two independent zones for separate red and white storage simultaneously.
Auto-Defrost, Door Alarm, and Control Lock — Built to Run Unattended
The RFR-24W auto-defrosts on a set cycle — the compressor pauses while the fan continues running, preventing frost buildup without any manual intervention. An audible door alarm sounds if the door is left open for more than 60 seconds, a useful safeguard in an outdoor entertaining environment. The front-panel control lock prevents accidental temperature changes during a gathering. Together these features make the RFR-24W a set-and-forget appliance that runs reliably without monitoring — which is exactly what an outdoor wine cooler needs to be.
Who the Summerset RFR-24W Is For
- Outdoor kitchen builders who want a full-size dedicated wine station — 46 bottles in a 24-inch footprint makes this a primary wine storage and serving appliance, not a supplemental cooler.
- Islands with a 24-inch appliance opening — the front-venting design, right-hinge door, and standard 24-inch width make this a clean, purpose-built fit for a standard outdoor kitchen appliance slot.
- Serious entertainers who primarily stock one style of wine — 46 bottles at one consistent temperature means a full event's worth of wine chilled and ready, without the complexity of managing two zones.
- Buyers who want soft-close quality in an outdoor wine cooler — the soft-close door is an upgrade not found on the 15-inch models; it protects the door seal and the collection in high-use settings.
- Coastal and high-humidity outdoor kitchens — UL outdoor certification and 304 stainless construction mean the RFR-24W is rated for the conditions that compromise indoor wine coolers placed outdoors.
- Builds where wine storage is a design priority, not an afterthought — the RFR-24W's stainless and glass presence at 24 inches anchors an outdoor bar or kitchen setup in a way the 15-inch slot coolers simply can't.
What's Included
Wine Cooler

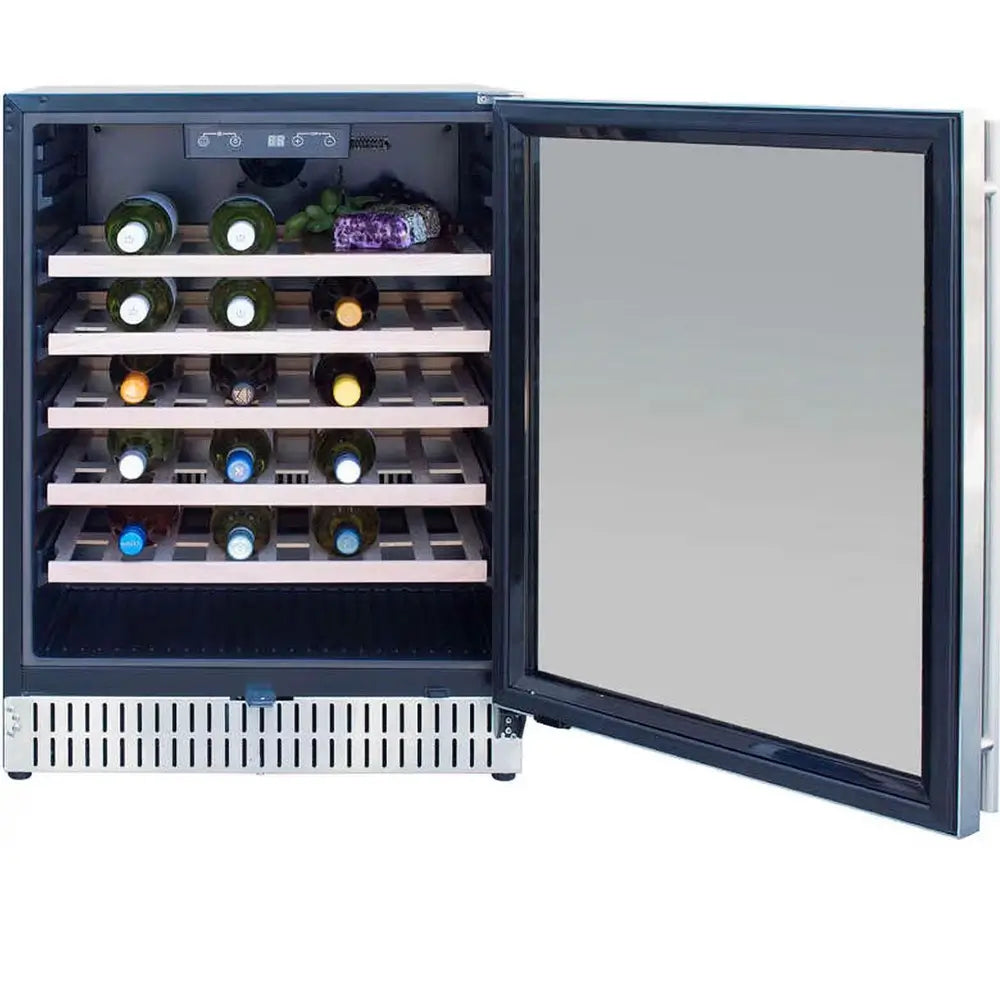

- Summerset RFR-24W single-zone outdoor wine cooler
- Single cooling zone, 41–64°F range
- Anti-vibration forced-air compressor (R-134a refrigerant)

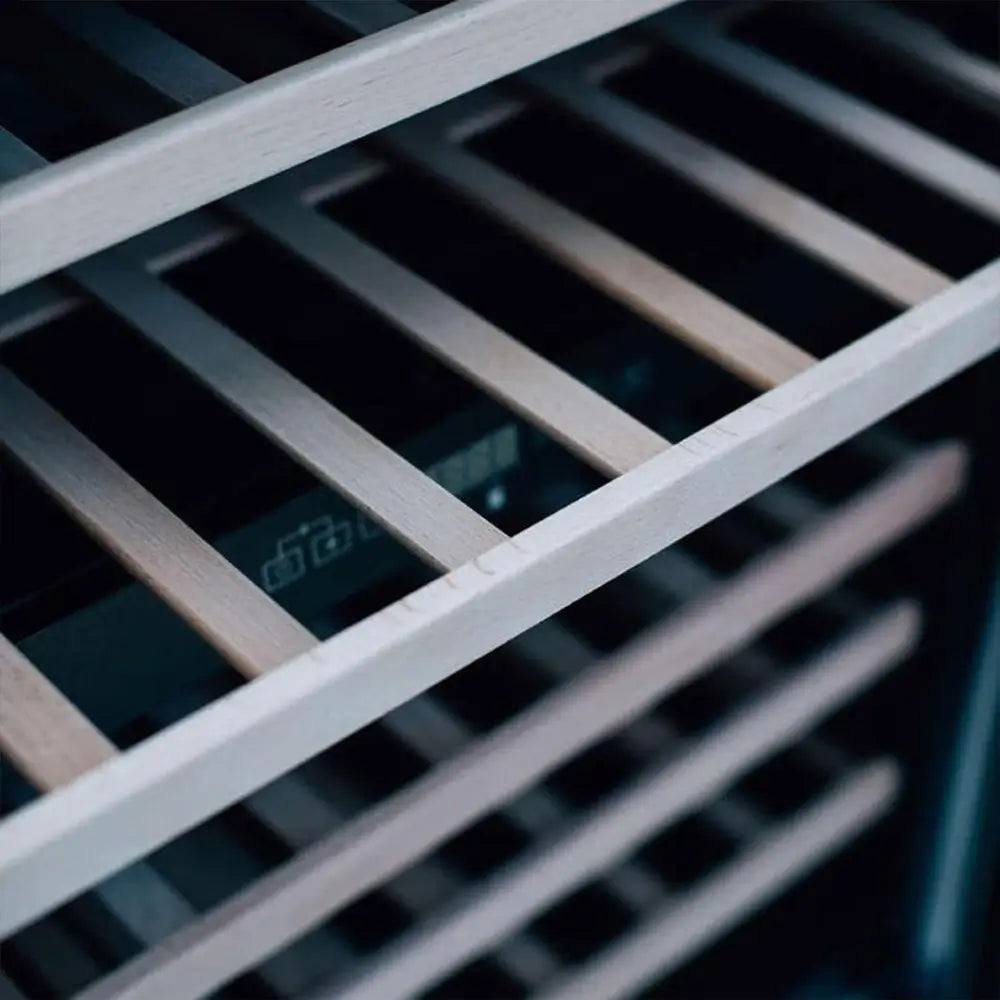

- Five wooden bottle cradle shelves (46-bottle capacity)
- Soft-close tinted glass door with factory-installed lock (right hinge)

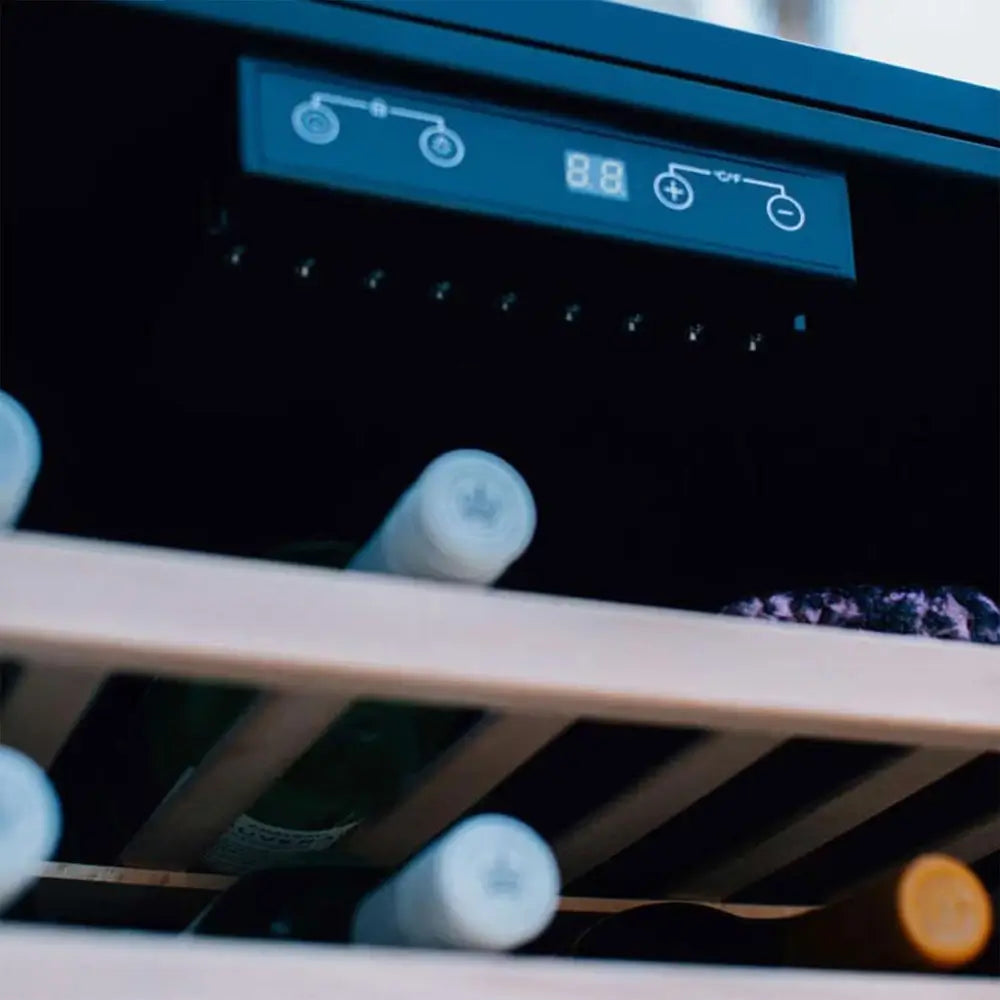

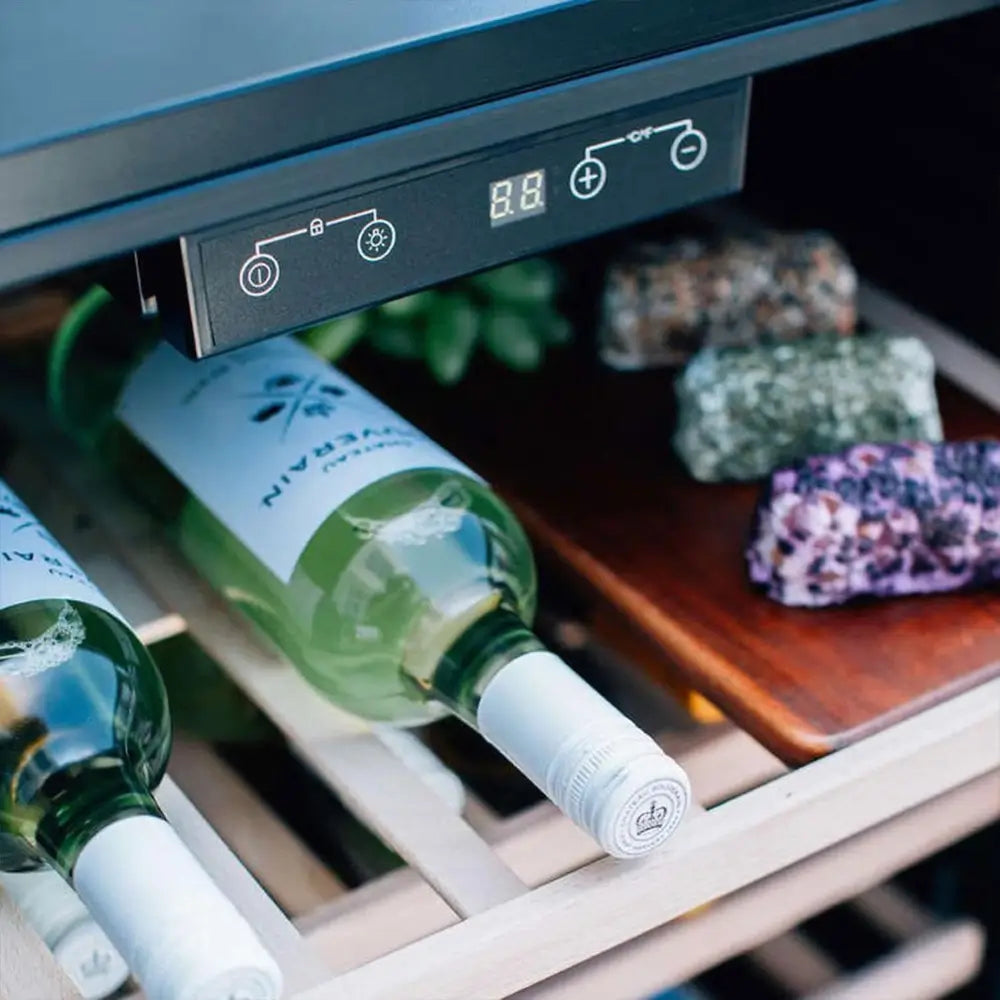

- Digital front-panel temperature controller with LED display
- Interior LED lighting
- Automatic defrost
- Door alarm (sounds after 60 seconds open)
- Adjustable leveling legs
Sold Separately
- Trim/Surround for Summerset 24-Inch Series Fridges — finishes the installation when built into an island opening
Summerset RFR-24W Specifications
General
| Brand | Summerset Grills |
|---|---|
| Model | RFR-24W (also listed as SSRFR-24W) |
| Construction | 304 Stainless Steel exterior; soft-close tinted locking glass door |
| Outdoor Rated | Yes — UL Certified for outdoor use |
Cooling & Performance
| Temperature Zones | Single zone |
|---|---|
| Temperature Range | 41–64°F |
| Cooling System | Compressor / forced air (R-134a refrigerant), anti-vibration |
| Defrost | Automatic |
| Controls | Front-panel digital controller with LED temperature display; control lock function |
| Door Alarm | Audible alarm if door left open more than 60 seconds |
Capacity & Interior
| Bottle Capacity | Up to 46 standard 750 ml bottles |
|---|---|
| Total Capacity | 5.3 cu. ft. |
| Shelves | 5 wooden bottle cradle racks (removable) |
| Interior Lighting | LED |
| Door | Soft-close; tinted glass; factory-installed lock; right hinge |
Electrical & Installation
| Voltage / Amps | 115V / 1.3A |
|---|---|
| Venting | Front-venting (true built-in compatible; no rear or side clearance required) |
| Leveling | Adjustable leveling legs (included) |
| Hinge | Right hinge |
Dimensions & Weight
| Overall Dimensions (W × H × D) | 23.4" × 32.3" × 22.8" (59.4 × 82 × 57.9 cm) |
|---|---|
| Cutout Dimensions (W × H × D) | 24⅛" × 32¾" × 24" (61.3 × 83.2 × 61 cm) |
| Weight | 95 lb (43.1 kg) |
Warranty & Buyer Assurance
- Manufacturer's Warranty — Covered by Summerset's Gold Standard Warranty, honored directly by Summerset. For the RFR-24W, this includes: Gold Standard Lifetime Warranty on stainless steel parts, doors, and drawers; one (1) year warranty on all construction and electrical components including the compressor, transformer, LED bulbs, LED harness, power source wire, LED switches, and interior lighting. Labor is not included. Warranty must be registered online within 30 days of purchase with proof of purchase and photo documentation. Valid for the original purchaser at the original delivery site only; void upon transfer of ownership. Does not cover commercial, rental, or nonresidential installations, misuse, lack of regular cleaning, or damage from harsh environments.
- Free Shipping on orders over $100 to the contiguous 48 states.
- 45-Day Returns — Deck & Den's 45-day return window gives you time to confirm the RFR-24W fits your installation before you commit.
- Price Match Available — found a lower authorized-dealer price? Contact us and we'll match it.
Manuals & Documents
- RFR-24W User Manual (PDF) — installation, operation, and maintenance guide (covers RFR-15W, RFR-15WD, RFR-24W, and RFR-24WD).
- RFR-24W Cutout Dimensions Sheet (PDF) — cutout and clearance dimensions for island planning and contractor reference.
- RFR-24W Line Drawing (PDF) — engineering line drawing with full dimensional reference.
Summerset RFR-24W — Frequently Asked Questions
What are the cutout dimensions for the RFR-24W?
The required cutout for built-in installation is 24⅛" wide × 32¾" high × 24" deep. Note that the cutout is slightly larger than the unit itself (23.4" × 32.3" × 22.8") to allow for installation clearance. Download the Cutout Dimensions Sheet above for contractor-ready reference. A trim/surround for Summerset 24-inch series fridges is available separately to finish the installation cleanly.
How does the RFR-24W compare to the 15-inch RFR-15W?
The RFR-24W is a 24-inch wide unit with 5.3 cu. ft. capacity (up to 46 bottles) and five wooden shelves. The RFR-15W is 15 inches wide with 3.2 cu. ft. capacity (28 bottles) and six wooden shelves. Both are single-zone (41–64°F), UL outdoor certified, front-venting, and anti-vibration. The RFR-24W adds a soft-close door mechanism not found on the 15-inch models. Choose the RFR-24W for a dedicated full-size wine station in a 24-inch island opening; choose the RFR-15W for a 15-inch slot or a supplemental cooler.
What is the difference between the RFR-24W and the RFR-24WD?
Both are 24-inch outdoor wine coolers with the same outer dimensions, UL certification, 304 stainless construction, and soft-close locking glass door. The RFR-24W is single-zone (41–64°F, up to 46 bottles). The RFR-24WD has two independently controlled zones (upper 41–50°F / lower 50–64°F) with a reduced bottle count to accommodate the dual-zone cabinet divider. Choose the RFR-24W for maximum bottle count at one consistent temperature; choose the RFR-24WD to keep whites and reds at their correct serving temperatures simultaneously.
Can the RFR-24W be used as a true built-in?
Yes — front-venting design means heat exhausts from the front of the unit, enabling full enclosure in a built-in island opening without rear or side clearance gaps. It can also be used freestanding. When built in, the Summerset trim/surround for 24-inch series fridges is available separately to finish the install.
Is the RFR-24W UL-certified for outdoor use?
Yes — independently UL-certified for permanent outdoor installation. This means the unit has been tested and approved for the temperature extremes, humidity, and UV exposure of an outdoor environment — not simply marketed as weather-resistant. Indoor wine coolers placed outdoors are not built for these conditions and typically void their warranty in outdoor use.
What is the soft-close door and why does it matter?
The soft-close door mechanism slows and dampens the door's closing motion, preventing it from slamming shut. This matters for two reasons: it protects the door seal from wear caused by repeated hard closing in a daily-use outdoor environment, and it avoids the vibration impact that a slamming door can transmit to stored bottles. It's a premium feature not included on the 15-inch RFR-15W and RFR-15WD.
What electrical connection does the RFR-24W require?
The RFR-24W runs on 115V / 1.3A — a standard household outlet on a grounded 3-prong connection. Confirm your island electrical plan with an electrician before installation to ensure circuit capacity for all appliances in the layout.
Does the RFR-24W have a door alarm?
Yes — an audible alarm sounds if the door is left open for more than 60 seconds. Press any button or close the door to mute it.
What is Summerset's warranty on the RFR-24W?
The RFR-24W is covered by Summerset's Gold Standard Warranty: Lifetime on stainless steel construction, doors, and drawers; one (1) year on all construction and electrical components including the compressor, transformer, LED bulbs, wiring, switches, and interior lighting. Labor is not included. Register within 30 days of purchase with proof of purchase and photo documentation; valid for the original purchaser at the original delivery site only.
What shipping and return policies apply at Deck & Den?
Deck & Den offers free shipping on orders over $100 to the contiguous 48 states. The RFR-24W is covered by Deck & Den's 45-day return policy. Price matching is available — contact us with a qualifying authorized-dealer price and we'll match it.
