KoKoMo Mini Maui 6' Grill Island – Compact Outdoor Kitchen
36,000 BTUs Fridge Bar Seating for Two 6 Feet — A Full Outdoor Kitchen, Scaled Down
The KoKoMo Mini Maui 6' Square Island packs a built-in 26-inch 3-burner grill, an outdoor-rated fridge, a 33-inch bar top with two seats, integrated lighting, and a GFCI outlet into a compact 6-foot footprint — preassembled and gate-friendly.
The Mini Maui is built for outdoor spaces where a full-size island doesn't fit but a standalone grill isn't enough — patios, pool decks, and smaller backyards that still want the complete setup. The 26-inch 3-burner grill delivers 36,000 BTUs across 560 sq. in. of cooking area, with ceramic briquettes for even heat distribution. An outdoor-rated refrigerator and a reversible 20-inch stainless access door sit below the grill, and a 33-inch square bar top with two built-in bar-height seats gives guests a place to sit while the cook works. Two integrated LED lights and a GFCI outlet round out the package for evening use. The steel frame, Hardie backer board, and porcelain tile construction are built to hold up outdoors year-round, and the whole island is designed to fit through most standard 33-inch gates fully preassembled.
A Complete Outdoor Kitchen in 6 Feet
The Mini Maui is built for maximum function in a minimum footprint — grill, chill, seat guests, and light the space, all in one preassembled unit.
BTUs — 26" KoKoMo 3-Burner Grill
Three burners deliver 36,000 BTUs across 560 sq. in. of cooking area — enough for up to 18 burgers at once. Ceramic briquettes sit beneath the stainless commercial-grade grates for even heat distribution and flare-up control.
Cooking Area — Room for the Whole Menu
560 square inches of grate space handles a full BBQ spread in one pass — burgers, sides, and everything in between — without the island needing a larger footprint.
33" Bar Top — Built-In Seating
A 33-inch square bar top with two built-in bar-height seats gives guests a place to sit right at the island — drinks and apps within reach while the cook works, without a separate seating area.
Outdoor-Rated Refrigerator — Built In
A built-in outdoor-rated fridge keeps drinks and ingredients cold at the station — no trips back inside mid-cook. A reversible 20-inch stainless access door sits alongside it for additional storage.
Lighting & Power Included
Two integrated LED lights extend cooking and entertaining into the evening, and a built-in GFCI outlet powers small appliances right at the island — no extension cords across the patio.
Fits Through 33" Gates — Preassembled
Built to fit through most standard 33-inch residential gates fully assembled. Hook up the gas and power and it's ready to use — no on-site construction required for the structure.
The KoKoMo 26" Grill & Compact Layout — Deep Dive

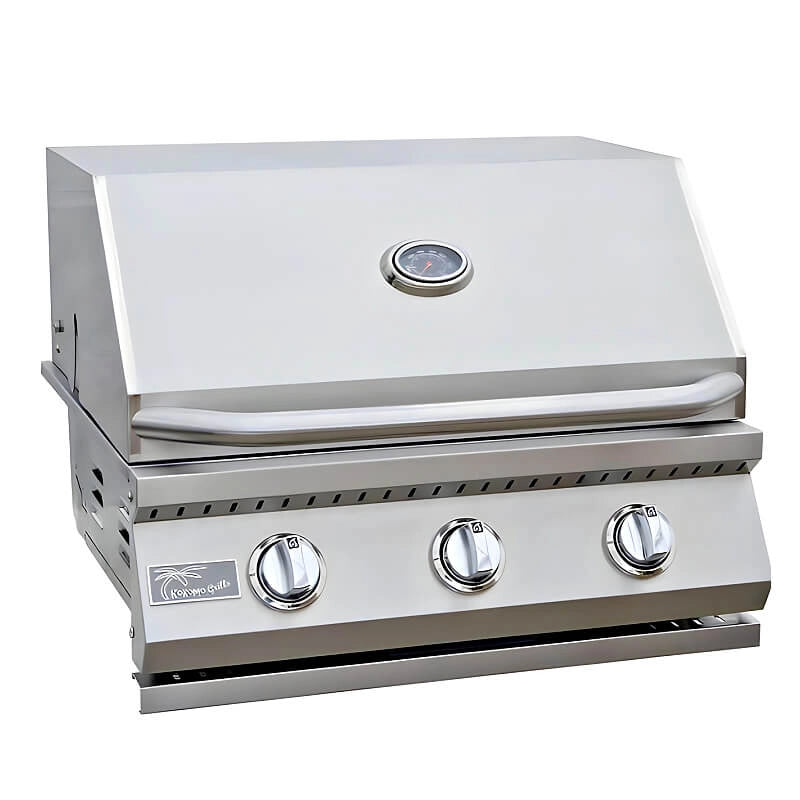

What the 26" 3-Burner Grill Delivers
The built-in 26-inch grill runs three burners at a combined 36,000 BTUs across 560 sq. in. of cooking area — enough surface for roughly 18 burgers in one round, or a mixed BBQ spread for a small gathering. Ceramic briquettes sit between the burners and the commercial-grade stainless grates, distributing heat evenly across the cooking surface and helping manage flare-ups from drippings. The grill is finished in stainless steel throughout, built to hold up to repeated outdoor use. For buyers who outgrow the standard grill, KoKoMo offers upgrade paths to more powerful professional models within the same island footprint.
Why a Compact Square Island With a Bar
The Mini Maui is designed to sit in the middle of a yard or flush against a wall, and it's built around the idea that a small footprint doesn't have to mean fewer features. Unlike a straight cooking-only station, the square layout carves out a 33-inch bar top with two seats directly at the grill — the cook and a couple of guests share the same space, which suits pool decks, condo patios, and smaller backyards where a full-size L-shaped or wraparound bar island wouldn't fit. Everything — grill, fridge, storage, seating, lighting, and power — is built into one 6-foot unit.
Who It's For — The Deck & Den Take
- Small-footprint patios and pool decks — the 6' square layout fits where a full-size L-shaped or wraparound bar island can't.
- Buyers who want everything in one unit — grill, fridge, storage, bar seating, lighting, and power without piecing together separate components.
- Small-gathering entertainers — two bar-height seats keep a couple of guests right at the action without needing a full bar setup.
- Gate-constrained properties — fits through most standard 33-inch gates fully preassembled, no on-site construction.
- Evening entertainers — integrated LED lighting and a GFCI outlet mean the island is functional after dark without added electrical work.
- Buyers who may want to upgrade later — the grill can be upgraded to a more powerful professional model within the same footprint.
What's Included in the Package
Grilling
- 26" KoKoMo Built-In 3-Burner Grill
- Ceramic briquette heat system
- Commercial-grade stainless cooking grates
- 560 sq. in. total cooking area
Refrigeration & Storage
- Outdoor-rated built-in refrigerator
- 20" reversible stainless access door
Bar & Entertaining
- 33" square porcelain tile bar top
- Two built-in bar-height seats
- 2 integrated LED lights
- Integrated GFCI outlet
Structure & Finish
- 18-gauge steel frame with Hardie backer board
- Porcelain tile countertop (customizable colors)
- Paintable stucco exterior
- Gate-friendly assembly — fits 33" opening
Not Included — Sold Separately
- Gas supply line and regulator
- Exterior paint (if stucco finish selected)
Full Specifications & Dimensions
Island Package
| Product Name | Mini Maui 6' Square Grill Island |
|---|---|
| Brand | KoKoMo Grills |
| Model Number | MINIMAUISQ |
| Island Dimensions | 72" L × 33" W × 36" H (bar top height 42") |
| Layout | Square — 33" bar top with 2 built-in seats |
| Frame Material | 18-gauge steel frame with Hardie backer board |
| Countertop / Exterior Finish | Porcelain tile countertop (customizable colors); paintable stucco exterior |
| Seating | 2 built-in bar-height seats at 33" square bar top |
| Electrical | Standard GFCI outlet + 2 LED lights |
| Gate Clearance | Fits through most standard 33" gates |
| Warranty | Lifetime structural warranty; grill warranty per below |
26" KoKoMo Built-In 3-Burner Grill
| Grill Width | 26 inches |
|---|---|
| Main Burners | 3 burners = 36,000 BTU |
| Cooking Area | 560 sq. in. |
| Heat System | Ceramic briquettes for even heat distribution |
| Cooking Grates | Stainless steel, commercial-grade |
| Fuel Type | Liquid Propane or Natural Gas — select at checkout |
| Upgrade Path | Upgradeable to a more powerful professional grill model |
Refrigeration & Storage
| Refrigerator | Outdoor-rated; built-in |
|---|---|
| Access Door | 20" stainless steel, reversible; included |
Warranty, Shipping & Returns
- Island Structure — KoKoMo lifetime structural warranty. Honored by KoKoMo Grills.
- Grill Housing & Hood — Lifetime Limited Warranty against manufacturing defects and workmanship.
- Burners & Cooking Grates — 10-Year Limited Warranty.
- All Other Grill Parts — 2-Year Limited Warranty.
- Grill Accessories — 30-Day Warranty. Labor not included on grill warranty claims.
- Outdoor Refrigerator — Warranty per manufacturer terms; contact Deck & Den for refrigerator coverage details.
- Free Shipping — Free shipping on orders over $100 to the contiguous 48 states. Ships freight; delivery details in your confirmation email.
- 45-Day Returns — Eligible items in original, resalable condition. Contact us before initiating a return on freight items.
- Price Match Available — Found a lower price at an authorized retailer? Contact us and we'll work to match it.
Manuals & Documents
- KO-GRDL30-PRO Owner's Manual (PDF) — installation, lighting, and care instructions.
- KO-GRDL30-PRO Care and Maintenance Guide (PDF) — general cleaning and upkeep guidance for grills, siding, and countertop surfaces.

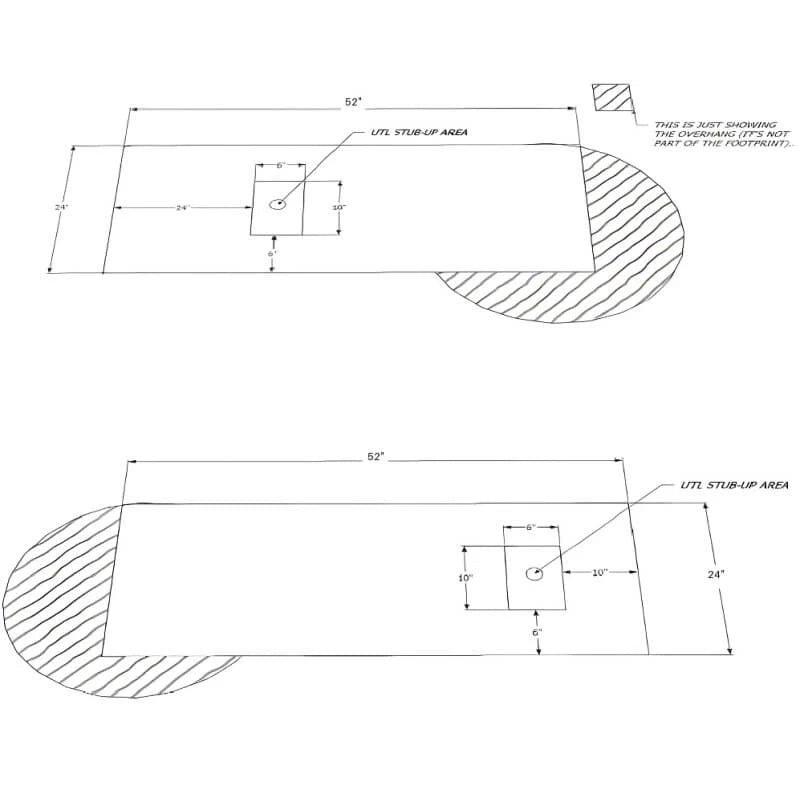

- KO-GRDL30-PRO Cut Out Dimensions (PDF) — full dimensions and cutout drawing.
Frequently Asked Questions
What is the total BTU output and cooking area?
36,000 BTUs across three burners, with 560 sq. in. of total cooking area — enough for roughly 18 burgers at once.
How many people does the bar seat?
The 33-inch square bar top has two built-in bar-height seats. For larger group seating, consider a full-size wraparound island like the KoKoMo Baja or St. John.
Can the grill be upgraded?
Yes — the standard 26" 3-burner grill can be upgraded to a more powerful professional model within the same island footprint. Contact Deck & Den to discuss upgrade options and pricing.
What finish options are available?
The countertop is porcelain tile in customizable colors, and the exterior is paintable stucco. Specify your preferred tile color and paint plan at the time of ordering.
Will it fit through my gate?
The Mini Maui is engineered to fit through most standard 33-inch residential gates fully preassembled. Measure your gate opening before ordering, and contact Deck & Den if your access point is narrower.
Is the refrigerator rated for outdoor use?
Yes — the built-in refrigerator is outdoor-rated. Contact Deck & Den for specific capacity and dimension details if those specs matter for your planning.
How does this compare to larger KoKoMo islands like the Baja or St. John?
The Mini Maui is the compact option — a 6' square footprint with a 26" 3-burner grill (36,000 BTUs), fridge, and seating for two. The Baja and St. John are full-size wraparound bar islands with larger Pro-series grills (72,000–87,000 BTUs) and seating for 6–8 guests. Choose the Mini Maui for tight spaces that still need full functionality; choose the Baja or St. John for larger-scale entertaining.
How does the island ship and what should I expect on delivery day?
Ships freight, preassembled. Free shipping on orders over $100 to the contiguous 48 states. Freight deliveries are curbside — delivery details will be in your confirmation email. Do not refuse delivery if visible damage is present; note all damage on the delivery paperwork before signing and contact Deck & Den with photos within 48 hours.
Can Deck & Den help with layout planning?
Yes — contact Deck & Den and our team can assist with placement planning, finish selection, grill upgrades, and delivery logistics. We're an authorized KoKoMo dealer and can answer product questions directly.
What is Deck & Den's return policy?
Deck & Den offers a 45-day return policy on eligible items in original, resalable condition. Review the returns page before initiating a return on freight items. Warranty claims are handled directly by KoKoMo Grills.
