The Same Ruby 32" Performance, Engineered to Drop Into a Fiberglass Hull Without Damaging It.
A marine-specific built-in electric grill with fiber cement heat insulation on the sides and back — built for yacht and powerboat galley installation.

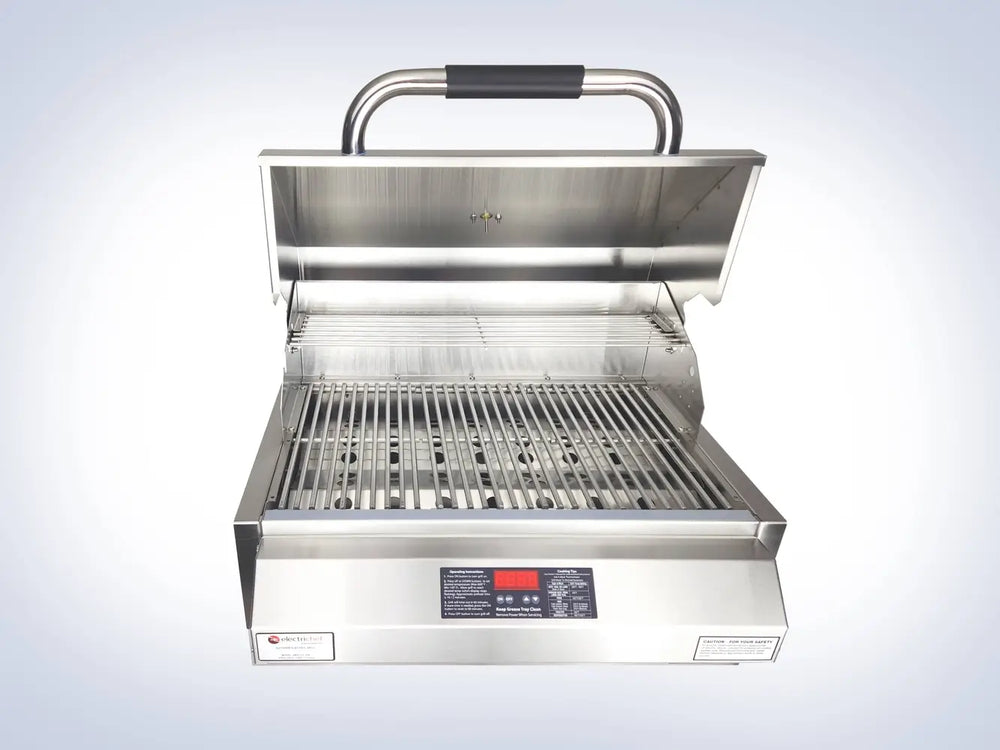

The ElectriChef Ruby 32" Marine Built-In is a drop-in flameless grill purpose-built for luxury yacht and powerboat deck galleys. It delivers the same 448 sq. in. cooking surface and 150–600°F digital temperature control as the standard Ruby 32" Built-In, with one critical addition: Hardie Soffit fiber cement insulation on the sides and back, designed to protect fiberglass surrounding material during installation. It drops into a 33 5/8" wide galley cutout and wires to a dedicated 240V circuit, with a control panel fan for ventilation. If you're outfitting a marine galley where an open-flame grill is prohibited or impractical, this is the grill built for that exact application.
Key Features & Benefits
Everything about the Ruby 32" Marine Built-In is built for the specific demands of a deck galley installation.
← Swipe to see all features →
Marine-Ready
Built for Fiberglass Installation

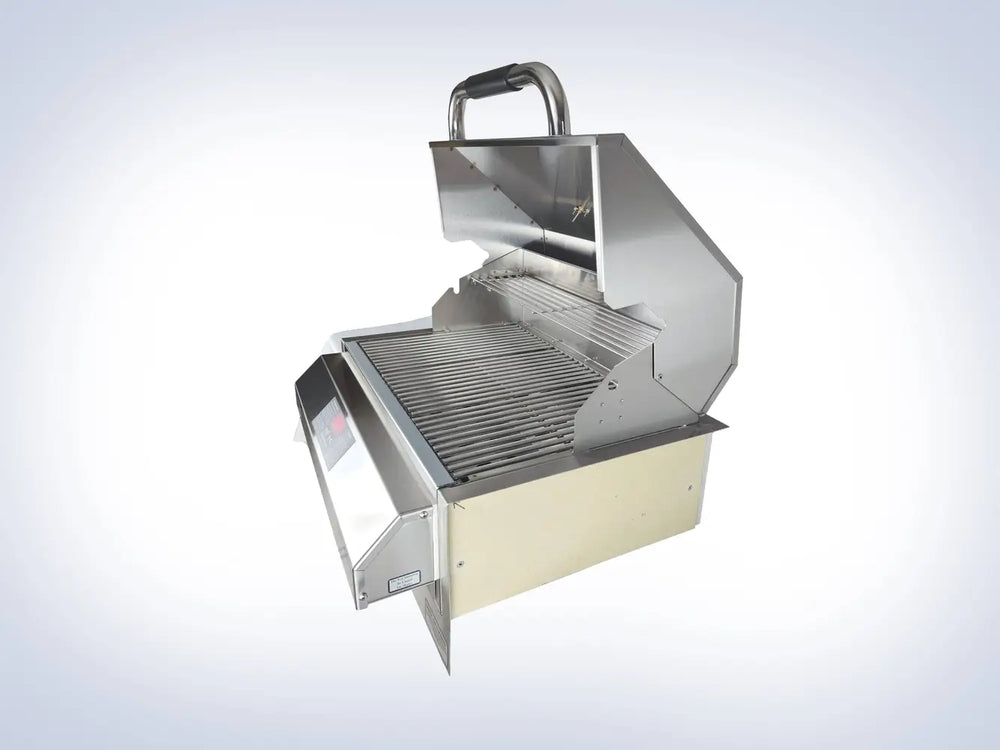

Hardie Soffit fiber cement insulation on the sides and back protects surrounding fiberglass hull material from heat during operation — the feature that separates this from a standard built-in grill installed on a boat.
448 sq in
Room to Feed a Crew
A 14" x 32" cooking surface across four removable grids gives you enough room to sear steaks, roast chicken, and barbecue for a full guest list without running out of grill space.
150–600°F
Digital Control, Dialed In
A digital control with a single knob takes you from a slow 150°F hold to a 600°F sear, with even heating across the full surface and no hot or cold spots.
Flameless
Safe Where Open Flame Isn't
No open flame on a fiberglass vessel means no gas tanks, no flare-ups near fuel systems, and no fire-ordinance headaches in marina environments — just plug in and grill.
304 SS
Built for Coastal Climates
18-gauge, 304 stainless steel construction throughout stands up to salt air and marine environments — dishwasher-safe grids and drip trays keep cleanup simple even at sea.
What's Included in the Box
›
In the Box
- Fully assembled ElectriChef Ruby 32" marine built-in grill unit
- Hardie Soffit fiber cement insulation (sides and back, factory-installed)
- 4 removable stainless steel cooking grids
- 2 removable, dishwasher-safe drip trays
- Digital control panel with built-in 10–60 minute timer
Sold Separately
- Electric rotisserie kit
- Built-in grill cover
- Marine electrical wiring/hookup kit and qualified marine electrician install
Deep Dive — Ruby 32" Marine Built-In Electric Grill
›
Marine Install: What You're Working With
This is a drop-in unit designed to set into a deck galley cutout on a marine vessel. Plan for a cutout of 33 5/8" wide x 16 3/4" deep x 7 3/4" tall; the grill itself measures about 32"W x 19.13"H x 19.75"D once installed. It requires a dedicated 208/240V, 30-amp, single-phase circuit with a Nema 6-30R receptacle. The control panel includes a small fan that circulates cool air around the controls — make sure the installation location has adequate air circulation. Confirm the cutout dimensions and electrical routing with your marine electrical specialist before fabricating the galley.
Who It's For — The Deck & Den Take
›
The Deck & Den Take — If you're outfitting a fiberglass yacht or powerboat galley, the marine model is the correct pick — the fiber cement insulation on the sides and back is what makes a Ruby 32" safe for that application. The standard built-in lacks this insulation and should not be used as a substitute. Confirm your cutout dimensions and marine electrical routing with a qualified installer before ordering, and check current lead times with us since this is made to order.
-
Yacht and superyacht owners outfitting a deck galley where open flame is prohibited or unsafe near fiberglass and fuel systems.
-
Powerboat owners who want a serious built-in grilling station without the risk of an open-flame grill on the water.
-
Marine architects and yacht builders specifying a purpose-built drop-in electric grill for luxury vessel galley designs.
-
Anyone who wants the Ruby 32" cooking experience in a marine-vessel context where the standard built-in isn't rated for fiberglass installation.
Full Specifications & Dimensions
›
Performance & Construction
| Cooking Area |
448 sq. in. (14" x 32") |
| Temperature Range |
150°F – 600°F, single digital control |
| Power |
5,280 watts, 208/240V, 30A, single phase |
| Required Outlet |
Nema 6-30R, 208/240V, 30 Amp dedicated circuit |
| Construction |
18-gauge, 304 stainless steel |
| Marine Insulation |
Hardie Soffit fiber cement insulation, sides and back |
| Cooking Grids |
4, stainless steel, removable, dishwasher-safe |
| Drip Trays |
2, removable, dishwasher-safe |
| Timer |
10–60 minute built-in timer with automatic shut-off |
| Certification |
UL Listed; Marine Grade |
| Assembly |
Fully assembled |
| Origin |
Made in the USA |
Dimensions
| Overall Dimensions (W x H x D) |
32" x 19.13" x 19.75" (81.3 x 48.6 x 50.2 cm) |
| Required Cutout (W x D x H) |
33 5/8" x 16 3/4" x 7 3/4" (85.4 x 42.5 x 19.7 cm) |
| Cooking Grid Dimensions |
32" x 14" (81.3 x 35.6 cm) |
Warranty, Shipping & Returns
›
-
Manufacturer's Warranty — Covered by ElectriChef's warranty: lifetime coverage on the stainless steel grill assembly, 5 years on the cooking grids, 3 years on the stainless steel heat/flavor plate, and 1 year on all other electrical or mechanical components, against defects in materials and workmanship. Labor is not included. Honored directly by ElectriChef.
-
Made to Order — This grill is built to order and is non-returnable once production begins. Contact Deck & Den for current lead times before ordering.
-
Free Shipping on orders over $100 to the contiguous 48 states.
-
Price Match available — found it cheaper elsewhere? Let us know.
Manuals & Documents
›
Frequently Asked Questions
›
What makes this different from the standard Ruby 32" Built-In?›
The marine model adds Hardie Soffit fiber cement insulation on the sides and back, engineered to protect surrounding fiberglass hull material from heat during operation. The standard built-in lacks this insulation and is not the correct choice for installation in a fiberglass vessel.
What size cutout do I need for this grill?›
Plan for a cutout of approximately 33 5/8" wide x 16 3/4" deep x 7 3/4" tall. The grill itself measures about 32"W x 19.13"H x 19.75"D once installed. Note: the marine model's cutout is slightly wider than the standard built-in due to the added insulation — confirm with your installer before fabricating the galley opening.
What electrical setup does this grill require?›
It requires a dedicated 208/240V, 30-amp, single-phase circuit with a Nema 6-30R receptacle. Marine electrical installations should be completed by a qualified marine electrician familiar with ABYC standards.
Does the control panel need ventilation?›
A small internal fan circulates cool air around the control panel. If your galley installation doesn't have adequate natural air circulation, you'll need overhead ventilation to ensure the controls stay cool during use.
Can this grill be installed in locations exposed to weather?›
Yes. ElectriChef builds its grills to withstand the elements. Using a grill cover when the grill is not in use is recommended to extend its service life.
Can I use this grill indoors?›
No. ElectriChef grills are designed for outdoor use only — including outdoor deck galleys on marine vessels.
How hot does this electric grill get?›
The digital control adjusts from 150°F up to 600°F with even heat across the full cooking surface, giving you both low-and-slow cooking and high-heat searing on the water.
How do I clean the cooking grids and drip trays?›
All four stainless steel cooking grids and both drip trays are removable and dishwasher-safe, so cleanup is mostly hands-off — convenient on a vessel where fresh water for cleaning can be limited.
Is this grill made to order, and can I return it?›
Yes, this grill is built to order. Because of that, it's non-returnable once production begins. Contact Deck & Den for current lead times before placing your order.
What's the warranty on this grill?›
ElectriChef covers the stainless steel grill assembly for life, the cooking grids for 5 years, the stainless steel heat/flavor plate for 3 years, and all other electrical or mechanical components for 1 year, against defects in materials and workmanship. Labor is not included.
