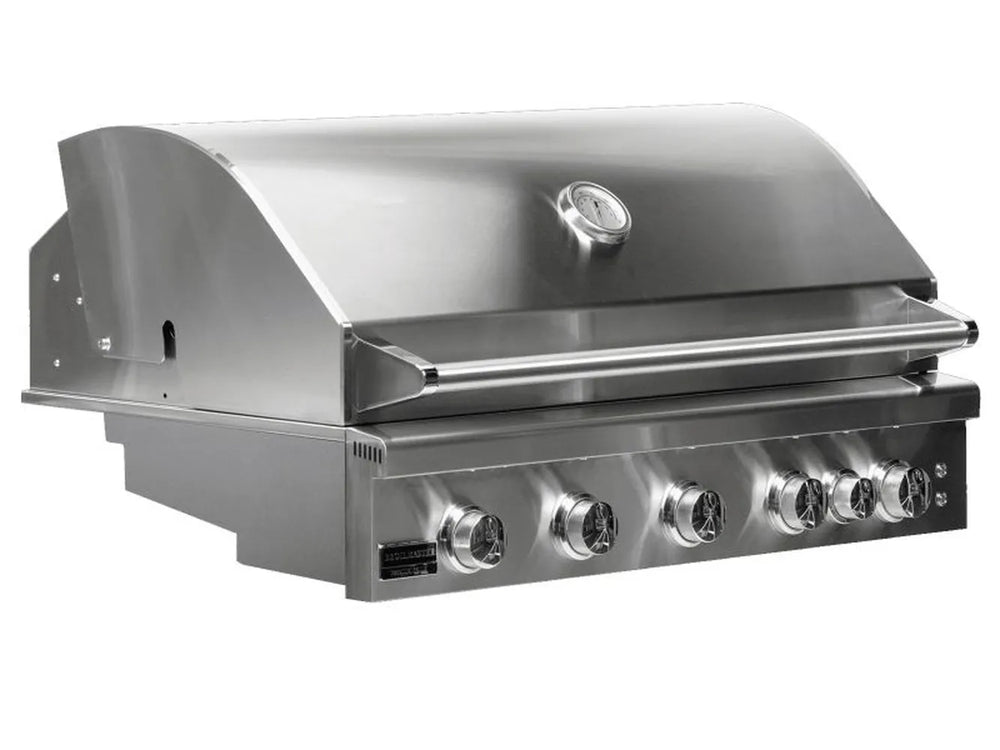

Broilmaster B-Series Deluxe 40-Inch – Built-In Gas Grill with Rear Infrared Burner
A 304 stainless steel built-in gas grill with 70,000 BTUs and 853 in² of cooking capacity for serious entertaining.
70,000 BTUs across five cast stainless steel burners puts fast, consistent heat across 853 in² of total cooking area — 648 in² of main grate plus a 205 in² warming rack — giving you real room to grill for a crowd. The 15,000 BTU rear infrared burner unlocks true rotisserie roasting for crisp skin and juicy centers, while Heat Zone Dividers let you sear hard on one side and hold gently on the other. Flare Control Vaporizers turn drippings into flavor instead of flare-ups. Built entirely from 304 stainless steel with a welded double-lined lid, this 40-inch grill brings a commanding, professional presence to any built-in island. Illuminated knobs and interior lighting keep nighttime grilling just as precise, and it's made in the USA.
Broilmaster B-Series Deluxe 40-Inch Highlights
The specs that matter most for high-capacity built-in grilling.
← Swipe to see all features
70,000 BTUs
Five Cast Stainless Burners
Fast preheats and consistent searing across a large main grate.
15,000 BTU
Rear Infrared Rotisserie
Intense radiant heat for crisp, evenly roasted meats.
853 in²
Total Cooking Area
Main grate plus warming rack for entertaining large groups.
304 SS
Stainless Steel Construction
Corrosion-resistant housing, lid, and cooking grids.
Zoned Heat
Heat Zone Dividers
Two distinct cooking zones on one large surface.
What's Included in the Box►
In the Box
- Broilmaster B-Series Deluxe 40" built-in grill head (304 stainless steel)
- Five cast stainless steel main burners
- Stainless steel heavy-duty cooking grids
- Stainless steel warming rack
- Heat Zone Dividers
- Flare Control Vaporizers
- Illuminated control knobs and interior lighting
- Flame Thrower ignition system
- Analog hood thermometer
- Slide-out drip tray
- Hose & regulator (model-specific)
- Rear infrared rotisserie kit: Sold Separately
Deep Dive — Burner System & Heat Management►
Premium 304 Stainless Steel Construction & Design
From the cookbox to the cooking grids, the Broilmaster B-Series Deluxe 40-Inch is engineered from 304 stainless steel for superior corrosion resistance and long-term durability in exposed outdoor environments. The welded and polished double-lined lid helps lock in heat while maintaining a refined, low-profile silhouette in your island.
Five Cast Stainless Burners & Rear Infrared Rotisserie Power
Five 14,000 BTU cast stainless steel burners deliver a combined 70,000 BTUs of grilling power for fast preheats and consistent searing across the main grate. At the back, the dedicated 15,000 BTU rear infrared burner is designed for rotisserie cooking, creating intense radiant heat that crisps the exterior while preserving moisture inside.
Heat Zone Dividers, Flare Control & Clean Operation
Integrated Heat Zone Dividers provide distinct cooking zones so you can run one side hot for intense searing while keeping the other at a lower temperature for gentle grilling or holding. Broilmaster's Flare Control Vaporizers move drippings away from the burners, channeling them into the slide-out drip tray.
Illuminated Controls, Interior Lighting & Reliable Ignition
Illuminated, ergonomic control knobs and internal grill lighting keep your cooking surface visible and easy to manage long after sunset. The reliable Flame Thrower ignition system provides fast, consistent starts without fumbling with matches.
Who It's For — The Deck & Den Take►
This one's for the host who's regularly cooking for a crowd and needs the extra grate real estate the 32-inch model doesn't offer. Five burners and 853 in² gives you genuine room to run multiple proteins at once without crowding the grate. If you're cooking for a small household, the 32-inch version will save you money without sacrificing much. This is standard 304 stainless — if you're right on the coast or near a saltwater pool, look at Broilmaster's 316 marine-grade line instead. One thing worth knowing: this is a built-in grill head only, so confirm your cutout dimensions before it arrives.
- Hosts who regularly cook for large groups and need serious main-grate capacity
- Homeowners building a commanding built-in island centerpiece
- Buyers in standard inland climates who don't need marine-grade corrosion protection
- Cooks who want true rotisserie capability alongside standard grilling (rotisserie kit sold separately)
Full Specifications & Dimensions►
Specifications
| Brand |
Broilmaster |
| Collection |
B-Series Deluxe |
| Model |
BSB405P (propane), BSB405N (natural gas) |
| Item Type |
Built-in gas grill with rear infrared burner |
| Fuel Type |
Natural gas or propane (BSB405N / BSB405P) |
| Number of Main Burners |
5 cast stainless steel burners |
| Main Burner Output |
70,000 BTUs total (five 14,000 BTU burners) |
| Rear Infrared Burner |
15,000 BTU rear infrared rotisserie burner (optional rotisserie kit) |
| Main Grilling Area |
648 in² |
| Secondary Grilling Area |
205 in² stainless steel warming rack |
| Total Grilling Area |
853 in² total cooking space |
| Exterior Material |
304 stainless steel housing and lid |
| Cooking Grate Material |
Stainless steel heavy-duty cooking grids |
| Flame Management |
Flare Control Vaporizers with slide-out drip tray |
| Heat Zone Dividers |
Yes — dual cooking zones across the grill surface |
| Ignition System |
Flame Thrower ignition |
| Grill Lighting |
Internal grill lighting and illuminated control knobs |
| Thermometer |
Analog hood thermometer |
| Overall Dimensions |
38" W × 20.5" D × 7 15/16" H (approx.) |
| Configuration |
Built-in installation |
| Rotisserie Kit |
Optional rotisserie kit for rear infrared burner |
| Country of Origin |
Made in the USA |
Warranty, Shipping & Returns►
Warranty
Covered by Broilmaster's tiered manufacturer warranty, honored directly by Empire Comfort Systems (Broilmaster's manufacturer). The stainless steel grill housing and cooking grids carry a Limited Lifetime Warranty against rust-through. Infrared burner components carry a 5-Year Warranty. Valves, knobs, ignitors, labels, hoses, fittings, and other parts and accessories carry a 1-Year Warranty. Applies to the original purchaser only and is non-transferable; all warranty repairs must be performed by a qualified gas appliance technician.
Shipping & Returns
Manuals & Documents►
Frequently Asked Questions►
What is the total grilling area on the 40-inch B-Series Deluxe?►
It offers 853 in² of total cooking area, combining 648 in² of main grilling surface with a 205 in² stainless steel warming rack.
Is the rotisserie kit included, or is it sold separately?►
The 15,000 BTU rear infrared rotisserie burner is an optional kit and is sold separately from the base grill.
Does this grill work with natural gas?►
Yes, it's available as either BSB405N (natural gas) or BSB405P (propane).
How many burners does the 40-inch model have compared to the 32-inch?►
The 40-inch model has 5 main burners totaling 70,000 BTUs, compared to 4 burners and 56,000 BTUs on the 32-inch model, giving you a larger main grate.
Is this the same as the marine-grade version of this grill?►
No. This model uses standard 304 stainless steel construction. Broilmaster also offers 316 marine-grade builds for coastal and high-moisture environments.
Does the grill include a cart?►
No, this is a built-in grill head only. A compatible cart is available separately if you're not installing into masonry or an island.
Is this grill made in the USA?►
Yes, the Broilmaster B-Series Deluxe 40-Inch is made in the USA.
What is the warranty on this grill?►
Coverage is tiered: the stainless steel housing and cooking grids carry a Limited Lifetime Warranty against rust-through, infrared burner components carry a 5-Year Warranty, and valves, knobs, ignitors, and similar parts carry a 1-Year Warranty.
