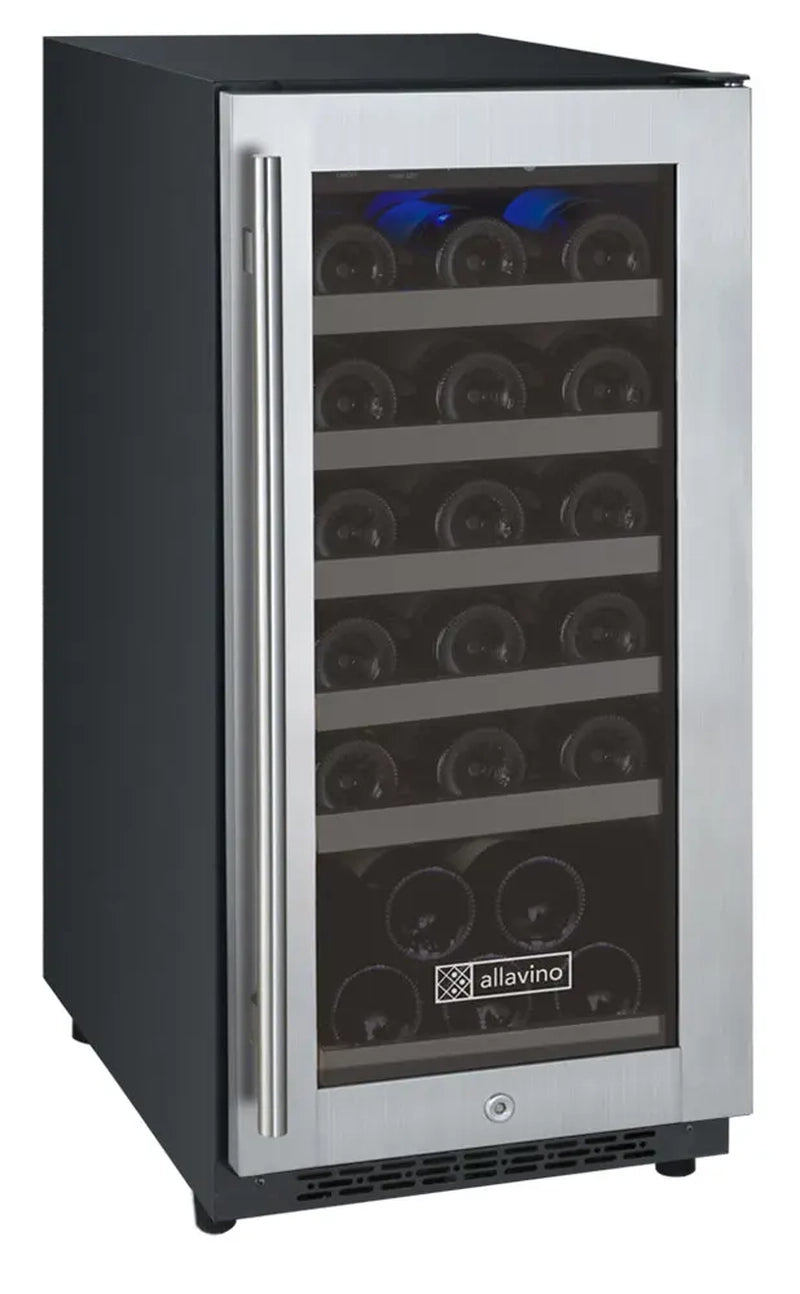

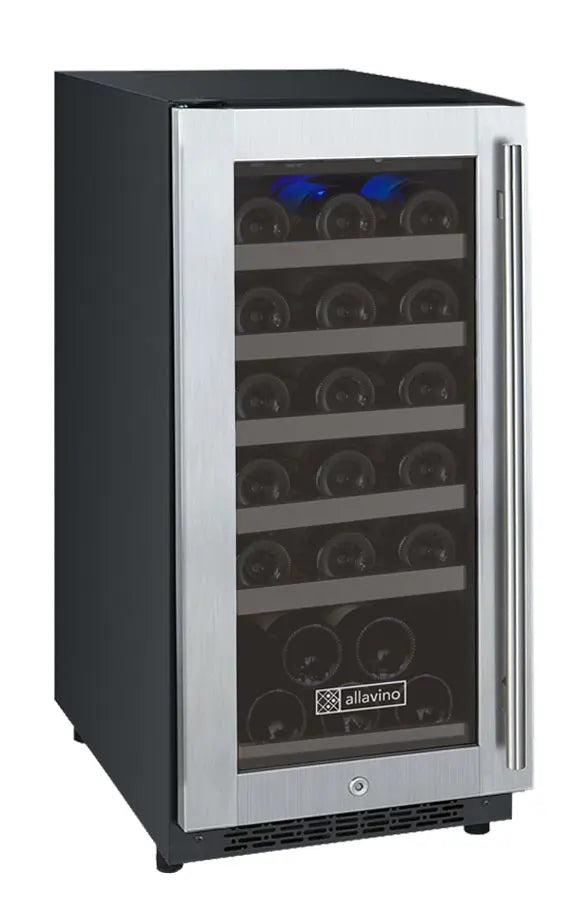

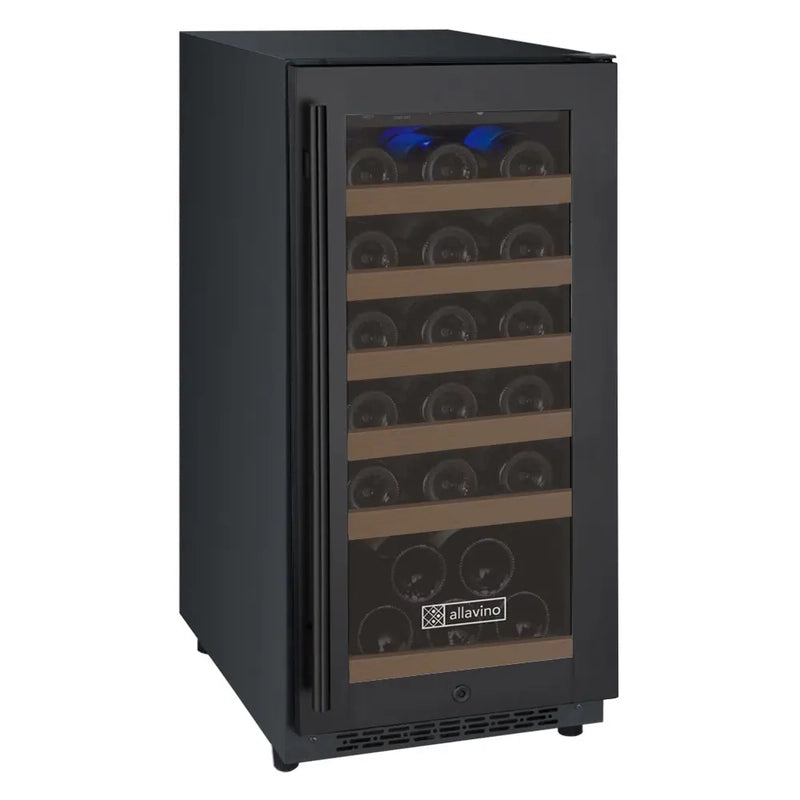

Allavino VSWR30 Wine Fridge – Quiet, Built-In, and Built to Protect
Fifteen inches wide, 30 bottles deep — the compact Allavino wine fridge that fits the gap everyone else ignores.
When your cabinet opening is 15 inches, most wine fridges don't fit. The Allavino VSWR30 does — and it doesn't ask you to give anything up to get there. Tru-Vino compressor cooling holds temperatures between 41°F and 64°F with the same precision you'd get from a full-width unit, while six glide-out wood presentation shelves handle standard and oversized bottles without vibration. A UV-tinted glass door in a black frame keeps light out and your collection on display, with a security lock that makes this one of the few compact wine fridges rated for commercial use. Front ventilation means it installs flush into cabinetry or stands alone — and at 92.6 lbs it's genuinely manageable. The one thing to know before you order: the door does not reverse. Confirm which direction works for your space before it ships.
What Makes the VSWR30 Stand Out
Four specs that matter most — starting with the one that makes this unit unique in the lineup.
Swipe to see all features →
15" Wide
Built-In Ready Form Factor
Front-vented and sized for the 15-inch gaps most wine fridges can't fill — built-in or freestanding, no rear clearance needed.
30 Bottles
Storage Capacity
Holds standard and oversized bottles across 6 glide-out wood presentation shelves — no wasted space, no compromises on what fits.
41°F – 64°F
Tru-Vino® Temperature Range
Compressor-powered Tru-Vino digital control with auto defrost — cellar-grade stability in a 15-inch footprint.
6 Shelves
Glide-Out Wood Presentation
FlexCount glide-out wood shelves reduce vibration and adapt to standard or oversized bottles — designed for serious collectors, not just casual storage.
What's Included in the Box›
Allavino VSWR30 30 Bottle Wine Refrigerator
- VSWR30 wine refrigerator unit
- 6 glide-out wood presentation shelves
- Towel bar handle
- Curved handle
- Both the towel-bar and curved handles are included, along with handle-mounting screws. The manual also identifies adjustable feet and two keys for the integrated security lock; it does not document other loose accessories.
Deep Dive — VSWR30›
Compact Size, Full-Scale Performance

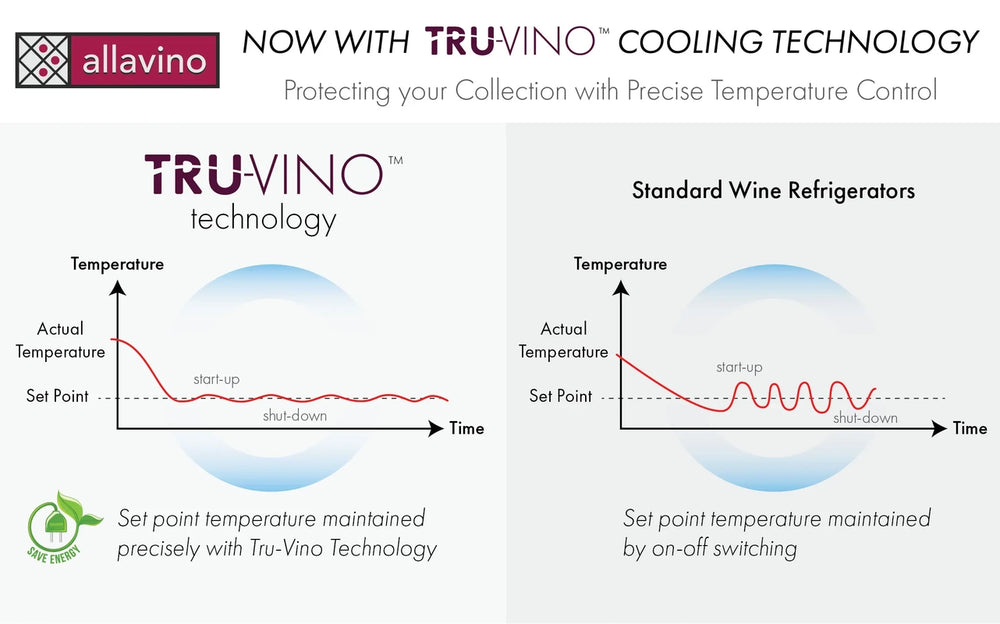

This 30 bottle wine fridge is powered by a Tru-Vino compressor that holds temps steady between 41°F and 64°F. Enjoy cellar-grade stability in a size that fits anywhere.

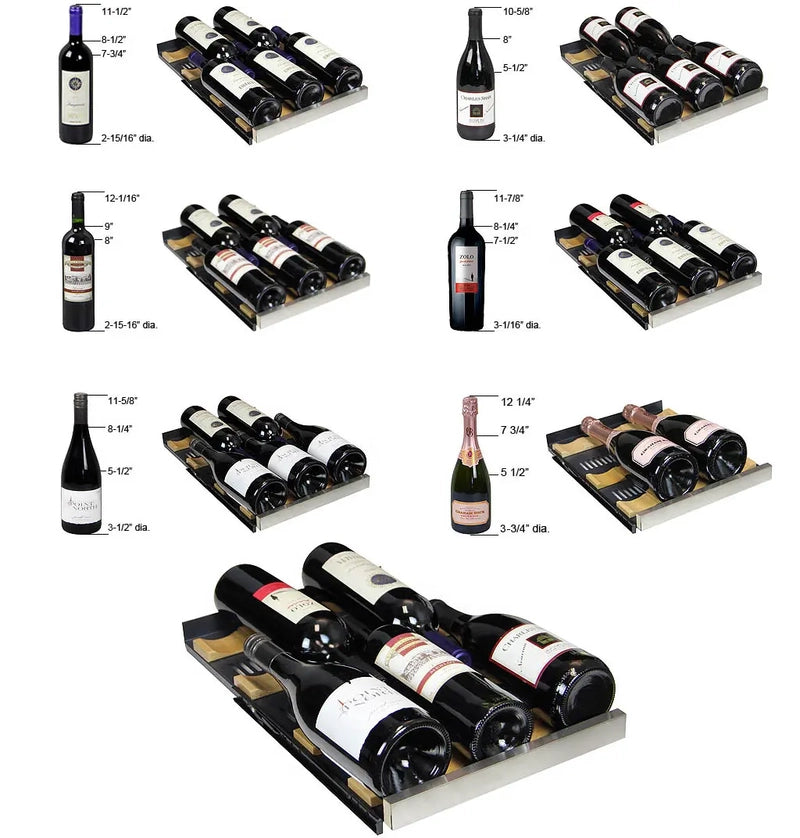

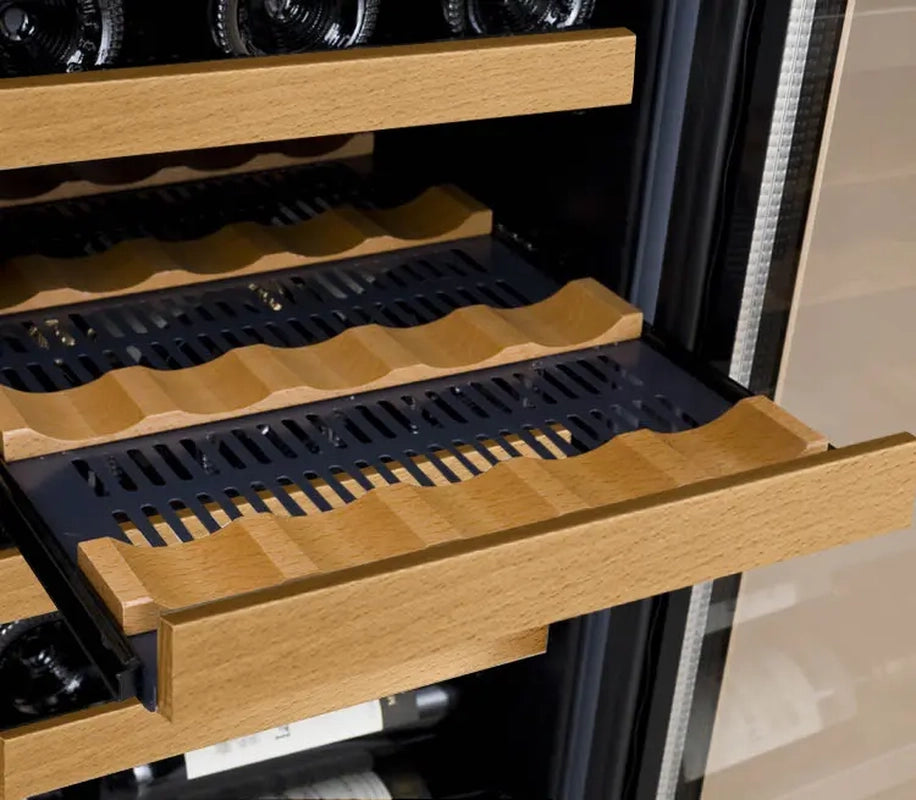

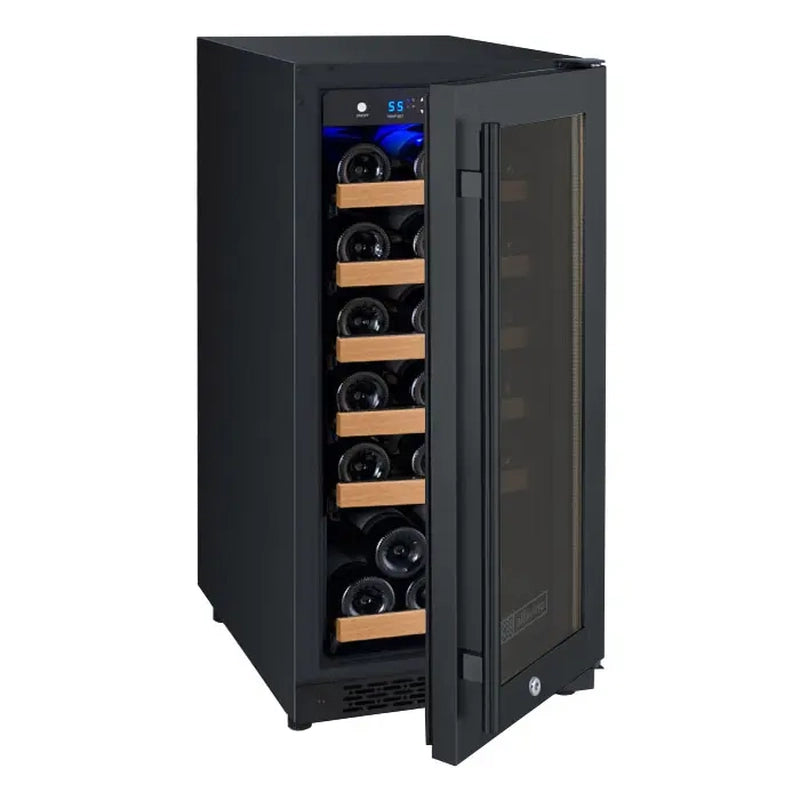

FlexCount® Shelving That Adapts to You
Each glide-out shelf is designed to reduce vibration while fitting oversized or standard bottles — without losing capacity. It's the perfect blend of form and function for serious collectors.
Allavino VSWR30 Features & Benefits
-
30 Bottle Capacity – Store standard or varied bottle sizes
-
Tru-Vino® Cooling – Temp precision from 41–64°F
-
FlexCount® Shelves – Glide-out, vibration-reducing design
- Front-venting for built-in or freestanding use
- Blue LED lighting with black interior for cellar-style aesthetics
- UV-protected glass door with towel bar and curved handles
- Quiet, energy-efficient compressor with auto defrost
-
Security Lock – Keep your collection safe
Who It's For — The Deck & Den Take›

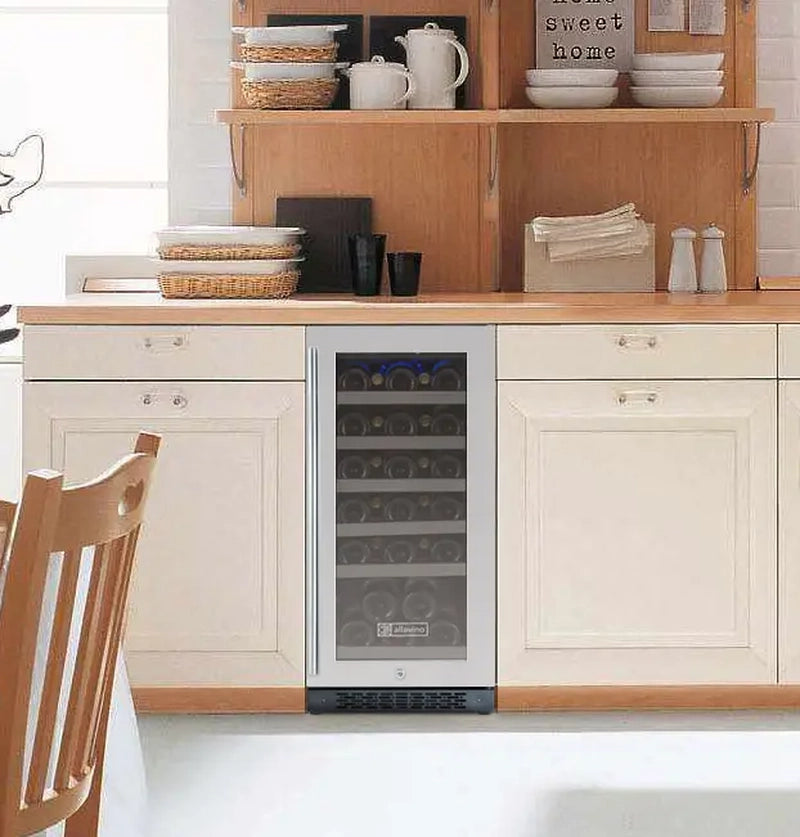

The VSWR30 exists for one reason: 15 inches. If your space is 15 inches wide — a gap in an island, a narrow run between appliances, a tight bar build — this is the only serious wine fridge that fits without compromising on cooling quality. You get the same Tru-Vino compressor system found in Allavino's larger units, six real glide-out wood shelves, a locking door, and commercial-use rating in a package that actually solves the problem most wine fridges can't.
If you have more than 15 inches to work with and want more capacity, the VSW5134 (51 bottles, 23.6 inches wide) is the natural step up and follows the same front-venting built-in logic. If you want dual-zone storage in a compact format, look at the VSBC15 or the VSW5134 dual-zone variant — the VSWR30 is single-zone only.
The one thing that catches people off guard: the door does not reverse on this unit. That's unusual for an undercounter wine fridge. Before ordering, confirm the hinge side works for your installation — there's no field adjustment available after the fact.
- Anyone with a 15-inch cabinet opening who wants a proper wine fridge, not a workaround
- Bar and kitchen builds where tight column widths are dictated by surrounding cabinetry
- Commercial installations — this unit is rated for commercial use, which most compact wine fridges are not
- Collectors who need a locking door for security alongside their storage needs
- Buyers who want front-vented flexibility — built-in or freestanding, no rear clearance either way
Full Specifications & Dimensions›
Allavino VSWR30 Specifications
| Height |
33.5" |
| Width |
15" |
| Depth |
23.25" (25" with handle) |
| Weight |
92.6 lbs |
| Cutout Dimensions |
The official manual does not publish a separate cutout size. It lists the cabinet at 33.5" H × 15" W × 23.25" D (25" with handle), permits fully recessed built-in installation, and requires the front ventilation base to remain completely unobstructed. Verify the finished opening against the actual unit before cabinetry is completed. |
| Zones |
Single-Zone |
| Bottle Capacity |
30 Bottles |
| Temperature Range |
41°F – 64°F |
| Cooling System |
Tru-Vino® Compressor, Auto Defrost |
| Shelving |
6 Glide-Out Wood Presentation Shelves |
| Ventilation |
Front-Venting, Built-In Capable |
| Door |
UV-Tinted Glass, Black Frame |
| Door Reversible |
No |
| Lighting |
Blue LED |
| Security Lock |
Yes |
| Electrical |
120V / 60Hz / 0.9A |
| Commercial Use |
Yes |
| Outdoor Use |
No |
| Warranty |
1 Year Parts & Labor / 5 Year Compressor (Parts Only) |
Warranty, Shipping & Returns›
-
Manufacturer Warranty: Covered by Allavino's 1-year parts and labor warranty and 5-year compressor warranty (parts only), honored directly by the manufacturer.
-
Free Shipping: This item ships free to the contiguous US. See our Free Shipping Policy for full details.
-
Returns: See our Return Policy for eligibility and instructions.
-
Price Match: Found it cheaper somewhere else? We'll match it. See our Price Match Guarantee.
Manuals & Documents›
Frequently Asked Questions›
Can the door hinge be reversed on the VSWR30? ›
No. The VSWR30 door is not field-reversible. The hinge is fixed. Confirm which direction the door opens before ordering — there is no adjustment available after installation.
Can the VSWR30 be installed built-in under a counter? ›
Yes. The VSWR30 is front-vented and built-in capable — it installs flush into cabinetry without rear clearance. It also works freestanding. The manual does not specify a separate cutout measurement. It lists the unit at 33.5" H × 15" W × 23.25" D (25" with handle), allows fully recessed installation, and requires the front ventilation base to remain completely unobstructed. Confirm the opening against the actual appliance.
What are the cutout dimensions for VSWR30 built-in installation? ›
The official manual does not provide a dedicated cutout size. Use the documented 33.5" H × 15" W × 23.25" D cabinet dimensions (25" with handle), keep the front ventilation completely unobstructed, and verify the finished opening against the actual unit.

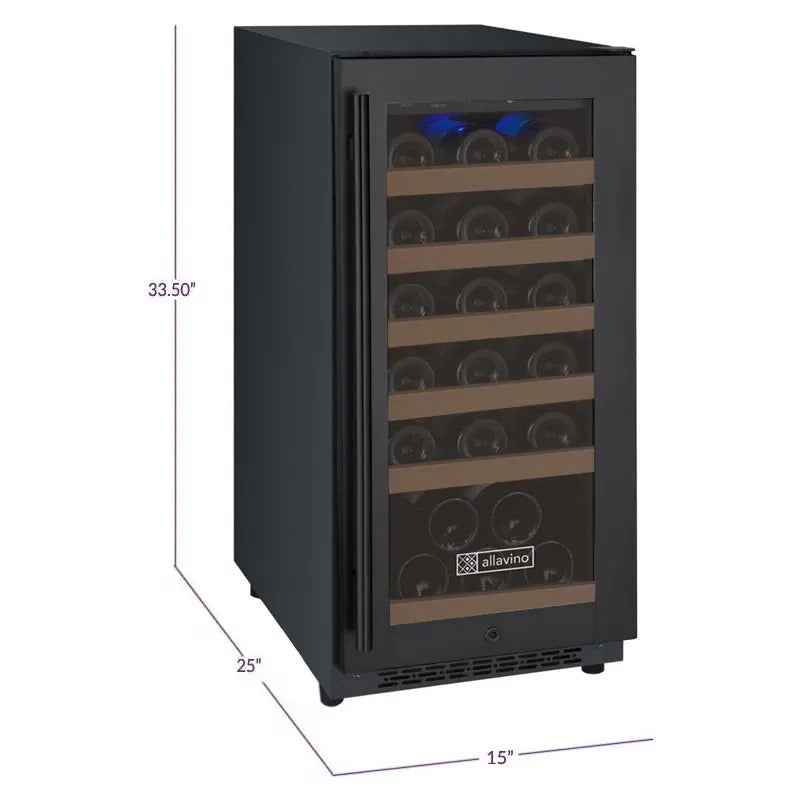

What are the dimensions and weight of the VSWR30? ›
The VSWR30 measures 33.5" H x 15" W x 23.25" D (25" depth with handle) and weighs 92.6 lbs. At 15 inches wide and 33.5 inches tall, it fits standard undercounter openings designed for narrow appliances.
How many bottles does the VSWR30 hold? ›
The VSWR30 holds up to 30 bottles across 6 glide-out wood presentation shelves. The FlexCount shelf design accommodates both standard and oversized bottles without losing capacity.
Is the VSWR30 single-zone or dual-zone? ›
Single-zone only. The VSWR30 runs the entire cabinet at one temperature between 41°F and 64°F. There is no dual-zone configuration available for this model.
What temperature range does the VSWR30 reach? ›
The VSWR30 cools from 41°F to 64°F via Tru-Vino compressor technology with auto defrost. This covers the full range from chilled whites to cellar-temperature storage.
Does the VSWR30 have a security lock? ›
Yes. The VSWR30 includes a security lock on the door.
Is the VSWR30 rated for commercial use? ›
Yes. The VSWR30 is rated for commercial use. It is not rated for outdoor use.
What handle options are included with the VSWR30? ›
The VSWR30 includes both a towel bar handle and a curved handle. You choose which to install. Yes. Both the towel-bar handle and curved handle are included with the unit, so the purchaser can choose which style to install.
What electrical connection does the VSWR30 require? ›
The VSWR30 runs on 120V / 60Hz at 0.9A — a standard household outlet. The manual recommends a separate circuit serving only this appliance. It requires a grounded 120V/60Hz three-prong outlet and specifies a 15-amp fuse or circuit breaker.
What is the warranty on the Allavino VSWR30? ›
The VSWR30 is covered by Allavino's 1-year parts and labor warranty and a 5-year compressor warranty (parts only). Note that the compressor warranty covers parts but not labor after the first year. Warranty is honored directly by Allavino.
