Allavino VCWR-101 & VCWR-107 – 107 Bottle Panel-Ready Wine Fridge
Panel-ready and front-vented — built-in wine storage that disappears into your cabinetry and holds up to 107 bottles.
The VCWR-101 and VCWR-107 are built for one specific buyer: someone putting together a kitchen or bar where the wine fridge needs to look like it was always part of the design. Panel-ready overlay doors accept custom cabinet panels so the unit vanishes completely into the surrounding millwork — no handles, no visible frame, no visual interruption. Front ventilation means it installs flush without rear clearance. Choose between 101 and 107 bottle capacity depending on your configuration, and across both SKUs you get 14 glide-out wood shelves, a stacked lower section for large formats like Pinot and Champagne, a digital control display, and three LED color options to light your collection exactly how you want it. Dual-zone cooling is available — confirm with your SKU selection which zone configuration applies. VCWR-107PRS-1R is the 107-bottle single-zone model; VCWR-101PRD-2R is the 101-bottle dual-zone model. The zone configuration is tied to the SKU, not an option available on both.

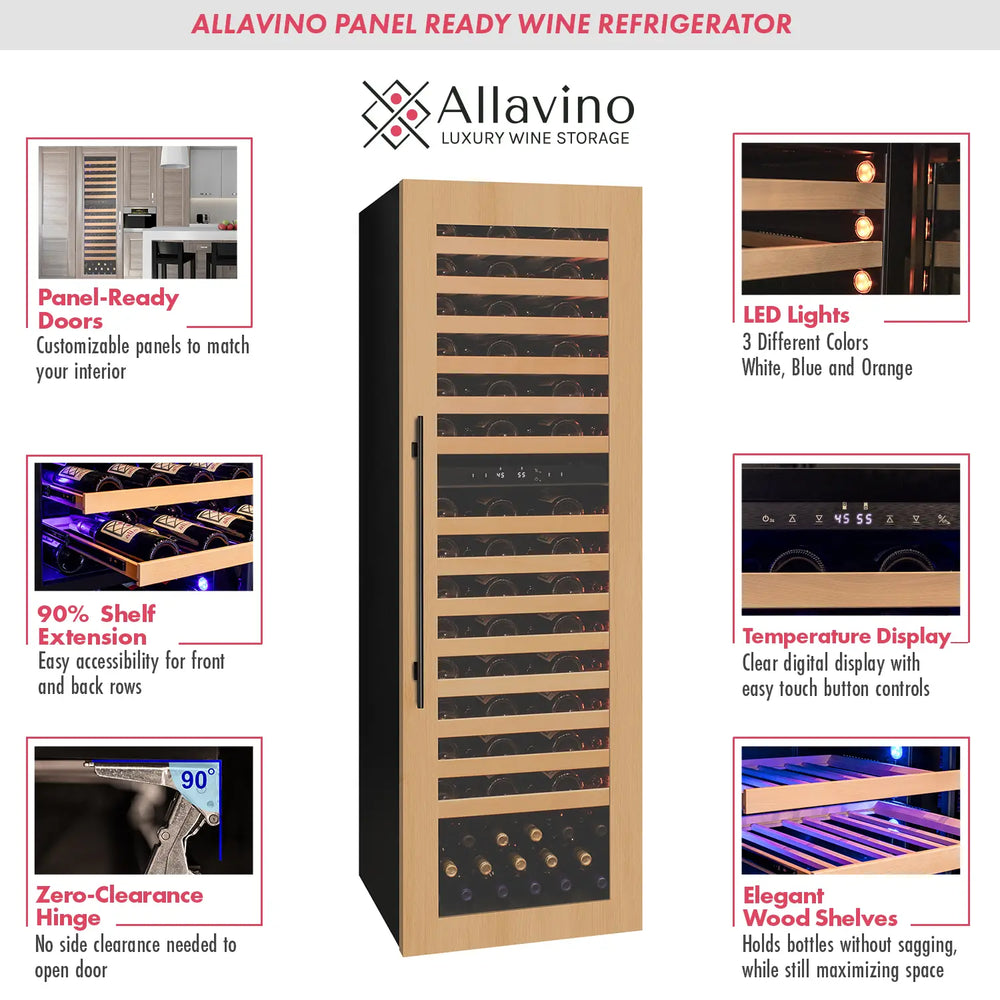

What Makes the VCWR Stand Out
Four features that set this apart from a standard undercounter wine fridge — starting with the one most buyer come here for.
Swipe to see all features →
101–107 Bottles
Capacity by SKU
Choose between 101 and 107 bottle configurations — both on 14 glide-out wood shelves with a stacked lower section for large formats.
Panel-Ready
Overlay Door Frame
Accepts custom cabinet panels for a true flush built-in look — no visible frame, no handle, seamlessly integrated into any kitchen or bar design.
41°F – 64°F
Temperature Range
Precision digital controls across the full range — dual-zone optional for independent red and white storage. VCWR-107PRS-1R is single-zone; VCWR-101PRD-2R is dual-zone.
3 Colors
LED Lighting Options
Three selectable LED colors let you customize how your collection is displayed — a feature not found on most wine fridges at this price point.
What's Included in the Box›
Allavino VCWR-101 / VCWR-107 Panel-Ready Wine Refrigerator
- VCWR-101 or VCWR-107 wine refrigerator unit (per SKU selected)
- 14 glide-out wood shelves
- Panel-ready overlay door frame (customer-supplied cabinet panel Sold Separately)
- Installation hardware documented for these models includes 2 fixing brackets, flat-head screws, self-tapping screws, screw covers, door-panel positioning brackets, and door-panel mounting screws. The customer-supplied decorative panel and handle are not included.
Deep Dive — VCWR-101 & VCWR-107›
Customizable Built-In Integration
These wine fridges feature zero-clearance hinges and overlay-ready doors for a true built-in look. Field-reversible doors and no handles provide clean lines for modern designs.
High Capacity with Flexible Storage
Fit up to 101 or 107 bottles thanks to 14 glide-out wood shelves and a stacked lower section. Store large bottles like Pinot and Champagne without losing shelf space.
Quiet and Efficient Cooling
Compressor cooling with dual-zone options ensures steady temps from 41°F to 64°F, while LED lighting and internal fans preserve and showcase your collection quietly.
-
Panel-ready doors match custom kitchen cabinetry
-
Dual-zone temperature control preserves reds & whites
-
Glide-out wood shelving supports full bottle capacity
- Holds up to 107 bottles with optimized shelf spacing
- Quiet compressor with auto defrost and internal fans
- 3 LED color options illuminate bottles beautifully
- Built-in capable with front ventilation and flush fit
- Digital display with precise controls
Who It's For — The Deck & Den Take›

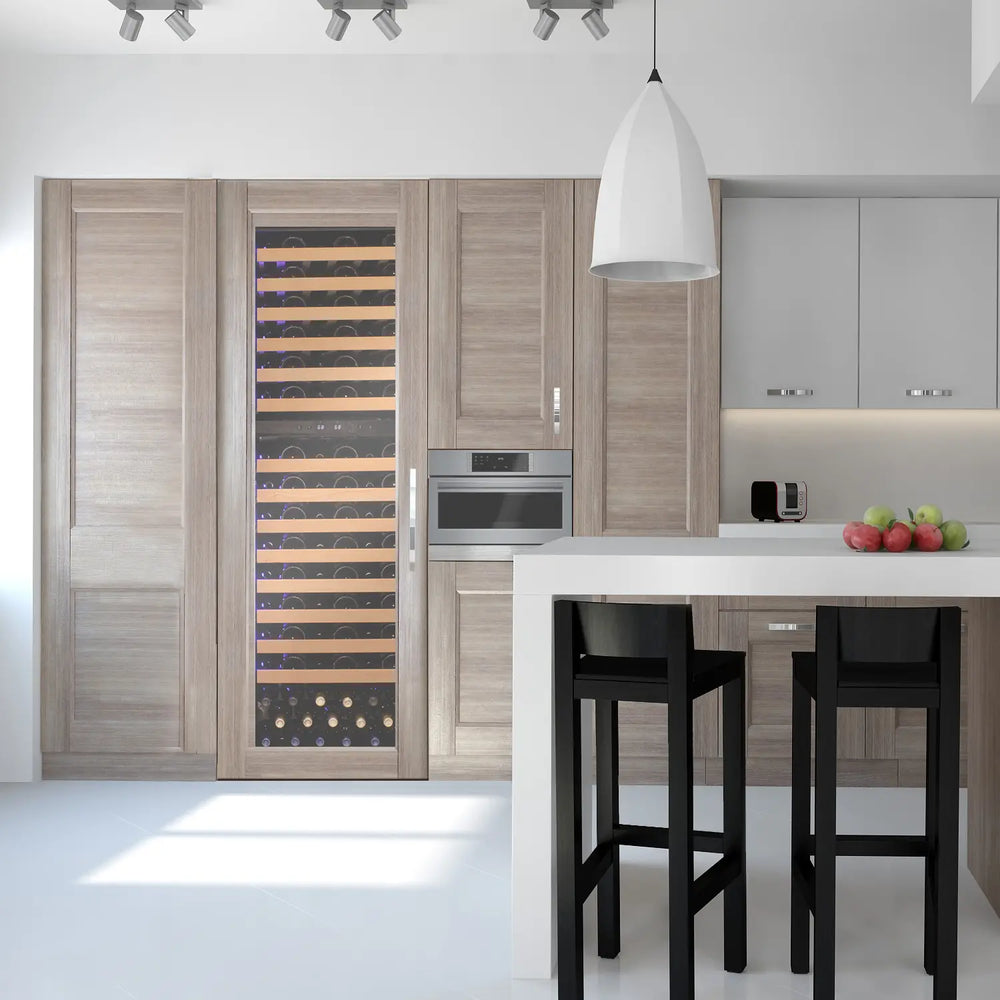

The VCWR models are for one specific buyer: someone doing a full kitchen or bar build where the wine fridge has to disappear. The panel-ready door frame means you bring your own cabinet panel and the unit becomes indistinguishable from the surrounding millwork — no hardware, no visible appliance edge, just a continuous run of cabinetry that opens to reveal your collection. That's a meaningfully different outcome than a stainless steel door flush-mounted behind a frame, and it costs you the effort of sourcing and fitting a matching panel.
Note the temperature ceiling: 41°F to 64°F. This is narrower than the YHWR115's 73°F upper bound, which means the warmest storage setting here is still cooler than what some collectors prefer for full-bodied reds at serving temperature. It's excellent for aging and for whites — just worth knowing if you pull reds and expect them cellar-warm.
One important pre-order step: the "dual-zone optional" framing in the specs means the zone configuration differs between SKUs. Confirm which model number corresponds to single-zone vs. dual-zone before ordering. VCWR-107PRS-1R is the 107-bottle single-zone model, while VCWR-101PRD-2R is the 101-bottle dual-zone model.
- Kitchen and bar designers who need a wine fridge that integrates invisibly into custom cabinetry
- Collectors who want high capacity (101–107 bottles) in a true built-in form factor
- Buyers storing Pinot, Champagne, or other large-format bottles alongside standard Bordeaux sizing
- Anyone who wants LED color customization for a specific display aesthetic
- Builds where front ventilation is required — no rear clearance needed for installation
Full Specifications & Dimensions›
Allavino VCWR-101 / VCWR-107 Specifications
| Capacity |
Up to 101 or 107 Bottles (by SKU) |
| Cooling Zones |
Dual Zone (Optional) — VCWR-107PRS-1R: single zone; VCWR-101PRD-2R: dual zone. |
| Temp Range |
41°F – 64°F |
| Built-In Ready |
Yes |
| Ventilation |
Front |
| Dimensions |
69.5" H x 21.5" W x 22.25" D |
| Cutout Dimensions |
Minimum cabinet opening: 565 mm W × 1,784 mm H × at least 575 mm D (approximately 22.24" W × 70.24" H × 22.64" D). The cabinet must have no back panel, a 30 mm rear airflow gap, and at least 200 cm² each for the cooling-air inlet and outlet. |
| Weight |
163 lbs (217 lbs shipping) |
| Shelves |
14 Glide-Out Wood Shelves |
| Door |
Panel-Ready Frame, Field-Reversible (customer panel Sold Separately) |
| Lighting |
LED, 3 Color Options |
| Noise Level |
Quiet Operation |
| Electrical |
120V / 60Hz / 1.8A |
| Warranty |
1 year parts and labor; limited compressor-only coverage from years 2 through 5, with labor and freight during the compressor period paid by the owner. Warranty service is handled by Allavino. |
Warranty, Shipping & Returns›
-
Manufacturer Warranty: Allavino provides 1 year of parts-and-labor coverage and limited compressor-only coverage from years 2 through 5; labor and freight during the compressor period are the owner's responsibility. Coverage is administered directly by Allavino.
-
Free Shipping: This item ships free to the contiguous US. See our Free Shipping Policy for full details.
-
Returns: See our Return Policy for eligibility and instructions.
-
Price Match: Found it cheaper somewhere else? We'll match it. See our Price Match Guarantee.
Manuals & Documents›
-
Instruction Manual (PDF) This verified manual covers VCWR-107PRS-1R and VCWR-101PRD-2R but is hosted on Beverage Factory. Re-host the PDF in Shopify Files before publishing if a first-party store-hosted resource link is required.
Frequently Asked Questions›
What is the difference between the VCWR-101 and VCWR-107? ›

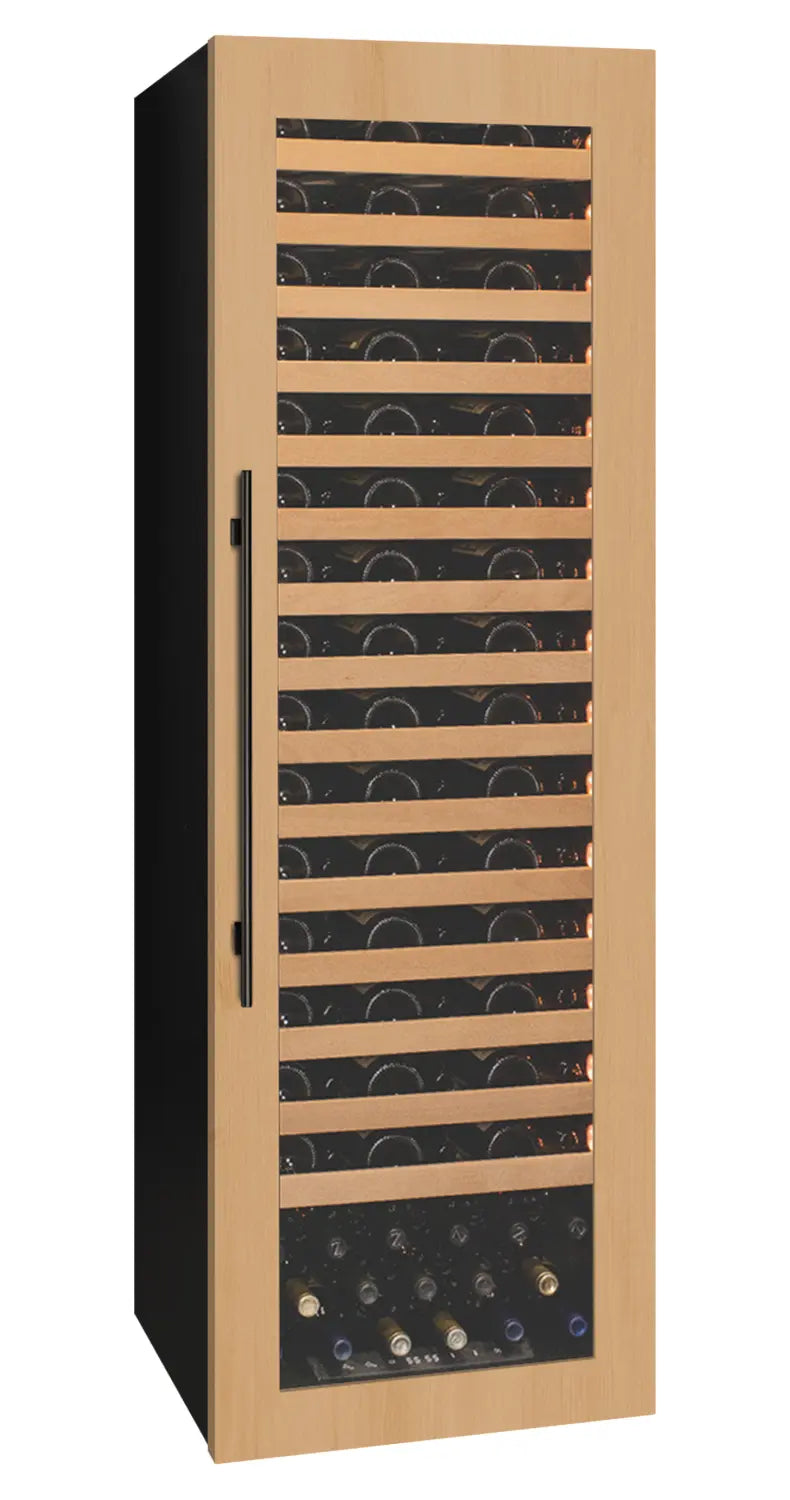

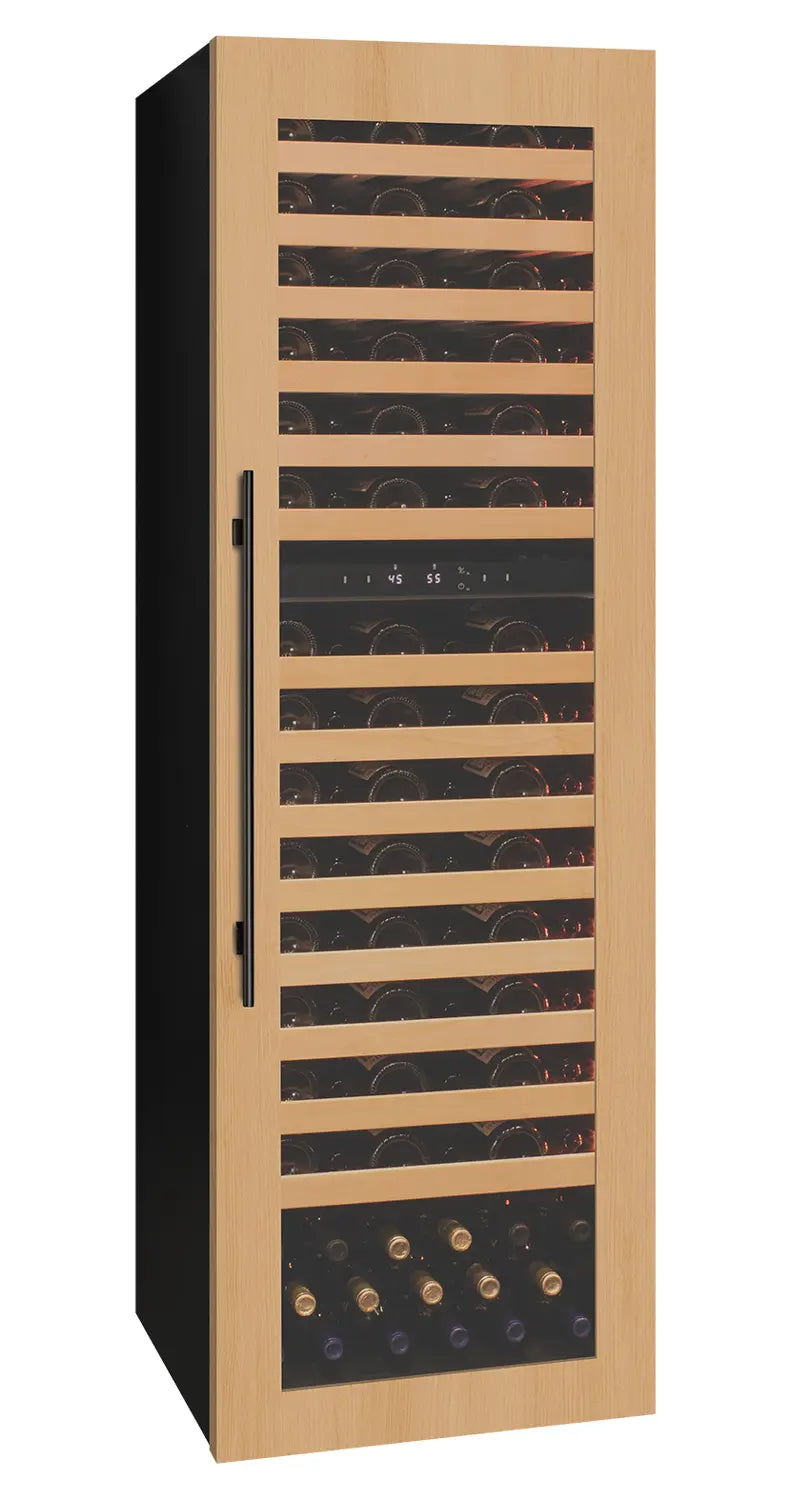

VCWR-107PRS-1R holds up to 107 bottles and uses a single temperature zone. VCWR-101PRD-2R holds up to 101 bottles and uses two independently controlled temperature zones.
Is the VCWR dual-zone or single-zone? ›
Dual-zone cooling is listed as optional on this model. The configuration is model-specific: VCWR-107PRS-1R is single-zone, and VCWR-101PRD-2R is dual-zone.
What does "panel-ready" mean on the VCWR? ›
Panel-ready means the door frame is designed to accept a custom cabinet panel — typically matching the surrounding cabinetry — so the wine fridge blends completely into the kitchen or bar without any visible appliance hardware or frame. You supply the panel to match your cabinetry; the unit provides the overlay-ready frame and zero-clearance hinges to mount it. There is no handle on the door by default.
Can the VCWR be installed built-in under a counter? ›
Yes. The VCWR is front-vented and built-in capable — it installs flush into cabinetry without rear clearance. Minimum opening: 565 mm W × 1,784 mm H × at least 575 mm D (approximately 22.24" W × 70.24" H × 22.64" D), with no cabinet back panel, a 30 mm rear airflow gap, and minimum 200 cm² cooling-air inlet and outlet openings.
What are the cutout dimensions for VCWR built-in installation? ›
The manual specifies a minimum cabinet opening of 565 mm W × 1,784 mm H × at least 575 mm D (approximately 22.24" W × 70.24" H × 22.64" D). It also requires no cabinet back panel, a 30 mm rear airflow gap, and at least 200 cm² each for the cooling-air inlet and outlet.
What are the dimensions and weight of the VCWR? ›

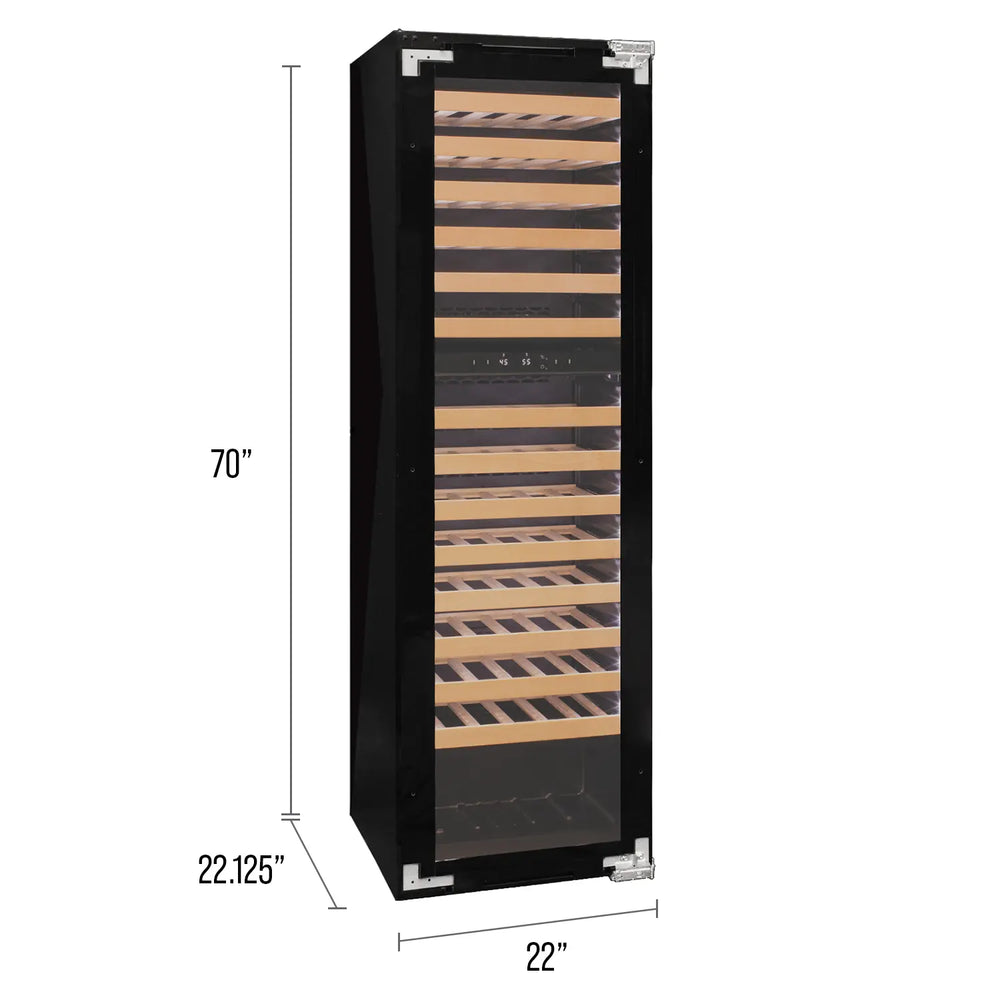

The VCWR measures 69.5" H x 21.5" W x 22.25" D and weighs 163 lbs (217 lbs shipping weight). At nearly 70 inches tall and 163 lbs, plan for two people or a delivery service to position it. Confirm ceiling clearance and floor space before ordering.
What temperature range does the VCWR reach? ›
The VCWR cools from 41°F to 64°F. Note that 64°F is the maximum — lower than some competing wine fridges that reach 73°F. This range is well-suited for aging and for white wine storage, but buyers who prefer to store full-bodied reds at a warmer serving temperature should confirm this range meets their needs.
How many bottles does the VCWR hold, and what shelf types are included? ›

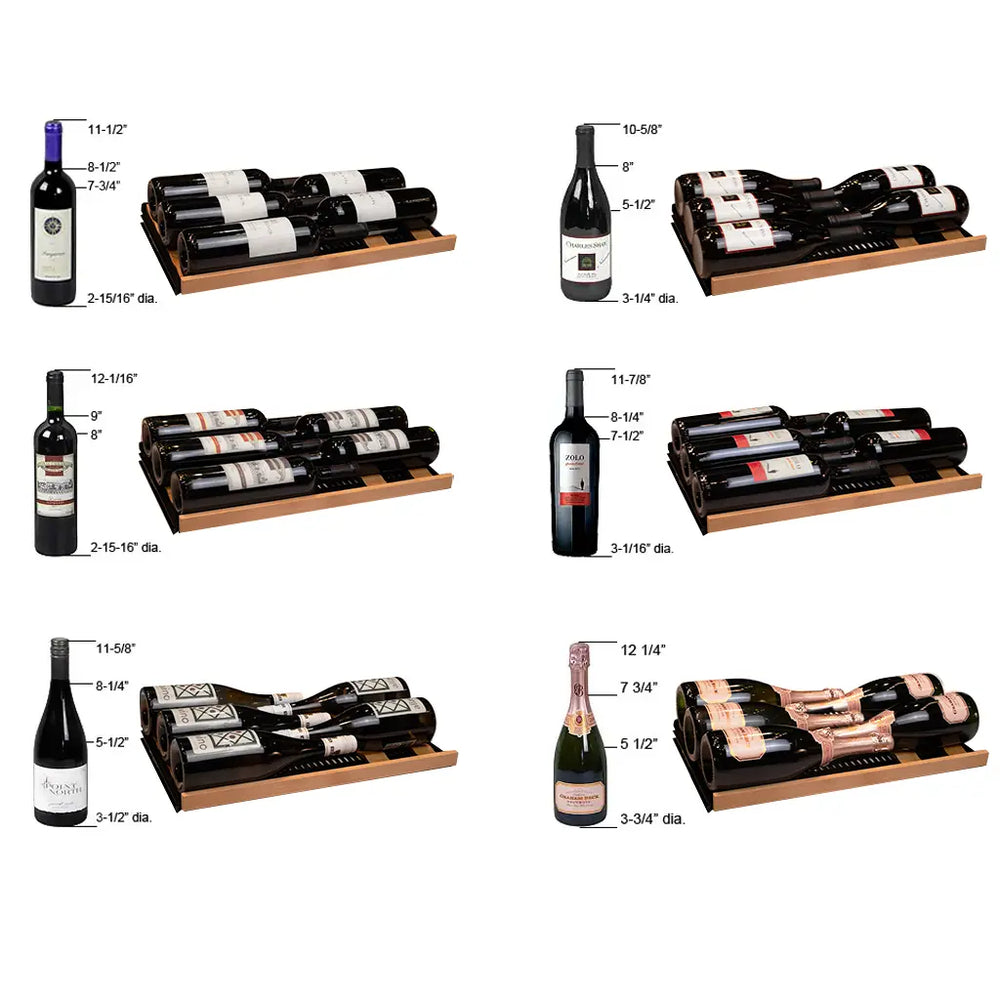

Depending on SKU, the VCWR holds up to 101 (VCWR-101) or 107 (VCWR-107) bottles. Storage is across 14 glide-out wood shelves plus a stacked lower section designed to accommodate larger bottles like Pinot Noir and Champagne sizes without sacrificing the rest of your shelf space.
Can the door hinge be reversed on the VCWR? ›
Yes. The VCWR door is field-reversible, so you can configure the swing direction to suit your installation before placing the unit.
What LED lighting options are available on the VCWR? ›
The VCWR includes interior LED lighting with 3 selectable color options. The three selectable interior-light colors are white, blue, and amber.
What electrical connection does the VCWR require? ›
The VCWR runs on 120V / 60Hz at 1.8A — a standard household outlet. The manual requires a properly grounded outlet, advises against extension cords or multi-socket adapters, and recommends a surge protector. It does not state that a dedicated circuit is required.
What is the warranty on the Allavino VCWR-101 / VCWR-107? ›
Allavino provides 1 year of parts-and-labor coverage plus limited compressor-only coverage from years 2 through 5; the owner is responsible for labor and freight during the compressor period. Warranty service is handled directly by Allavino.
