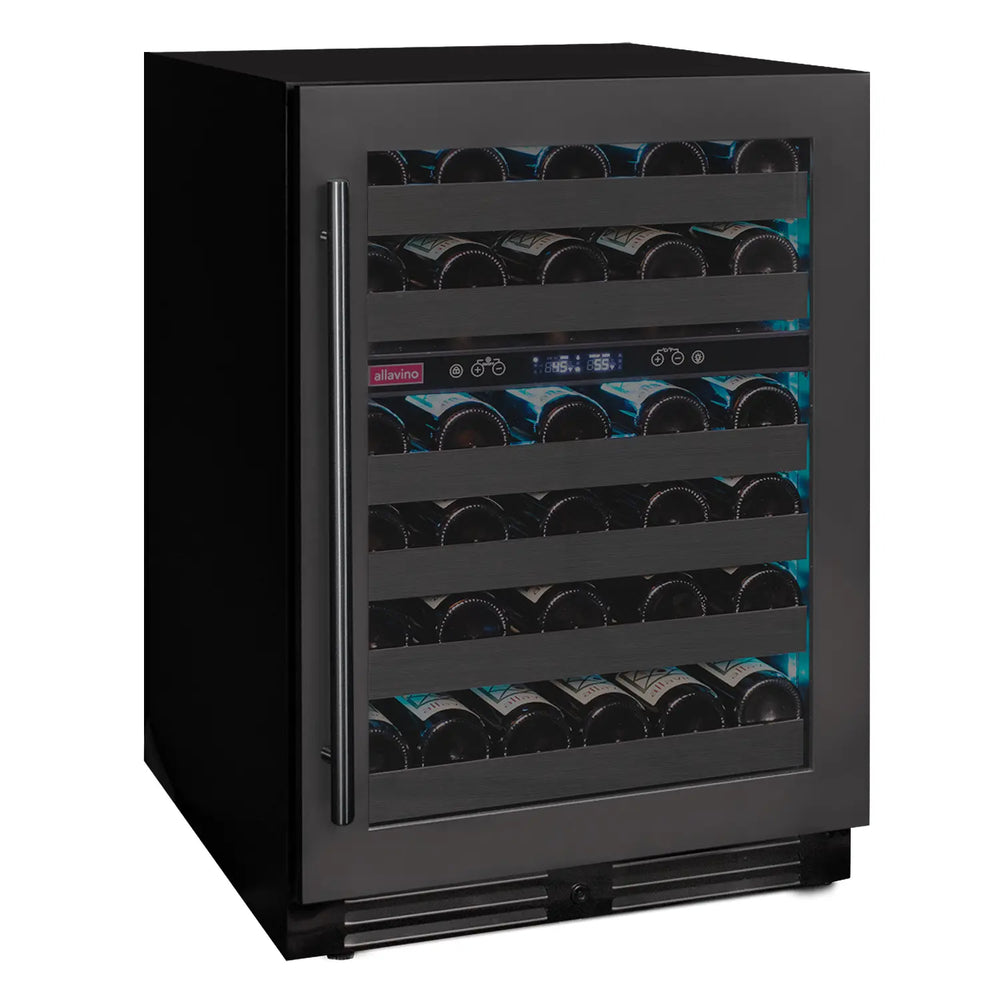

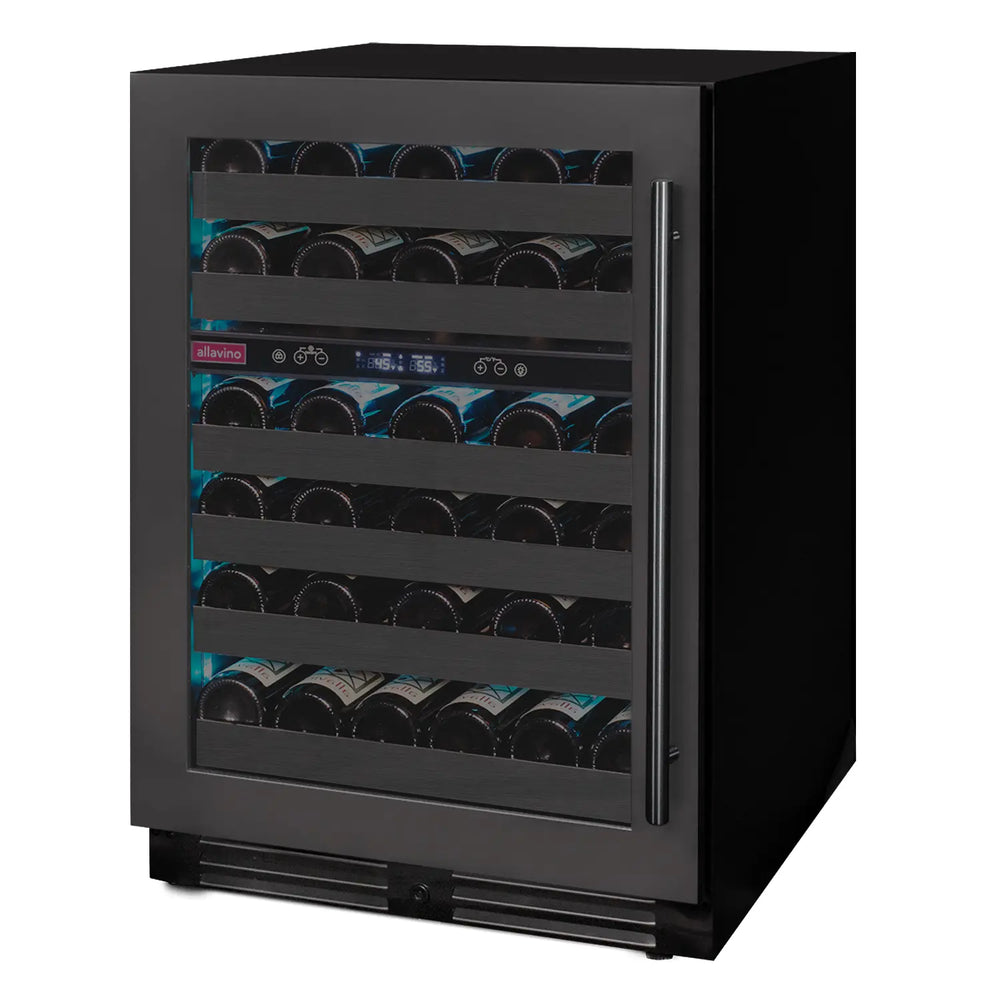

Allavino BDW5034 – 50 Bottle Dual Zone Wine Fridge
50 bottles, dual-zone, black stainless — an undercounter wine fridge with a wider temperature ceiling and a finish that stays clean.
The Allavino BDW5034 is a 24-inch dual-zone undercounter wine fridge with one detail that sets it apart from most in this category: the lower zone reaches 68°F, four degrees warmer than the 64°F ceiling on comparable units. If you serve full-bodied reds at slightly warmer temperatures or cellar bottles at the high end of the red wine range, that range matters. The upper zone runs 41°F to 54°F for whites and sparkling, independently controlled via Tru-Vino variable-speed compressor cooling with internal fans that reduce both temperature swings and vibration. Six FlexCount roller-glide wood shelves handle Bordeaux, Pinot, and Champagne without label contact. The exterior is fingerprint-resistant black stainless with UV-tinted glass — a clean look that holds up in a kitchen or bar setting. Front-vented for built-in or freestanding use. One note before ordering: the door does not reverse.
What Makes the BDW5034 Stand Out
Four features that define this unit — the temperature ceiling and the finish being the two that separate it from standard undercounter options.
Swipe to see all features →
50 Bottles
24" Undercounter Footprint
Dual-zone capacity in a standard 24-inch undercounter width — front-vented for built-in or freestanding without rear clearance.
Dual Zone
41–54°F Upper / 54–68°F Lower
The lower zone reaches 68°F — a wider ceiling than most undercounter wine fridges, covering the full red wine serving and cellaring range.
6 Shelves
FlexCount® Roller-Glide Wood
Roller-glide racks accommodate Bordeaux, Pinot, and Champagne without label contact — vibration-dampening construction throughout.
Black Stainless
Fingerprint-Resistant + UV Glass
Smudge-resistant black stainless frame with UV-tinted glass and customizable LED lighting — a clean, refined look that holds in a busy kitchen.
What's Included in the Box›
Allavino BDW5034 50 Bottle Dual Zone Wine Refrigerator
- BDW5034 wine refrigerator unit
- 6 FlexCount roller-glide wood shelves
- Security lock
- One door handle and mounting screws are included. The unit also has an integrated locking door with key and an adjustable front leveling leg; the manual does not document additional loose accessories.
Deep Dive — BDW5034›

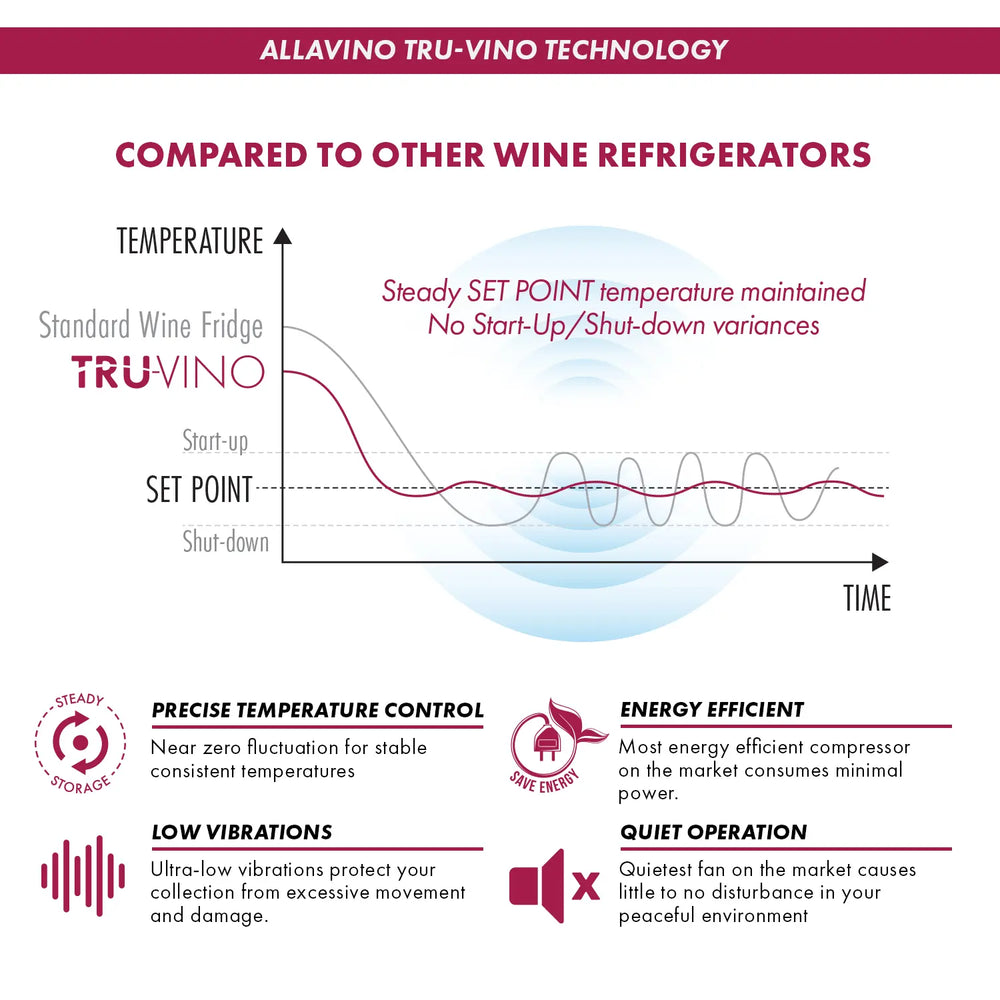

Tru-Vino® Temperature Stability
Variable-speed compressor and internal fans reduce swings and vibration so corks stay protected and flavors develop evenly across both zones.

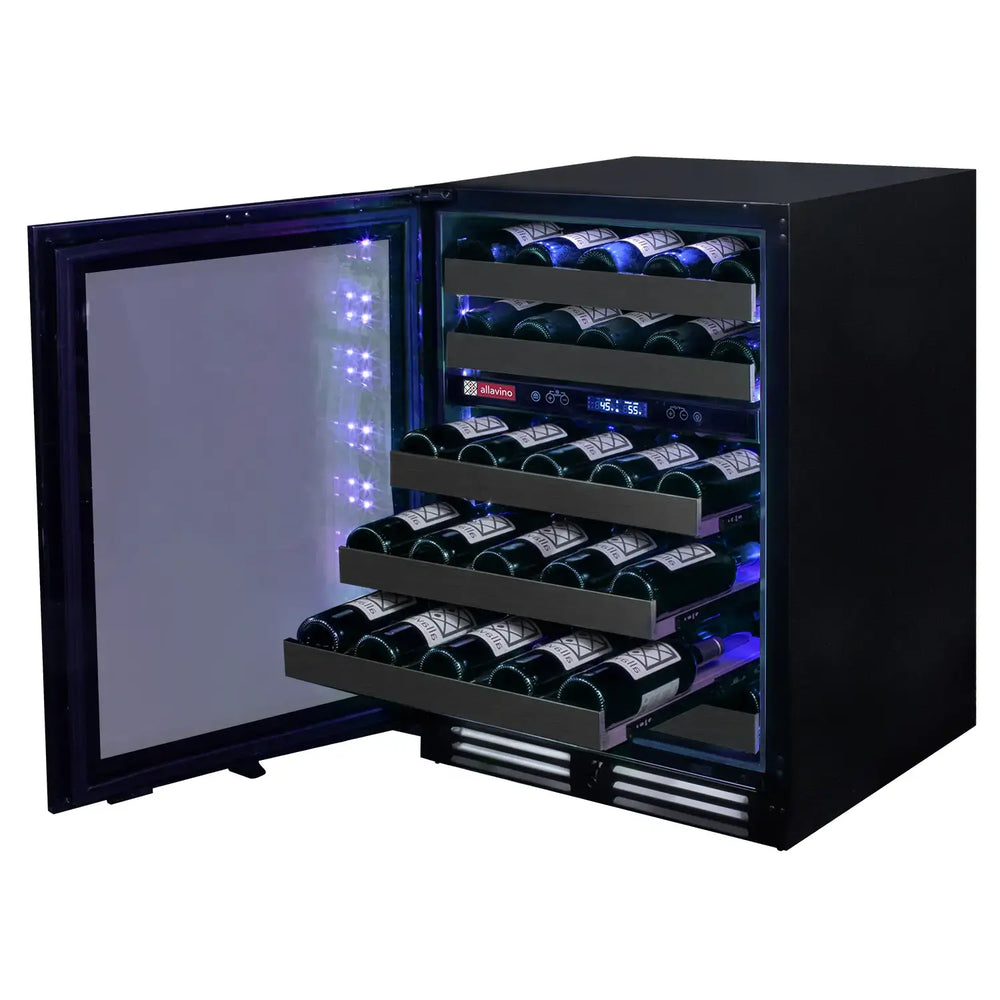

FlexCount® Glide-Out Shelving
Roller-glide shelves accommodate Bordeaux, Pinot, and Champagne without scraping labels — maximizing capacity while keeping every bottle accessible.
Black Stainless, UV Protection & Lighting

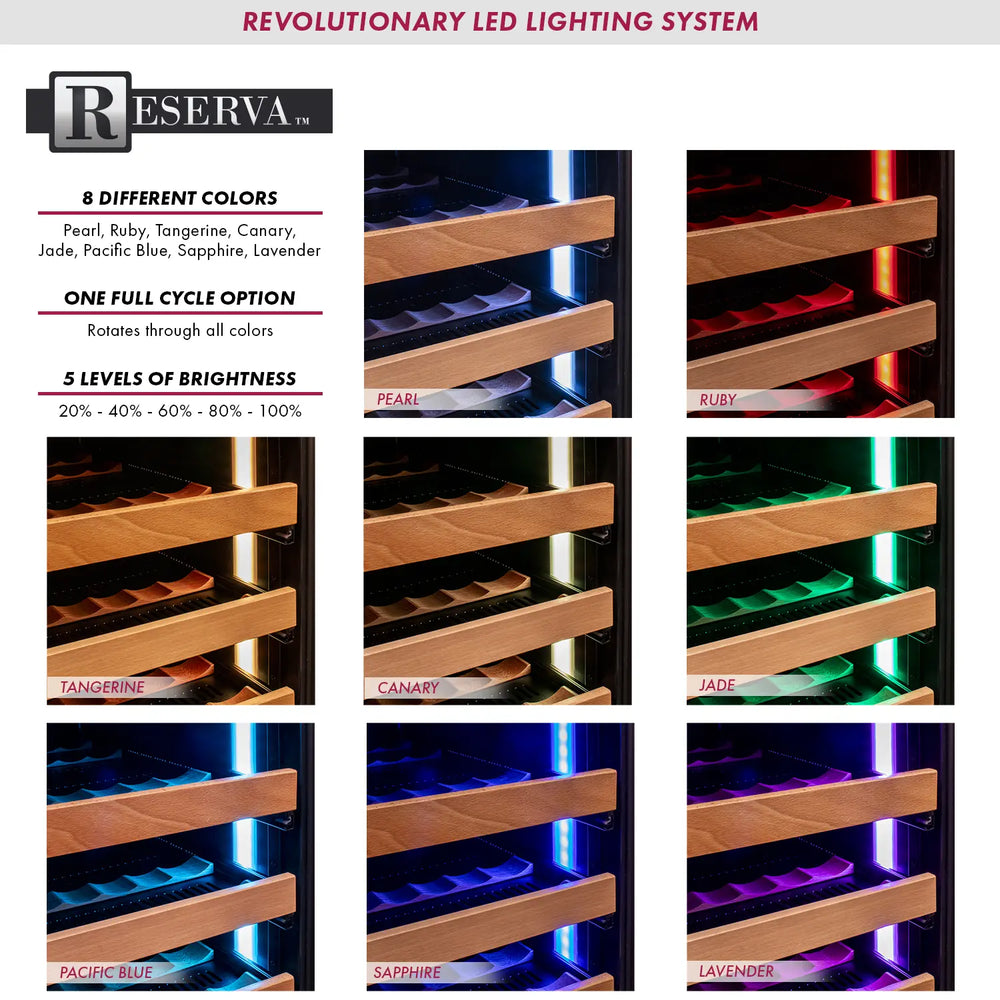

Fingerprint-resistant black stainless framing, UV-tinted glass, and adjustable LED lighting create a refined showcase while guarding against light exposure.

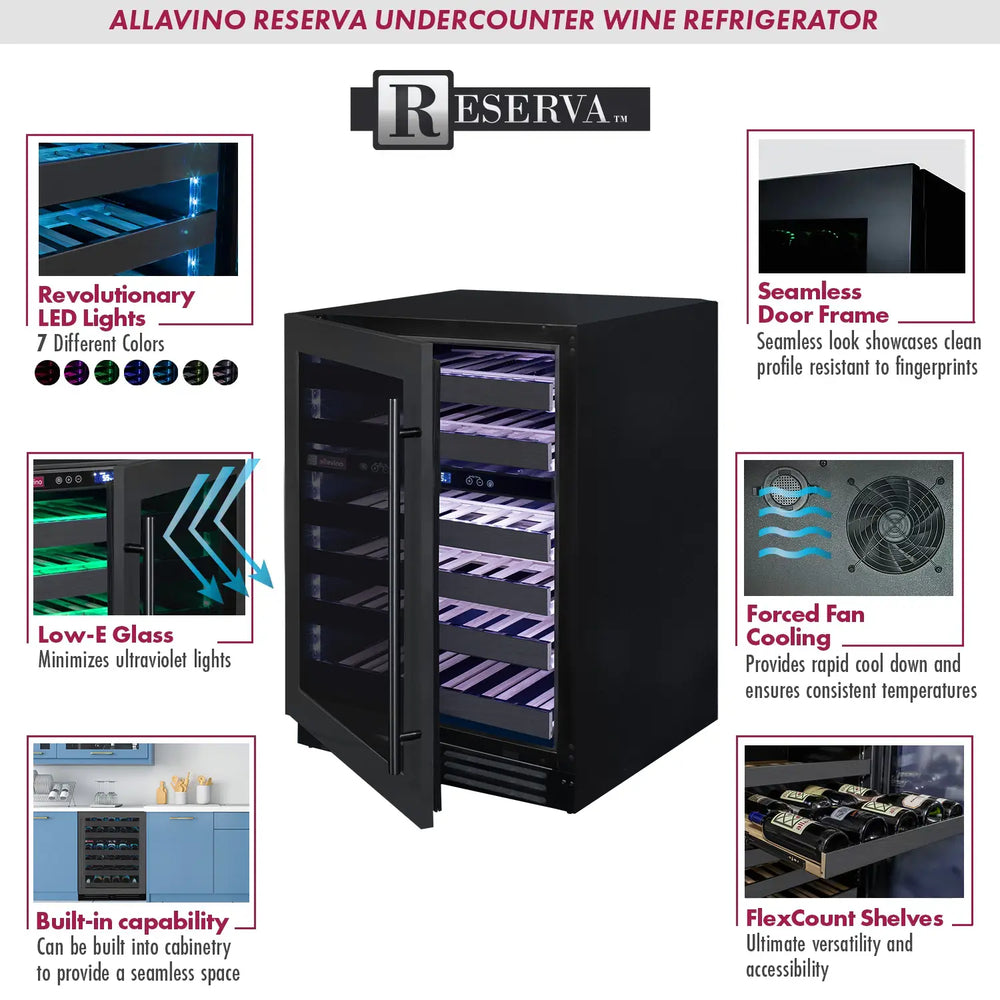

Allavino BDW5034 Features & Benefits
-
Tru-Vino® Dual-Zone Cooling: Independent 41°F–68°F settings for reds and whites.
-
FlexCount® Shelves: Roller-glide racks fit varied bottle shapes without label damage.
-
Black Stainless & UV Glass: Smudge-resistant frame with UV-tinted protection.
-
50-Bottle Capacity: Compact 24" undercounter footprint with premium storage.
-
Custom LED Lighting: Showcase your collection without heat.
-
Front-Venting Design: Built-in ready or freestanding flexibility.
-

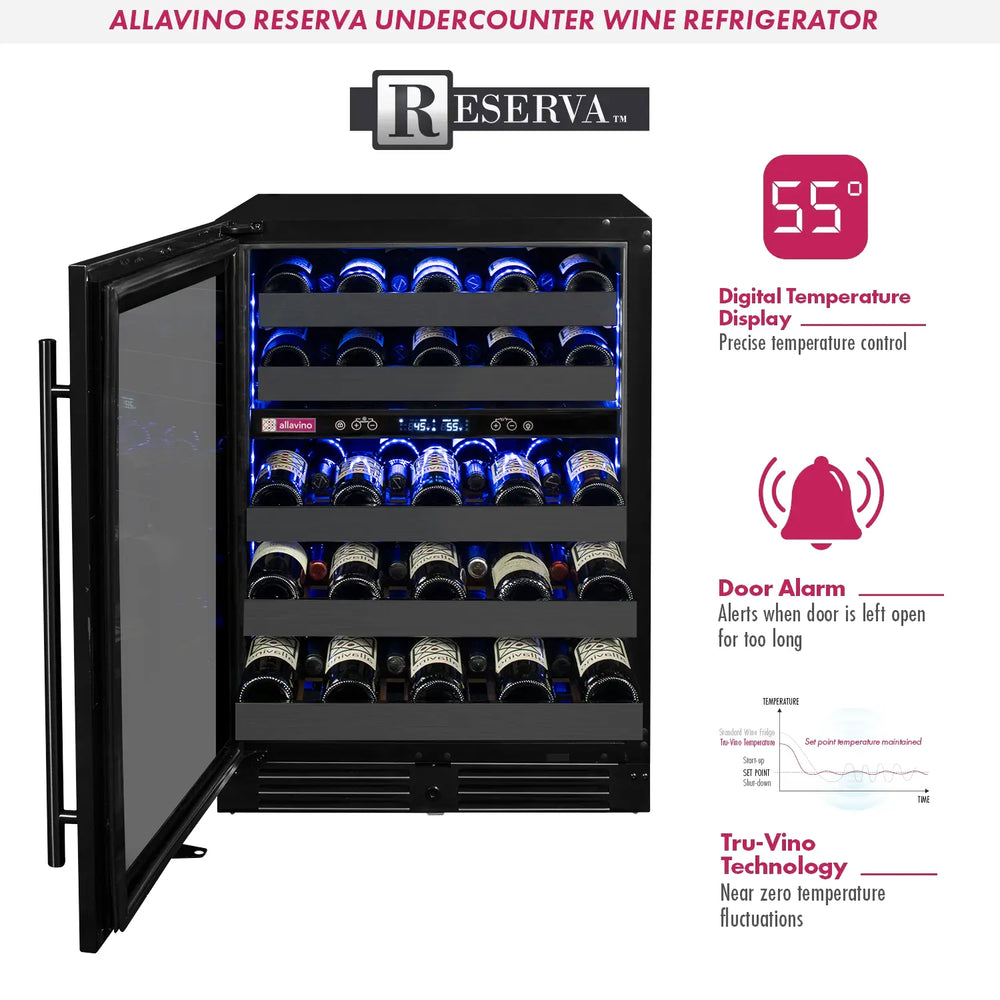

Security Lock & Alarms: Added peace of mind for premium bottles.
Who It's For — The Deck & Den Take›
The BDW5034 is the undercounter dual-zone pick for buyers who want two things most comparable units don't deliver together: a temperature ceiling high enough for full-bodied reds at 68°F, and a black stainless exterior that actually resists fingerprints. If your kitchen or bar has dark cabinetry and you're tired of stainless showing every smudge, this is a meaningful upgrade. The 68°F lower zone covers Cabernet Sauvignon, Syrah, and big Bordeaux at proper serving temperature — something you can't reach on most undercounter dual-zone fridges that cap at 64°F.
Two things to confirm before ordering. First, the door does not reverse — the hinge is fixed, so confirm the swing direction fits your installation before anything ships. Second, both a dual-zone and a single-zone manual are available for this model (BDW5034D and BDW5034S), which means a single-zone variant exists. Confirm you're purchasing the dual-zone version when you add to cart. The official Allavino product page uses a model selector that includes both BDW5034D-2 dual-zone and BDW5034S-1 single-zone configurations, with separate left- and right-hinge SKUs. Display the complete SKU and zone count clearly at the point of purchase.
The security lock and alarm system make this a reasonable choice for a shared space or hospitality setting — the alarm feature is not common on undercounter wine fridges. It's also commercial-rated, though not for outdoor use.
- Collectors who serve full-bodied reds and need the lower zone to reach 68°F for proper serving temperature
- Dark kitchen or bar builds where black stainless with fingerprint resistance is a design priority
- Undercounter dual-zone installations in 24-inch openings with front-venting built-in flexibility
- Commercial or shared spaces where a security lock and alarm system are practical requirements
- Collectors who mix bottle formats — Bordeaux, Pinot, Champagne — on the same roller-glide shelves
Full Specifications & Dimensions›
Allavino BDW5034 Specifications
| Brand |
Allavino |
| Model |
BDW5034 — BDW5034D-2 dual-zone and BDW5034S-1 single-zone configurations are both available through the official model selector; left- and right-hinge variants use separate full SKUs. |
| Configuration |
Built-In Undercounter or Freestanding; Front-Venting |
| Zones |
Dual Zone |
| Bottle Capacity |
Up to 50 Bottles |
| Upper Zone Temp Range |
41°F – 54°F |
| Lower Zone Temp Range |
54°F – 68°F |
| Combined Temp Range |
41°F – 68°F |
| Cooling System |
Tru-Vino® Variable-Speed Compressor with Internal Fans |
| Dimensions |
34" H × 24" W × 23.5" D (25.25" with handle) |
| Cutout Dimensions |
The dual-zone manual does not publish a separate cutout size. It lists the cabinet at 34" H × 24" W × 23.5" D (25.25" with handle), permits fully recessed built-in installation, and requires the front ventilation base to remain completely unobstructed. Verify the finished opening against the actual unit. |
| Weight |
121 lbs |
| Shelving |
6 Roll-Out Wood Shelves (FlexCount®, Roller-Glide) |
| Door |
Black Stainless Framed Glass, UV-Tinted, Fingerprint-Resistant |
| Door Reversible |
No |
| Lighting |
LED (Customizable) |
| Security Lock |
Yes |
| Alarm |
Yes |
| Electrical |
115V / 60Hz / 1.1A |
| Commercial Use |
Yes |
| Outdoor Use |
No |
| Warranty |
1 Year Parts & Labor / 5 Year Compressor (Parts Only) |
Warranty, Shipping & Returns›
-
Manufacturer Warranty: Covered by Allavino's 1-year parts and labor warranty and 5-year compressor warranty (parts only), honored directly by the manufacturer.
-
Free Shipping: This item ships free to the contiguous US. See our Free Shipping Policy for full details.
-
Returns: See our Return Policy for eligibility and instructions.
-
Price Match: Found it cheaper somewhere else? We'll match it. See our Price Match Guarantee.
Manuals & Documents›
Frequently Asked Questions›

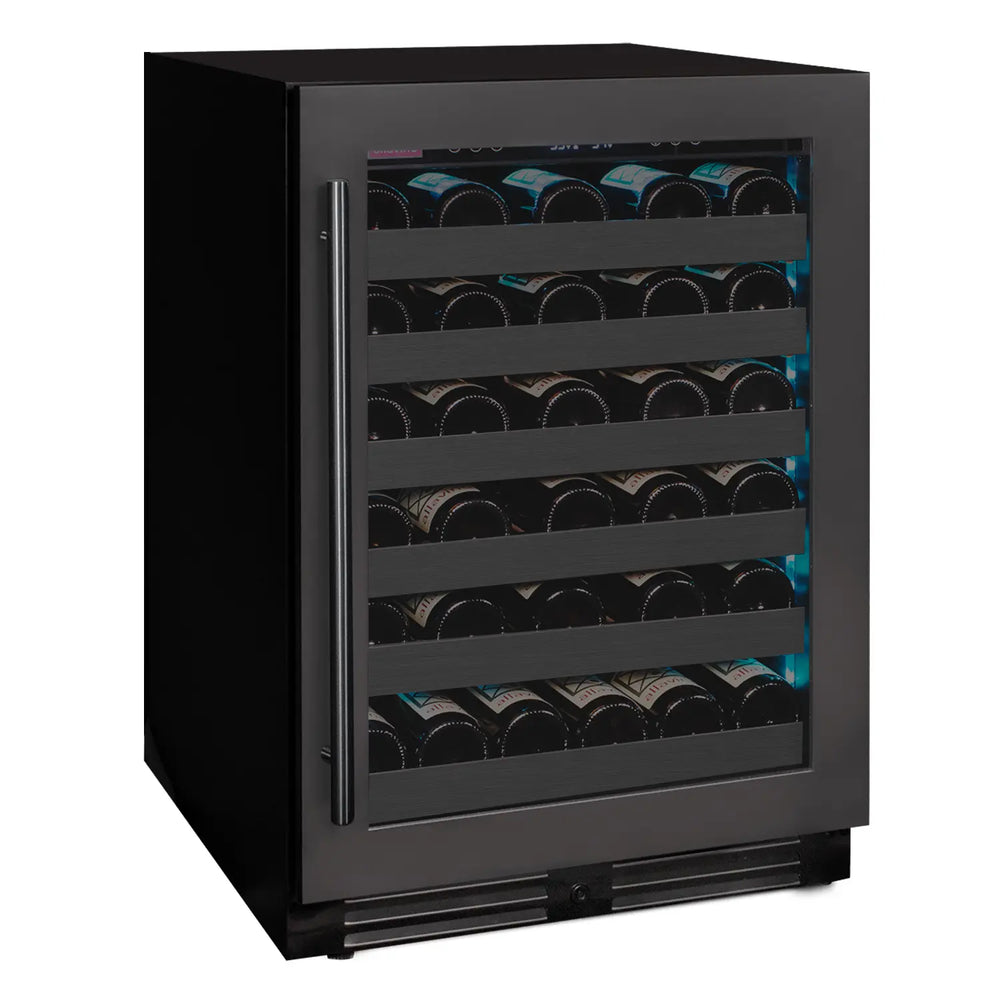

Is there a single-zone version of the BDW5034? ›
Yes — a single-zone manual (BDW5034S) is included in the documents section, which confirms a single-zone variant exists under this model family. This product page describes the dual-zone BDW5034D. The official Allavino selector includes BDW5034D-2 dual-zone and BDW5034S-1 single-zone models, with separate left- and right-hinge SKUs. Confirm the selected full SKU before purchase.
What are the temperature ranges for each zone? ›
The upper zone runs from 41°F to 54°F — suited for white wines and sparkling. The lower zone runs from 54°F to 68°F — covering the full red wine serving and cellaring range, including full-bodied reds that benefit from temperatures above 64°F.
Why does the lower zone go to 68°F when most wine fridges cap at 64°F? ›
The 68°F ceiling on the lower zone extends the serving range for full-bodied red wines — Cabernet Sauvignon, Syrah, and large Bordeaux blends are often served between 60°F and 68°F. Most undercounter dual-zone fridges cap at 64°F, which can leave these wines served slightly too cold. The BDW5034's wider range gives you the flexibility to hit the ideal serving temperature for bigger reds without pulling them out to warm up further.
Can the door hinge be reversed on the BDW5034? ›
No. The BDW5034 door is not field-reversible. The hinge is fixed. Confirm which direction the door opens before ordering — there is no adjustment available after installation.

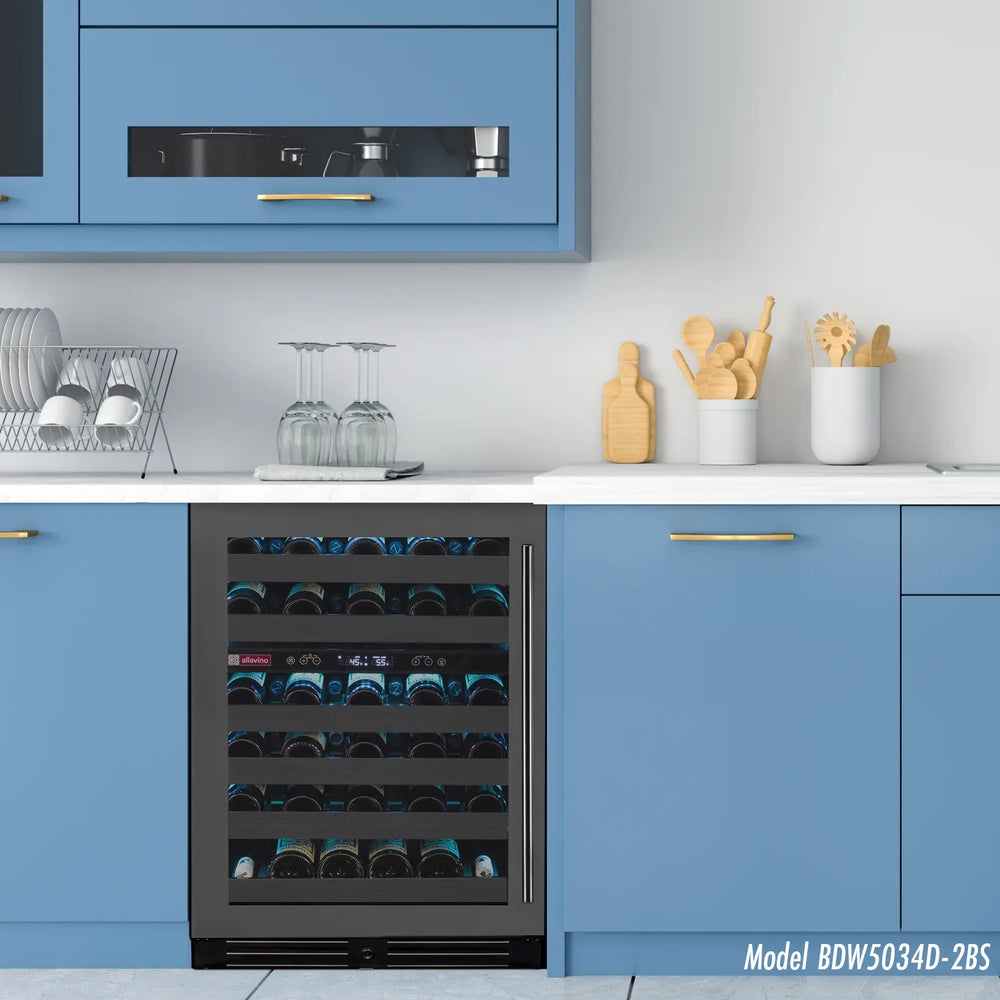

Can the BDW5034 be installed built-in under a counter? ›
Yes. The BDW5034 is front-vented and built-in capable — it installs flush into cabinetry without rear clearance. It also works freestanding. The manual does not specify a separate cutout measurement. It lists the unit at 34" H × 24" W × 23.5" D (25.25" with handle), allows fully recessed installation, and requires the front ventilation base to remain completely unobstructed. Confirm the opening against the actual unit.
What are the cutout dimensions for BDW5034 built-in installation? ›
The dual-zone manual does not provide a dedicated cutout size. Use the documented 34" H × 24" W × 23.5" D cabinet dimensions (25.25" with handle), keep the front ventilation completely unobstructed, and verify the finished opening against the actual appliance.
What are the dimensions and weight of the BDW5034? ›
The BDW5034 measures 34" H × 24" W × 23.5" D (25.25" depth with handle) and weighs 121 lbs.
Does the BDW5034 have a security alarm? ›
Yes. The BDW5034 includes both a security lock and an alarm system. The alarm provides an additional layer of protection for premium bottles in shared or commercial spaces.
Is the BDW5034 rated for commercial use? ›
Yes. The BDW5034 is rated for commercial use. It is not rated for outdoor use.
What electrical connection does the BDW5034 require? ›
The BDW5034 runs on 115V / 60Hz at 1.1A — a standard household outlet. The manual recommends a separate circuit serving only this appliance. It requires an exclusive, properly grounded 115V/60Hz three-prong outlet and specifies a 15-amp fuse or circuit breaker.
What is the warranty on the Allavino BDW5034? ›
The BDW5034 is covered by Allavino's 1-year parts and labor warranty and a 5-year compressor warranty (parts only). Note that the 5-year compressor coverage is parts only — labor is not included after the first year. Warranty is honored directly by Allavino.
