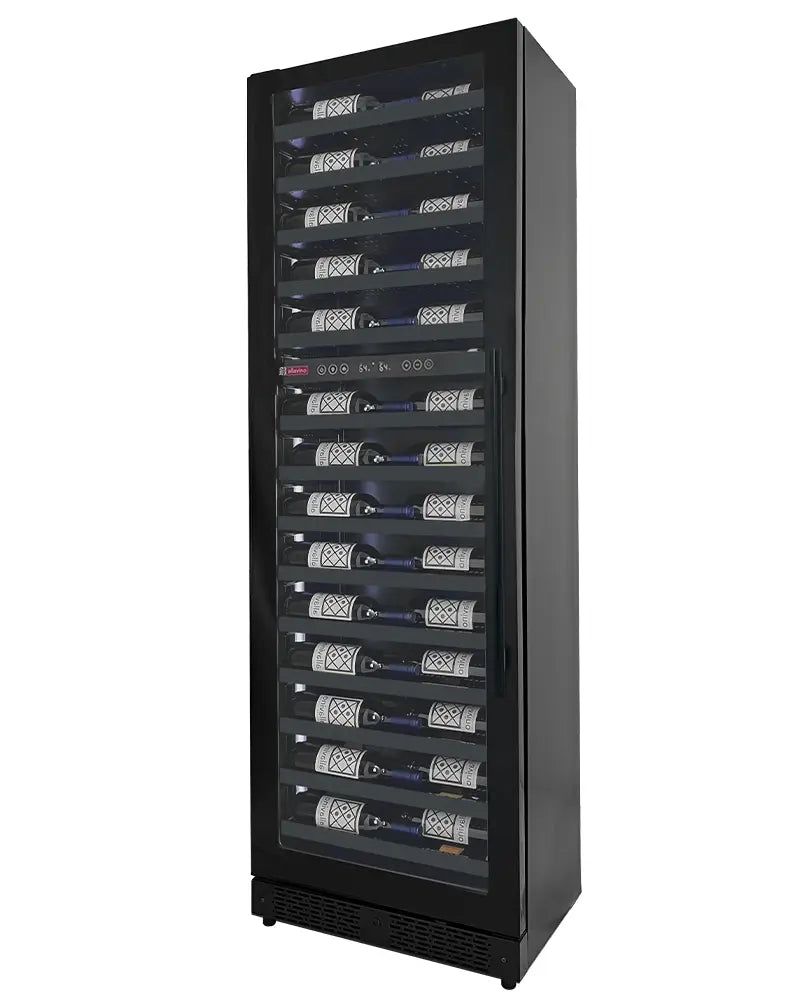

67 Bottles in 16.8 Inches — The Allavino VSW6771 Slim Dual Zone Wine Cooler
Full dual zone performance in a depth that actually fits shallow cabinetry — built for condos, narrow kitchens, and modern wet bars where every inch counts.
Most wine fridges are designed for standard-depth cabinetry. The VSW6771 is designed for everywhere else. At just 16.8 inches deep — 18.4 with the handle — it slides into the shallow cabinetry that stops most full-size units cold, and still delivers room for 67 bottles across two independently controlled zones. Reds hold between 41°F and 60°F in the upper zone; whites and sparkling sit between 45°F and 64°F below — no shared thermostat, no compromise. Allavino's Tru-Vino® variable-speed compressor with fan-forced circulation keeps both zones quiet and vibration-free, so everything you're aging is actually aging. Fourteen FlexCount® glide-out shelves handle varied bottle shapes without label scraping, and a UV-tinted, black-framed locking glass door does the protection and presentation work at the same time.
What the VSW6771 Gets Right
The numbers that matter most when you're fitting serious wine storage into a space that wasn't designed for it.
Swipe to see all ›
16.8"
Depth (Without Handle)
Fits shallow cabinetry where standard-depth wine fridges don't — 18.4" with the handle, so measure your clearance before ordering.

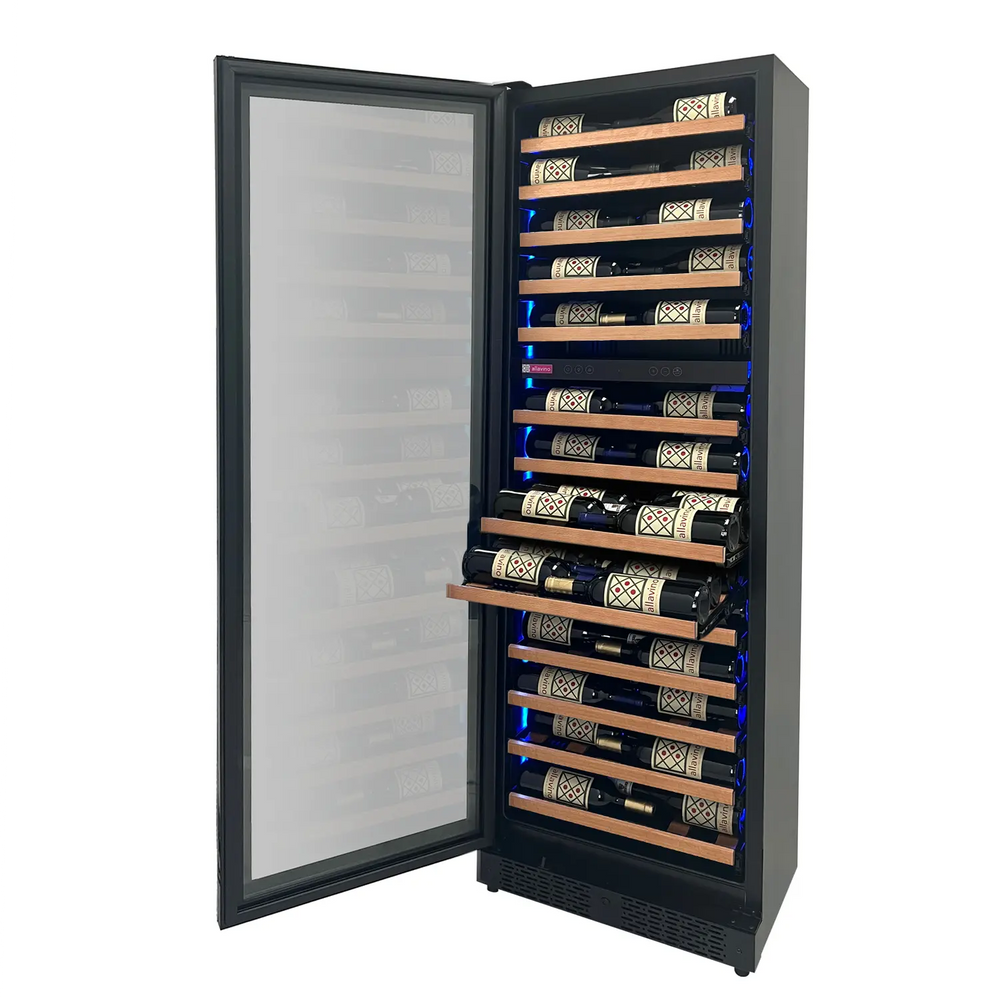

67
Bottle Capacity
Full-size capacity in a slim footprint — 14 FlexCount® glide-out shelves across both zones accommodate varied bottle formats without wasted slots.
41°–60°F
Upper Zone
The upper zone holds reds at cellar or serving temperature — independently from whatever the lower zone is doing.
45°–64°F
Lower Zone
The lower zone keeps whites and sparkling properly chilled — its own thermostat, its own range, no crossover from the upper zone.

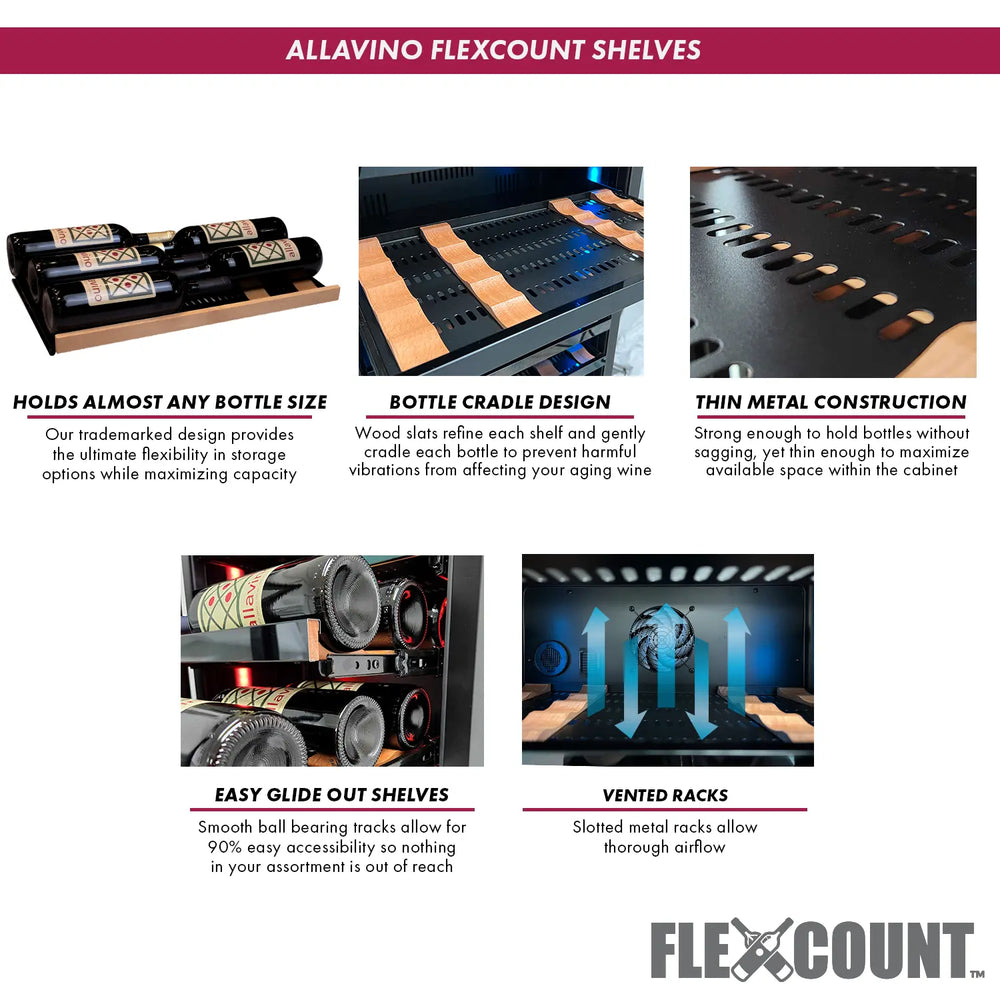

14
FlexCount® Shelves
Roll-out shelves with wood and metal fronts protect labels and fit varied bottle shapes — Bordeaux, Burgundy, sparkling, all without forcing it.

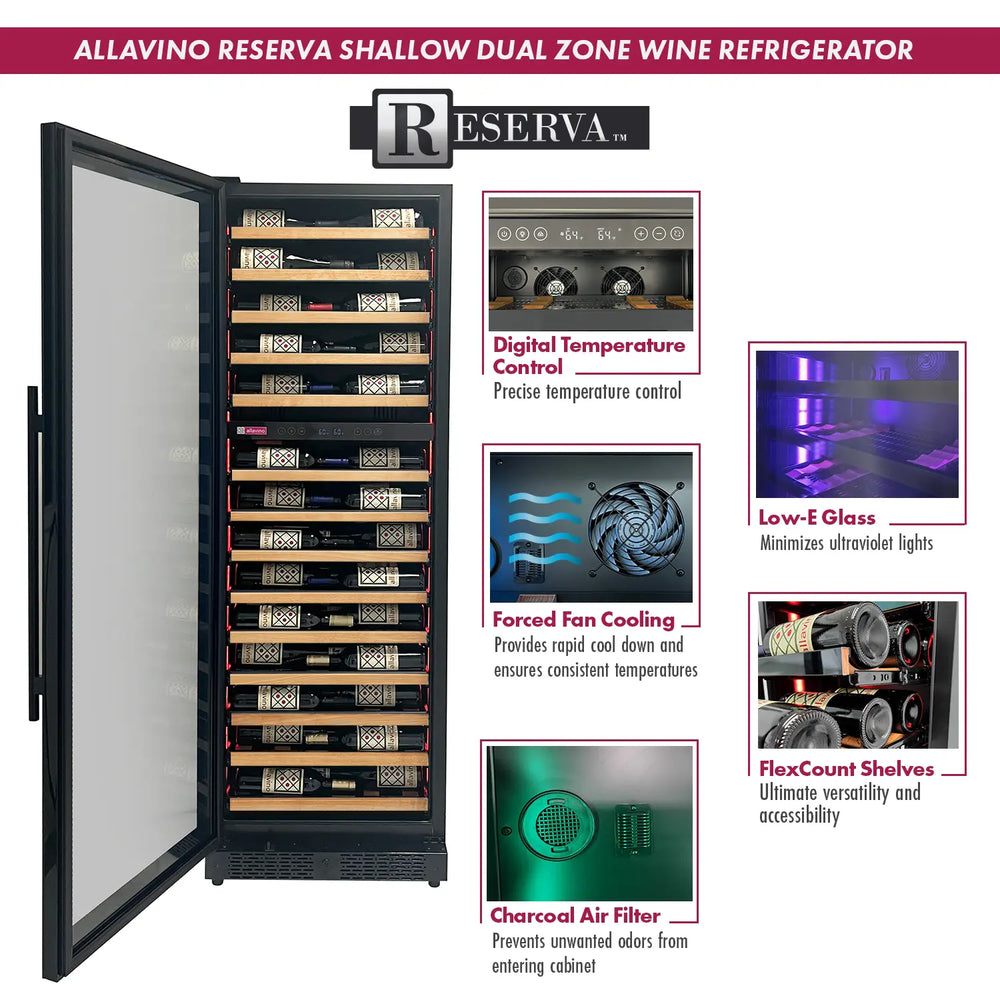

What's Included in the Box
›

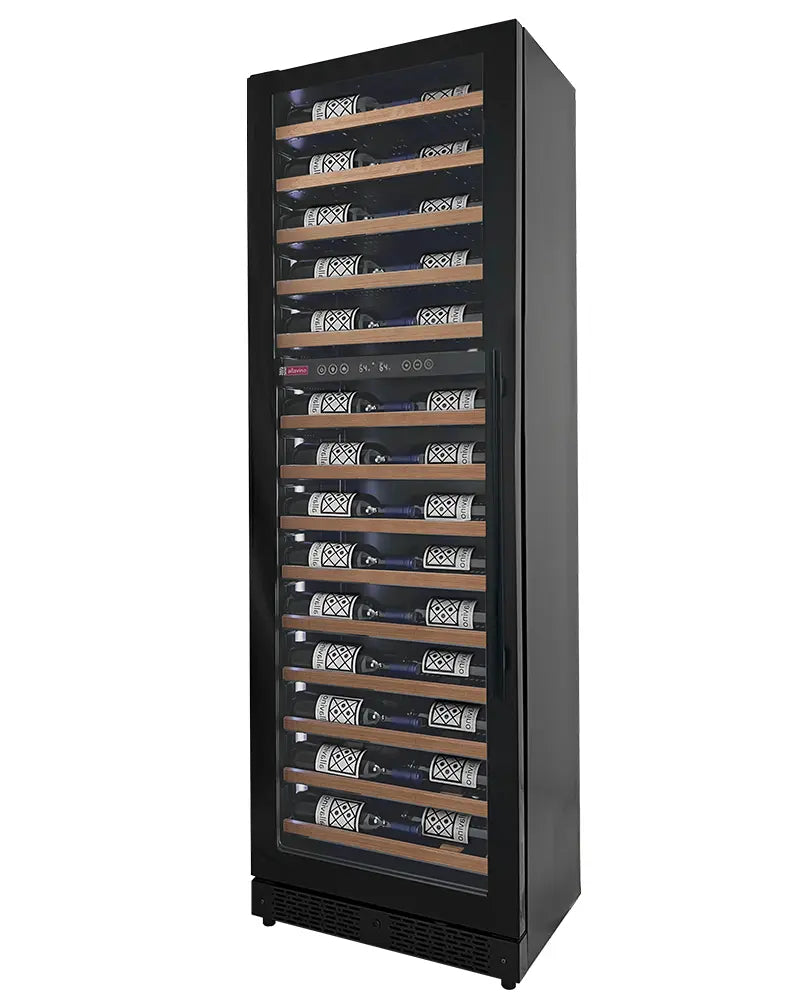

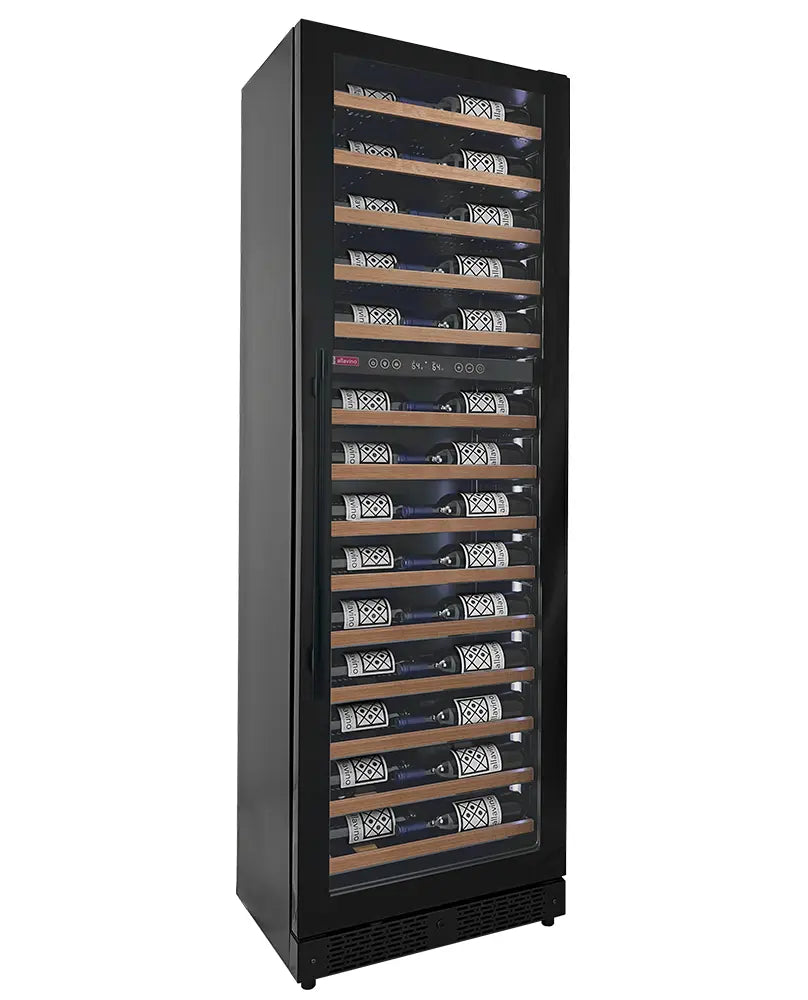

Allavino VSW6771 Slim Dual Zone Wine Cooler Unit
- VSW6771 dual zone wine cooler (slim built-in or freestanding, front-venting)
- 14 FlexCount® roll-out shelves (wood and metal fronts)
- UV-tinted, black-framed glass locking door
- LED interior illumination
- Independent digital controls for upper and lower zones
- Tru-Vino® variable-speed compressor with internal fan cooling
Deep Dive — VSW6771 Features & Design
›
Configuration
Built-in undercounter or freestanding installation with front-venting airflow; plug-in 115V/60 Hz electric operation with independent dual-zone digital controls.
Dual Zones for Red & White Wine
Set independent upper and lower compartments to ideal service temps so delicate whites stay crisp while structured reds develop gracefully — true dual zone performance in a slim footprint.

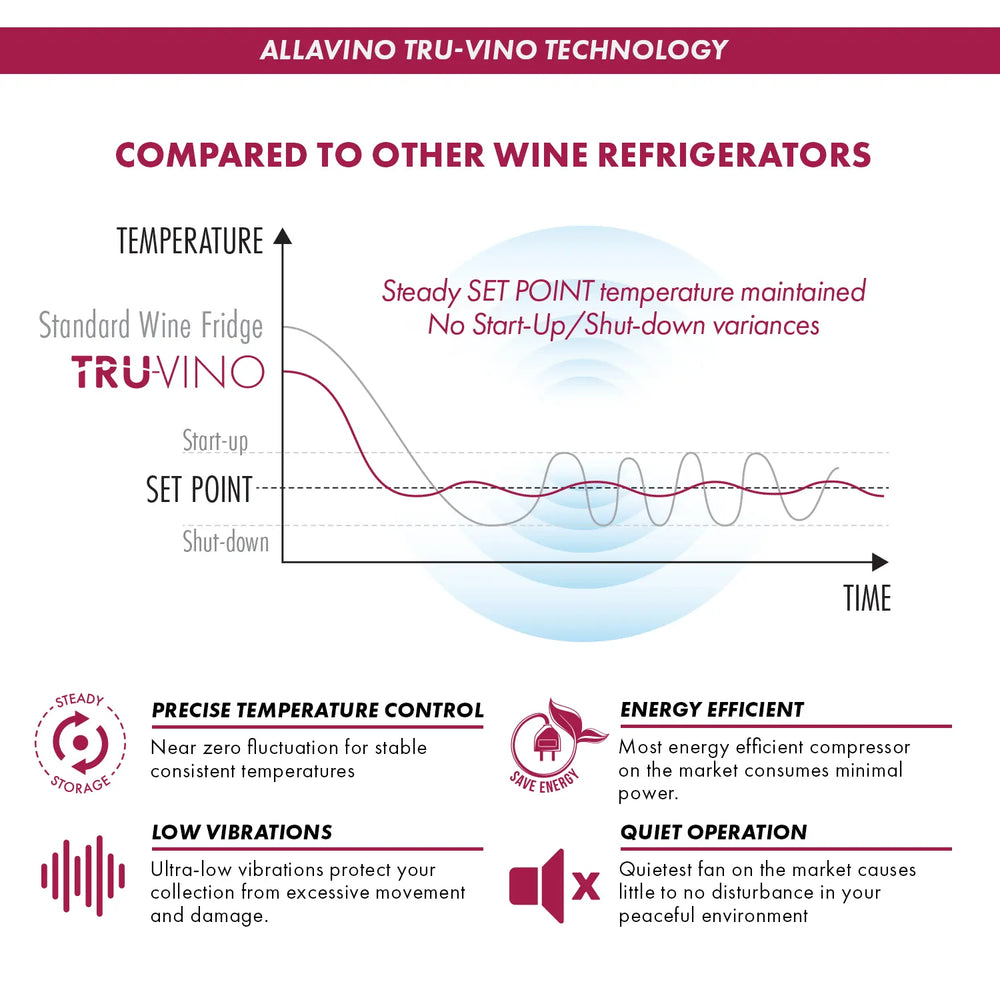

Tru-Vino® Quiet Precision
Sensor-driven Tru-Vino® compression with fan-forced circulation minimizes swings and vibration for even cooling, quiet operation, and reliable long-term cellaring.
Who It's For — The Deck & Den Take
›
The VSW6771 was built for one specific problem: you want serious wine storage with dual zone control, but your space simply won't take a standard-depth unit. At 16.8 inches deep it fits shallow undercounter cabinetry that stops every other 67-bottle wine fridge in its tracks. If you're in a condo, a galley kitchen, a narrow wet bar, or anywhere a standard 24-inch depth is just not happening, this is the unit to look at seriously.
If depth isn't your constraint and you just need high capacity, a standard-depth model will give you more shelving flexibility for the same money. This one trades a few configuration options to nail the slim-fit problem — and it does that exceptionally well. The commercial rating also makes it a legitimate option for wine bars and hospitality setups where NSF-compliant equipment is required.
Worth knowing before you order: the listed depth is 16.8 inches, but plan for 18.4 inches with the handle in place. That's the number to measure against your cabinet opening — not the unit depth.

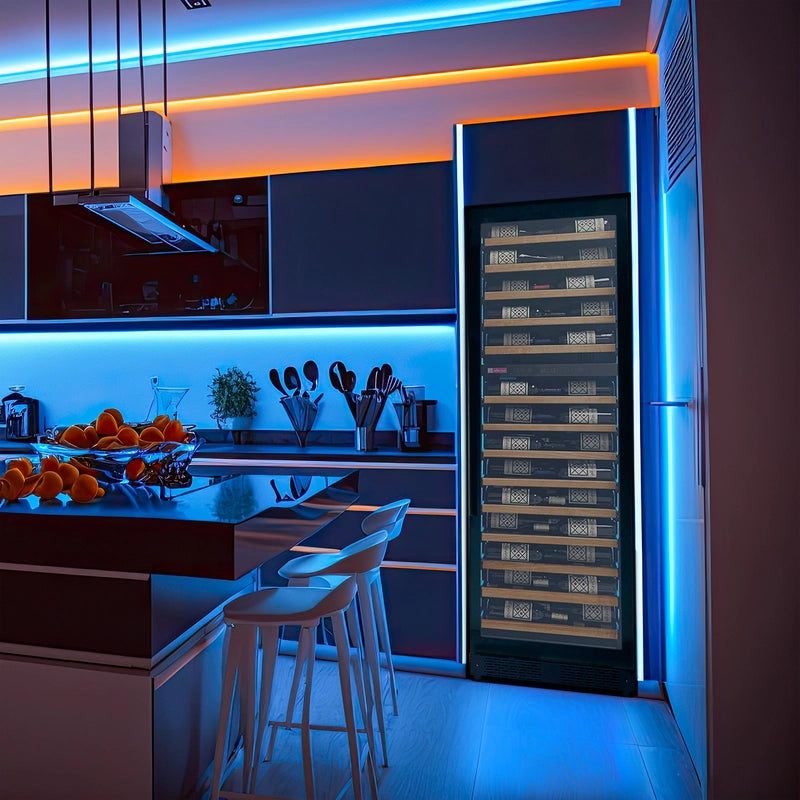

- Condo and apartment kitchens where standard-depth wine fridges simply won't fit
- Narrow wet bars, galley kitchens, and built-in runs with shallow cabinet depth
- Collectors who need dual zone reds-and-whites control without sacrificing capacity
- Wine bars and tasting rooms that need a commercially rated slim unit
Full Specifications & Dimensions
›
Allavino VSW6771 Wine Cooler Specifications
| Brand |
Allavino |
| Model |
VSW6771 |
| Configuration |
Slim built-in or freestanding; front-venting |
| Zones |
Dual zone (also available as single zone) |
| Capacity |
Up to 67 bottles |
| Temperature Range |
Upper 41°F–60°F; Lower 45°F–64°F |
| Dimensions |

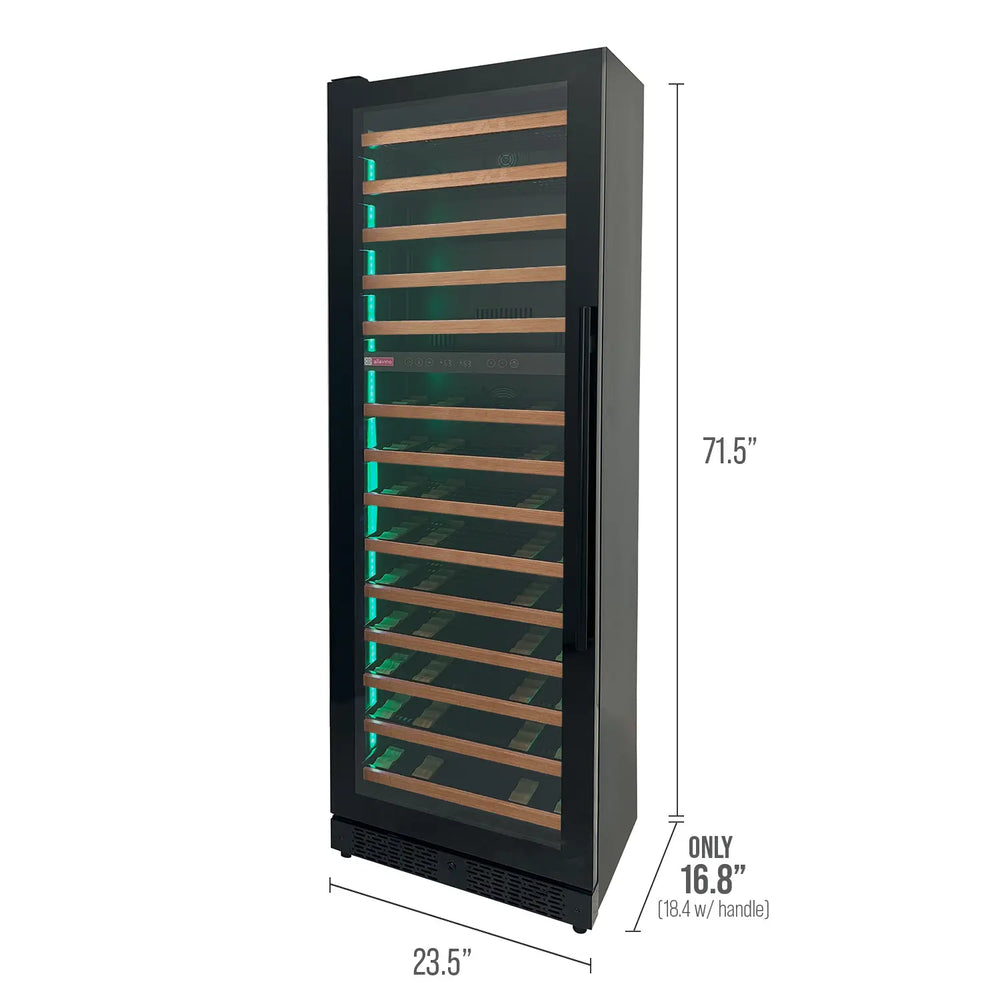

71.5" H × 23.5" W × 16.8" D (18.4" with handle) |
| Weight |
224 lbs |
| Shelving |
14 roll-out shelves (wood/metal fronts) |
| Cooling System |
Compressor with internal fans (Tru-Vino®) |
| Lighting |
LED interior illumination |
| Door |
UV-tinted, black-framed glass; locking |
| Electrical |
115V / 60 Hz / 2.1A |
| Commercial / Outdoor |
Commercial: Yes; Outdoor: No |
| Warranty |
1 year parts & labor; 5 years compressor |
Warranty, Shipping & Returns
›
-
Warranty: Covered by Allavino's 1-year parts & labor warranty and 5-year compressor warranty, honored directly by the manufacturer.
-
Shipping: Free shipping on this item.
-
Returns: Review our return policy for full details.
-
Price Match: Found a lower price? We'll match it — see our Price Match Guarantee.
Manuals & Documents
›
Frequently Asked Questions
›
How deep is the Allavino VSW6771 — will it fit shallow cabinetry?›
The VSW6771 measures 16.8" deep without the handle and 18.4" deep with the handle in place. This is significantly shallower than standard wine fridges, making it suitable for shallow undercounter cabinetry where standard-depth units won't fit. Always use the 18.4" handle-included depth when measuring your installation clearance.
How many bottles does the VSW6771 hold?›
The VSW6771 holds up to 67 standard wine bottles across both zones and 14 roll-out shelves. Actual capacity may vary by bottle shape — the FlexCount® shelving is designed to accommodate Bordeaux, Burgundy, and sparkling formats.
What are the temperature ranges for each zone?›
The upper zone maintains 41°F–60°F, suited for reds at cellar or serving temperature. The lower zone maintains 45°F–64°F, suited for whites and sparkling wines. Each zone is independently controlled and does not affect the other.
Is the VSW6771 a true built-in wine fridge?›

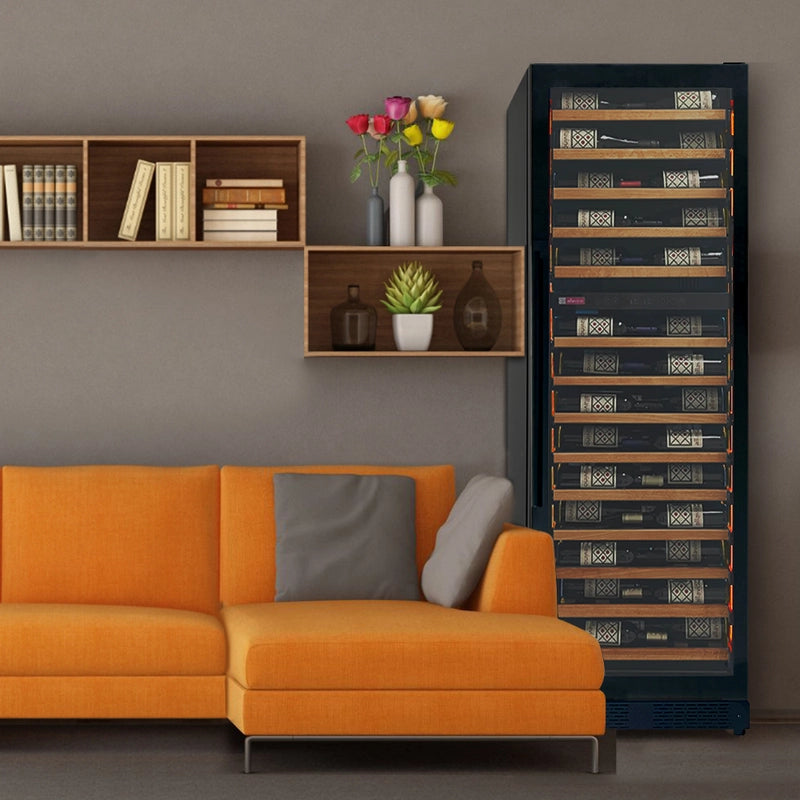

Yes. The VSW6771 is front-venting, which means it can be installed flush in undercounter cabinetry without rear or side ventilation clearance. It can also be used freestanding.
What are the full dimensions of the VSW6771?›
The VSW6771 measures 71.5" H × 23.5" W × 16.8" D (18.4" with handle) and weighs 224 lbs. At 71.5 inches tall it is a full-column unit — confirm ceiling and entry clearance in addition to the depth measurement before delivery.
What is Tru-Vino® cooling and why does it matter for wine storage?›
Tru-Vino® is Allavino's variable-speed compressor cooling technology with sensor-driven temperature management and internal fan circulation. It maintains consistent temperatures with low vibration — critical for long-term wine aging, since vibration can disrupt sediment and accelerate unwanted chemical reactions over time.
What bottle formats do the VSW6771 shelves accommodate?›

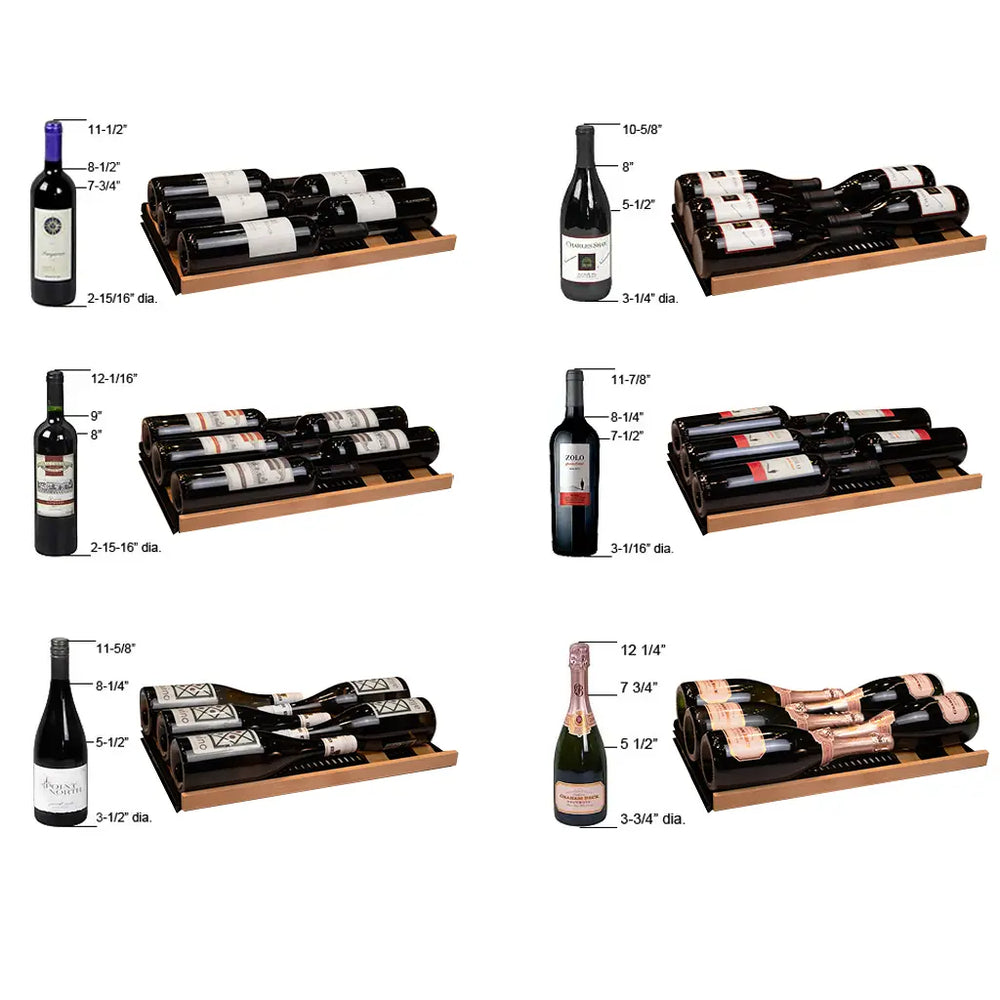

The VSW6771 includes 14 FlexCount® roll-out shelves with wood and metal fronts, designed to accommodate varied bottle formats including Bordeaux, Burgundy, and sparkling bottles without label scraping or forcing bottles into place.
Does the VSW6771 door have UV protection and does it lock?›
Yes to both. The black-framed glass door includes UV-tinting to block light that can degrade wine over time, and a key lock to secure your collection in shared kitchens, tasting rooms, or bar environments.
Is the VSW6771 approved for commercial use?›
Yes — the VSW6771 carries a commercial rating, making it a valid option for wine bars, tasting rooms, restaurants, and other commercial hospitality settings. It is not rated for outdoor use.

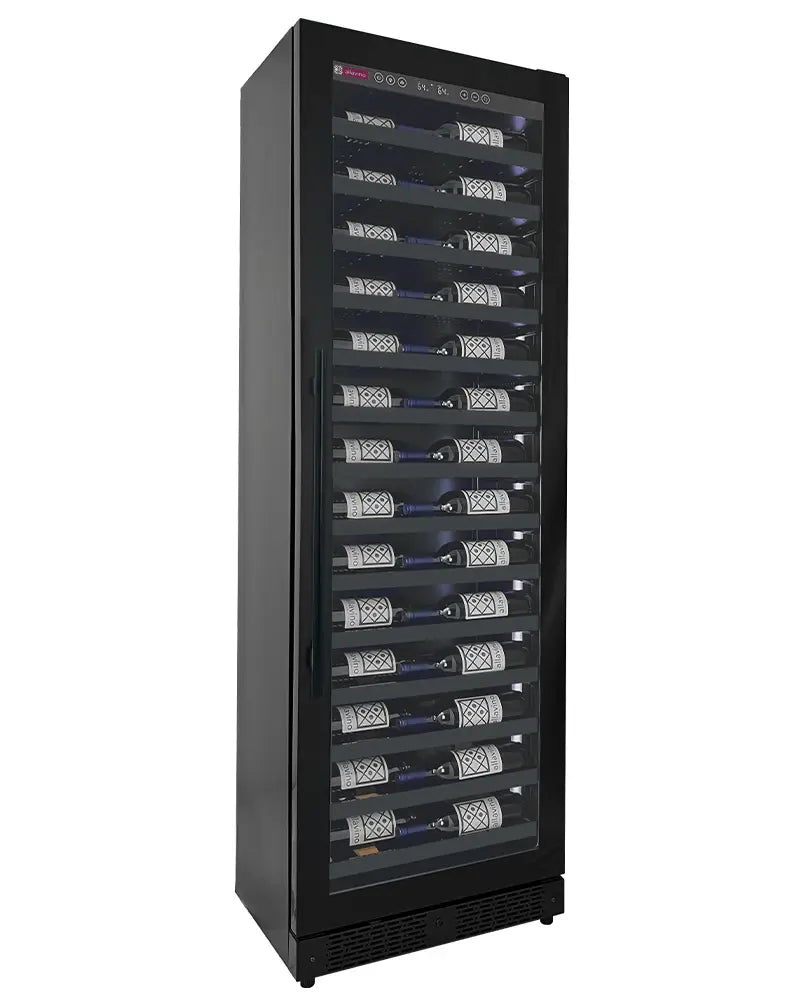

Is the VSW6771 available as a single zone model?›
Yes. The VSW6771 platform is available in both dual zone and single zone configurations. A single zone manual is included in the Documents section above for reference. If you purchased the dual zone model, use the Dual Zone Manual for installation and operating instructions.
What electrical connection does the VSW6771 require?›
The VSW6771 operates on 115V / 60 Hz / 2.1A — standard household current. No special wiring is required; plug it into a standard outlet near the installation location.
What warranty does the VSW6771 come with?›
The VSW6771 is covered by Allavino's 1-year parts and labor warranty and a 5-year compressor warranty, honored directly by the manufacturer.
