Allavino VSWR172/177 – Dual or Single Zone 172 or 177 Bottle Wine Fridge
The full-column Allavino — 71.5 inches tall, up to 177 bottles, your choice of dual-zone or single-zone cooling.
When capacity is the priority, the VSWR172 and VSWR177 are the answer. Both are full-column wine fridges standing 71.5 inches tall — purpose-built for dedicated wine rooms, bar walls, and large kitchen builds where a serious collection needs a serious home. The VSWR172 is the dual-zone model, keeping reds and whites at independent temperatures between 41°F and 64°F via Tru-Vino compressor cooling with near-zero fluctuation. The VSWR177 is the single-zone version, running the entire column at one set temperature for collectors who store primarily one style. Both use ball-bearing glide-out shelves that damp vibration while giving you clean access to any bottle, and both are front-vented for built-in installation or freestanding placement. At 304.2 lbs this requires professional delivery — and at 27 inches deep, confirm your cabinet depth before ordering.
What Makes the VSWR172/177 Stand Out
Four specs that define this unit — the SKU choice being the first decision every buyer needs to make.
Swipe to see all features →
172 or 177 Bottles
Capacity by SKU
VSWR172 (dual zone) holds up to 172 bottles; VSWR177 (single zone) holds up to 177. Confirmed: VSWR172 holds up to 172 bottles; VSWR177 holds up to 177 bottles.
Dual or Single Zone
Choose Your Configuration

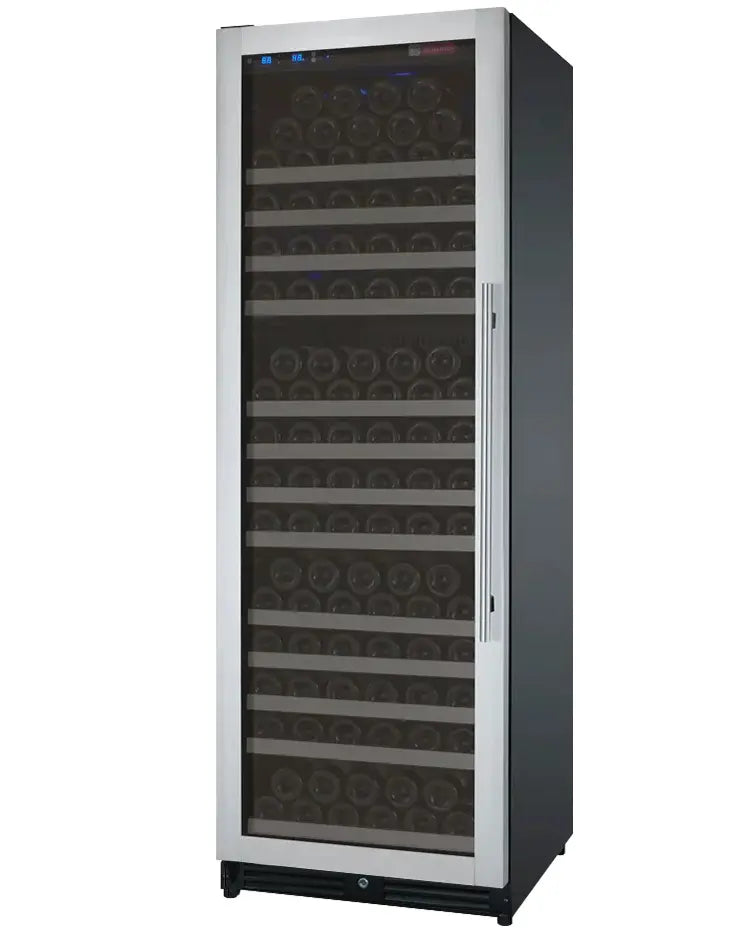

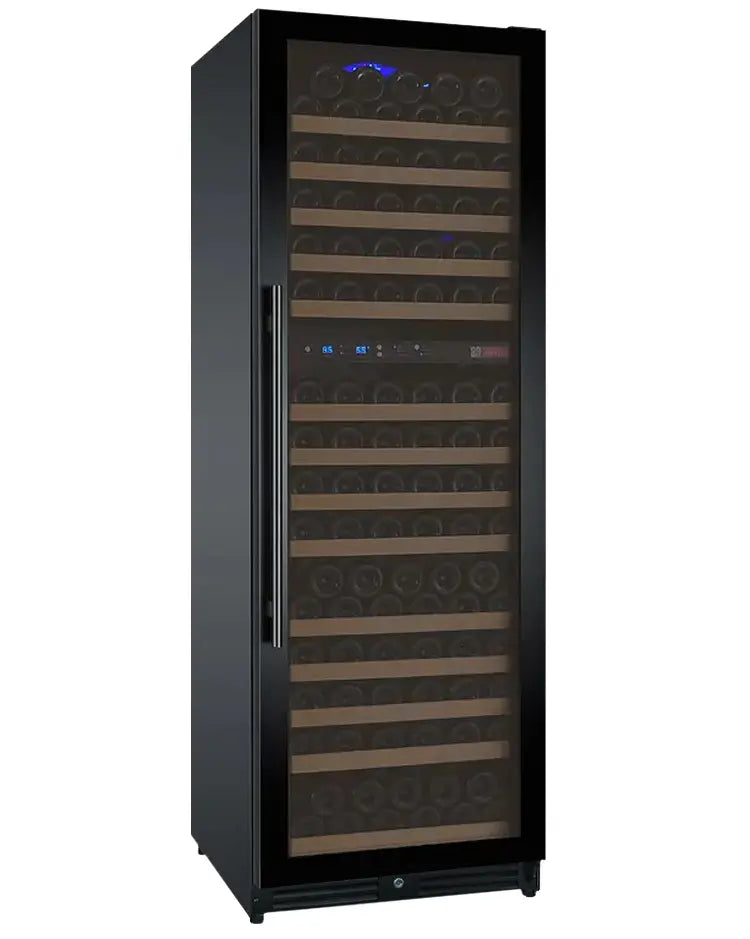

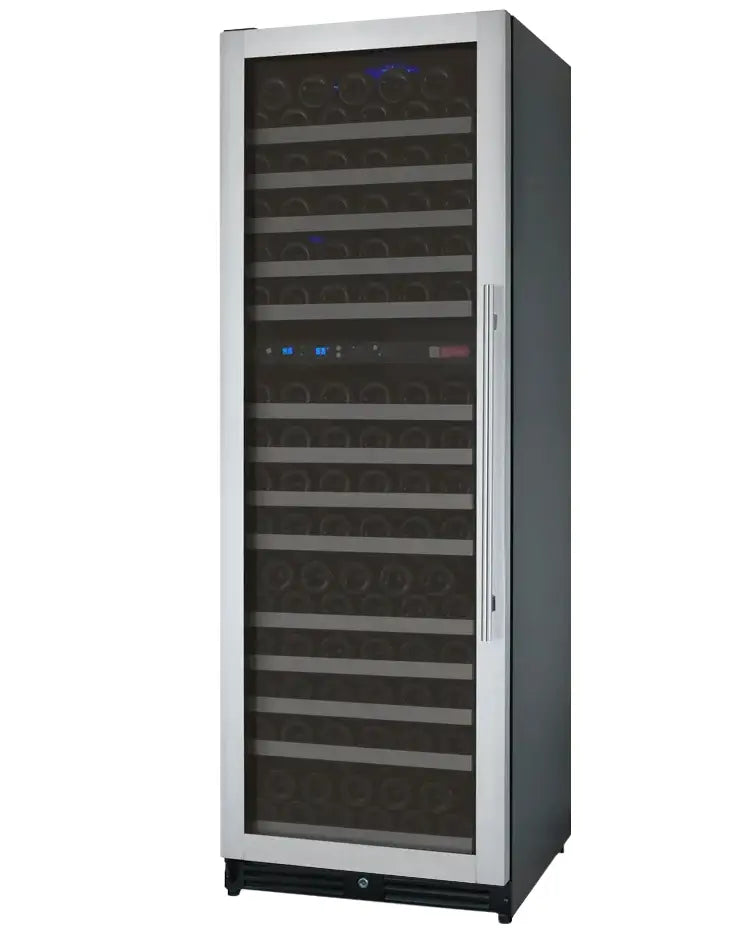

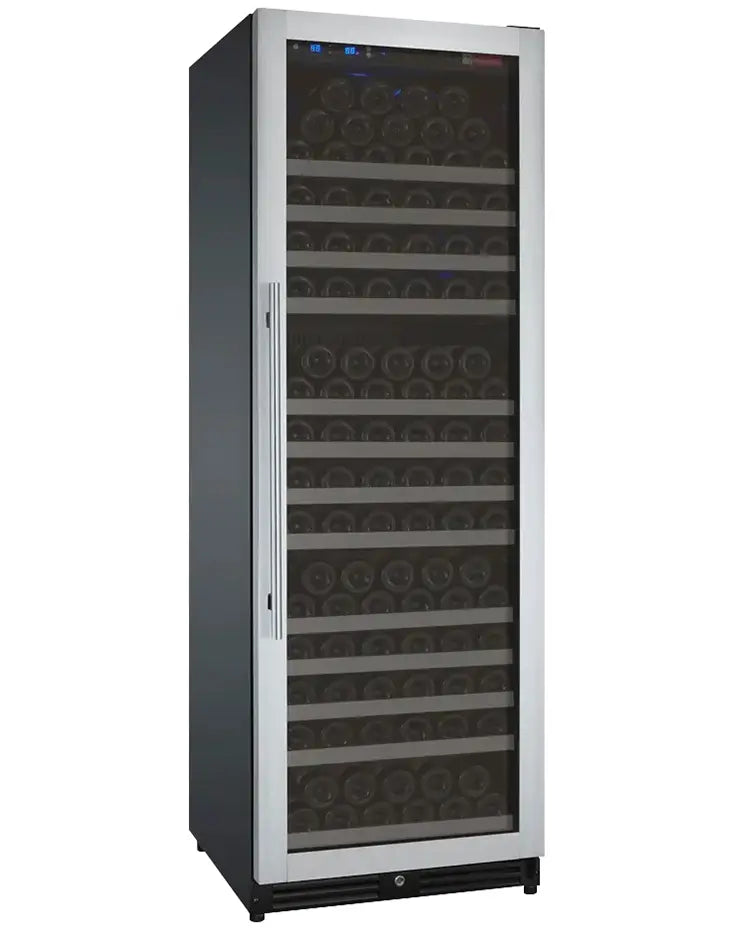

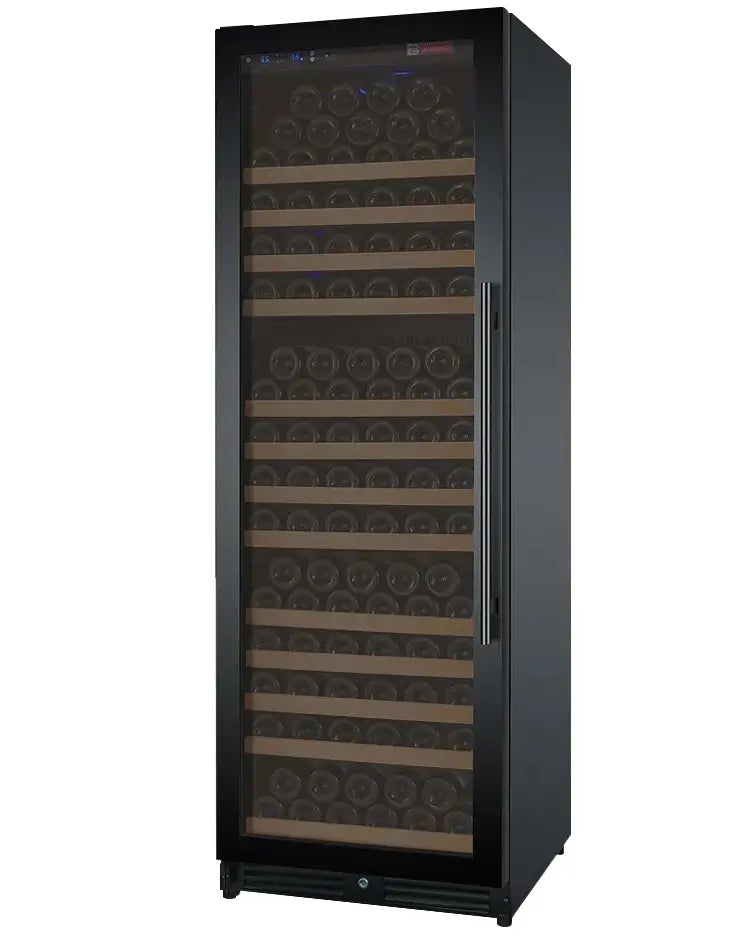

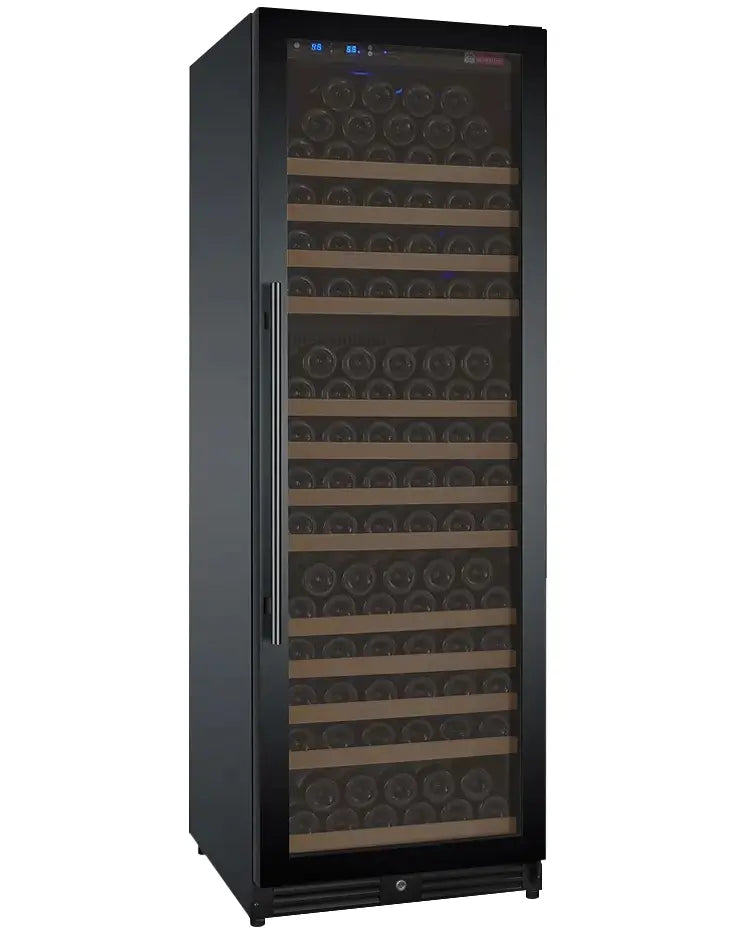

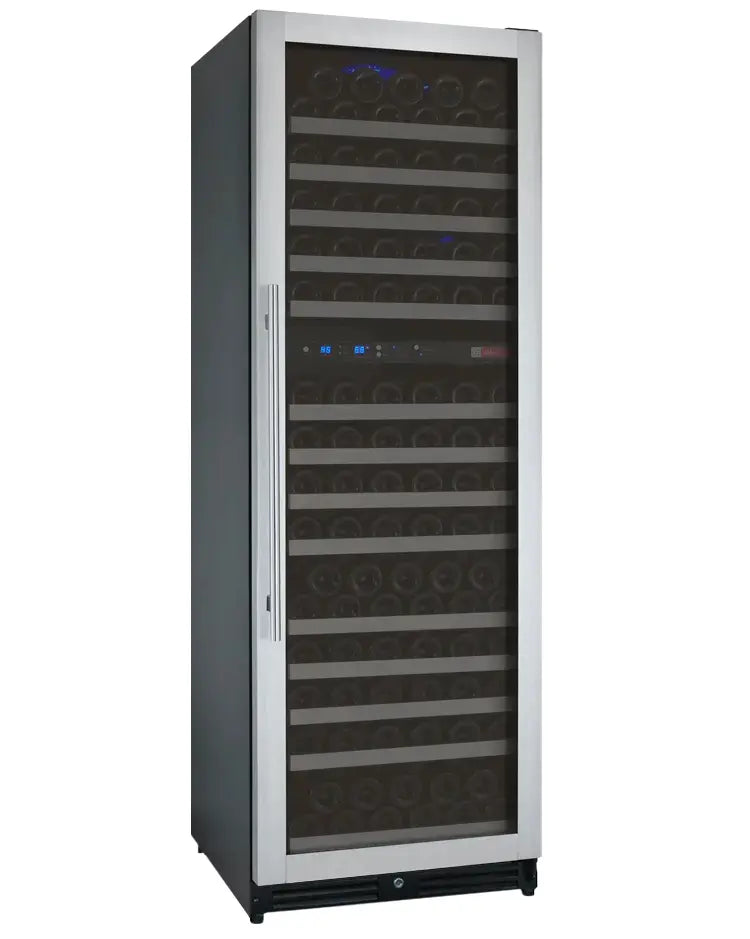

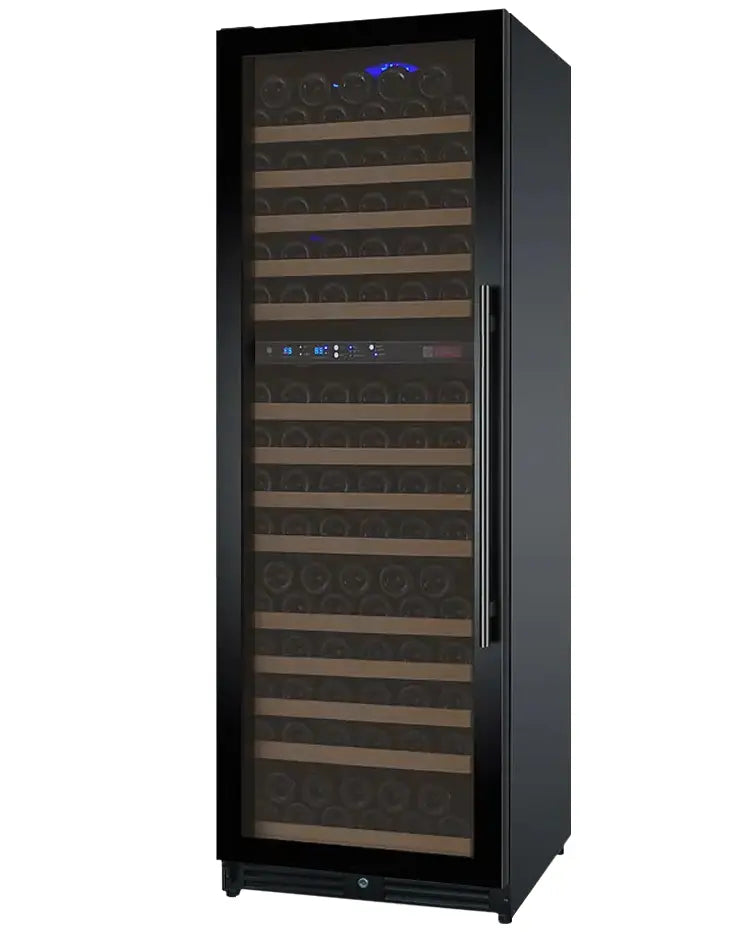

VSWR172 = dual-zone Tru-Vino cooling for independent red and white storage. VSWR177 = single-zone for collectors who run one set temperature.
41°F – 64°F
Tru-Vino® Temperature Range

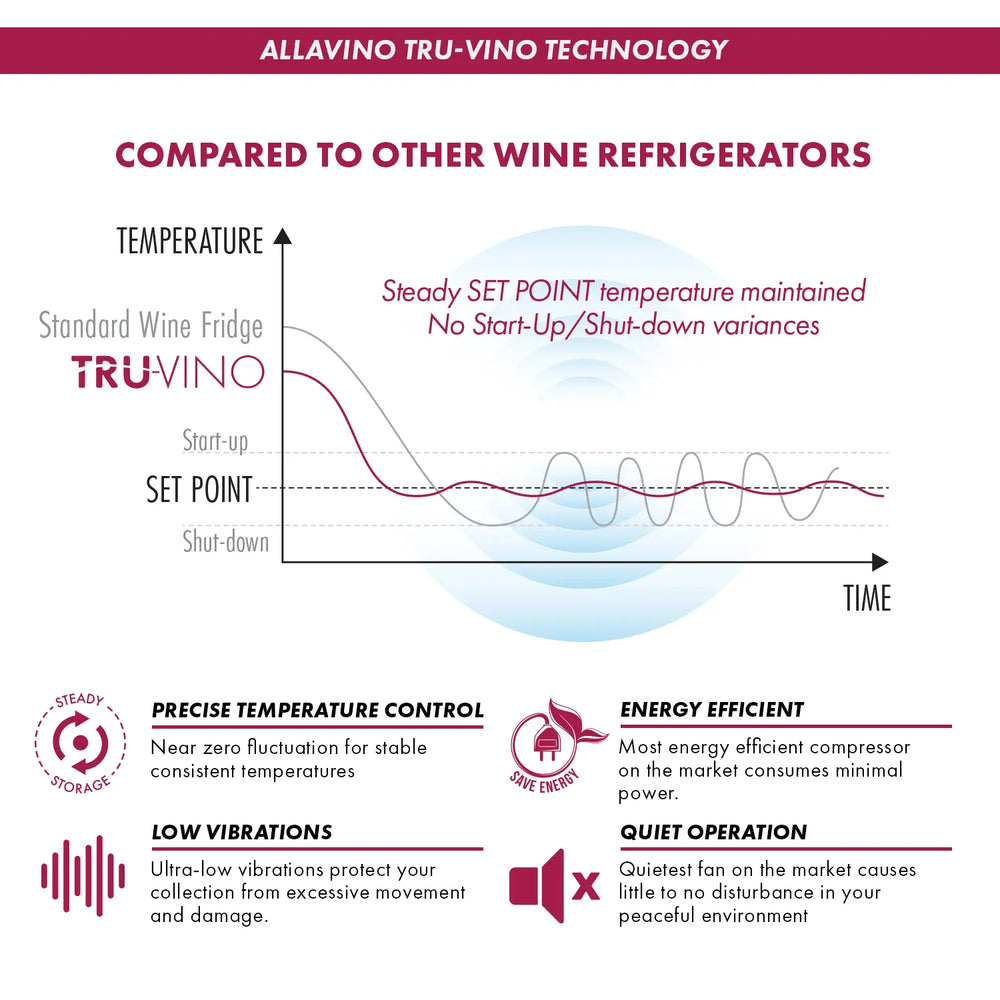

Precision digital cooling with near-zero fluctuation — from crisp whites to cellar-temperature reds, held steady by compressor and fan-forced circulation.
71.5" Tall
Full-Column Height
The tallest unit in the Allavino lineup — built for dedicated wine room columns, bar walls, and kitchen builds where full-height wine storage is part of the design.
What's Included in the Box›
Allavino VSWR172 (Dual Zone) or VSWR177 (Single Zone) Wine Refrigerator
- VSWR172 or VSWR177 wine refrigerator unit (per SKU selected)
- Glide-out ball-bearing shelves — VSWR172 includes 14 FlexCount storage shelves/drawers; VSWR177 includes 13.
- Each selected unit includes one door handle with mounting screws. The manuals also identify adjustable feet, an integrated security lock with key, and wall-anchoring brackets, straps, and screws.
Deep Dive — VSWR172 & VSWR177›
Tru-Vino® Cooling
Ensure your reds and whites are aged under perfect conditions with this dual zone wine fridge. Say goodbye to flavor-damaging fluctuations.

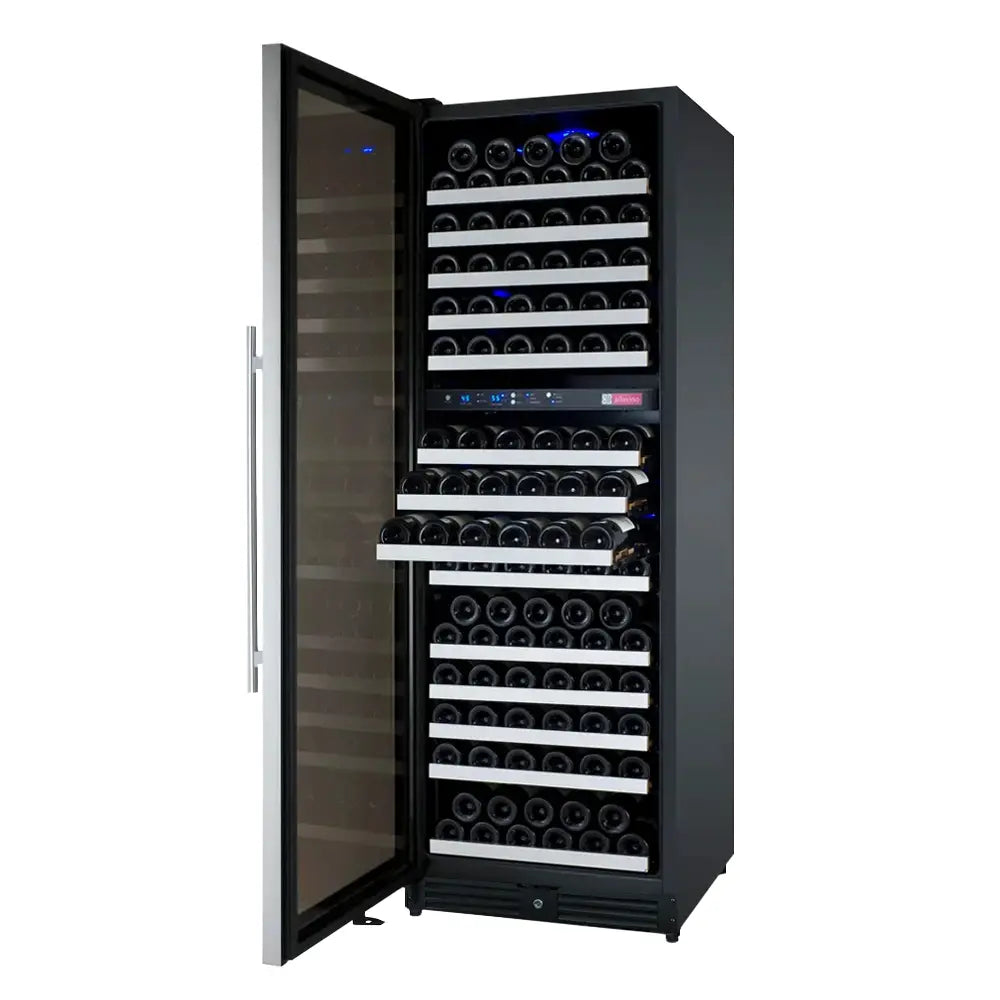

Glide-Out Vibration-Dampening Shelves
Each shelf slides smoothly on ball-bearing tracks while cradling bottles securely — ideal for collectors storing premium wine labels.

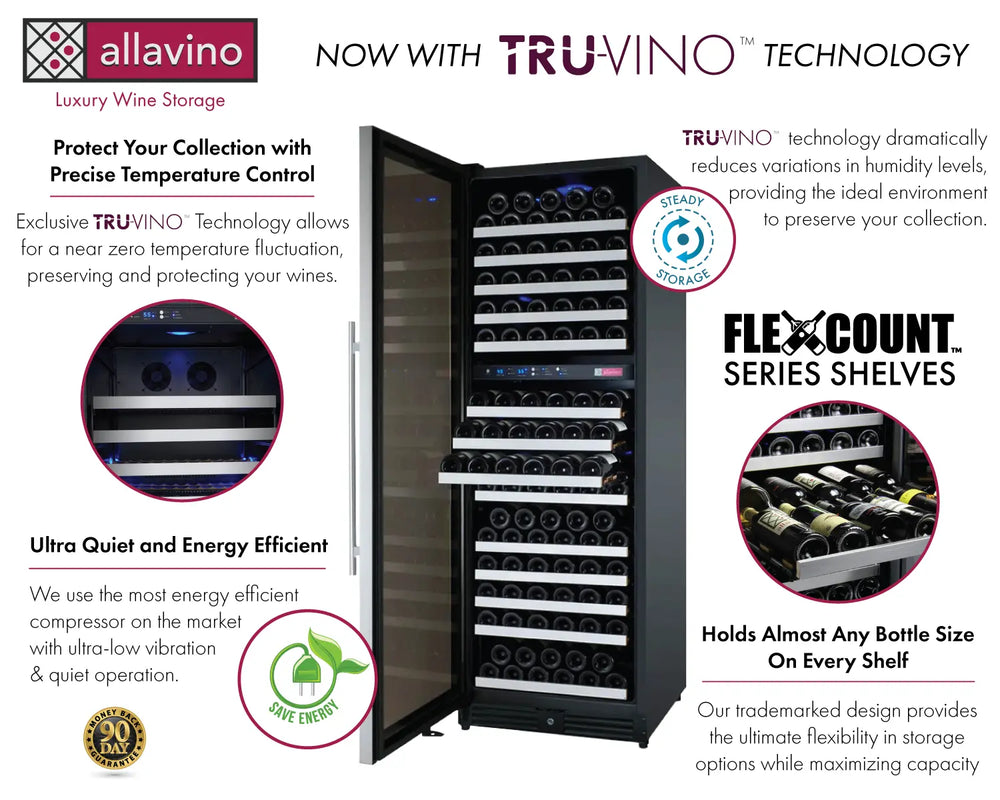

Key Features
-
Tru-Vino® dual or single zone cooling protects wine at 41°F–64°F
-
Quiet, label-safe glide-out shelves with ball-bearing tracks
-
Built-in ready front-venting system fits flush with cabinetry
- Soft blue interior LED lighting offers stylish visibility without UV risk
- Digital temperature control with modern display and lockable door
- Holds up to 177 bottles of wine in optimal conditions
Who It's For — The Deck & Den Take›
The VSWR172 and VSWR177 are for buyers who've outgrown everything else in this lineup. At 71.5 inches tall and up to 177 bottles, these are full wine room columns in appliance form — the kind of unit that becomes the centerpiece of a bar wall or a dedicated cellar build. If you're still measuring in dozens of bottles, this isn't your unit yet. If you're measuring in cases and thinking about what you'll be drinking in five years, it might be the only one that makes sense.
The decision between the two models is straightforward: if you store both reds and whites and want each at its own temperature, choose the VSWR172 dual-zone. If your collection is predominantly one style or you prefer the simplicity of a single set temperature across the full column, the VSWR177 single-zone does the same job without the zone management.
Two things to confirm before ordering: depth and weight. This unit is 27 inches deep — deeper than standard kitchen cabinetry — so built-in installations require a cabinet designed for it. And at 304.2 lbs (338 lbs shipping), this is a professional delivery job. Plan the route, confirm the floor, and have the right people there when it arrives.
- Serious collectors with 150+ bottle inventories who need a permanent, purpose-built home for their wine
- Bar walls, wine rooms, and kitchen builds with a dedicated full-height column space
- Buyers choosing between dual-zone (VSWR172) for mixed reds and whites, or single-zone (VSWR177) for simplified storage at one temperature
- Anyone who wants front-vented built-in capability without rear clearance requirements
- Collectors prioritizing long-term aging conditions — near-zero temperature fluctuation, UV-protected door, vibration-dampening shelves
Full Specifications & Dimensions›
Allavino VSWR172 / VSWR177 Specifications
| Models |
VSWR172 (Dual Zone) / VSWR177 (Single Zone) |
| Bottle Capacity |
Up to 172 bottles (VSWR172) / Up to 177 bottles (VSWR177) — Confirmed: VSWR172 holds up to 172 bottles; VSWR177 holds up to 177 bottles. |
| Zones |
Dual Zone (VSWR172) / Single Zone (VSWR177) |
| Temperature Range |
41°F – 64°F — VSWR172 upper zone: 40°F–55°F; lower zone: 55°F–65°F. VSWR177 single-zone: 41°F–64°F. |
| Cooling System |
Tru-Vino® Compressor with Fan-Forced Circulation |
| Ventilation |
Front-Venting (Built-In Capable) |
| Height |
71.5" |
| Width |
23.5" |
| Depth |
27.0" |
| Cutout Dimensions |
The manuals do not publish a separate cutout size. Both units measure 71.5" H × 23.5" W × 27" D (28.75" with handle), permit fully recessed built-in installation, and require the front ventilation base to remain completely unobstructed. Verify the finished opening against the actual unit. |
| Weight |
304.2 lbs (338 lbs shipping) |
| Shelving |
Glide-Out Ball-Bearing Shelves — VSWR172 includes 14 FlexCount storage shelves/drawers; VSWR177 includes 13. |
| Lighting |
Blue LED Interior |
| Lock |
Yes (Lockable Door) |
| Door |
UV-protective glass door; frame finish is black or stainless steel depending on the selected SKU, with a black metal cabinet. |
| Electrical |
115V / 60Hz / 1.1A running current for both models; use a grounded three-prong outlet. The manuals recommend a separate circuit serving only the appliance. |
| Warranty |
1 year parts and labor; limited compressor-only coverage from years 2 through 5, with labor and freight during the compressor period paid by the owner. Warranty service is handled directly by Allavino. |
Warranty, Shipping & Returns›
-
Manufacturer Warranty: Allavino provides 1 year of parts-and-labor coverage and limited compressor-only coverage from years 2 through 5; labor and freight during the compressor period are the owner's responsibility. Coverage is administered directly by Allavino.
-
Free Shipping: This item ships free to the contiguous US. See our Free Shipping Policy for full details.
-
Returns: See our Return Policy for eligibility and instructions.
-
Price Match: Found it cheaper somewhere else? We'll match it. See our Price Match Guarantee.
Manuals & Documents›
Frequently Asked Questions›
What is the difference between the VSWR172 and VSWR177? ›
The VSWR172 is the dual-zone model with independent temperature control for reds and whites. The VSWR177 is the single-zone model, running the entire column at one set temperature. Bottle capacity differs slightly between the two — VSWR172 holds up to 172 bottles; VSWR177 holds up to 177 bottles.
How many bottles do the VSWR172 and VSWR177 hold? ›
The VSWR177 (single zone) holds up to 177 bottles. The VSWR172 (dual zone) holds up to 172 bottles. Confirmed by the manuals: up to 172 bottles for VSWR172 and up to 177 bottles for VSWR177.
What temperature range does the VSWR172/177 reach? ›
The combined temperature range is 41°F to 64°F. The VSWR172 upper zone operates from 40°F to 55°F and the lower zone from 55°F to 65°F. The VSWR177 single-zone model operates from 41°F to 64°F.
Can the VSWR172/177 be installed built-in? ›
Yes. Both units are front-vented and built-in capable — they install flush into cabinetry without rear clearance. They also work freestanding. Important: the depth is 27 inches, which is deeper than standard kitchen cabinetry. Any built-in installation requires a cabinet or niche designed for this depth. The manuals do not specify a separate cutout measurement. Use the documented 71.5" H × 23.5" W × 27" D cabinet dimensions (28.75" with handle), keep the front ventilation completely unobstructed, and verify the opening against the actual appliance.
What are the cutout dimensions for built-in installation? ›
The manuals do not provide a dedicated cutout size. Both models measure 71.5" H × 23.5" W × 27" D (28.75" with handle), allow fully recessed installation, and require the front ventilation base to remain completely unobstructed. Confirm the finished opening and depth against the actual unit.

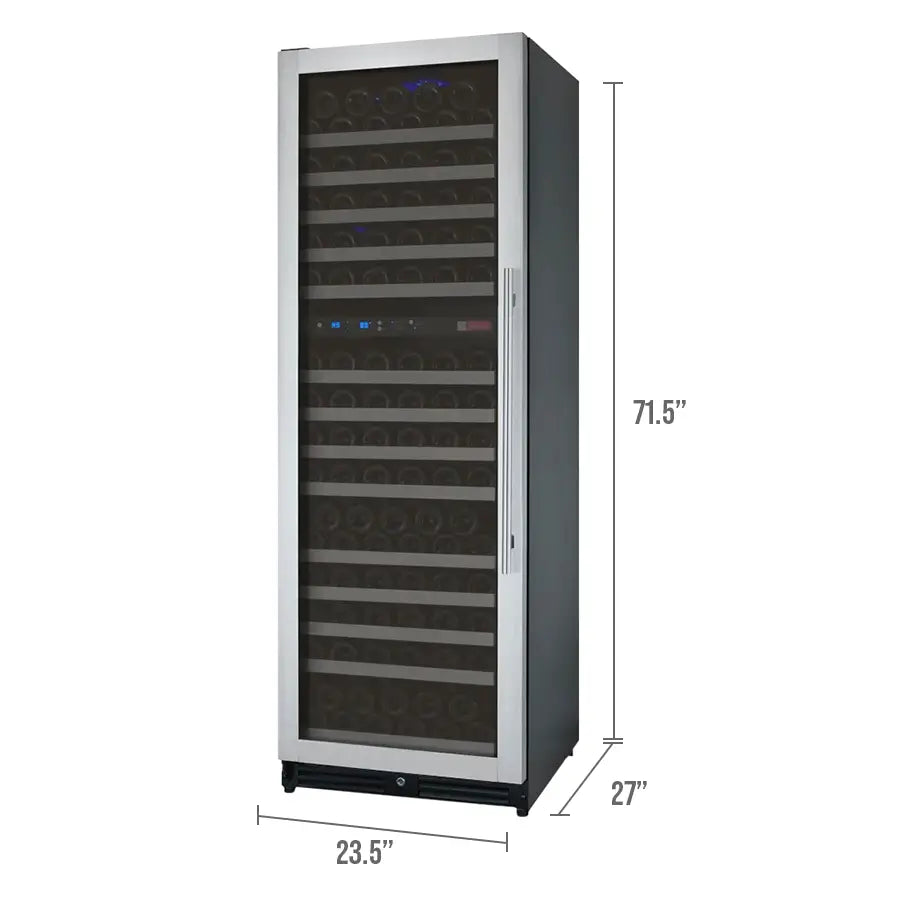

What are the dimensions and weight of the VSWR172/177? ›
Both models measure 71.5" H x 23.5" W x 27.0" D and weigh 304.2 lbs (338 lbs shipping weight). At 304 lbs, this requires a professional delivery team for safe placement. Confirm the delivery route, floor capacity, and final installation space before ordering.
Does the VSWR172/177 have a lockable door? ›
Yes. Both the VSWR172 and VSWR177 feature a lockable door with a digital temperature control display.
What is the shelving system on the VSWR172/177? ›

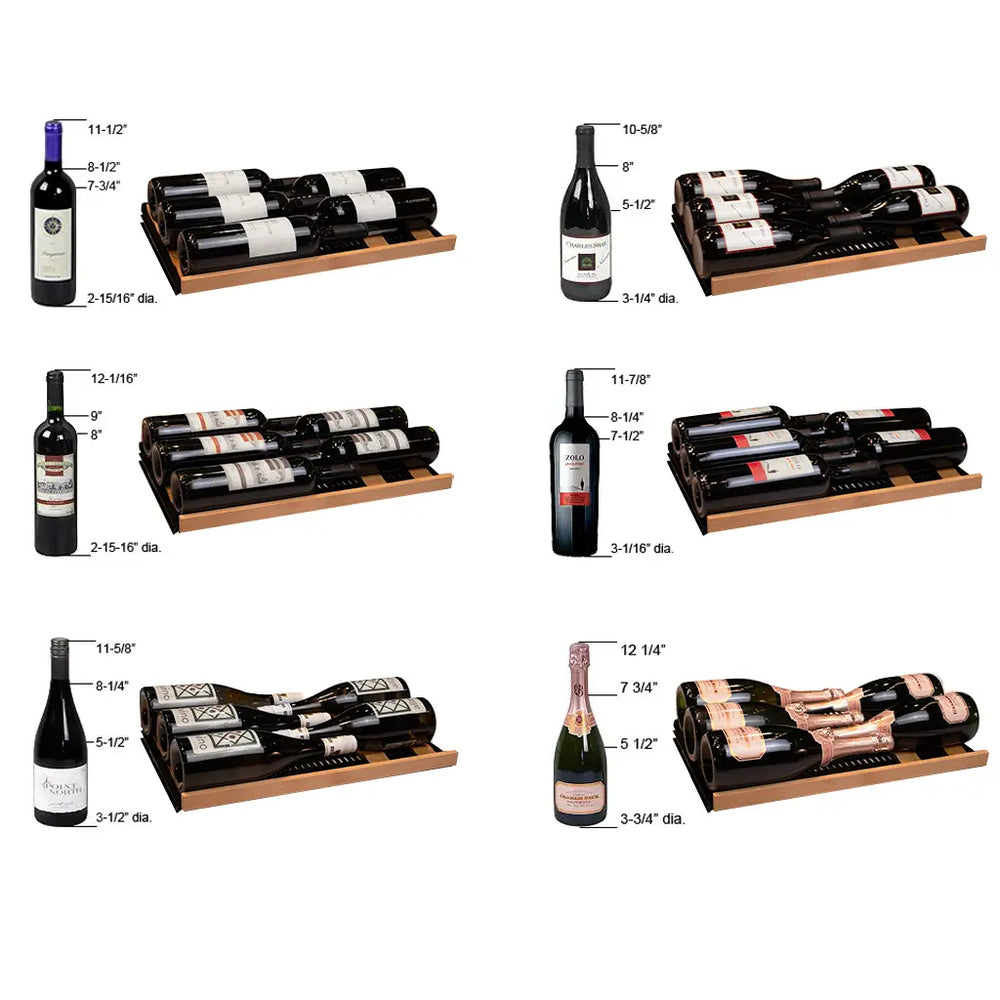

Both models feature glide-out ball-bearing shelves that minimize vibration and allow quiet, smooth access to any bottle without disturbing the rest of the rack. VSWR172 has 14 removable, repositionable FlexCount shelves/drawers; VSWR177 has 13. They use metal shelf frames with wood slats and glide out on ball-bearing tracks.
What electrical connection do the VSWR172/177 require? ›
Both models require 115V / 60Hz power and draw 1.1A while running. Use a grounded three-prong outlet; the manuals recommend a separate circuit serving only the appliance.
What is the warranty on the Allavino VSWR172/177? ›
Allavino provides 1 year of parts-and-labor coverage plus limited compressor-only coverage from years 2 through 5; the owner is responsible for labor and freight during the compressor period. Warranty service is handled directly by Allavino.
